Description

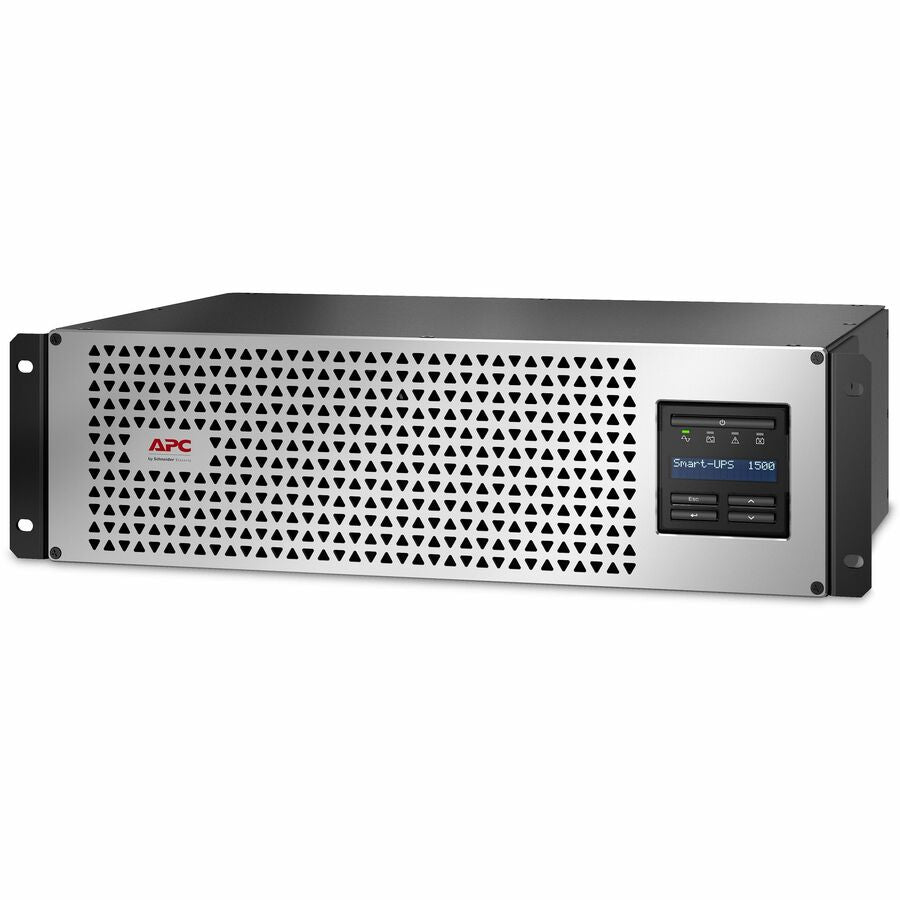

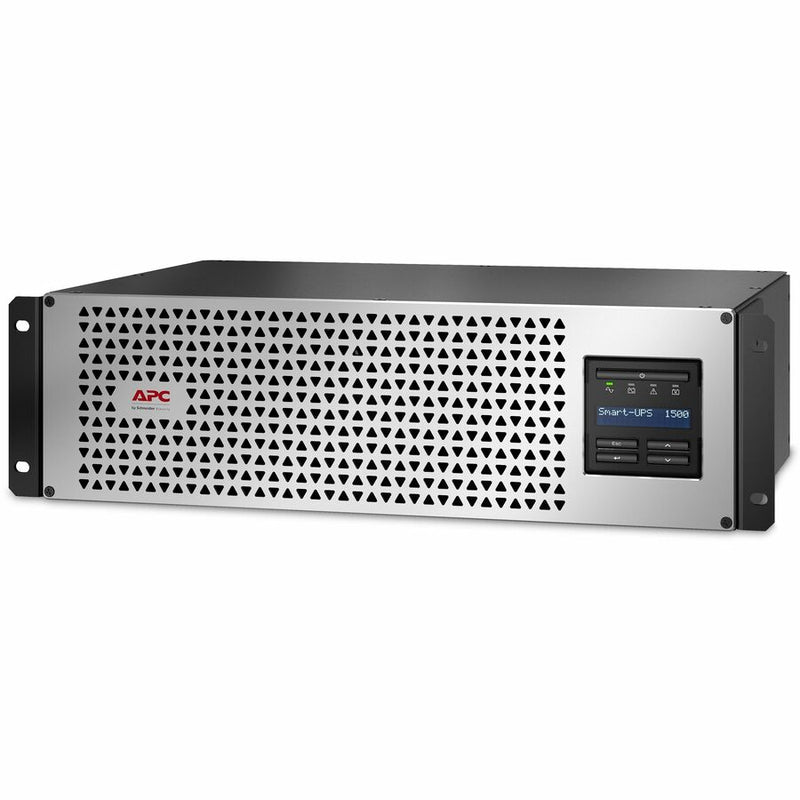

Ensure maximum uptime and critical load protection with the APC Smart-UPS SMTL1500RM3UC. This compact, 3U rackmount UPS delivers 1440VA/1350W of pure sine wave power using line interactive topology and features a long-lasting lithium-ion battery with up to 10 years of life. Designed for edge environments, back offices, and network closets, this short-depth UPS includes 6 NEMA 5-15R outlets, SmartConnect cloud monitoring, and a SmartSlot for network management cards.

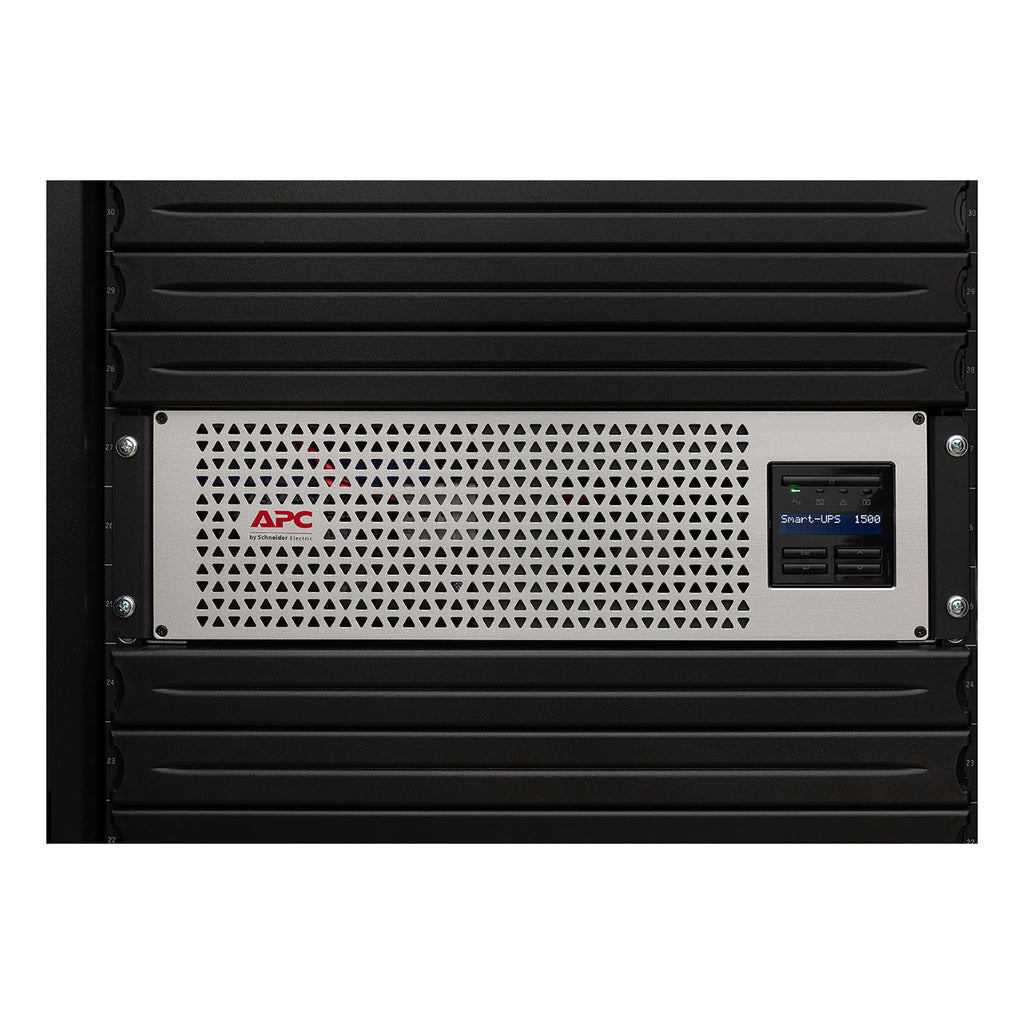

Its compact depth offers improved cable management in tight rack installations. The included SmartConnect Ethernet port allows cloud-based remote monitoring, proactive alerts, and firmware updates. Backed by a 5-year warranty on both the UPS and battery, this solution minimizes maintenance, improves efficiency, and ensures long-term reliability.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SMTL1500RM3UC |
| Topology | Line Interactive |
| Form Factor | 3U Rackmount (Short Depth) |
| Capacity | 1440VA / 1350W |
| Input Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Output Voltage | 120V |

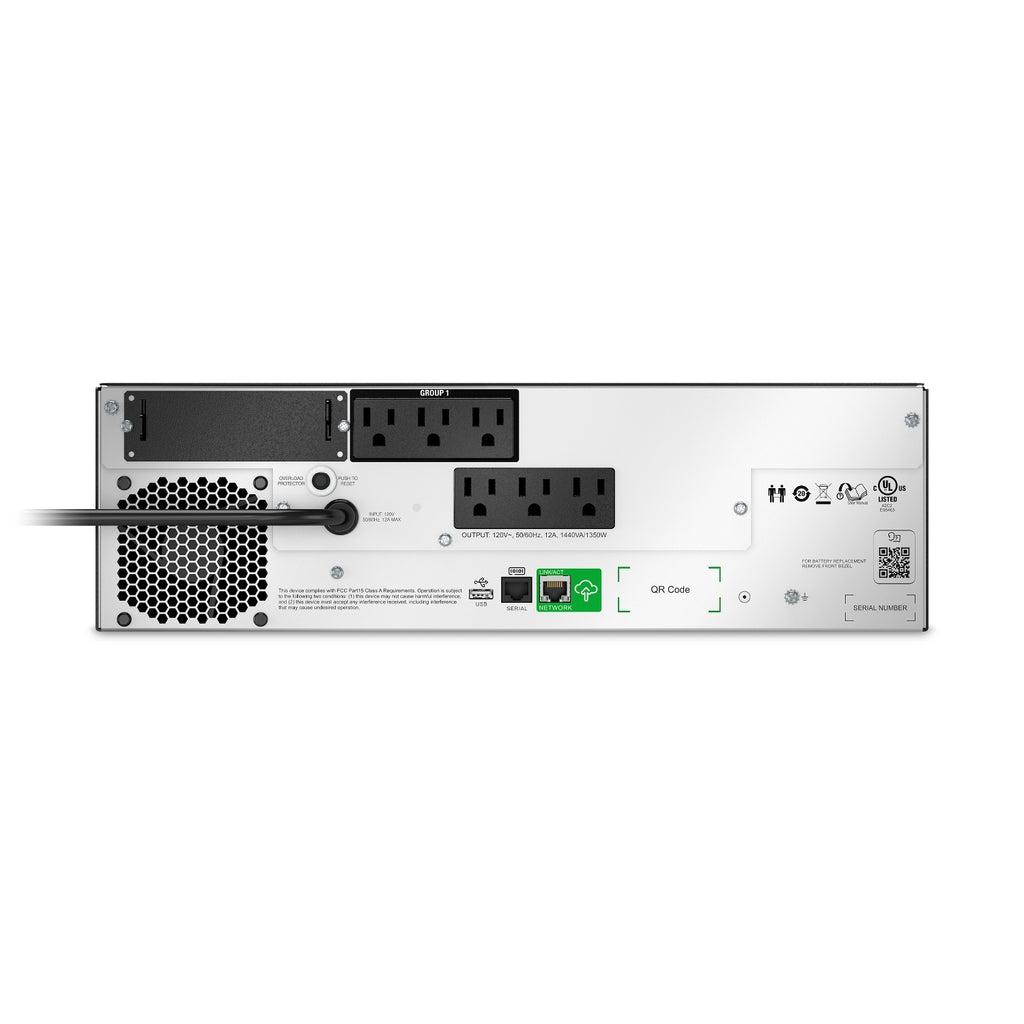

| Output Connections | 6 x NEMA 5-15R |
| Waveform Output | Pure Sine Wave |
| Battery Type | Lithium-ion (8–10 year life) |
| Recharge Time | 3 hours typical |
| Runtime | 5 mins at full load (1350W) |
| Communication Ports | SmartConnect Ethernet Port, SmartSlot |
| Monitoring Software | SmartConnect / EcoStruxure IT compatible |
| Display | Multi-function LCD |
| Surge Protection Rating | 680 Joules |
| Audible Alarm | Low battery and on-battery alarms |
| Efficiency | Up to 98% (line interactive mode) |
| Color | Black with silver front bezel |

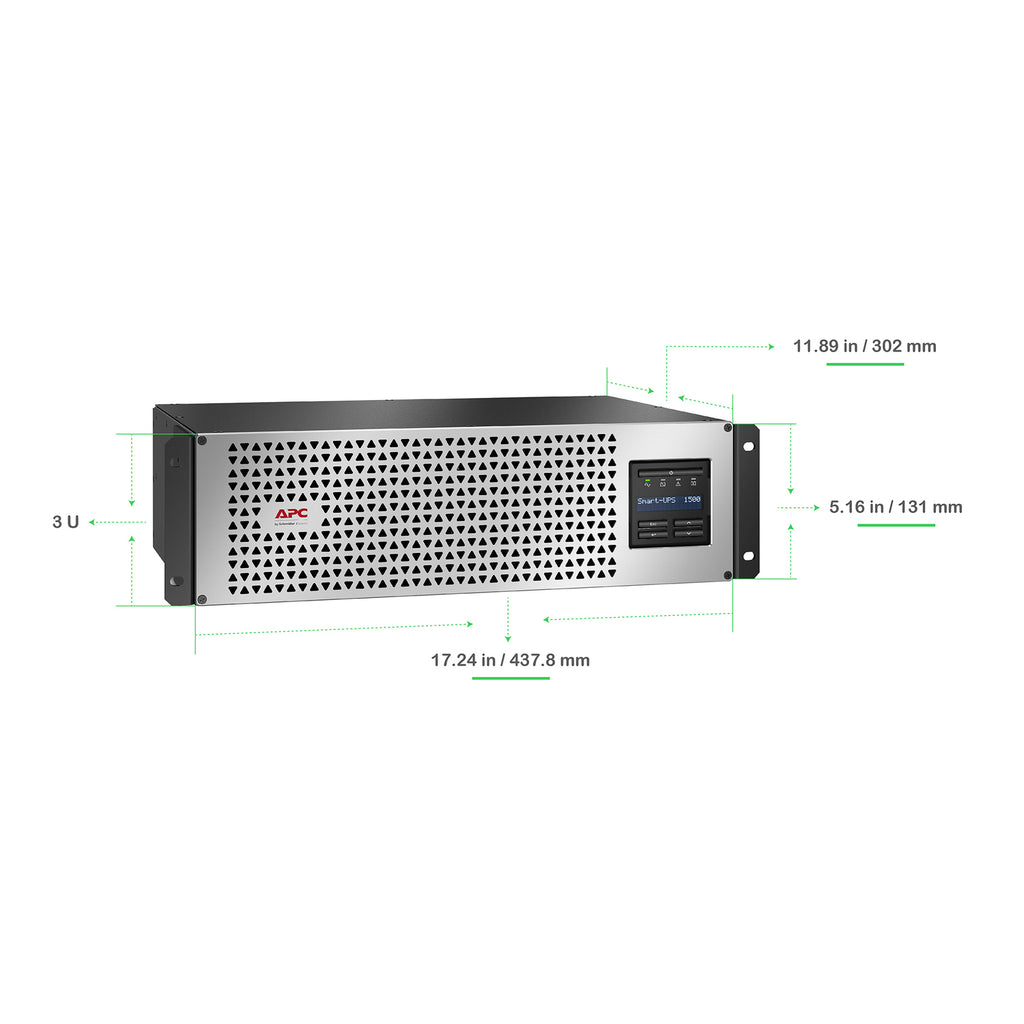

| Dimensions (HxWxD) | 5.16 x 17.24 x 11.89 in (13.1 x 43.8 x 30.2 cm) |
| Weight | 43.0 lbs (19.5 kg) |
| Included Accessories | USB cable, rackmount rails, installation guide |
| Certifications | NOM |
| Environmental | 0–40°C operating, 0–95% RH non-condensing, IP20 |
| Warranty | 5 years repair or replace (UPS and battery) |
