Description

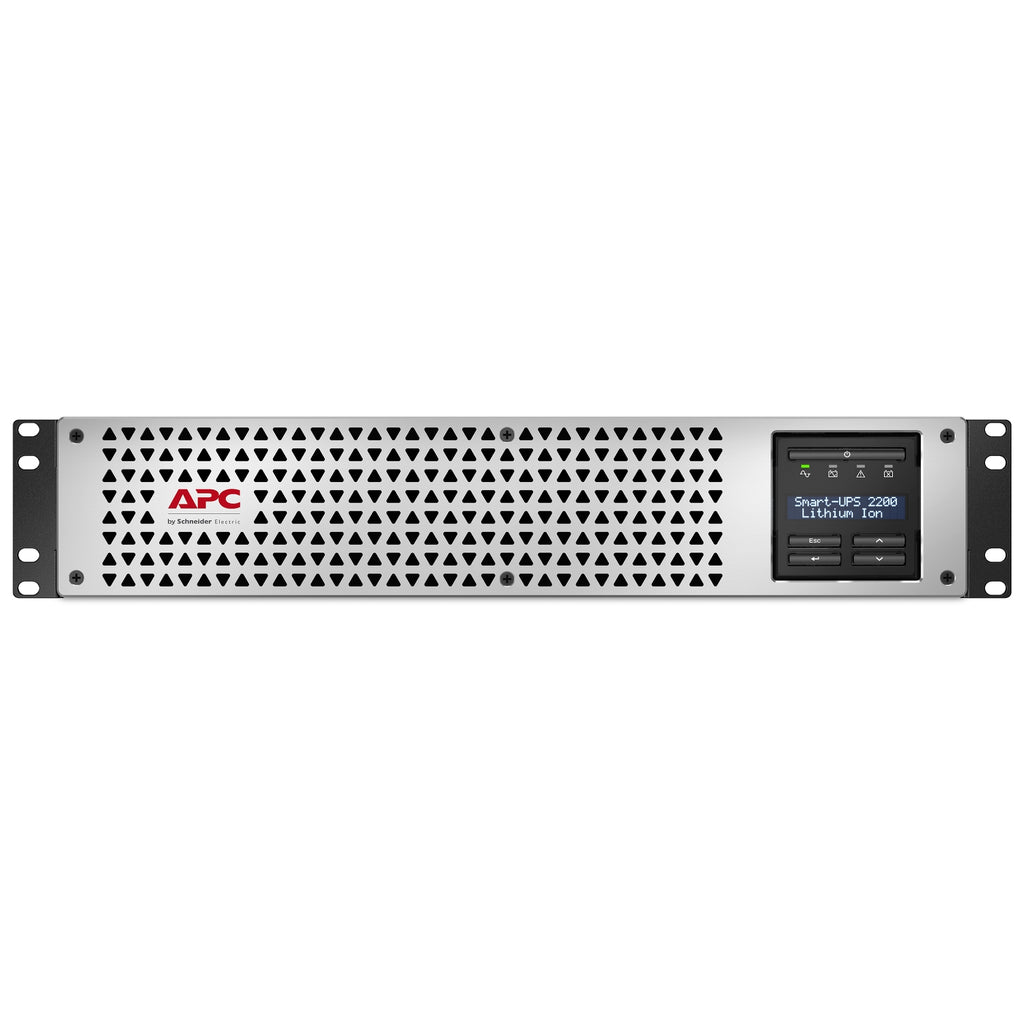

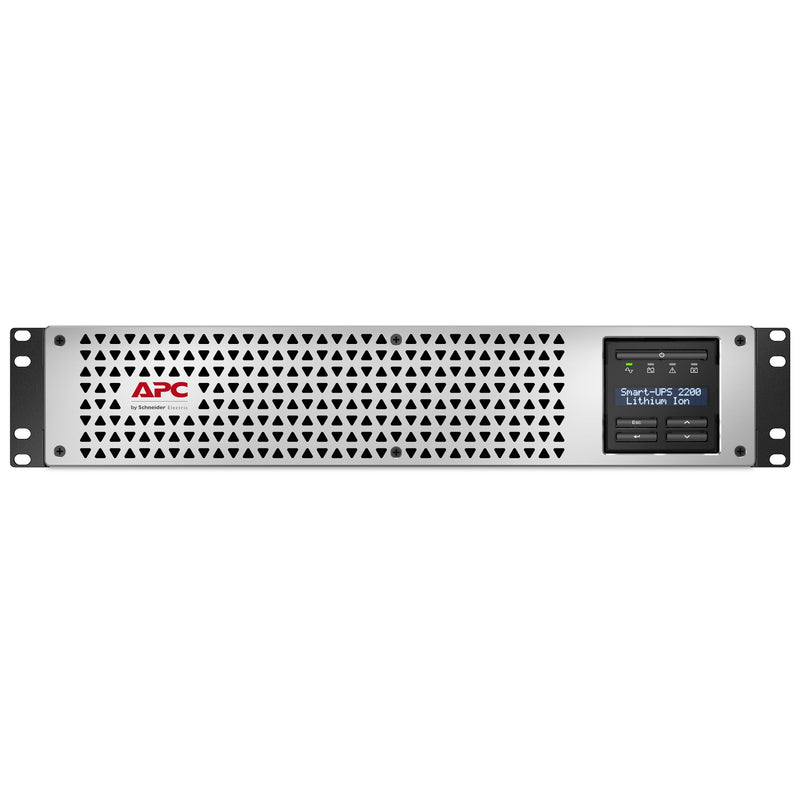

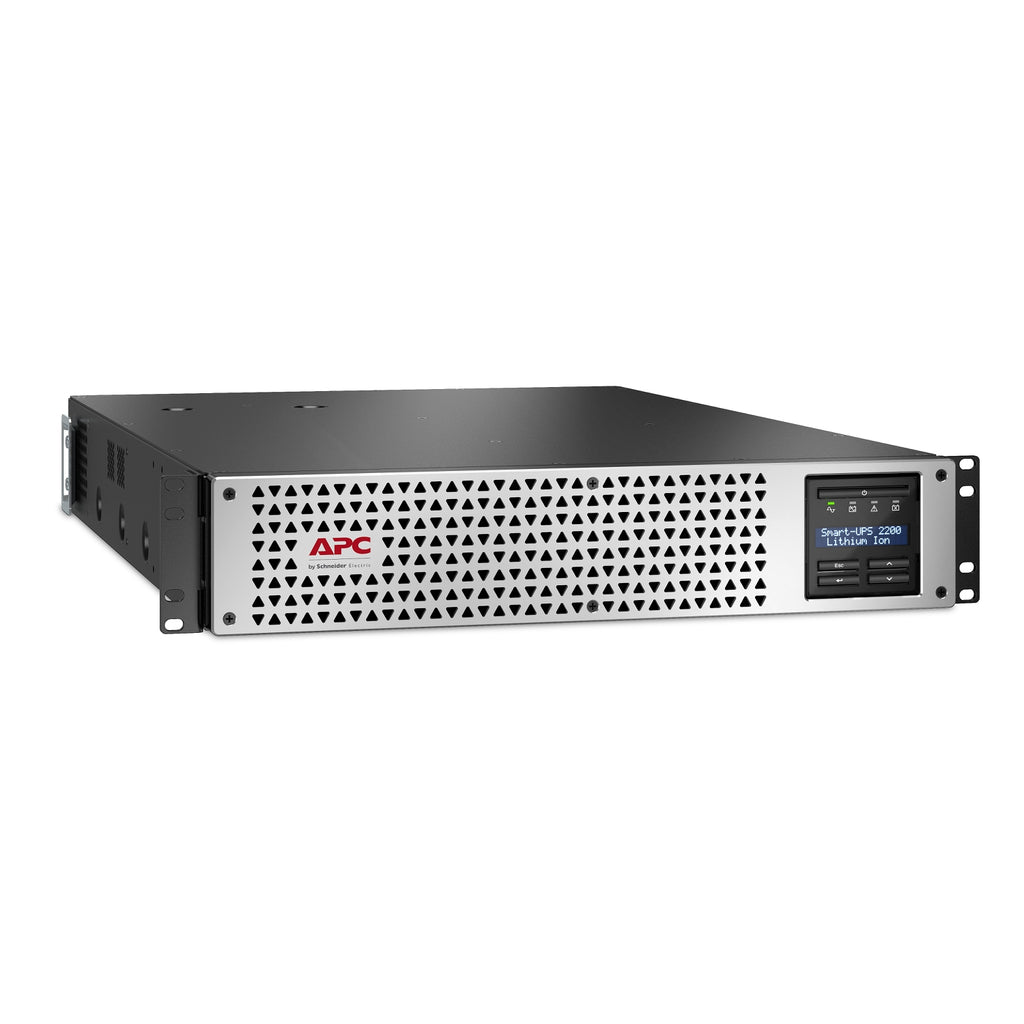

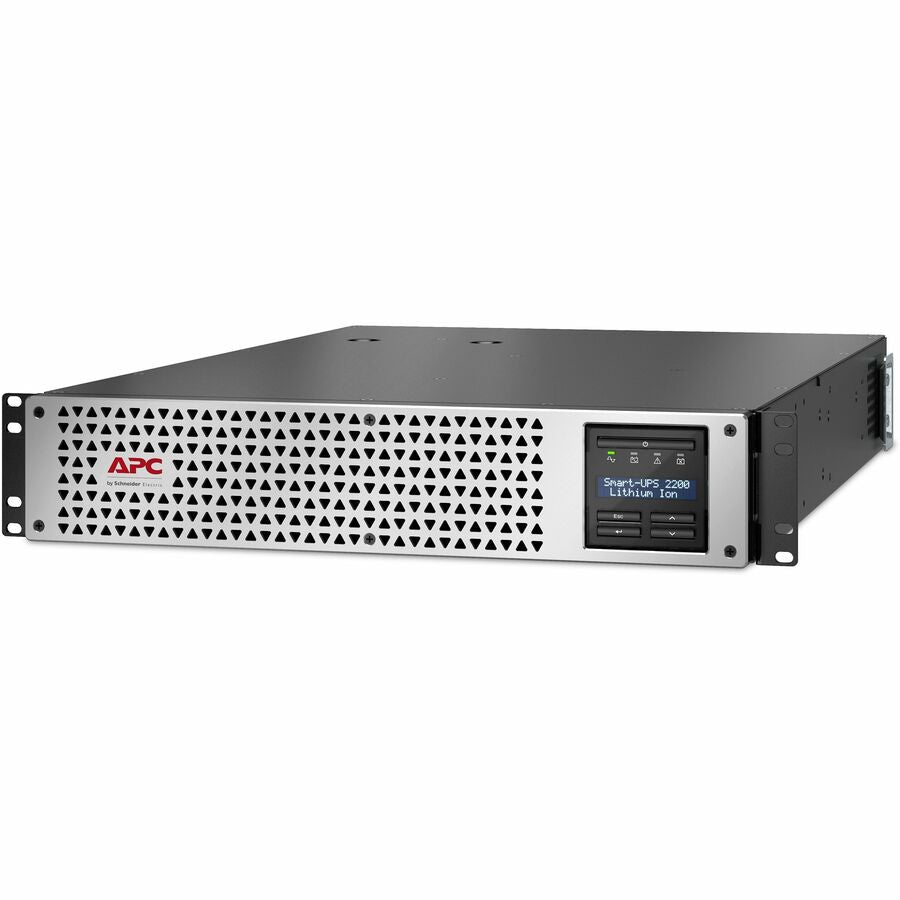

The APC SMTL2200RM2UCNC Smart-UPS delivers reliable power protection for edge computing, server rooms, and critical IT environments. This 2U rackmount UPS provides 2200VA/1920W of pure sine wave output using lithium-ion batteries, significantly reducing maintenance with an 8–10 year battery life. Equipped with SmartConnect for cloud-based monitoring and a preinstalled Network Management Card, it ensures seamless remote management and proactive alerts. Ideal for IDF/MDF closets, it supports 8 outlets (6x NEMA 5-15R, 2x NEMA 5-20R) and features advanced AVR, PowerChute software integration, and a 5-year warranty on both UPS and battery.
| Category | Details |
|---|---|
| Model | SMTL2200RM2UCNC |
| Form Factor | 2U Rackmount |
| Output Power Capacity | 2200VA / 1920W |

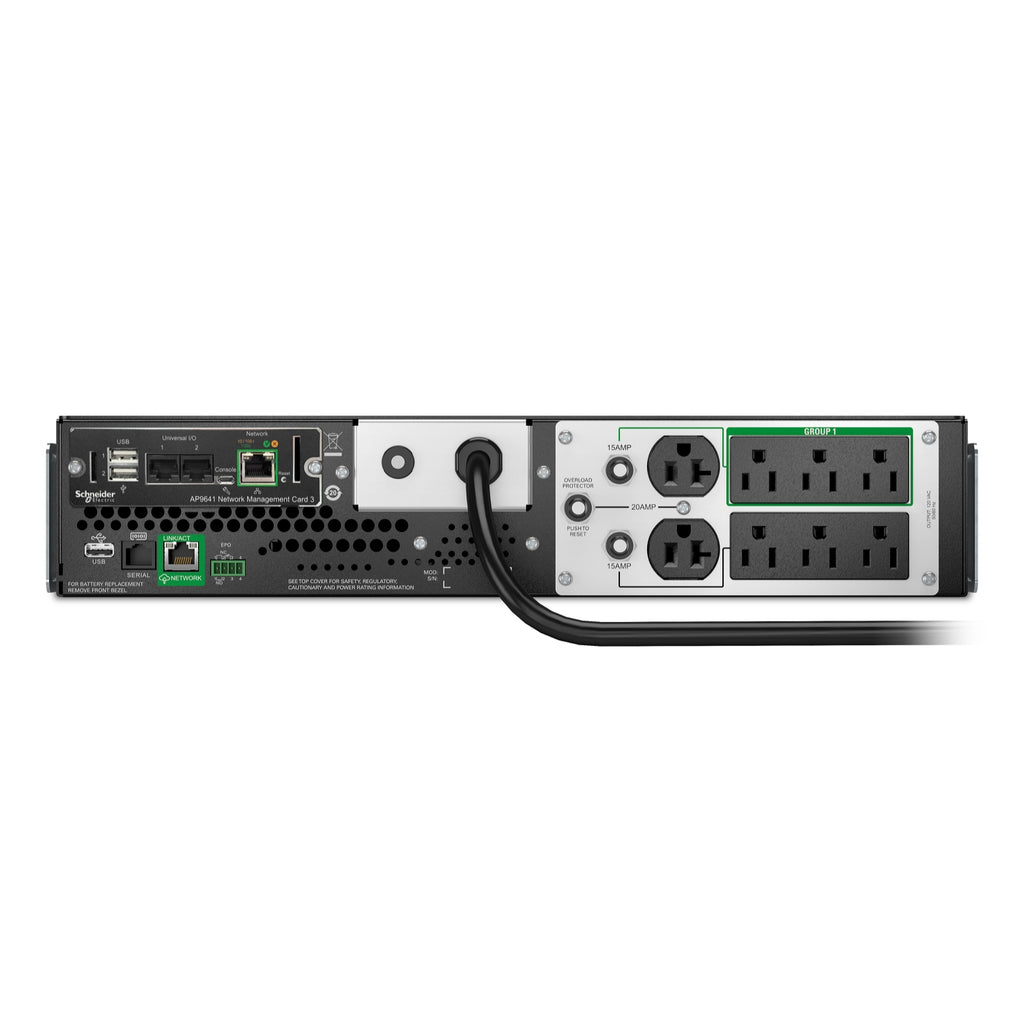

| Output Connections | 6x NEMA 5-15R, 2x NEMA 5-20R |
| Input Connection | NEMA 5-20P |
| Input Voltage Range | 82–144V |
| Battery Type | Lithium-ion (APCRBC174-LI) |
| Battery Life | 8–10 years |
| Recharge Time | 2 hours |
| Runtime at Full Load | 7 minutes 42 seconds |
| Communication Ports | SmartConnect Ethernet, USB, Pre-installed NMC Card |
| Cloud Monitoring | Yes, via SmartConnect |
| Software | PowerChute Network Shutdown |
| Display Panel | Multi-function LCD |
| Audible Alarms | On battery, low battery |
| Dimensions (H x W x D) | 3.39 in x 17.01 in x 26.89 in (86 mm x 432 mm x 683 mm) |
| Net Weight | 70.3 lbs (31.9 kg) |
| Color | Black with silver bezel |
| Surge Protection | 530 Joules |
| Certifications | cULus, ENERGY STAR V2.0 |
| Environmental Range | 0–40°C, 0–95% RH non-condensing |
| Included Accessories | Rack mounting kit, screws, USB & Ethernet cables |
| Warranty | 5 years (UPS and battery) |
