Description

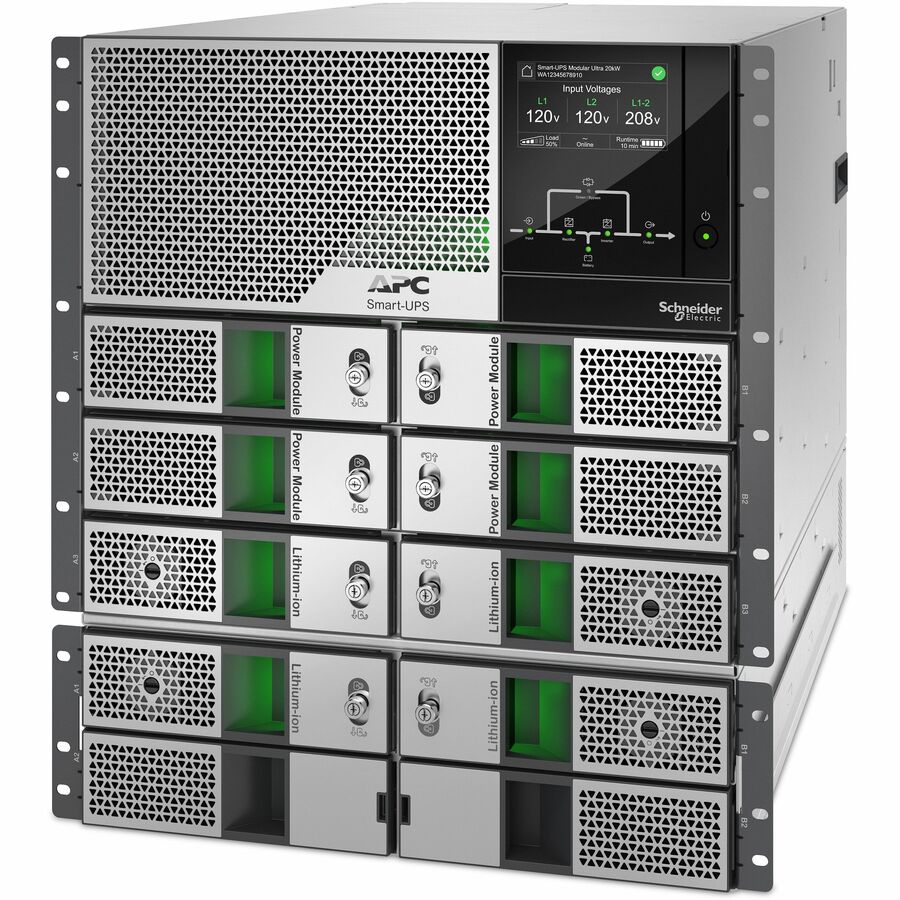

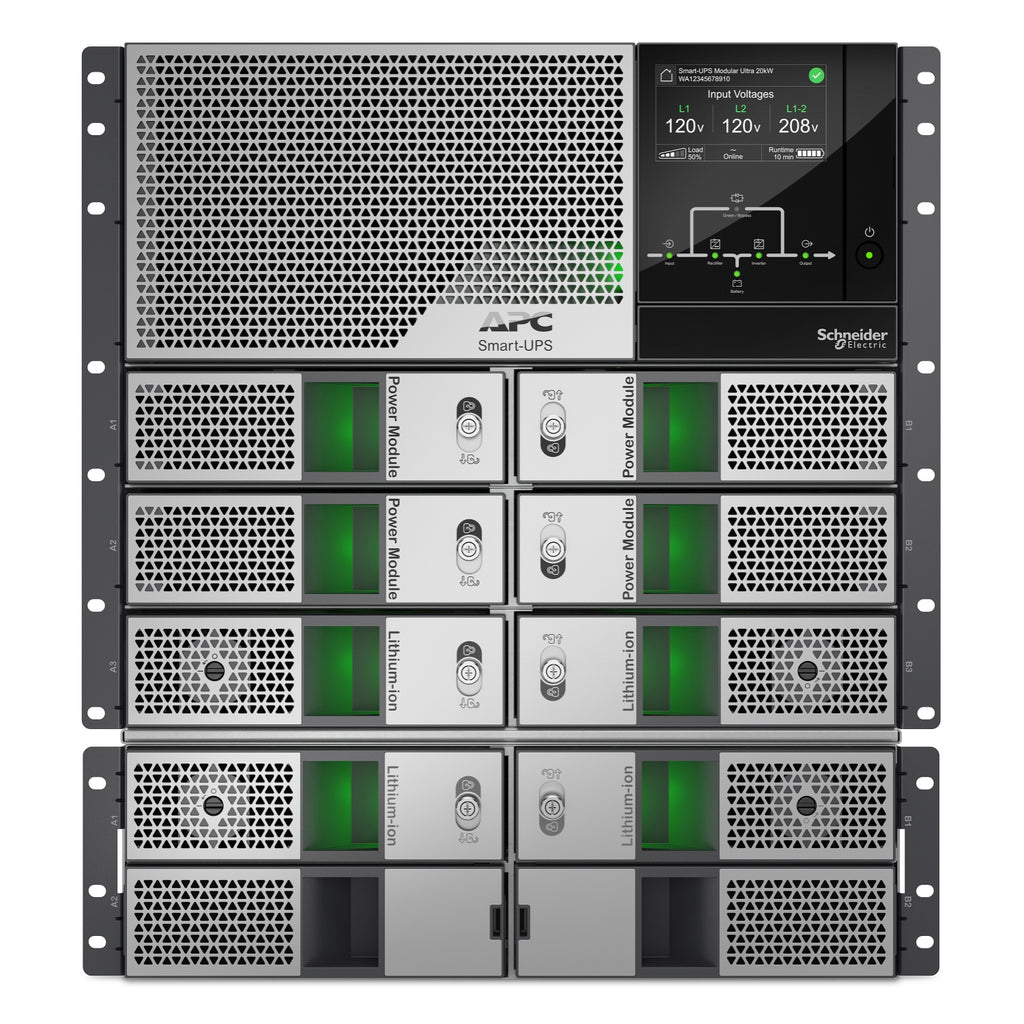

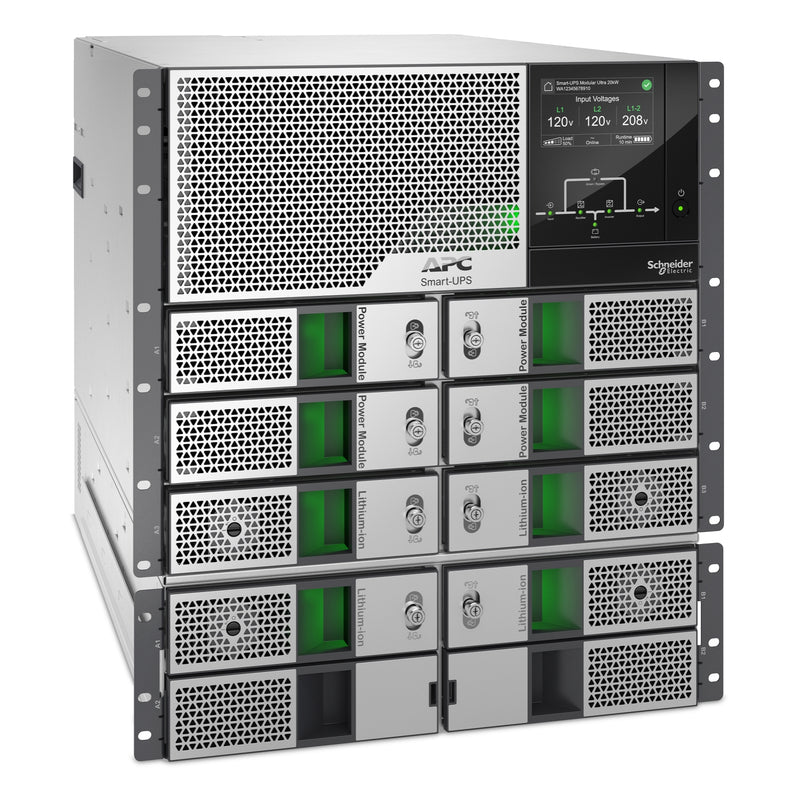

Smart-UPS™ Modular Ultra 20kW by APC delivers maximum power protection in a compact 12U form factor, scalable with four 5kW power modules and four lithium-ion battery modules. The 125A chassis enables full 20kW N+1 redundancy with superior installation efficiency—50% smaller and 60% lighter than comparable systems. Designed for sustainability and flexibility, it offers industry-leading embodied carbon reduction and total cost of ownership savings. Comes with 1-year Secure Network Management Card subscription.
Additional modules (SRYL5KPMT, SRYLBM) sold separately. Compatible with Genuine APC battery modules only.
| Category | Details |
|---|---|
| Model | SRYL20K20RMXLT |
| UPS Topology | On-Line |
| Rated Power (W / VA) | 20,000 W / 20,000 VA |
| Power Modules | 4 (5kW each, pre-installed) |
| Battery Modules | 4 (pre-installed, Li-Ion) |
| Scalability | Scalable to 20kW N+1 |
| Chassis | 125A, 12U Rackmount |
| Battery Life | 8–10 years |
| Run Time (Full Load) | ~5 minutes 31 seconds |
| Input Voltage | 208/240V |
| Output Voltage | 120V / 208V / 240V |
| Input Frequency | 40–70 Hz |
| Mounting | Rack-mounted, 2-post compatible |
| Network Management | 1-Year Secure NMC Subscription Included |
| Display | Touch Screen LCD |
| Bypass | Built-in |
| Certifications | ENERGY STAR V2.0, CULus, FCC |
| Warranty | 5 Years |
| Noise Level | 68 dB |
| Dimensions (H x W x D) | 20.5 x 17.3 x 29.1 in (520 x 440 x 740 mm) |
| Net Weight | 148.5 kg (327.4 lb) |
