Description
The APC Smart-UPS X SMX1500RM2UCNC is a reliable line-interactive 2U rack/tower convertible UPS, ideal for protecting critical IT equipment. With 1440VA/1350W output and pure sine wave power, it ensures stable uptime for servers, storage, and networking hardware. This model features 8 NEMA 5-15R outlets, a SmartConnect port for cloud-based monitoring, and a preinstalled Network Management Card (NMC) for advanced UPS management. It supports extended runtime with up to 5 additional battery packs (SMX48RMBP2U) and is compatible with APC RBC115 battery for replacement.
Smart features include remote diagnostics, firmware updates, graceful server shutdown, and 3 switchable outlet groups for load prioritization. The unit also comes with EPO (Emergency Power Off), rack-mount hardware, tower stabilizers, and APC temperature sensor AP9335T. It's ENERGY STAR certified and backed by a 3-year UPS and 2-year battery warranty.
| Category | Details |
|---|---|
| Brand / Model | APC by Schneider Electric / SMX1500RM2UCNC |
| Form Factor | Rack/Tower Convertible (2U) |
| Input Voltage | 120V, NEMA 5-15P |
| Output Voltage | 120V |
| Output Power Capacity | 1440VA / 1350W |
| Outlets | 8x NEMA 5-15R |
| Topology | Line Interactive with Automatic Voltage Regulation (AVR) |
| Waveform Type | Pure Sine Wave |
| Runtime (Full / Half Load) | ~5 min / ~15 min |
| Battery Type | Lead-Acid, 48V |

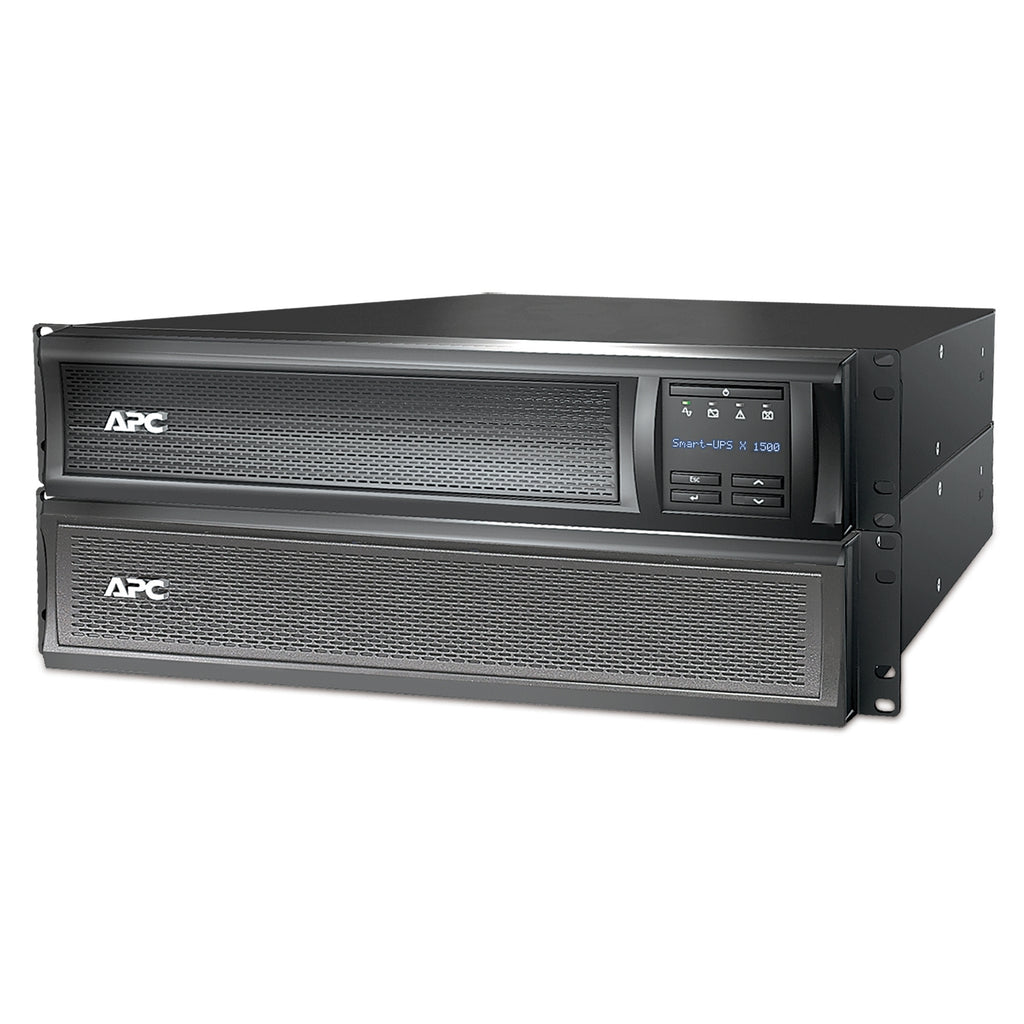

| External Battery Support | Yes ā up to 5x SMX48RMBP2U |
| Replacement Battery | APC RBC115 (48V 9Ah) |
| Monitoring Interfaces | SmartConnect Port, USB, Serial, Ethernet (NMC) |
| Pre-installed Cards | Network Management Card 3 with Environmental Monitoring |
| Outlet Groups | 3 switchable outlet groups |
| Surge Protection Rating | 600 Joules |
| EPO Support | Yes |
| Mounting Hardware | Included ā rack rails, tower feet |
| Temperature Sensor | Included ā AP9335T |
| Certifications | ENERGY STAR V2.0, cUL Listed |
| Warranty | 3 years UPS, 2 years battery (+1 year with SmartConnect registration) |

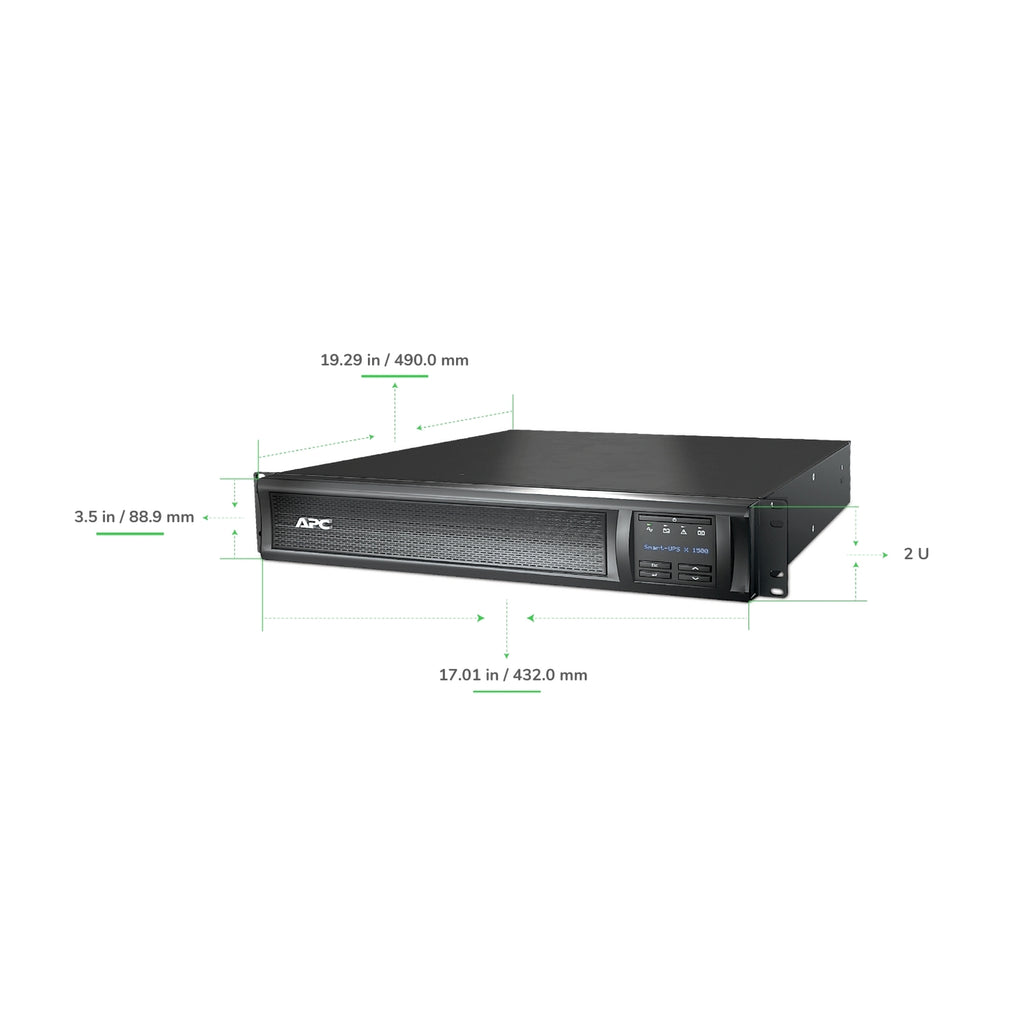

| Product Dimensions (WxDxH) | 17.01 x 19.29 x 3.50 in (2U) |
| Weight | 54.72 lbs (24.82 kg) |
| Country of Origin | Vietnam |
| Environmental | 0ā40Ā°C operating temp, 0ā95% humidity, 133 BTU/hr heat dissipation |
