Description

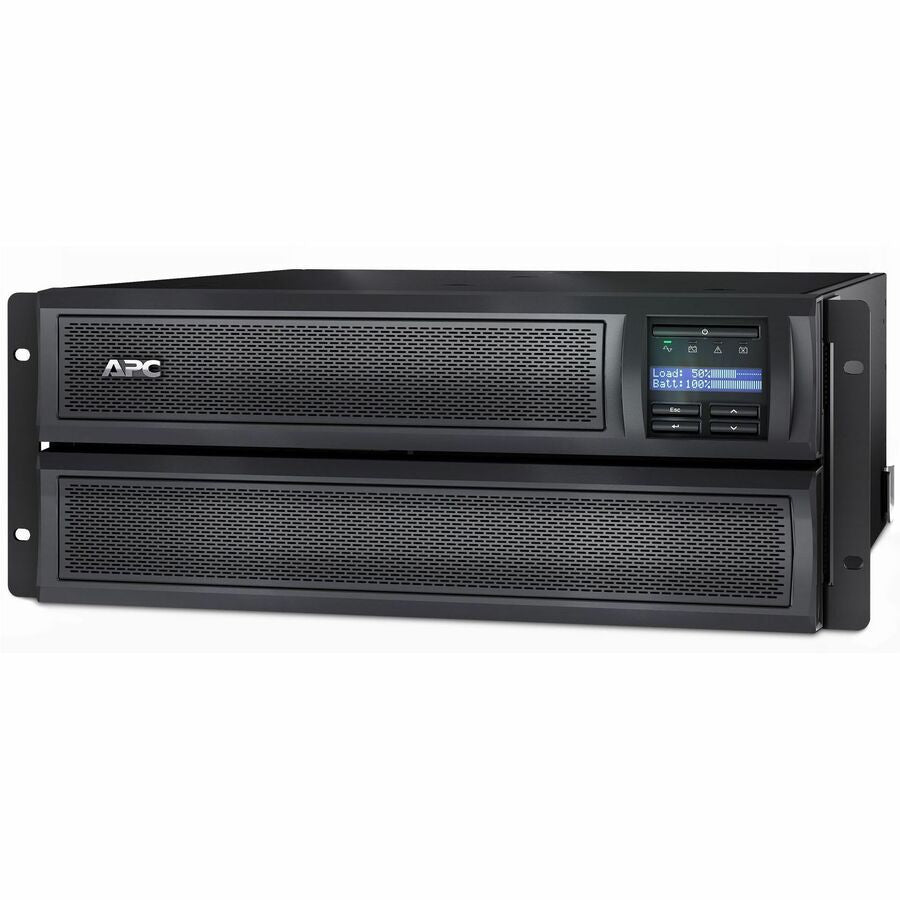

The APC Smart-UPS X SMX3000LVNCUS is a 3kVA line interactive UPS designed for network administrators and IT professionals to ensure uptime and business continuity. Featuring 2880VA/2700W of pure sine wave output, this short-depth 4U rack/tower convertible UPS operates at a user-selectable input range of 100V–127V. It comes pre-installed with a Network Management Card, allowing for remote monitoring and graceful shutdown via PowerChute Network Shutdown. Equipped with 6x NEMA 5-15R, 3x NEMA 5-20R, and 1x L5-30R outlets, it supports up to 10 external battery packs (SMX120BP) and includes an APC temperature sensor. TAA compliant with a 3-year UPS warranty and 2-year battery warranty.
| Feature | Details |
|---|---|
| Model | SMX3000LVNCUS |
| Topology | Line Interactive |
| Rated Power | 2880VA / 2700W |

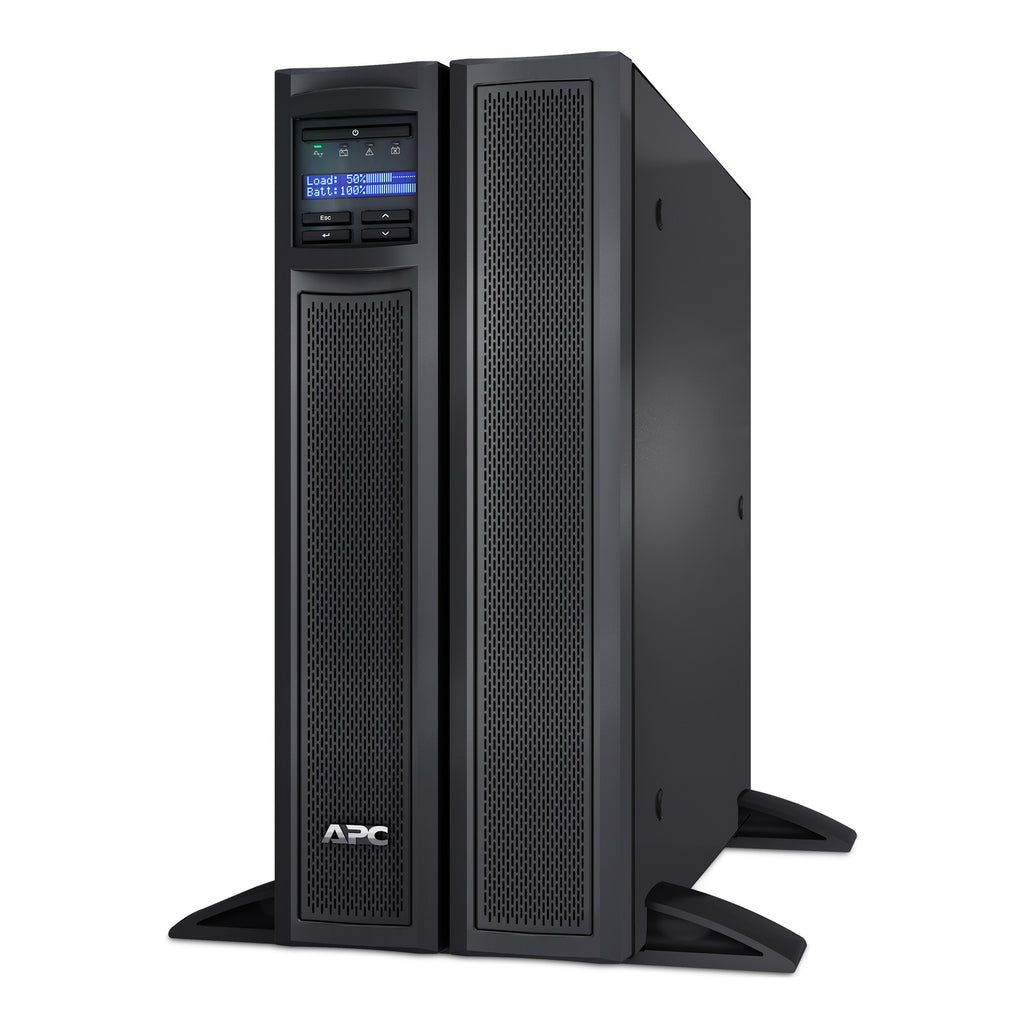

| Form Factor | Rack/Tower Convertible, 4U |
| Input Voltage Range | 100V – 127V |
| Input Plug Type | NEMA L5-30P |
| Output Voltage | 100V / 110V / 120V / 127V |

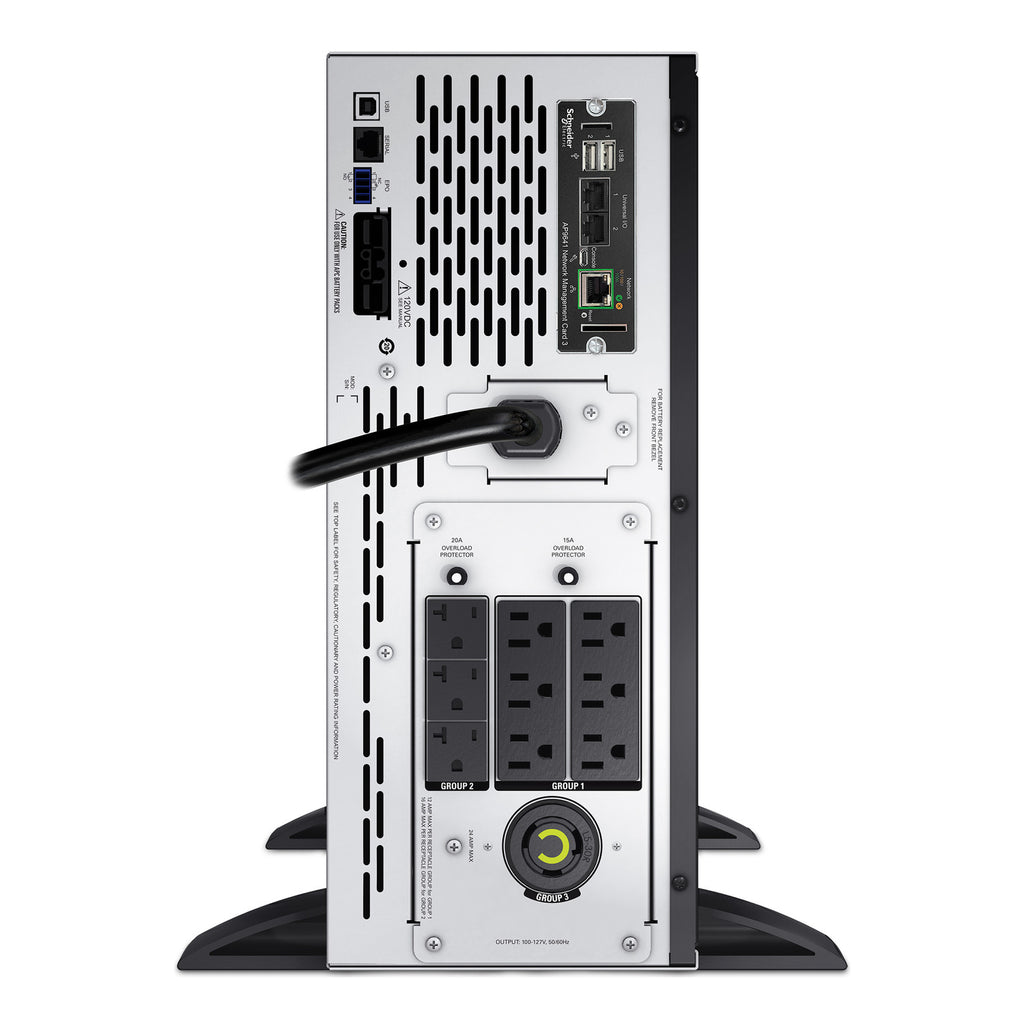

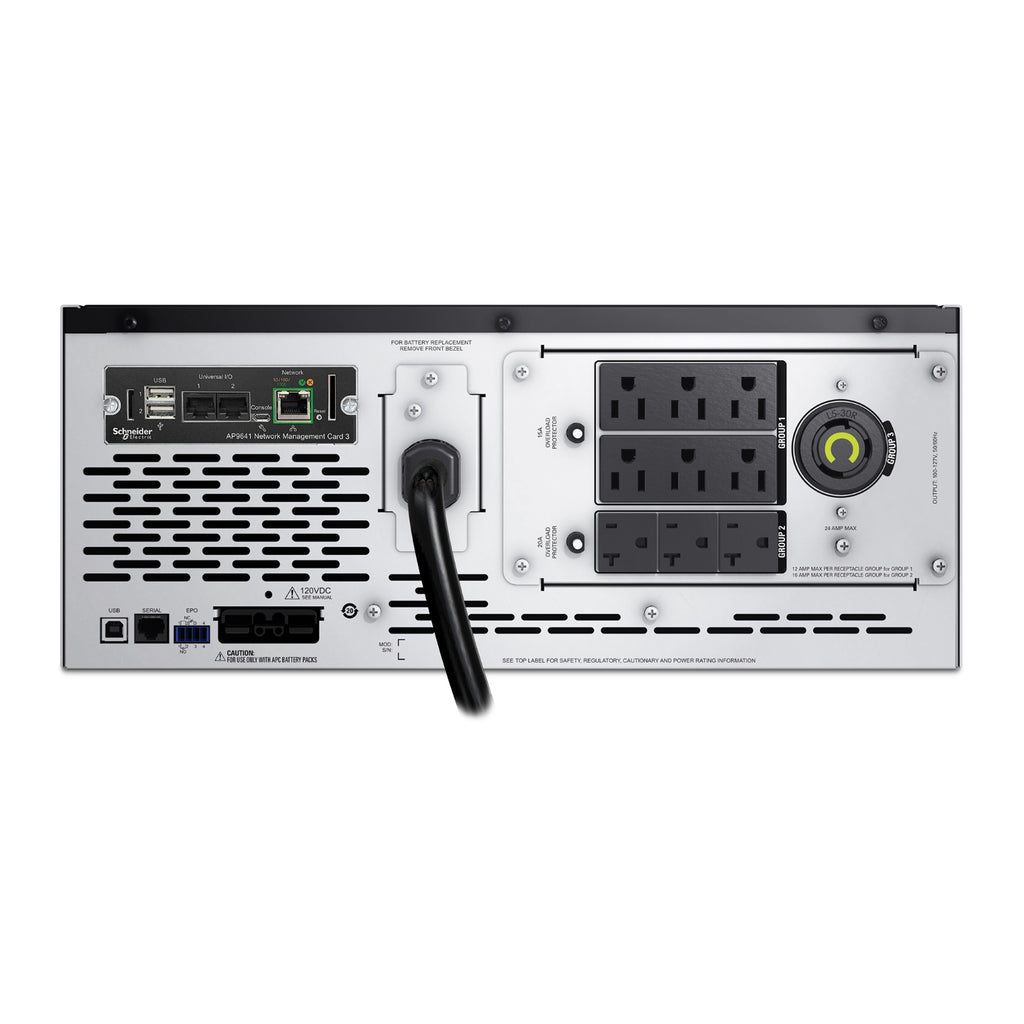

| Outlets | 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| Waveform | Pure Sine Wave |
| Runtime at Full Load | ~6 min at 2700W |

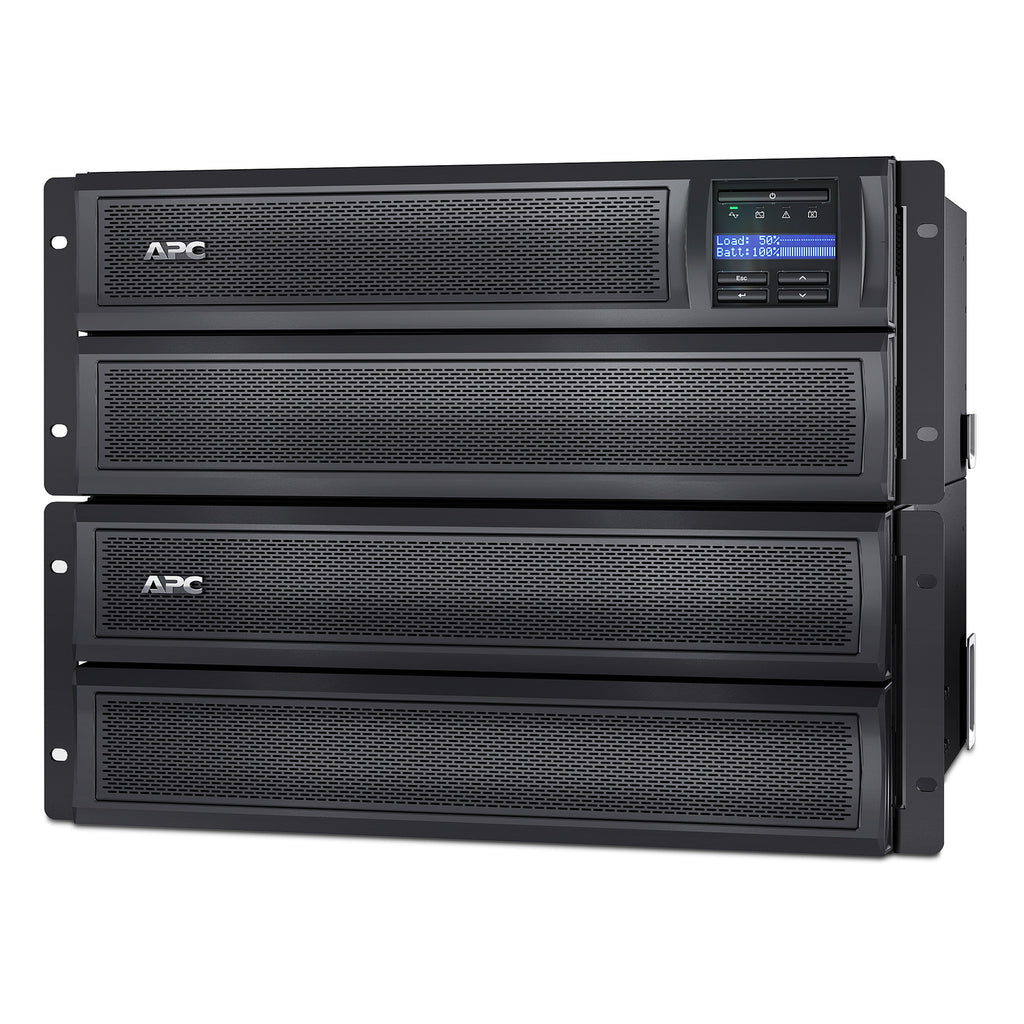

| Expandable Runtime | Yes, supports up to 10 external battery packs (SMX120BP) |
| Battery Type | Lead-Acid (APCRBC143US) |
| Recharge Time | 3 hours |
| Preinstalled Card | Network Management Card 3 with Enviro Monitoring (AP9335T) |
| SmartSlot | 1 (occupied) |
| Surge Protection | 540 Joules |
| LCD Display | Multi-function LCD with status/control |
| Alarm | Configurable audible alarms |
| Mounting Hardware | Rack brackets, stabilizing feet included |
| Dimensions (H x W x D) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Net Weight | 85.19 lbs (38.64 kg) |
| Operating Temp | 32–104°F (0–40°C) |
| TAA Compliant | Yes |
| Warranty | 3 years UPS / 2 years battery |
