Description

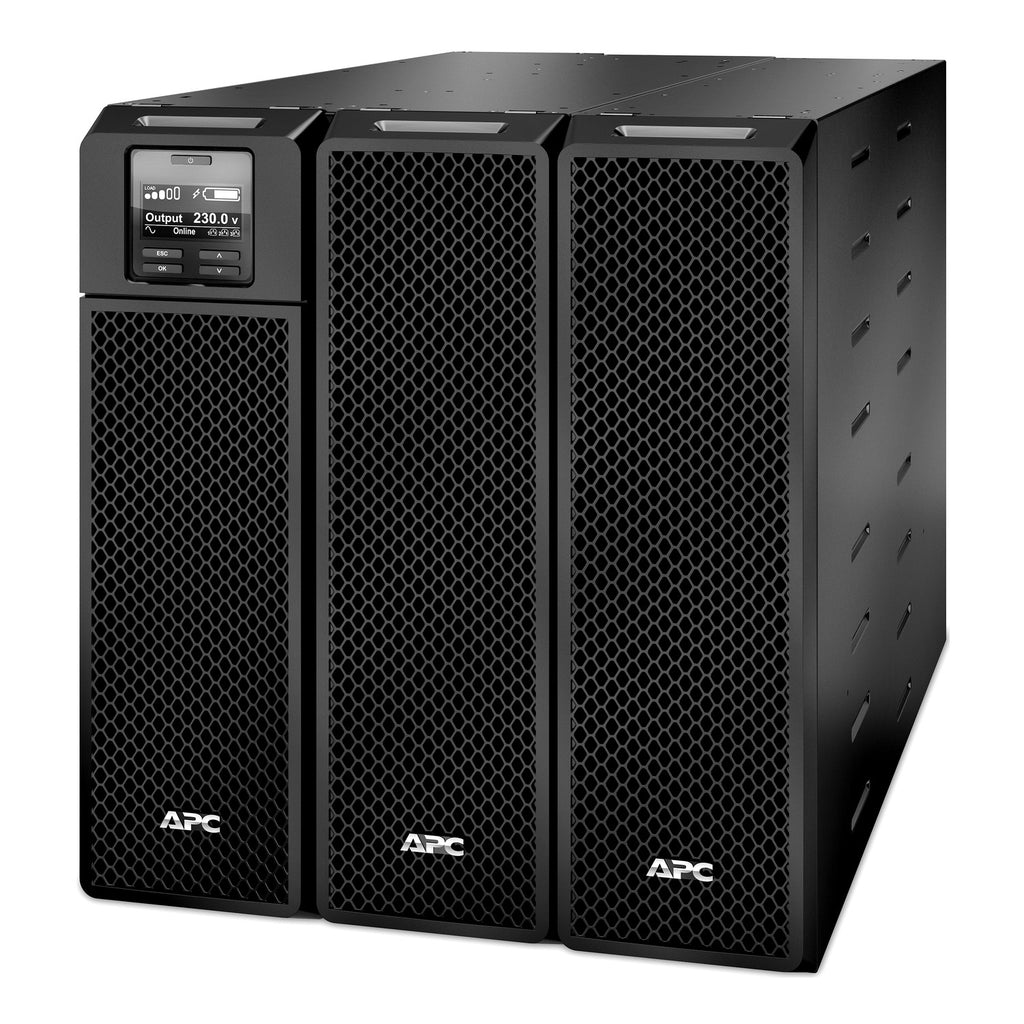

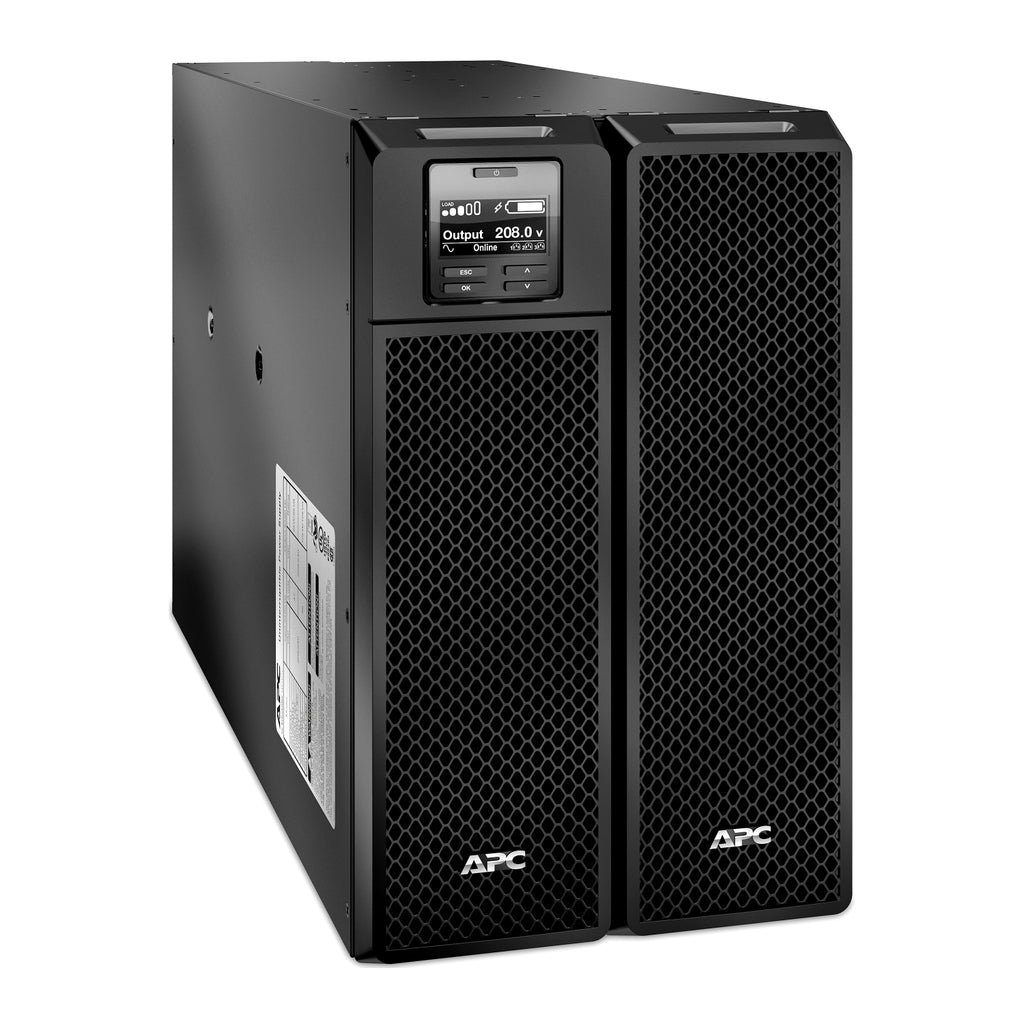

The APC Smart-UPS SRT10KXLT is a high-performance, double-conversion on-line UPS designed to provide scalable and reliable power protection for critical systems. With 10kVA/10kW capacity, this tower-form UPS delivers pure sine wave output and supports up to 10 external battery packs (SRT192BP2) for extended runtime. It features 4x NEMA L6-20R and 2x NEMA L6-30R outlets, hard wire (2P+E) input, and comes with a pre-installed Network Management Card for remote monitoring and control.
Ideal for servers, data networks, healthcare labs, and light industrial applications, the unit includes SmartSlot expansion, PowerChute software, and a 3-year UPS/2-year battery warranty. Optional rail kits (SRTRK2/SRTRK3) are available for rack-mounting versatility.
| Category | Details |
|---|---|
| Model | APC SRT10KXLT |
| UPS Type | Double-Conversion On-Line |
| Form Factor | Tower (Rack convertible with SRTRK2/SRTRK3 kits - sold separately) |
| Power Capacity | 10kVA / 10kW |
| Input Voltage | 208V / 240V |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V / 240V |

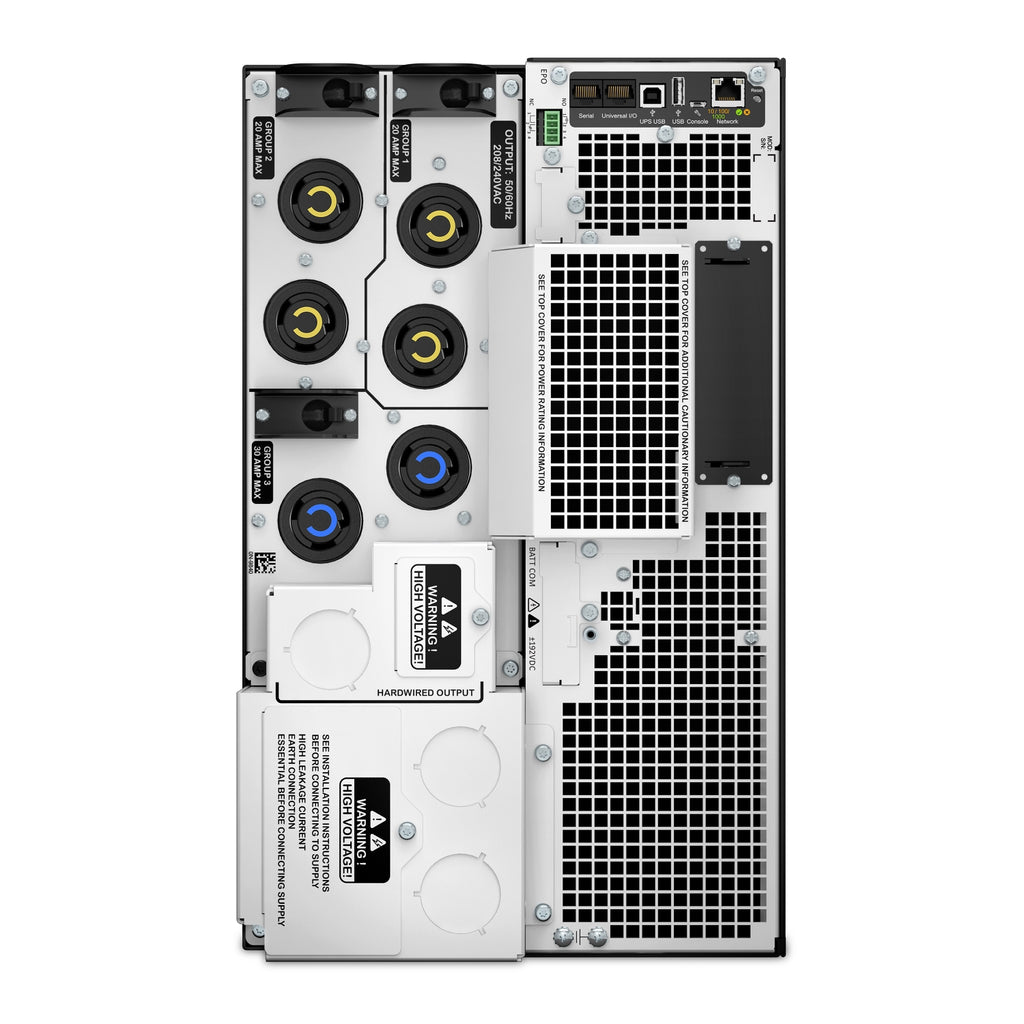

| Outlets | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Runtime (typical) | 3 min 44 sec @ 100% load (extendable with up to 10x SRT192BP2) |
| Battery Type | Lead-Acid, +/-192V split battery |
| Replacement Battery | APCRBC140 |
| Recharge Time | 1.5 hours |
| Efficiency | High efficiency, ENERGY STAR V2.0 certified |
| Waveform | Pure Sine Wave |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Communication Ports | USB, SmartSlot, EPO, Network Management Card (pre-installed) |
| Alarms | Audible and visible (prioritized by severity) |
| Management Software | PowerChute Network Shutdown |
| Monitoring | EcoStruxure IT & 3rd-party monitoring compatible |

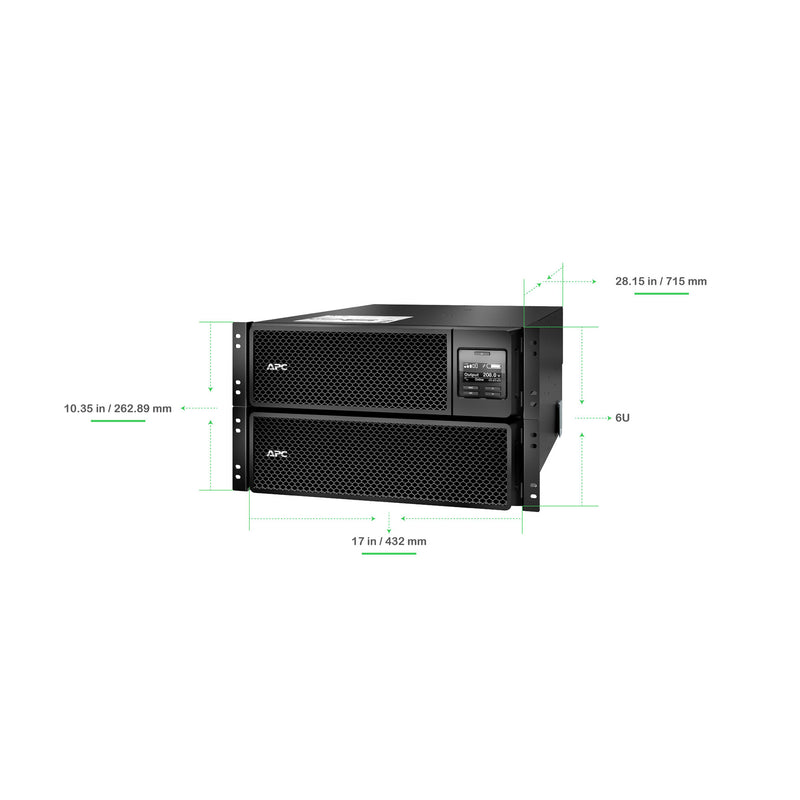

| Dimensions (HxWxD) | 17.01 x 10.35 x 28.15 in (43.2 x 26.3 x 71.5 cm) |
| Weight | 245.99 lbs (111.58 kg) |
| Noise Level | 55 dBA |
| Operating Temp. | 32–104 °F (0–40 °C) |
| Warranty | 3 years on UPS, 2 years on battery |
