Description

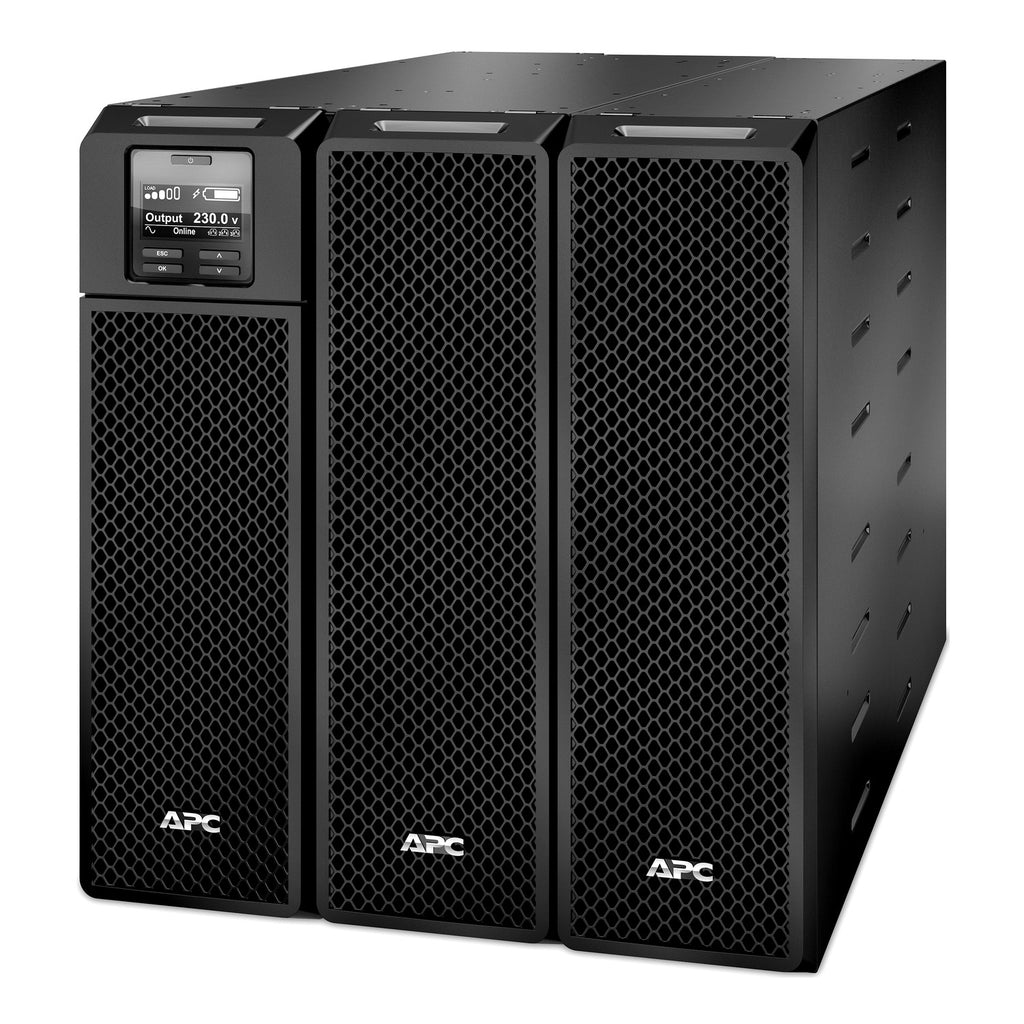

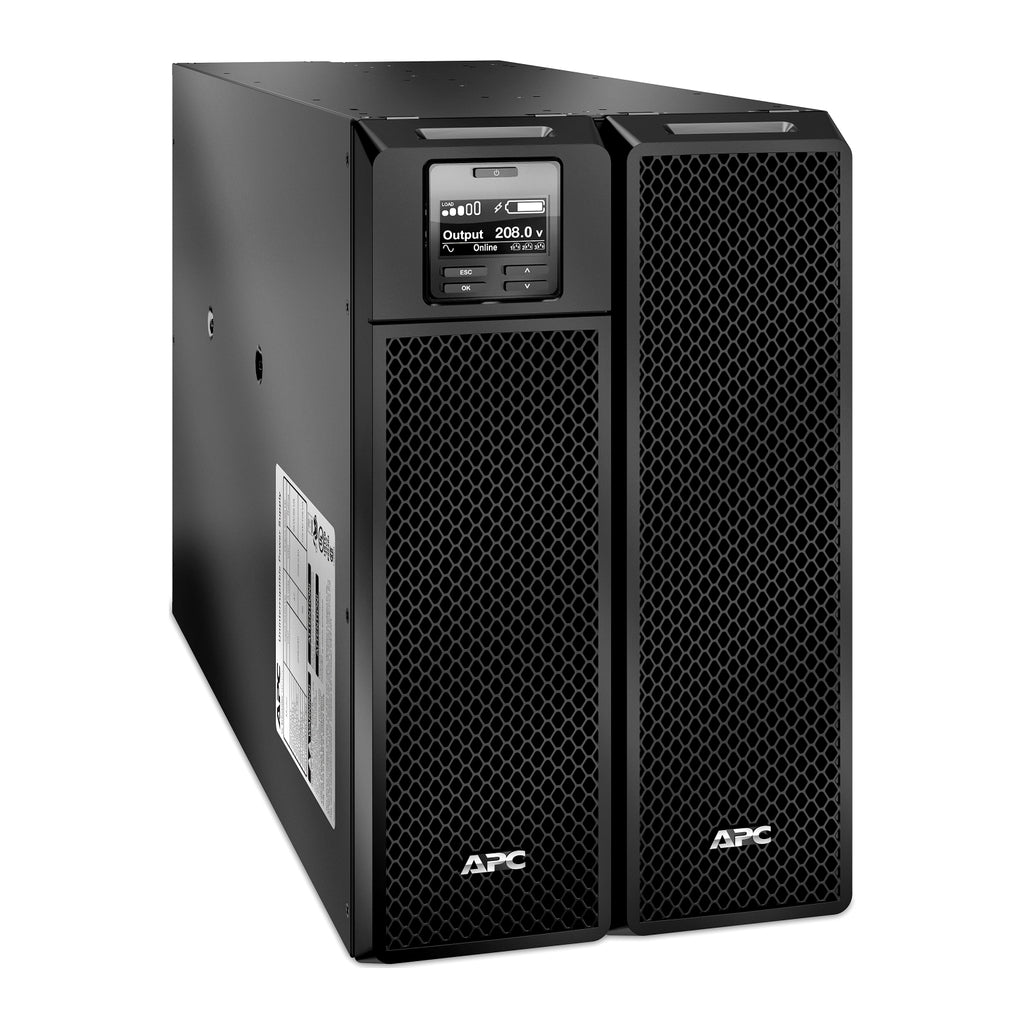

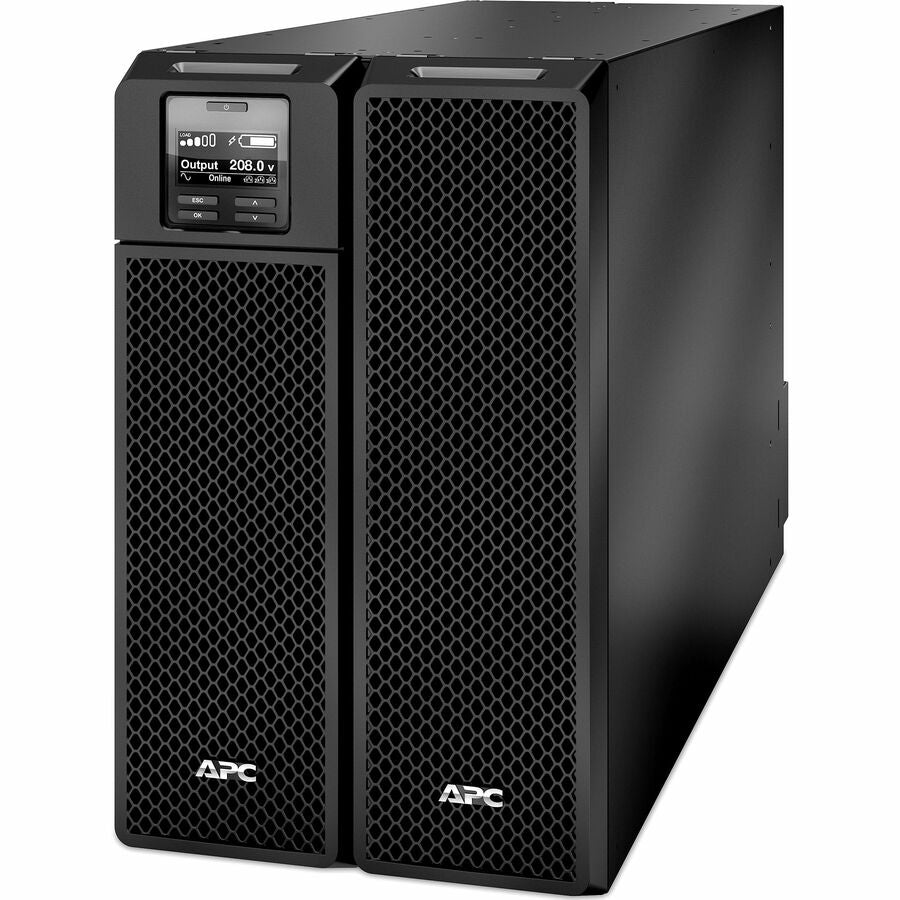

Ensure critical power continuity with the APC Smart-UPS SRT10KXLT30 — a 10kVA/10kW double-conversion online tower UPS designed for IT infrastructure, medical labs, and light industrial environments. Featuring 6x NEMA L6-30R outlets, pure sine wave output, and embedded network management, it delivers reliable backup and extended runtime when paired with up to 10 external battery packs (SRT192BP2). Rack/tower convertible (SRTRK2 or SRTRK3 rail kits sold separately), it includes a 1-year Secure Network Management Card subscription and supports EcoStruxure IT for remote management.
| Specification | Details |
|---|---|
| Model Number | SRT10KXLT30 |
| Power Capacity | 10kVA / 10kW |
| Topology | Double-Conversion Online |
| Form Factor | Tower (Rack convertible with SRTRK2/SRTRK3 - sold separately) |
| Input Voltage | 208V (also supports 240V) |
| Output Voltage | 208V (configurable), Pure Sine Wave |
| Input Connection | Hard Wire 3-wire (2PH + G) |

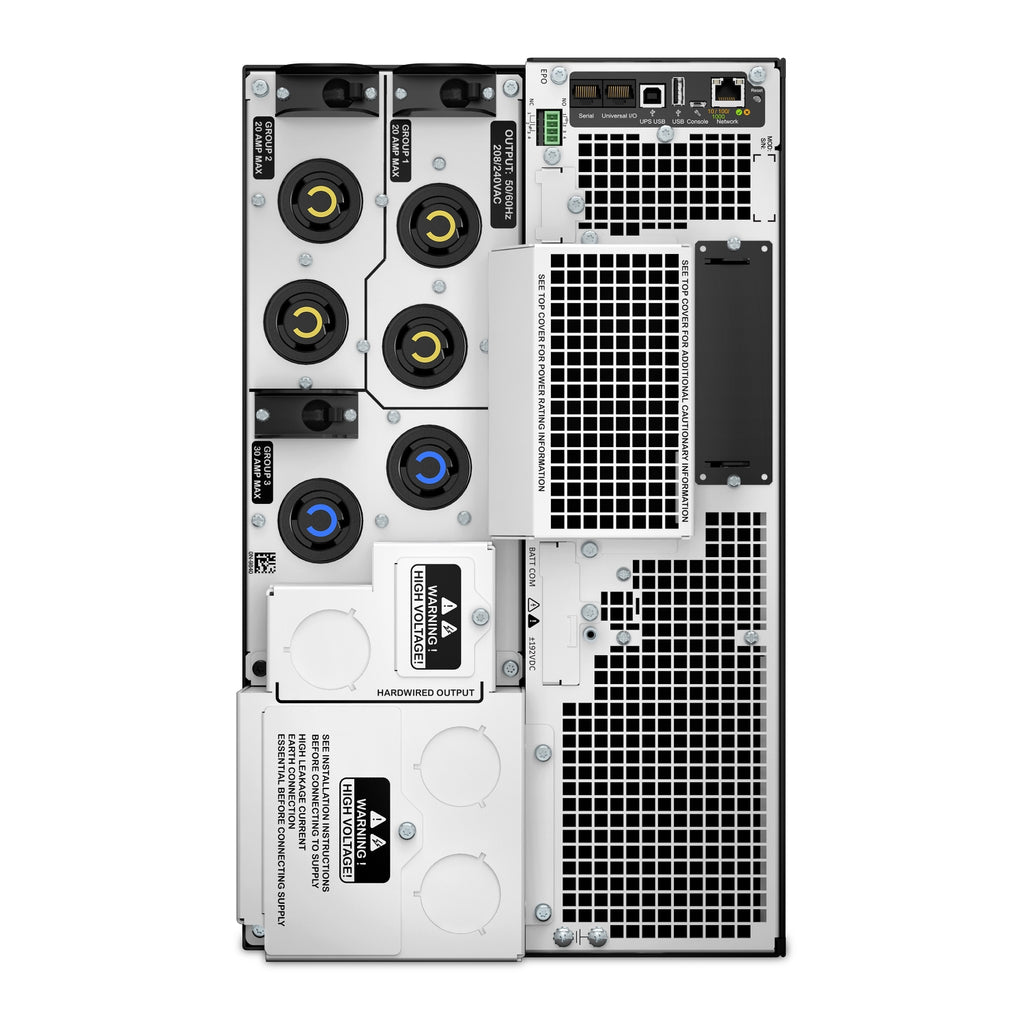

| Output Connections | 6x NEMA L6-30R |
| Battery Type | Lead-Acid (APCRBC140, compatible with SRT192BP2 external packs) |
| Extended Runtime Support | Supports up to 10 external battery packs |
| Network Management | Embedded Network Management Card with SmartSlot |
| Software Support | PowerChute Network Shutdown, EcoStruxure IT |
| Recharge Time | 1.5 hours |
| Efficiency | ENERGY STAR V2.0 Certified |
| Certifications | UL 1778, NOM, FCC Part 15 Class A |
| Dimensions (H x W x D) | 17.01 x 10.35 x 28.15 in |
| Net Weight | 245.99 lbs (111.58 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Relative Humidity | 0–95% non-condensing |
| Audible Noise | 55 dBA |
| Warranty | 3 years (UPS), 2 years (Battery) |
