Description

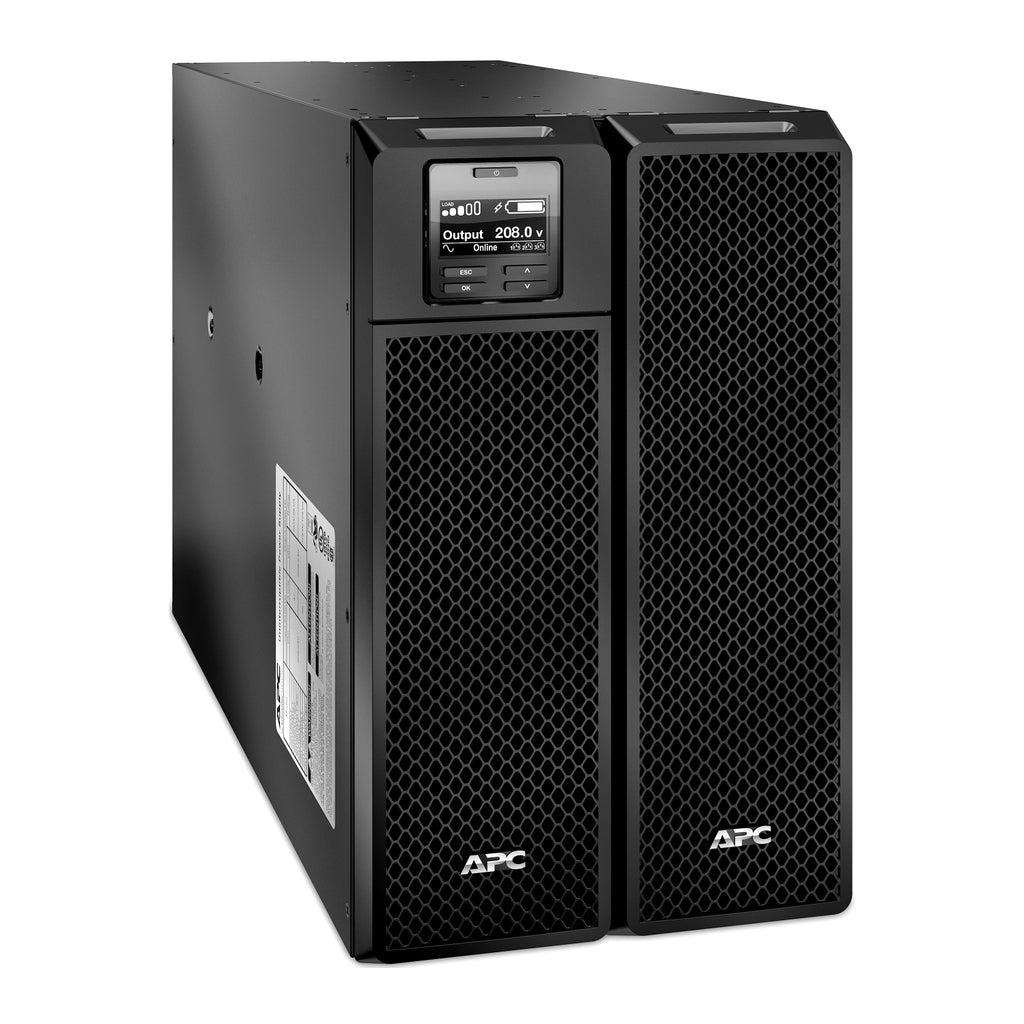

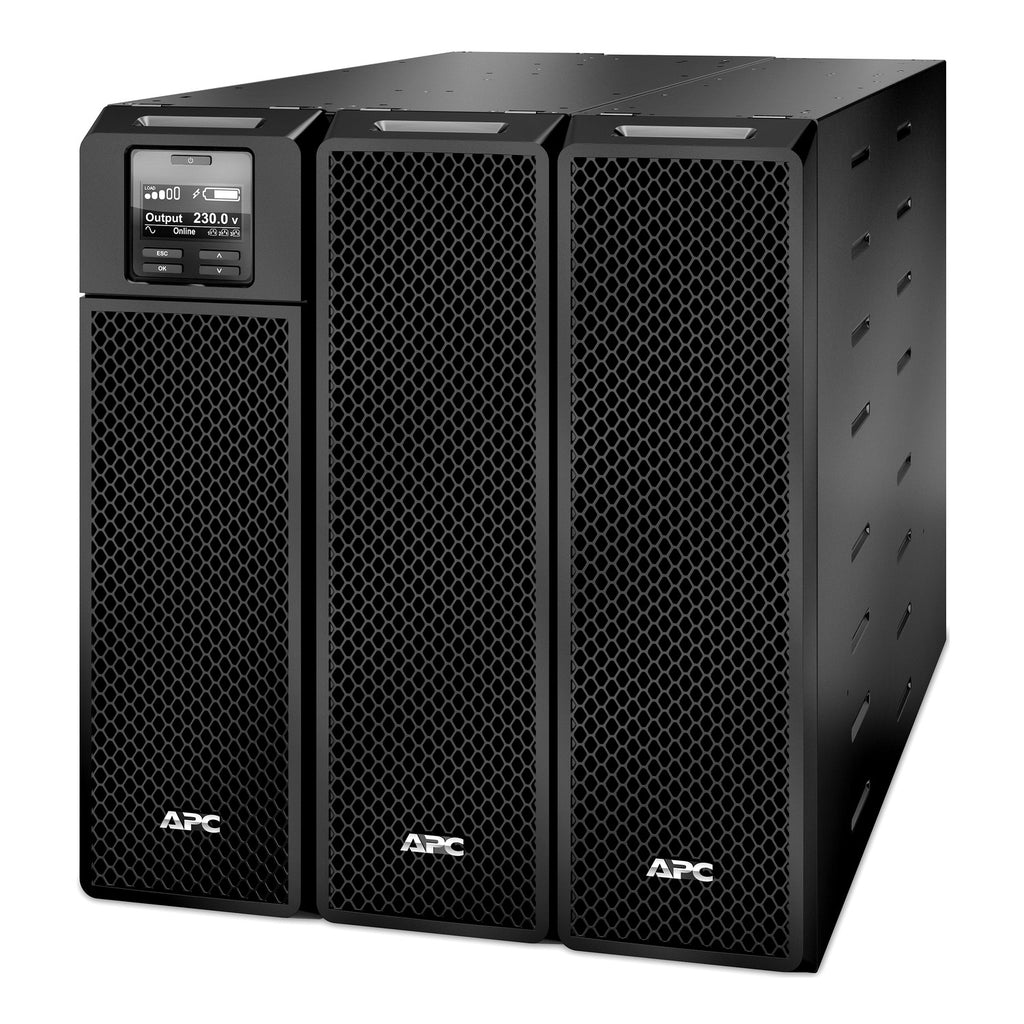

The APC Smart-UPS SRT10KXLTUS delivers 10kVA/10kW of double-conversion, online pure sine wave power in a compact rack/tower convertible form. Designed for servers, storage, networking gear, and sensitive applications such as medical labs and industrial setups, this UPS ensures consistent uptime and clean power. It features 4x L6-20R and 2x L6-30R NEMA outlets, embedded Network Management Card with environmental monitoring, SmartSlot expansion, and compatibility with up to 10 external battery packs (SRT192BP2) for scalable runtime. Compatible with EcoStruxure IT and compliant with TAA standards.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT10KXLTUS |
| Topology | Double Conversion Online |
| Form Factor | Rack/Tower Convertible (Rail kit sold separately) |
| Power Capacity | 10kVA / 10kW |
| Input Voltage | 208V (Hard Wire 3-wire, 2PH+G) |
| Output Voltage | 208V / 240V |

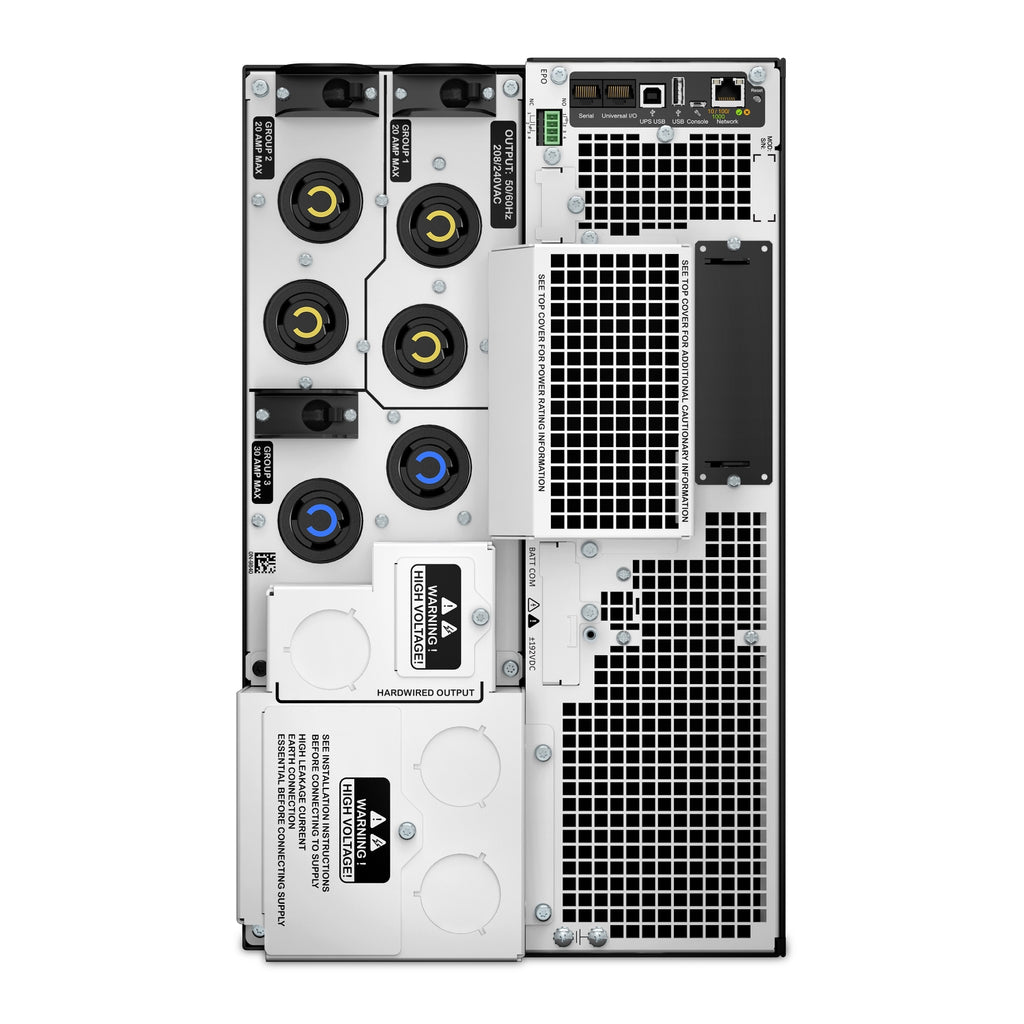

| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lead-Acid (APCRBC140) |
| Runtime Extension | Supports up to 10x SRT192BP2 |
| Recharge Time | 1.5 hours |
| Efficiency at Full Load | > 90% |
| Management Interface | Embedded Network Card, SmartSlot (1 free slot) |
| Communications | USB, SNMP, Web, EPO |
| Certifications | UL 1778, TAA, ENERGY STAR V2.0, FCC Class A |
| Operating Temp. | 0–40°C (32–104°F) |
| Dimensions (H x W x D) | 17.01 x 10.35 x 28.15 in |
| Weight (Net) | 245.99 lbs (111.58 kg) |
| Warranty | 3 Years (UPS), 2 Years (Battery) |
