Description

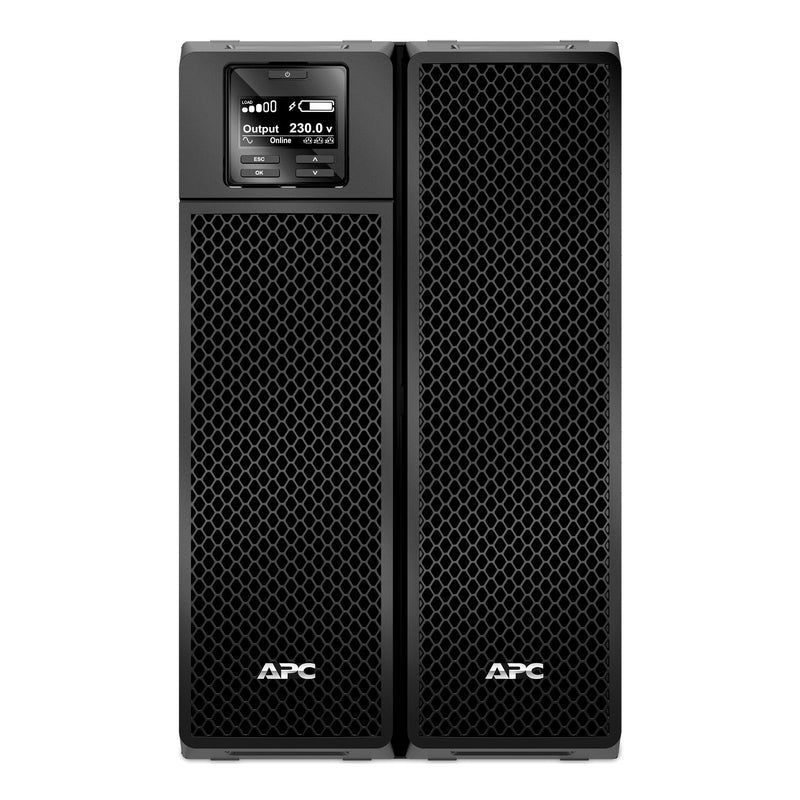

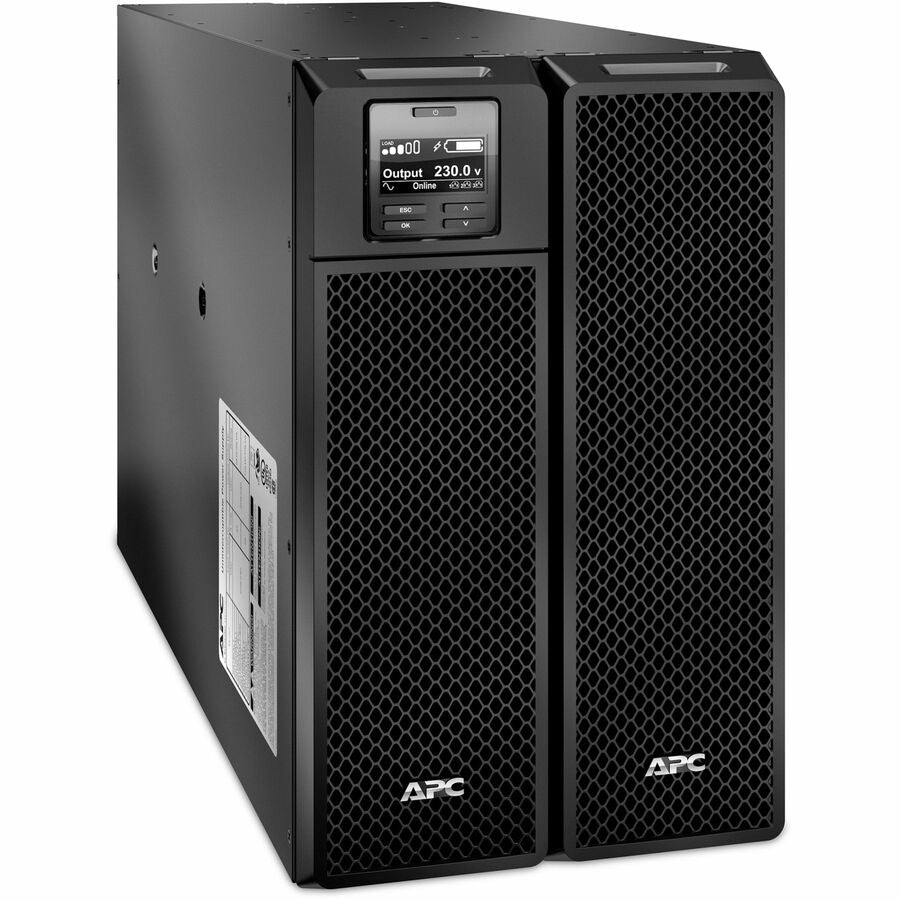

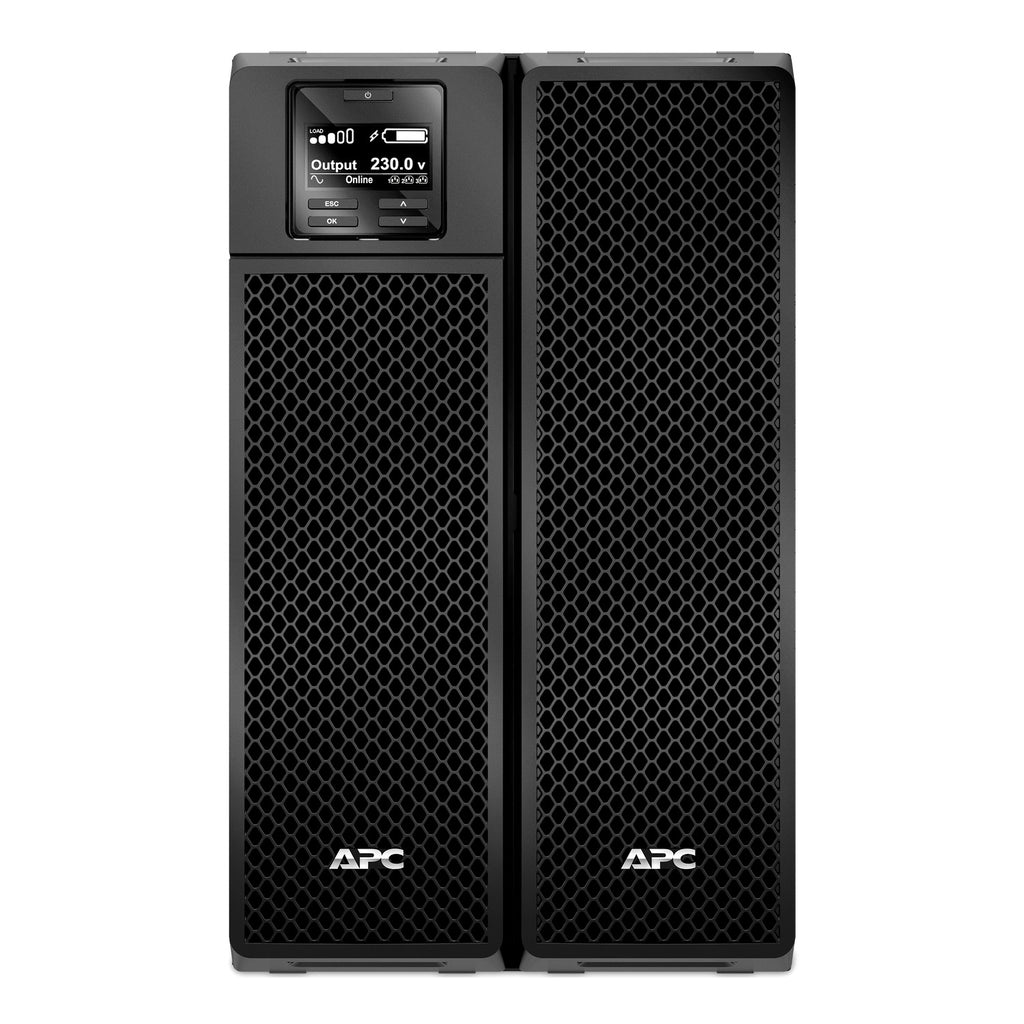

The APC Smart-UPS SRT10KXLI is a high-performance, double-conversion on-line uninterruptible power supply (UPS) designed for critical IT and industrial environments. Delivering 10kVA/10kW of pure sine wave power, this tower UPS is ideal for servers, data centers, labs, and network infrastructure.

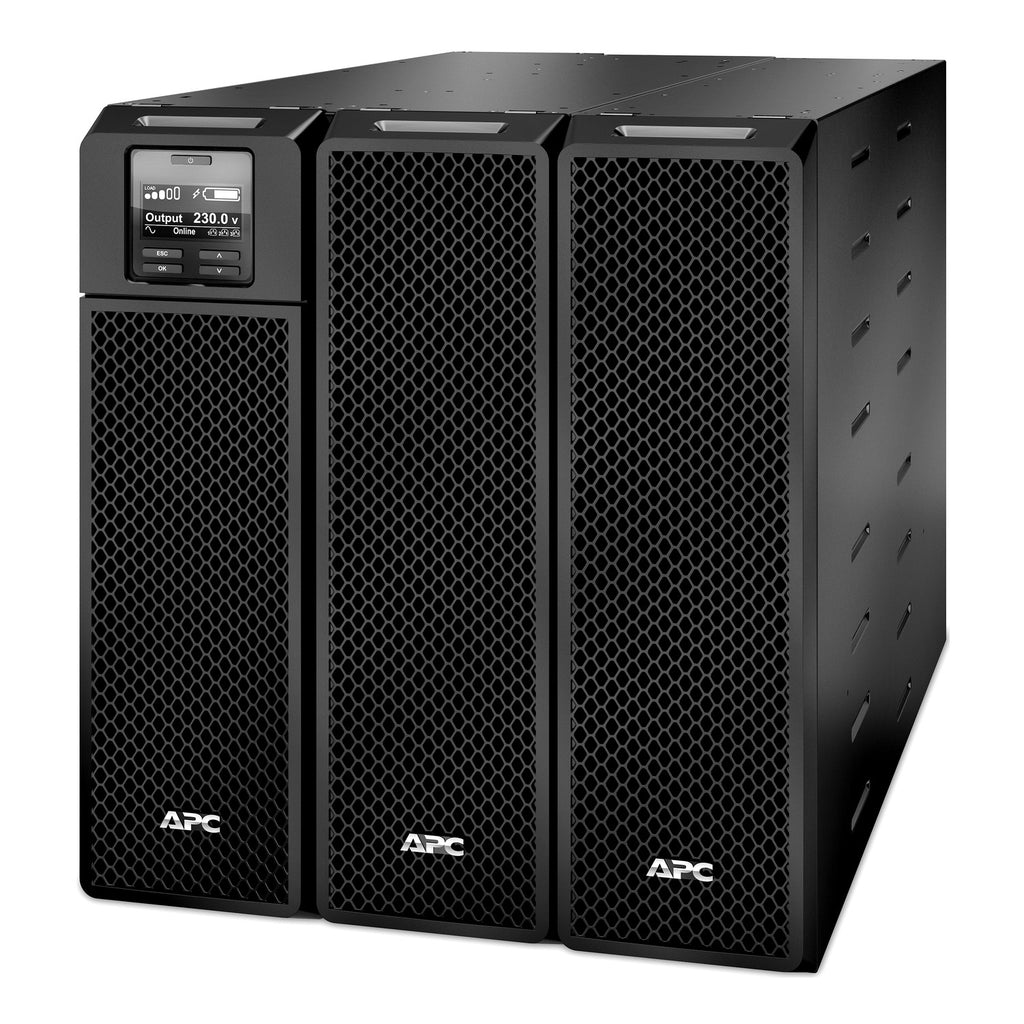

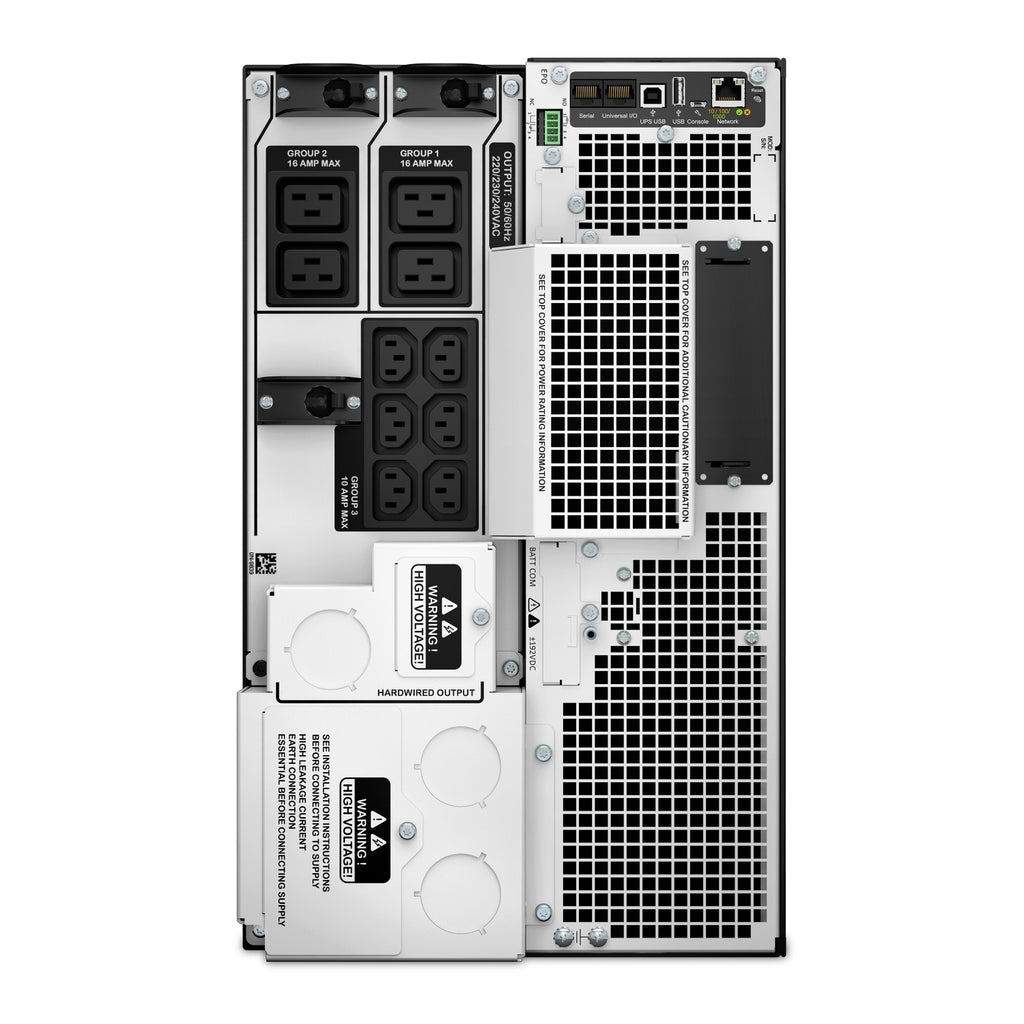

It features 6 IEC C13 and 4 IEC C19 outlets, SmartSlot for accessory cards, and a pre-installed Network Management Card for remote monitoring. With support for up to 10 external battery packs and hot-swappable battery modules, the SRT10KXLI offers scalable extended runtime.
Compatible with EcoStruxure IT and third-party platforms, and convertible to rack-mount with optional kits (SRTRK2 or SRTRK3), this UPS provides flexibility, efficiency, and peace of mind.
| Attribute | Details |
|---|---|
| Model | APC Smart-UPS SRT10KXLI |
| Form Factor | Tower (Rack-convertible with SRTRK2 or SRTRK3) |
| Power Rating | 10kVA / 10kW |
| Input Voltage | 230V / 400V 3-phase |
| Output Voltage | 230V (220V/240V selectable) |
| Output Connections | 6 × IEC C13, 4 × IEC C19, 3 × IEC Jumpers |
| Bypass Type | Internal Automatic & Manual |
| Battery Type | Lead-acid, ±192V |
| Compatible Batteries | APCRBC140, SRT192BP2US, SRT192RMBPUS |
| Extendable Runtime | Yes, up to 10 external packs |
| Pre-installed Card | Network Management Card 3 (with EPO, Temp Sensor support) |
| SmartSlot | 1 free slot for optional cards (e.g., Dry Contact I/O) |
| Included Accessories | USB cable, software CD, documentation, temperature probe, warranty card |
| Topology | Double Conversion Online |
| Efficiency | 92% at full load |
| Noise Level | 55 dBA |
| Dimensions (H × W × D) | 43.2 × 26.3 × 71.5 cm |
| Weight | 111.82 kg (246.52 lb) |
| Certifications | CE, EAC, IRAM, VDE, RCM |
| Operating Temp | 0 to 40°C |
| Warranty | 3 years for UPS, 2 years for battery |
