Description

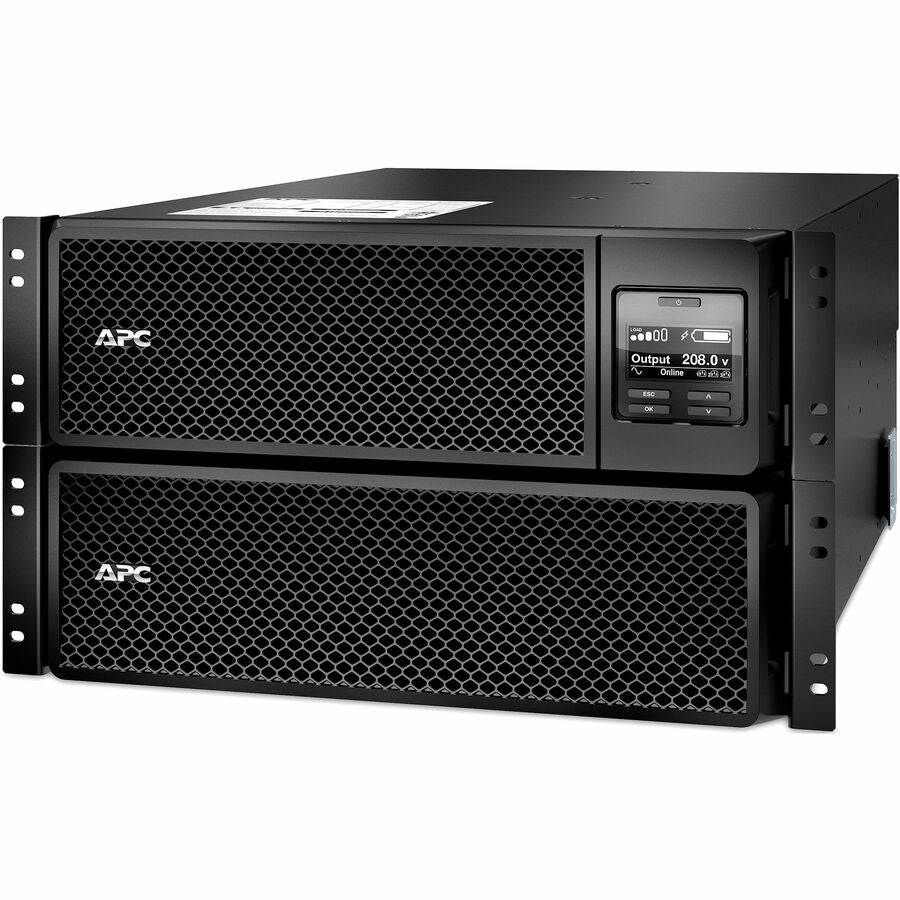

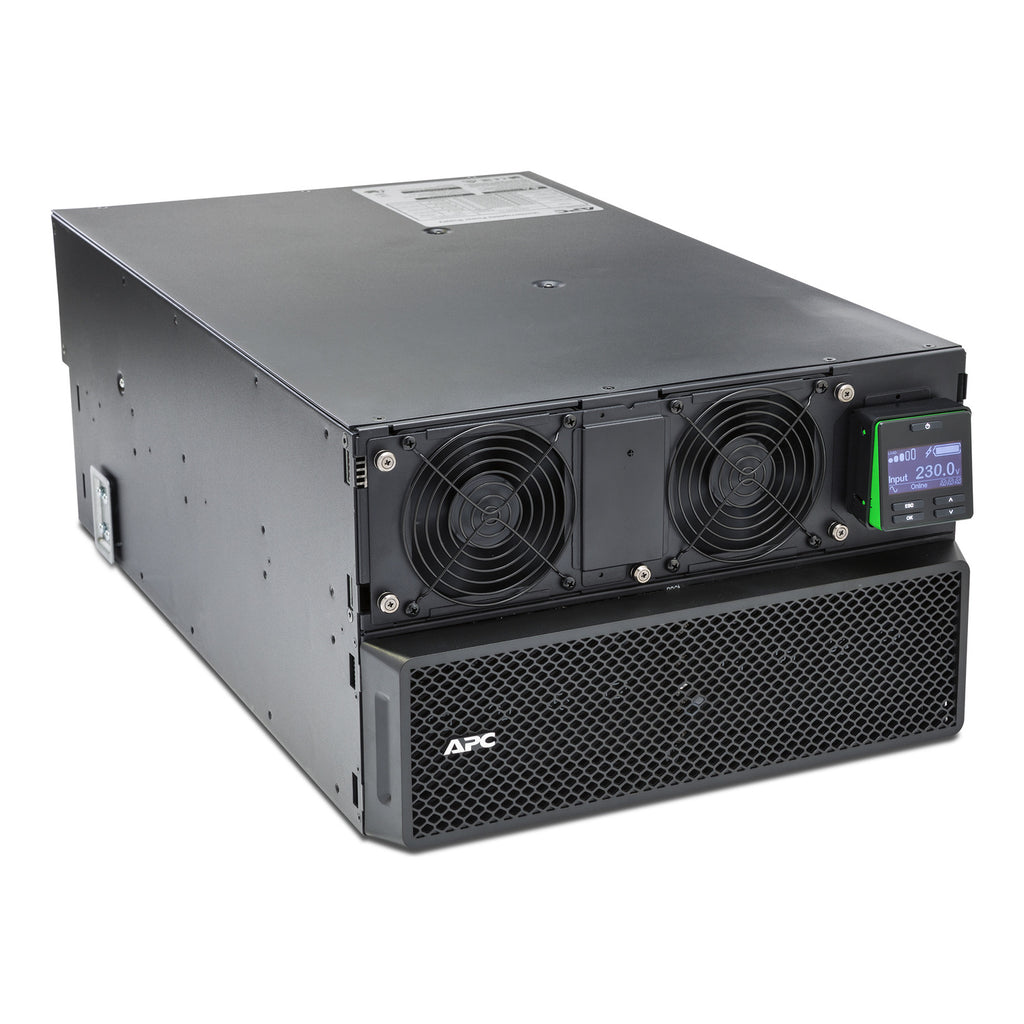

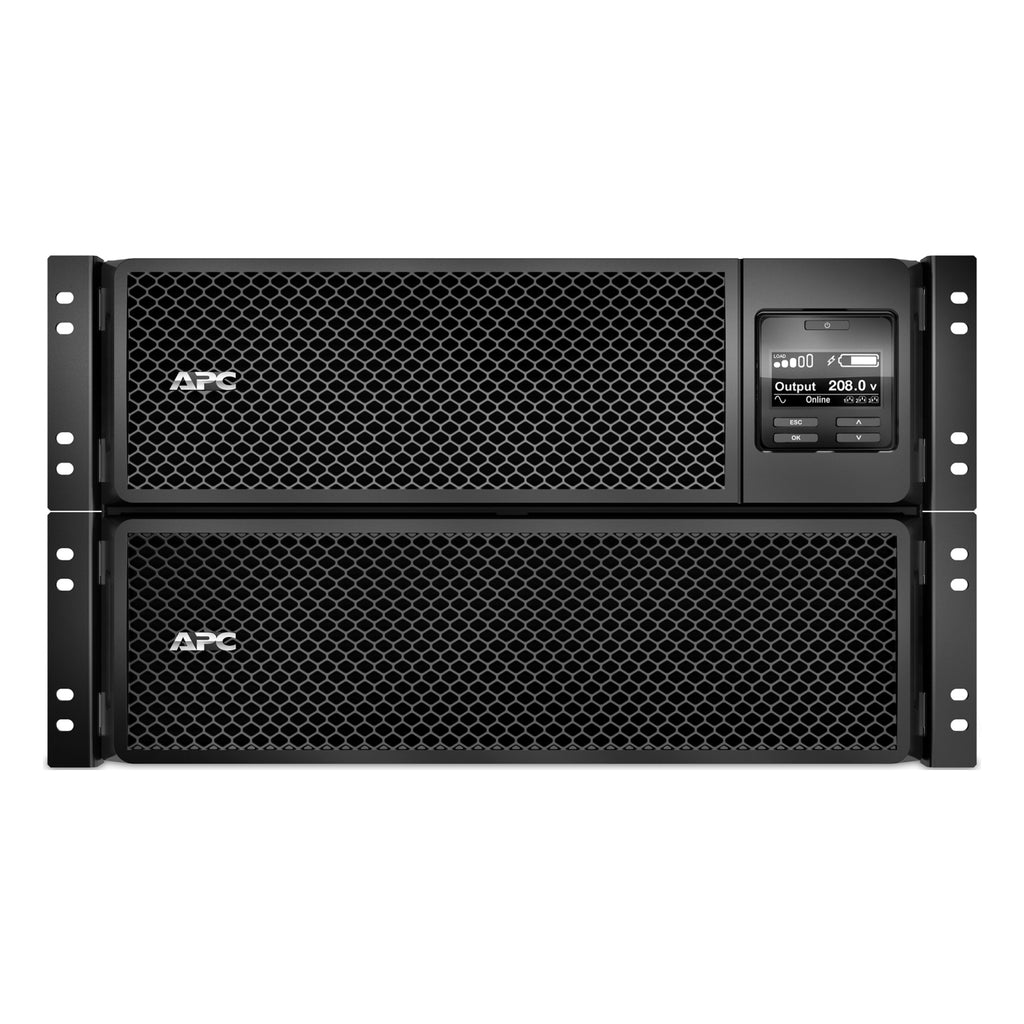

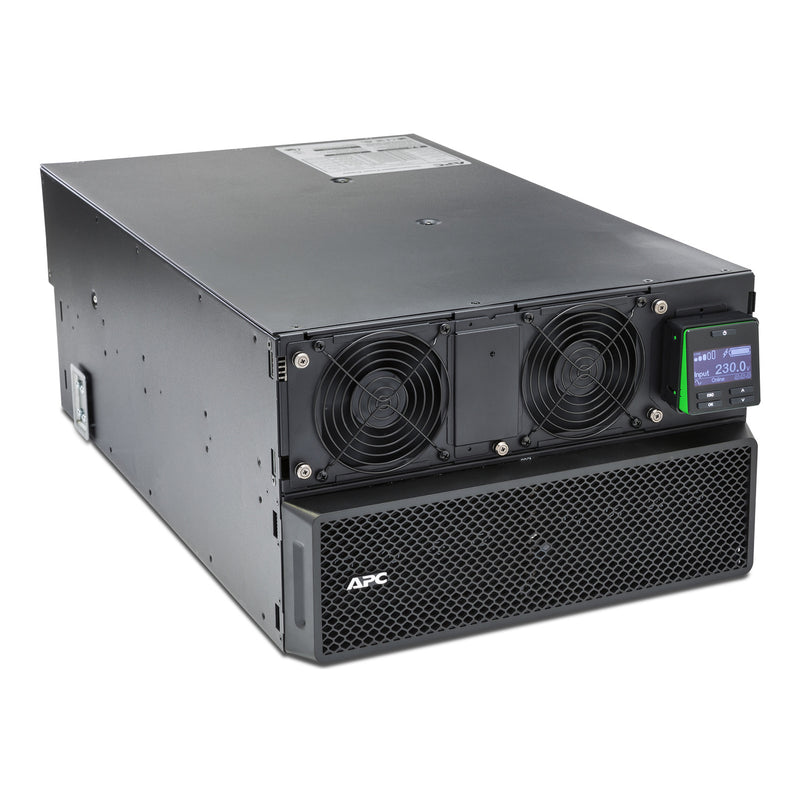

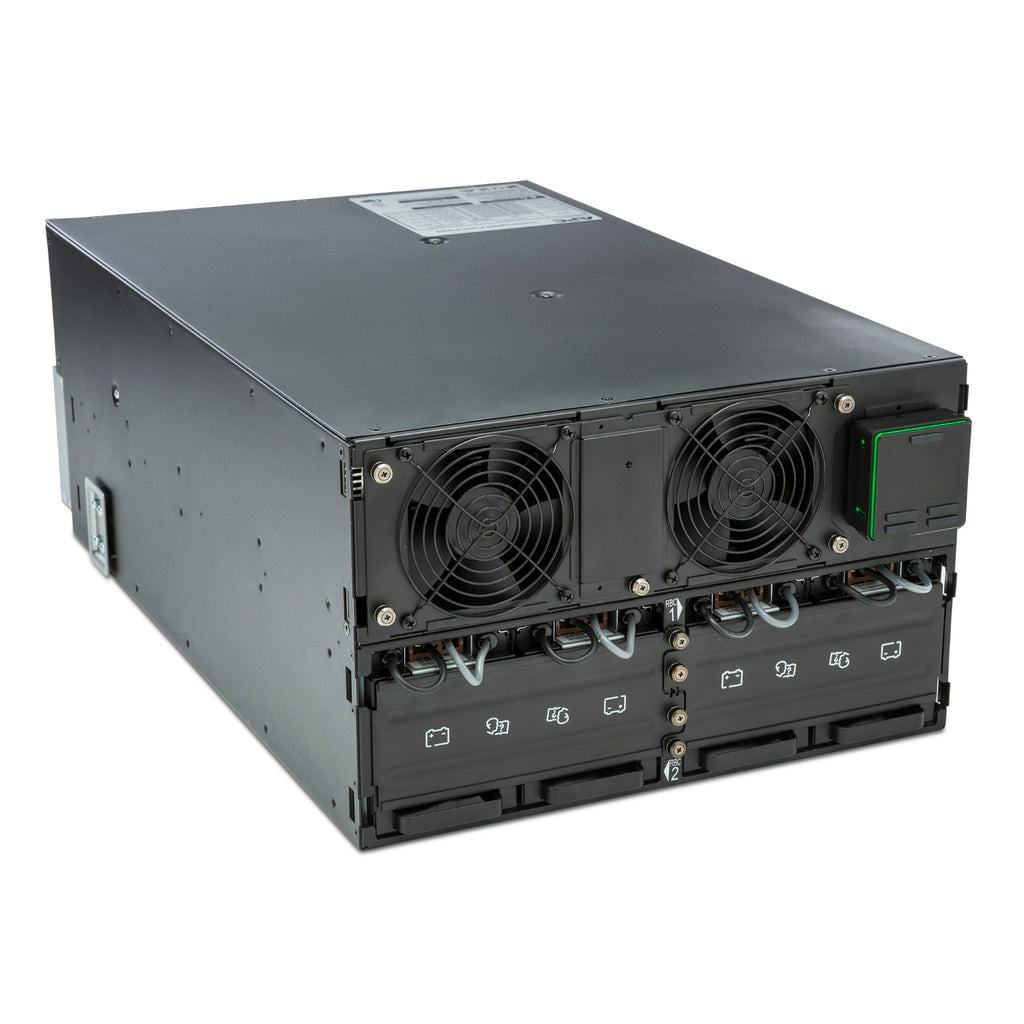

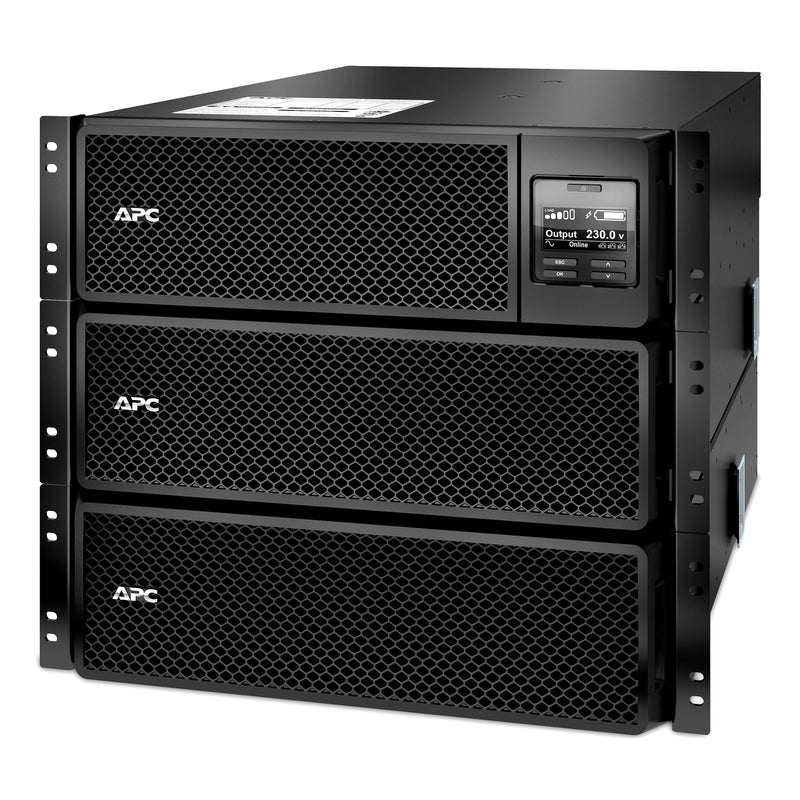

Ensure uninterrupted operation of your critical systems with the APC Smart-UPS SRT10KRMXLT. This high-density 6U rackmount UPS delivers 10kVA/10kW of double-conversion online pure sine wave power, ideal for servers, storage, networking, labs, and light industrial environments. Equipped with a built-in Network Management Card, SmartSlot for expandability, and the ability to add up to 10 external battery packs, it’s engineered for maximum uptime. Includes rail kit, USB cable, temperature probe, and 3-year warranty (2 years for the battery).
| Category | Details |
|---|---|
| Model | APC SRT10KRMXLT |
| Form Factor | Rackmount 6U (Rail Kit Included) |
| Power Capacity | 10kVA / 10kW |
| Input Voltage | 208V (Hard Wire 3-wire, 2PH + G) |
| Output Voltage | 208V (240V optional) |

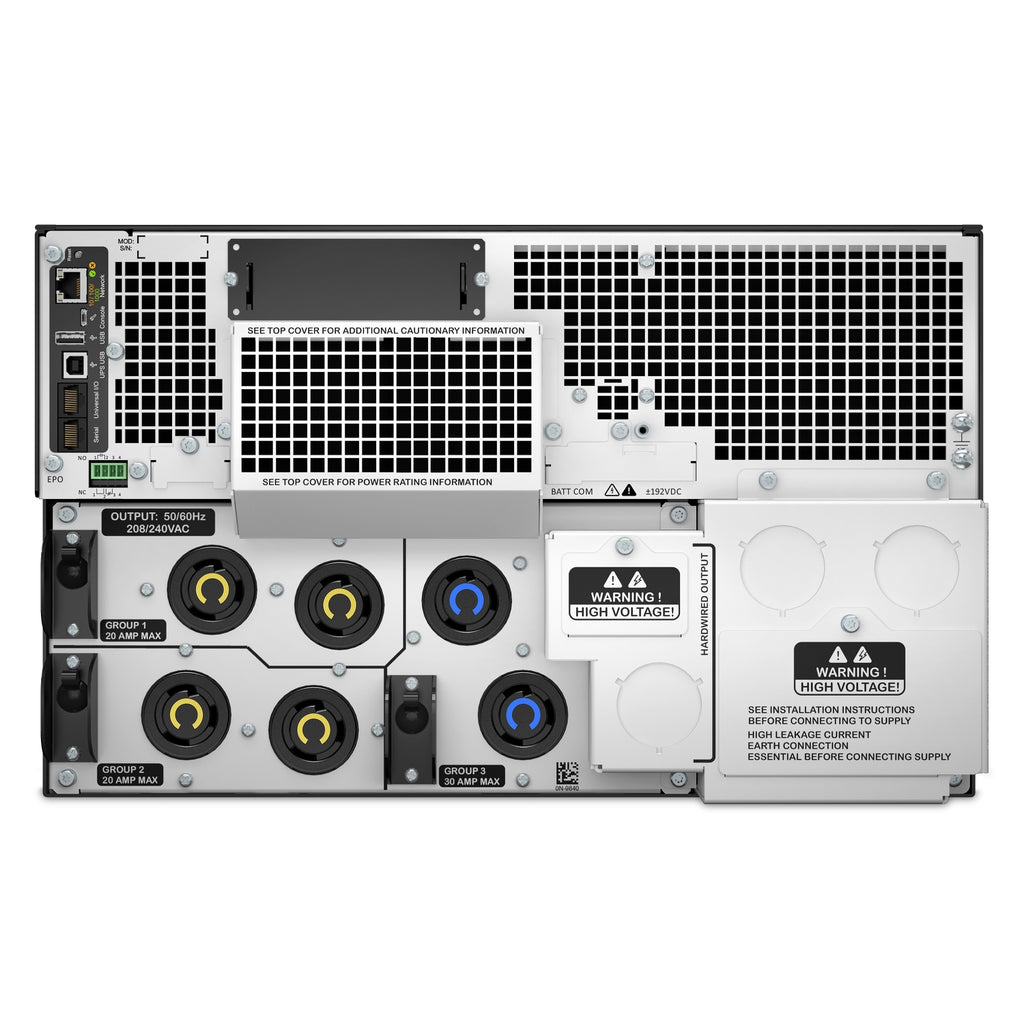

| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Waveform Type | Pure Sine Wave |
| Topology | Double Conversion Online |
| Management | Network Management Card + SmartSlot |

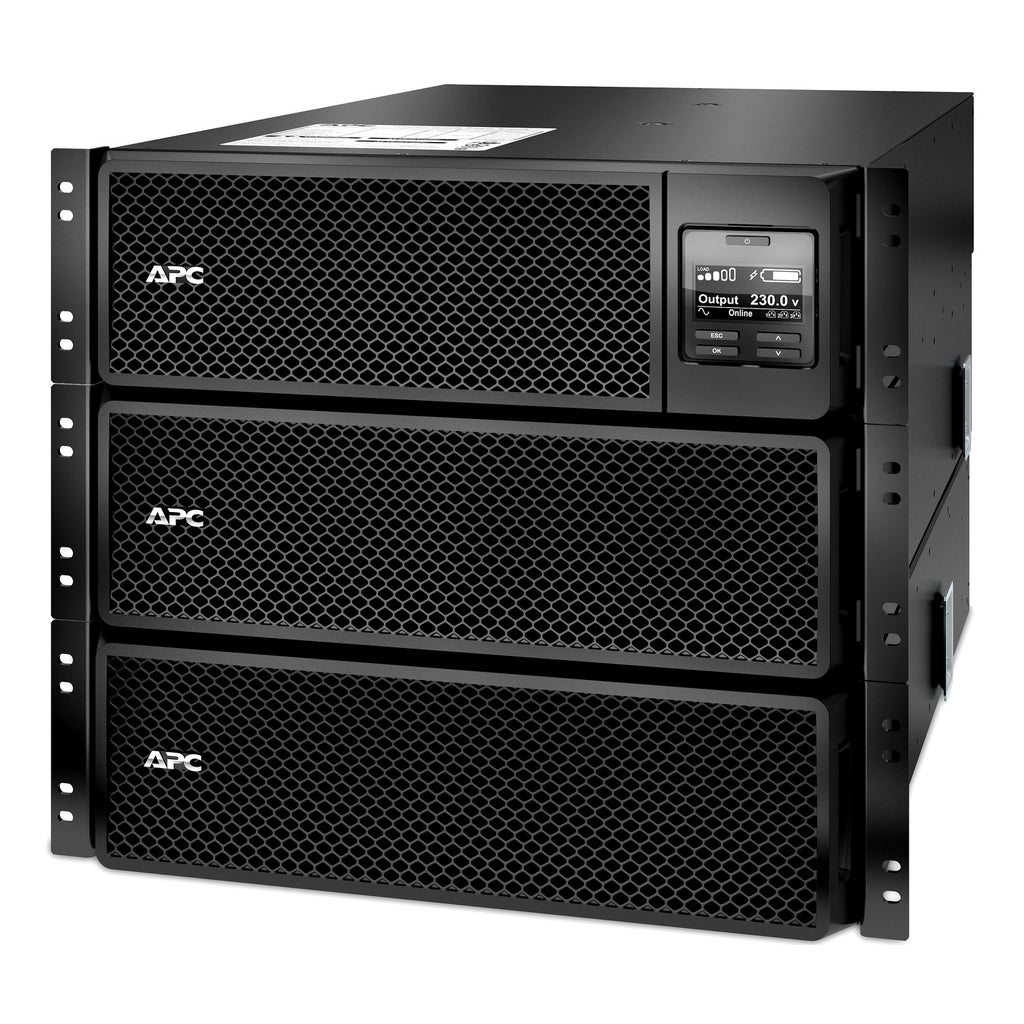

| Runtime Extension | Supports up to 10x SRT192RMBP2 battery packs |

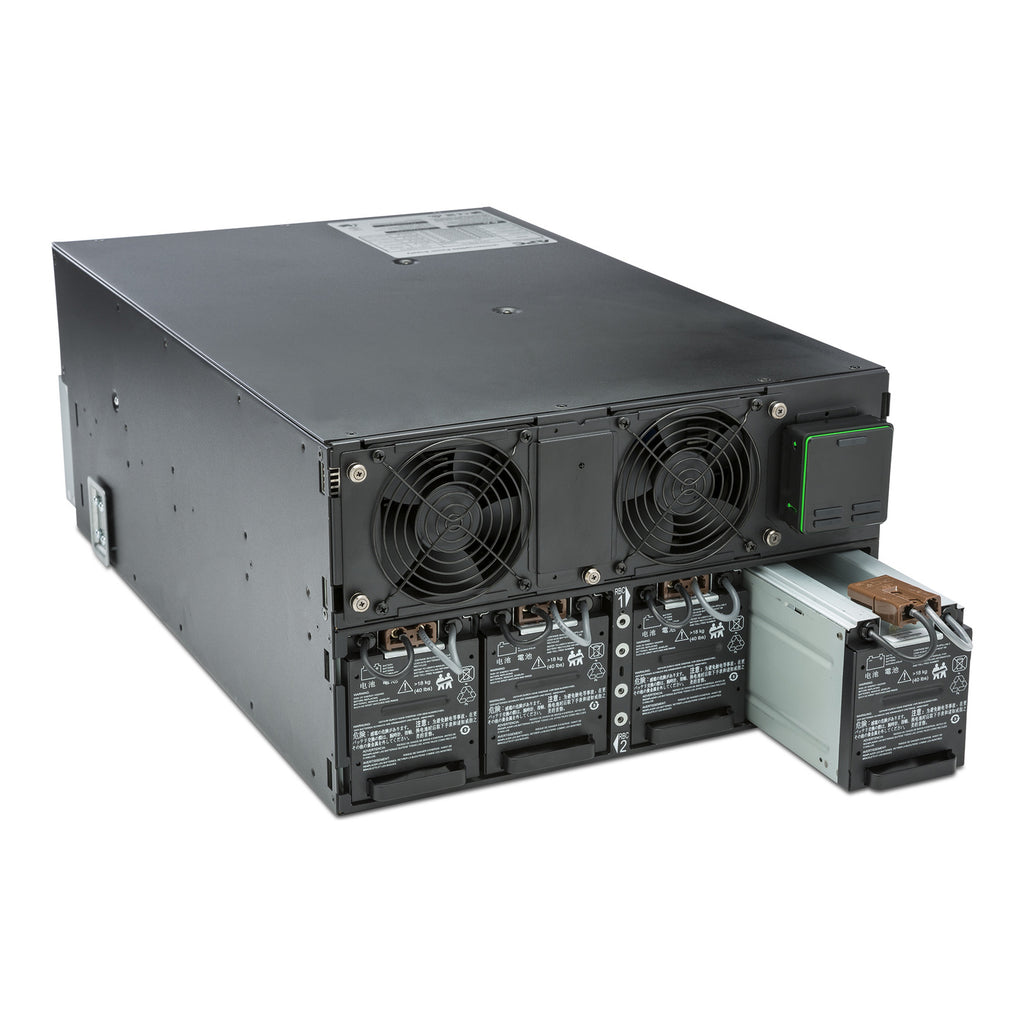

| Replacement Battery | APCRBC140 (192V, 5.1Ah, Lead-Acid) |
| Battery Recharge Time | 1.5 hours typical |

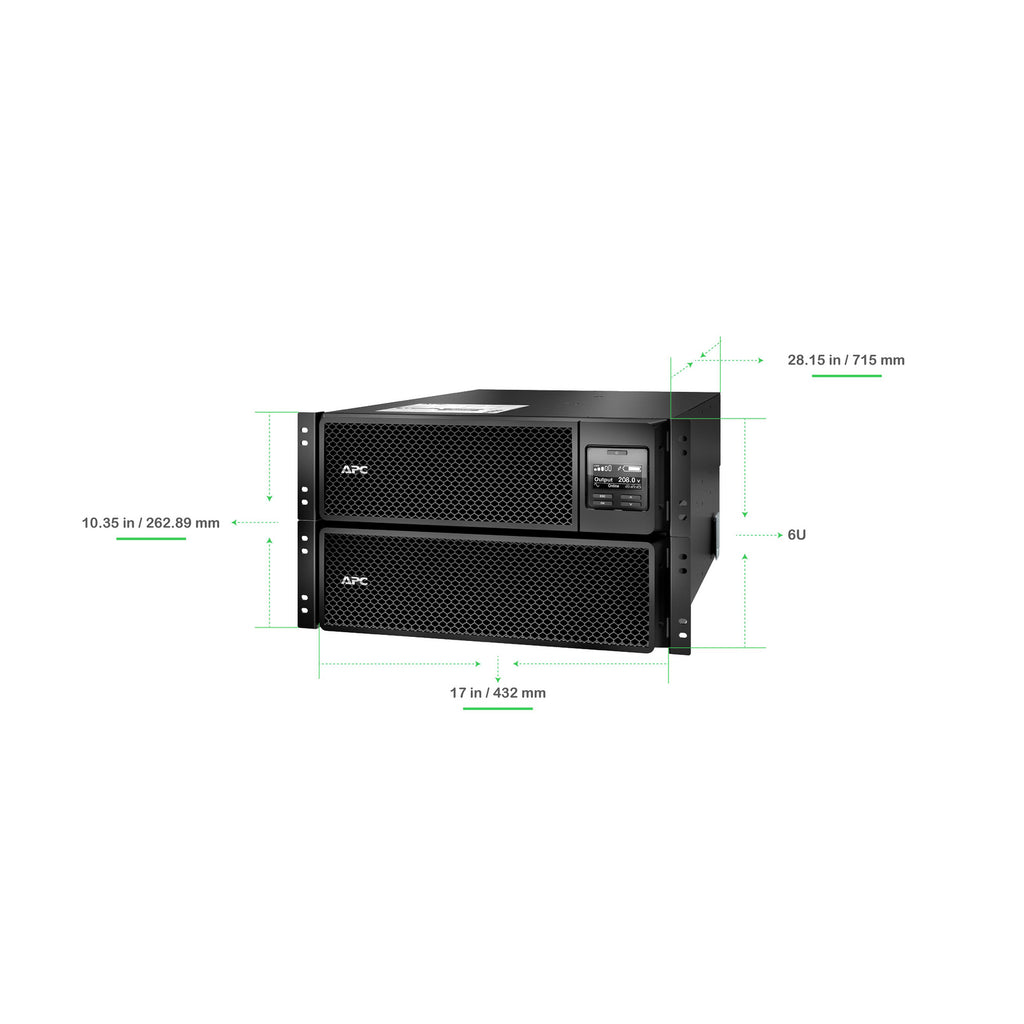

| Dimensions (HxWxD) | 10.35 x 17.01 x 28.15 in (263 x 432 x 715 mm) |
| Weight | 245.99 lbs (111.58 kg) |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A |
| Warranty | 3 years (UPS), 2 years (Battery) |
