Description

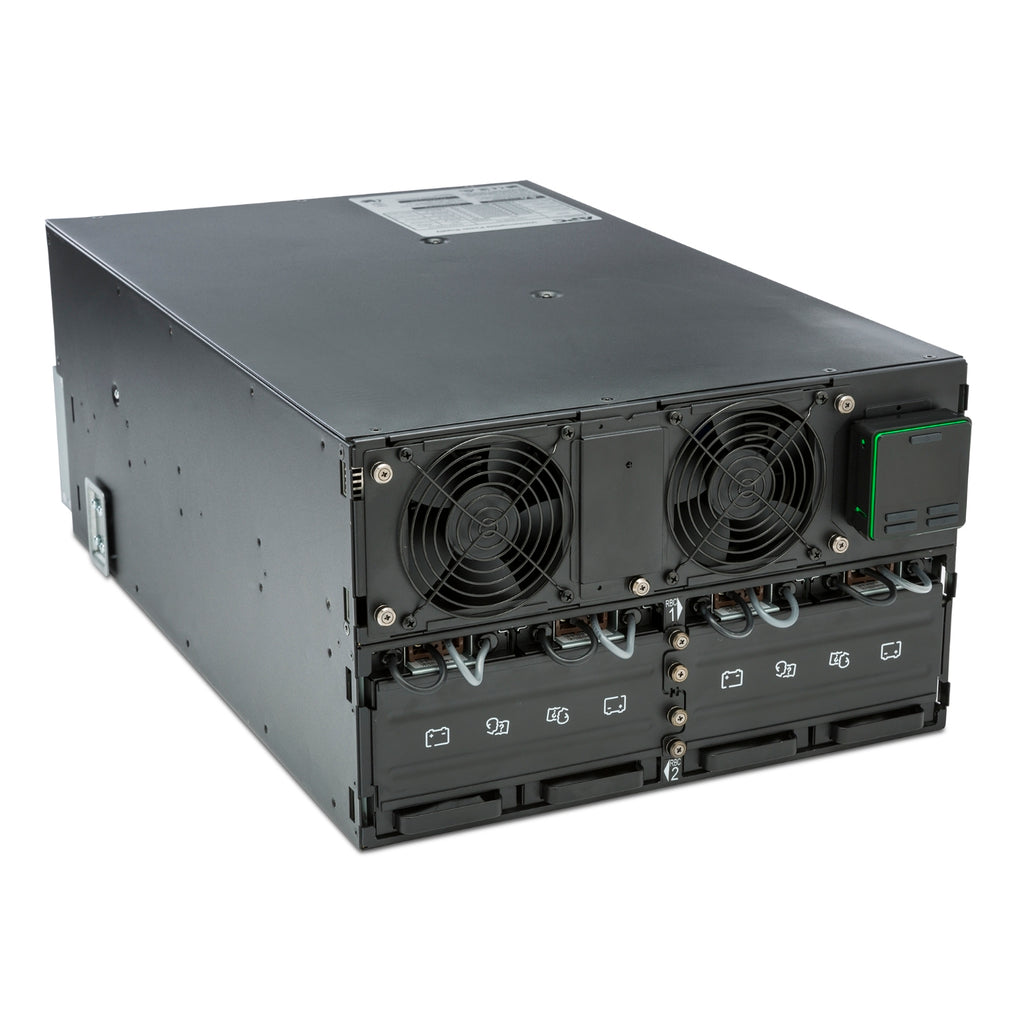

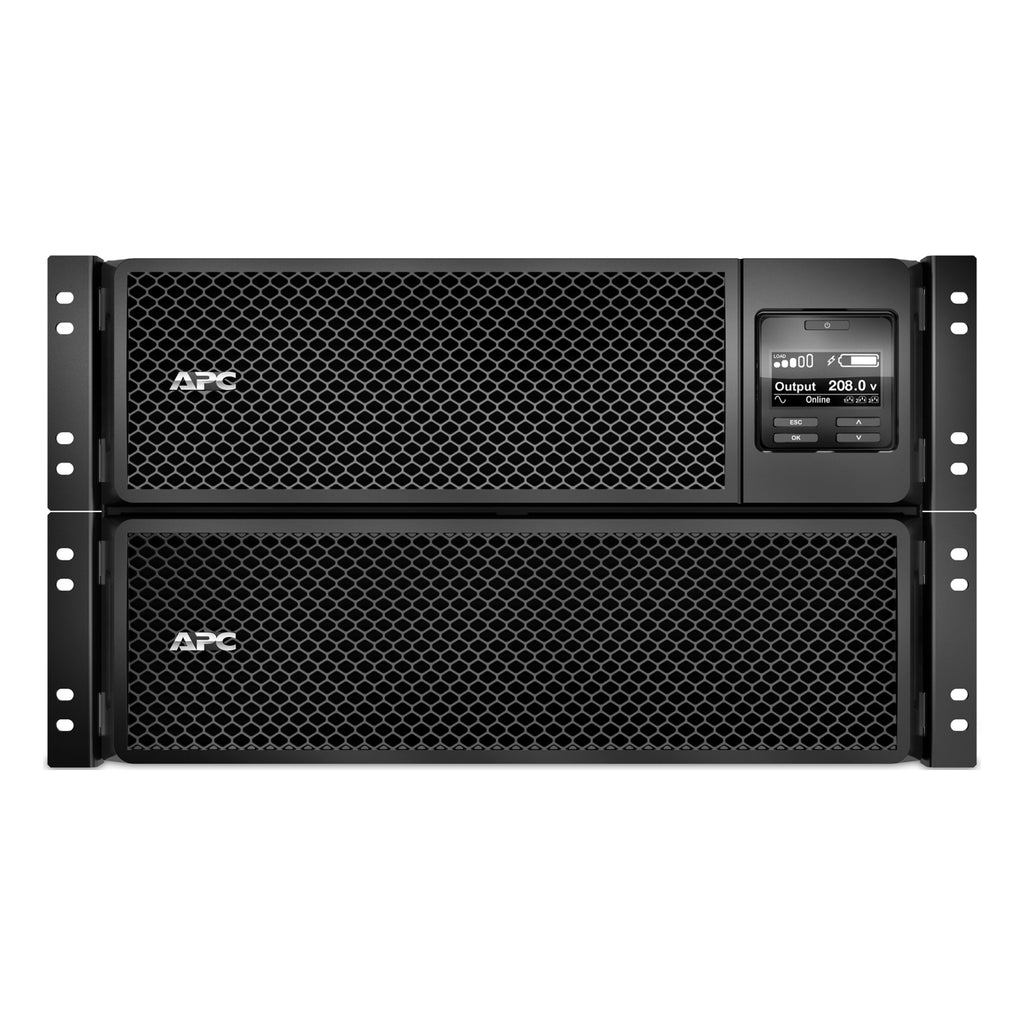

The APC Smart-UPS On-Line SRT10KRMXLT-IEC delivers 10kVA/10kW of true double-conversion power in a compact 6U rackmount form factor. Designed to protect servers, storage, networks, and critical medical or industrial systems, this UPS features 6x IEC C13 and 4x IEC C19 outlets, extended runtime capabilities, and remote monitoring via the pre-installed Network Management Card. Includes PowerChute software for graceful shutdown and rail kit for rack/tower convertibility. Compatible with up to 10 external battery packs and replacement battery APCRBC140.
| Category | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
| Topology | Double Conversion Online |
| Form Factor | Rackmount 6U (convertible with included rail kit) |
| Power Capacity | 10kVA / 10kW |
| Input Voltage | 208V (also supports 240V) |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V (also supports 240V) |

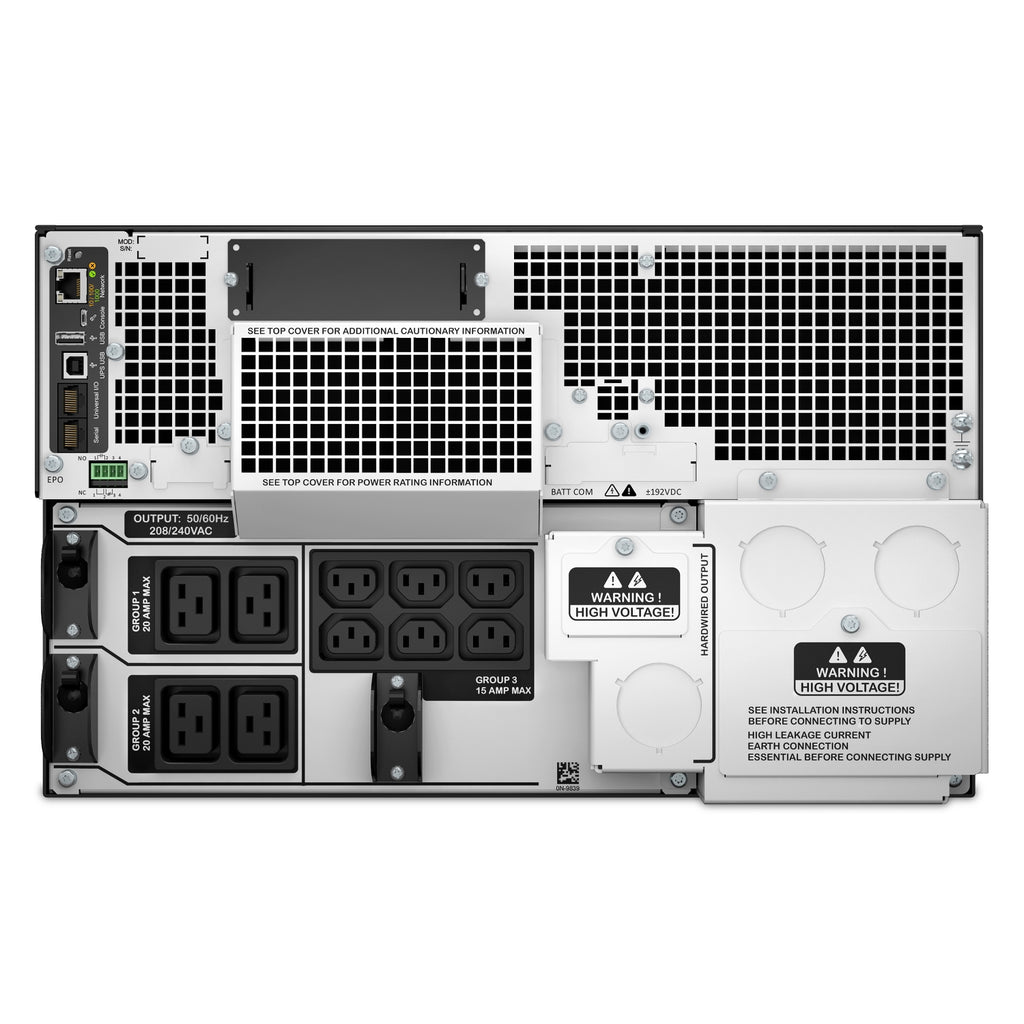

| Output Connections | 6x IEC 60320 C13, 4x IEC 60320 C19, 3x IEC jumpers |
| Waveform | Pure sine wave |
| Efficiency | Viewable graph; full-load input: 100-275V adjustable |

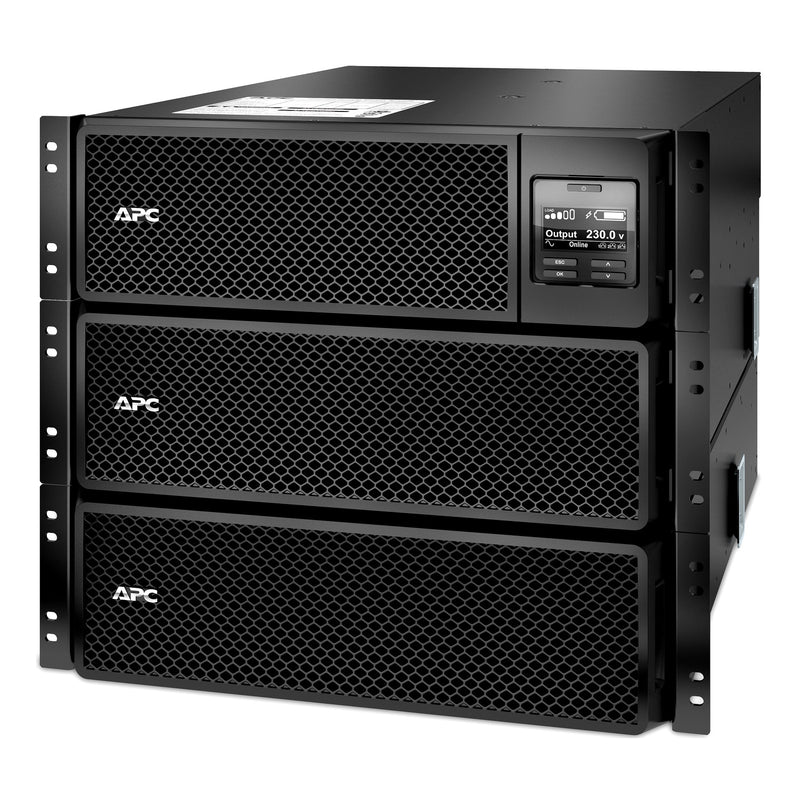

| Runtime | Up to 3min 44s at full load; extendable with up to 10 battery packs |

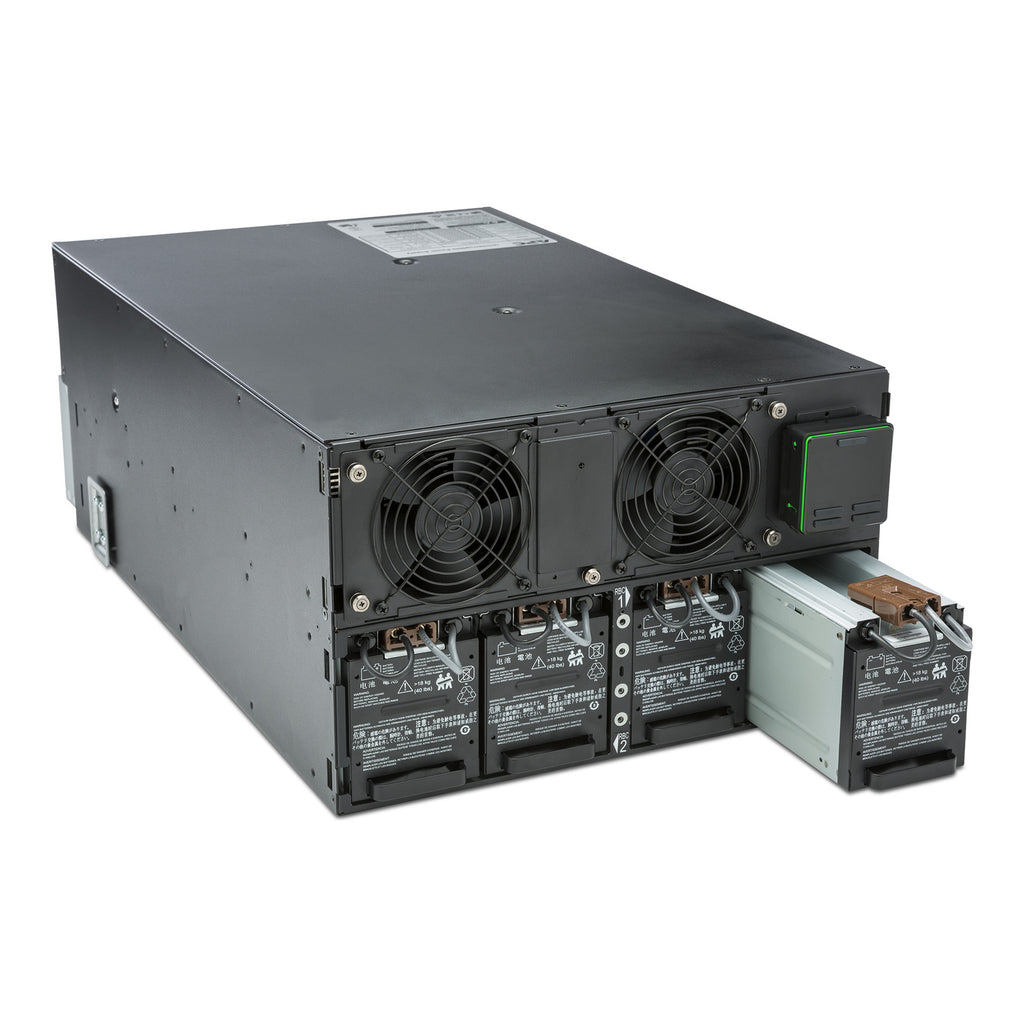

| Battery Type | Lead-Acid, +/-192V split battery, hot-swappable |
| Replacement Battery | APCRBC140 ($769, 2-year warranty) |
| Recharge Time | 1.5 hours |
| SmartSlot | 1 (for optional accessories like Dry Contact I/O) |
| Pre-installed Card | Network Management Card 3 with EPO and environmental monitoring |
| Software Included | PowerChute Network Shutdown |
| Compatible Platforms | EcoStruxure IT, third-party NMS |
| Certifications | ENERGY STAR V2.0, FCC Class A, UL 1778 |
| Noise Level | 55 dBA |
| Operating Temp | 32–104°F (0–40°C) |
| Relative Humidity | 0–95% non-condensing |
| Mounting | Rack-mountable, front mount |
| Color | Black |
| Weight | 245.99 lbs (111.58 kg) |

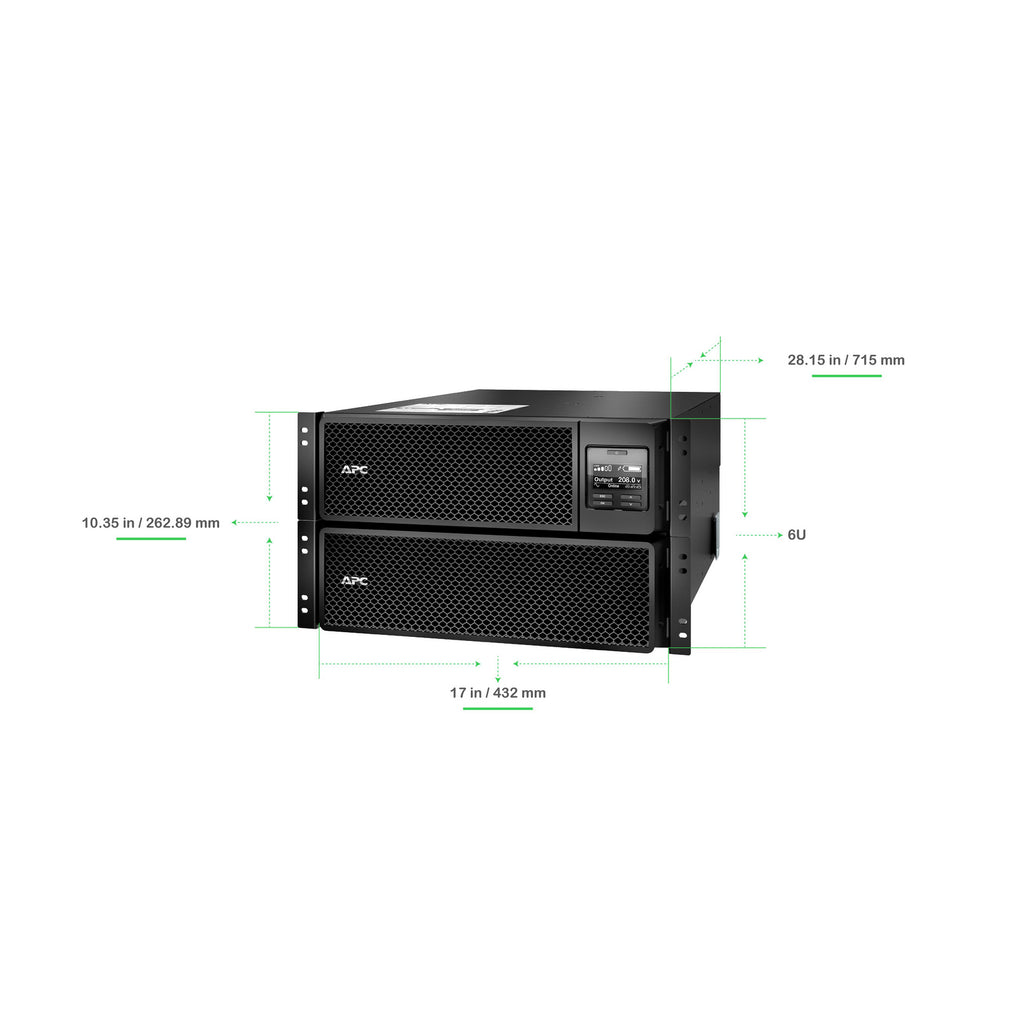

| Dimensions (H x W x D) | 10.35 x 28.15 x 17.01 in (263 x 715 x 432 mm) |
| Warranty | 3 years (UPS), 2 years (battery) |
| GTIN | 731304304845 |
