Description

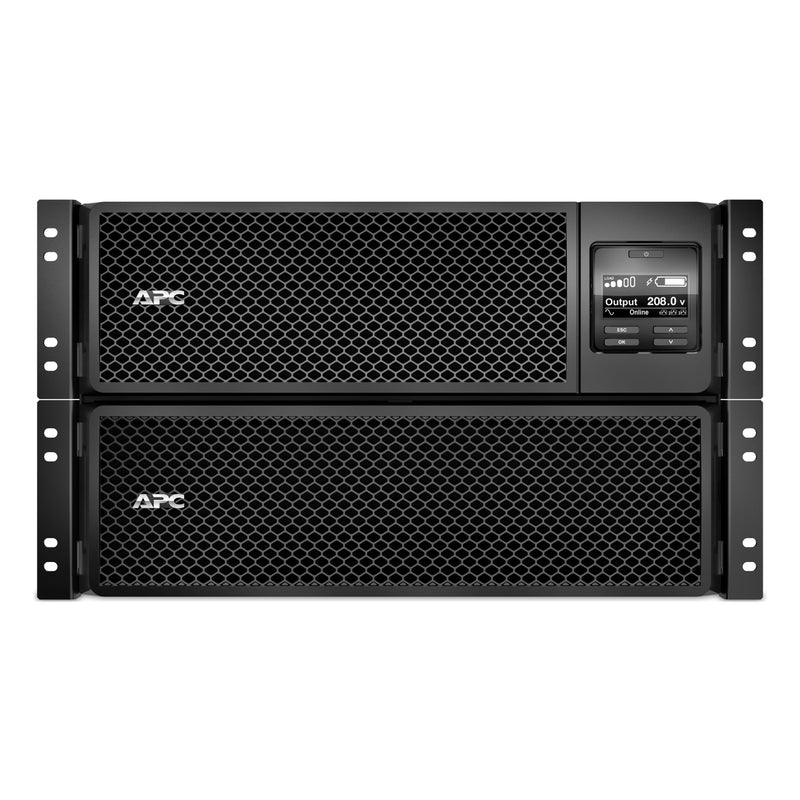

Ensure uninterrupted uptime for your critical IT infrastructure with the APC Smart-UPS On-Line SRT10KRMXLT30. This 10kVA/10kW double-conversion online UPS delivers clean sine wave power in a compact 6U rackmount form factor. Designed for servers, storage, and network applications, it includes 6 NEMA L6-30R outlets, a built-in Network Management Card, and support for up to 10 external battery packs for scalable runtime. Includes rail kit and is ideal for light industrial, healthcare, and enterprise use.
| Key Specs | Details |
|---|---|
| Brand / Model | APC by Schneider Electric / SRT10KRMXLT30 |
| Form Factor | Rackmount 6U (Rail Kit Included) |
| Topology | Double Conversion Online |
| Power Capacity | 10kVA / 10kW |
| Input Voltage | 208V (Adjustable: 100–275V), 3-wire (2PH + G) |
| Input Frequency | 40–70 Hz (auto-sensing) |
| Output Voltage | 208V (Optional: 240V) |
| Output Connections | 6x NEMA L6-30R |
| Waveform Type | Pure Sine Wave |
| Bypass | Automatic & Manual Internal Bypass |
| Battery Type | Lead-Acid (Hot-Swappable) |
| Battery Runtime | Configurable / Extendable up to 10 packs |
| Compatible Battery Packs | SRT192RMBP2, SRT192BP2US, APCRBC140 |
| Recharge Time | Approx. 1.5 hours |
| Management Interface | Network Management Card (Included) + SmartSlot |
| Remote Management | EcoStruxure IT, PowerChute Network Shutdown |
| Alarms | Audible and visual alarms |
| Mounting Mode | Rack-mounted |
| USB Support | Yes |
| Surge Protection | 480 Joules |
| Certifications | ENERGY STAR V2.0, FCC Class A, UL 1778, NOM |
| Noise Level | 55 dBA |
| Dimensions (HxWxD) | 10.35 x 17.01 x 28.15 in (263 x 432 x 715 mm) |
| Weight | 245.99 lbs (111.58 kg) |
| Warranty | 3 Years UPS, 2 Years Battery |
