Description

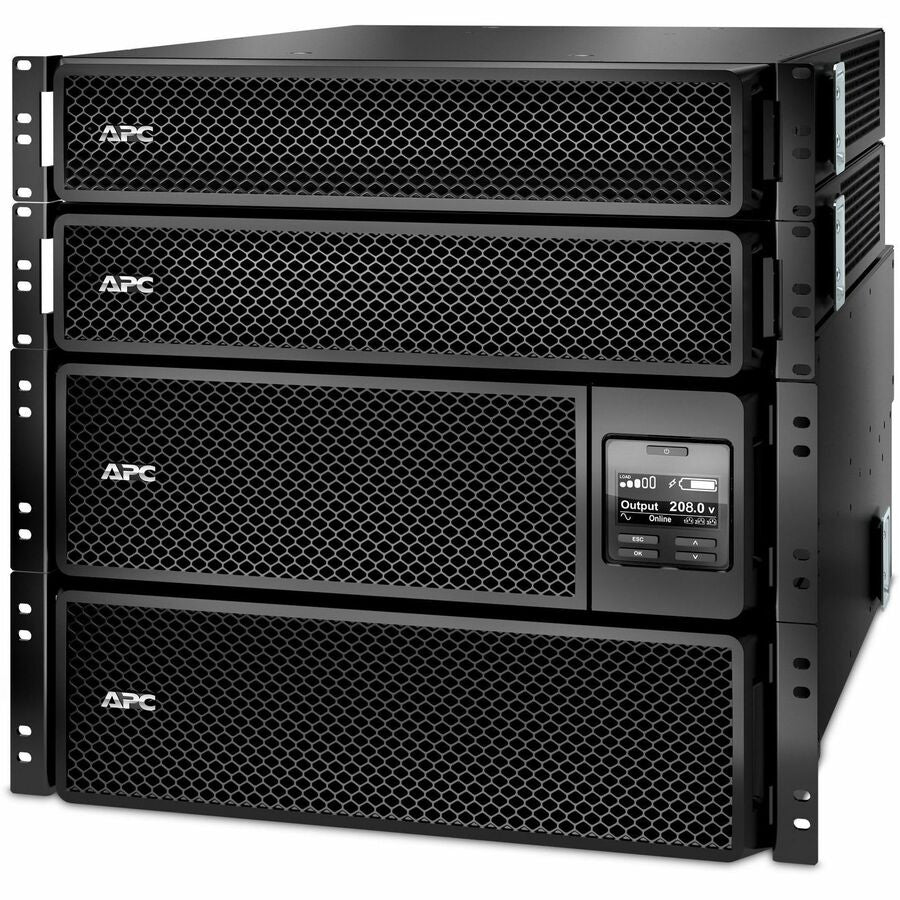

The APC Smart-UPS SRT10KRMXLT-5KTF2 delivers reliable double-conversion online power protection for critical IT infrastructure. This 10U rackmount UPS supports 10kVA/10kW loads and includes 24 NEMA 5-20R and 4 NEMA L6-30R outlets, ideal for servers, networking gear, storage, labs, and light industrial use.
The unit includes dual step-down transformers (208V to 120V), a 1-year Secure Network Management Card subscription, and a full rail kit. Embedded SmartSlot™ and pre-installed NMC3 card enable seamless remote monitoring. Supports up to 10 external battery packs (SRT192RMBP2) for extended runtime.
APC Smart-UPS On-Line 10kVA/10kW rackmount UPS with 24x 5-20R and 4x L6-30R NEMA outlets. Includes rail kit, dual transformers (208V to 120V), and network card.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT10KRMXLT-5KTF2 |
| Product Type | Double-Conversion Online UPS |
| Form Factor | 10U Rackmount (Rail Kit Included) |
| Input Voltage | 208V, Hard Wire 3-wire (2PH + G) |
| Output Voltage | 120V via step-down transformers |
| Output Power Capacity | 10kVA / 10kW |

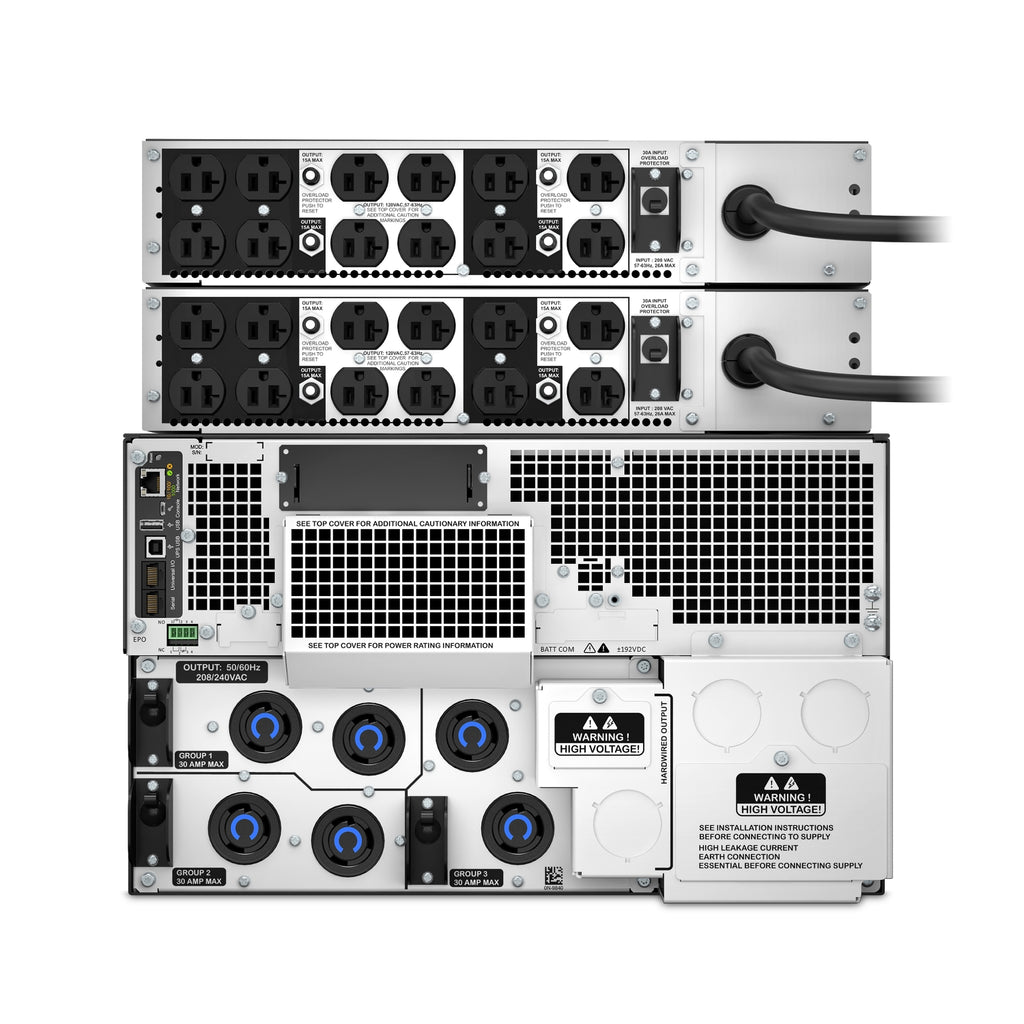

| Output Connections | 24x NEMA 5-20R, 4x NEMA L6-30R |
| Battery Type | Lead-Acid, +/-192V nominal |
| Extendable Runtime | Yes (Supports up to 10x SRT192RMBP2) |
| Recharge Time | 1.5 Hours |
| Replacement Battery | APCRBC140 |
| Network Management | Embedded NMC3 Card + SmartSlot, 1-year subscription |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A |
| Surge Protection Rating | 480 Joules |
| Operating Temperature | 32–104°F (0–40°C), 0–95% RH non-condensing |
| Noise Level | 55 dBA |
| Dimensions (HxWxD) | 17.36 x 17.01 x 28.15 in (44.1 x 43.2 x 71.5 cm) |
| Weight | 436.01 lb (197.77 kg) |
| Warranty | 3 years on UPS, 2 years on battery |
