Description

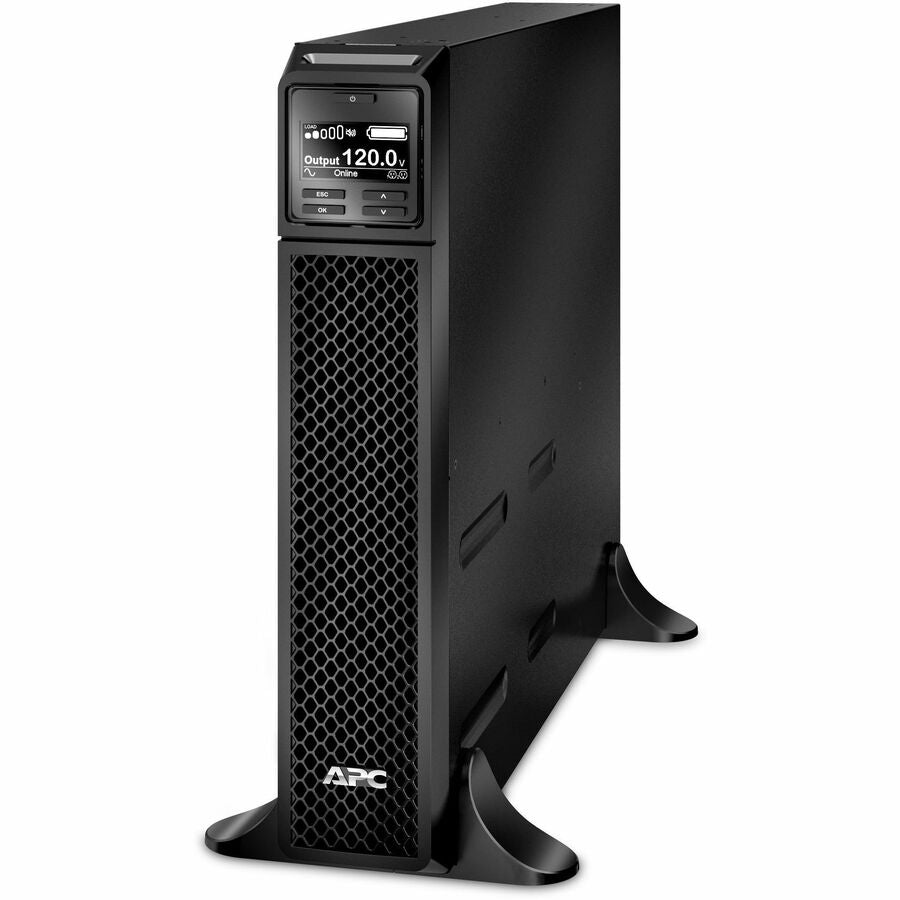

The APC Smart-UPS On-Line SRT2200XLA delivers high-performance power protection for critical IT and industrial applications. With 2200VA/1800W double-conversion technology, it provides clean sine wave output and zero transfer time. Ideal for servers, networks, labs, and storage systems, it features a tower form factor, SmartSlot for network management, and support for up to 10 external battery packs (SRT72BP) for extended runtime. Compatible with EcoStruxure™ IT and PowerChute™ for remote monitoring and graceful shutdown.
| Category | Details |
|---|---|
| Model | SRT2200XLA |
| Form Factor | Tower (Not rack-mountable) |
| Topology | Double Conversion Online |
| Power Capacity | 2200VA / 1800W |
| Input Voltage | 120V |
| Input Connection | NEMA 5-20P |
| Output Voltage | 120V |

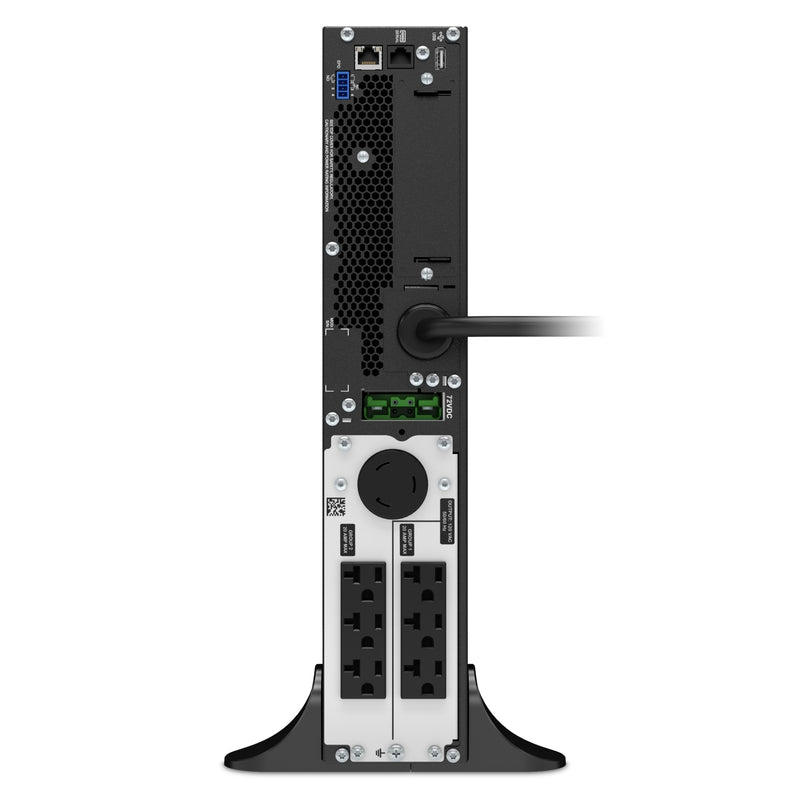

| Output Connections | 6x NEMA 5-20R, 1x NEMA L5-20R |
| Battery Type | Lead-Acid, APCRBC141 replacement, 72V |
| Battery Runtime | Scalable, supports up to 10 external battery packs (SRT72BP) |
| Recharge Time | Approx. 3 hours |
| Included Equipment | USB cable, installation guide, support feet, warranty card |
| SmartSlot | Yes (1 slot, free) |
| Surge Energy Rating | 340 Joules |
| Waveform | Sine wave |
| Bypass Type | Internal (automatic and manual) |
| Operating Temp. | 0–40°C (32–104°F) |
| Certifications | ENERGY STAR V2.0 |
| Dimensions (HxWxD) | 3.35 x 17.01 x 22.99 in (8.5 x 43.2 x 58.4 cm) |
| Net Weight | 55.1 lbs (25 kg) |
| Warranty | 3 years UPS / 2 years battery |
| GTIN | 731304325161 |
