Description

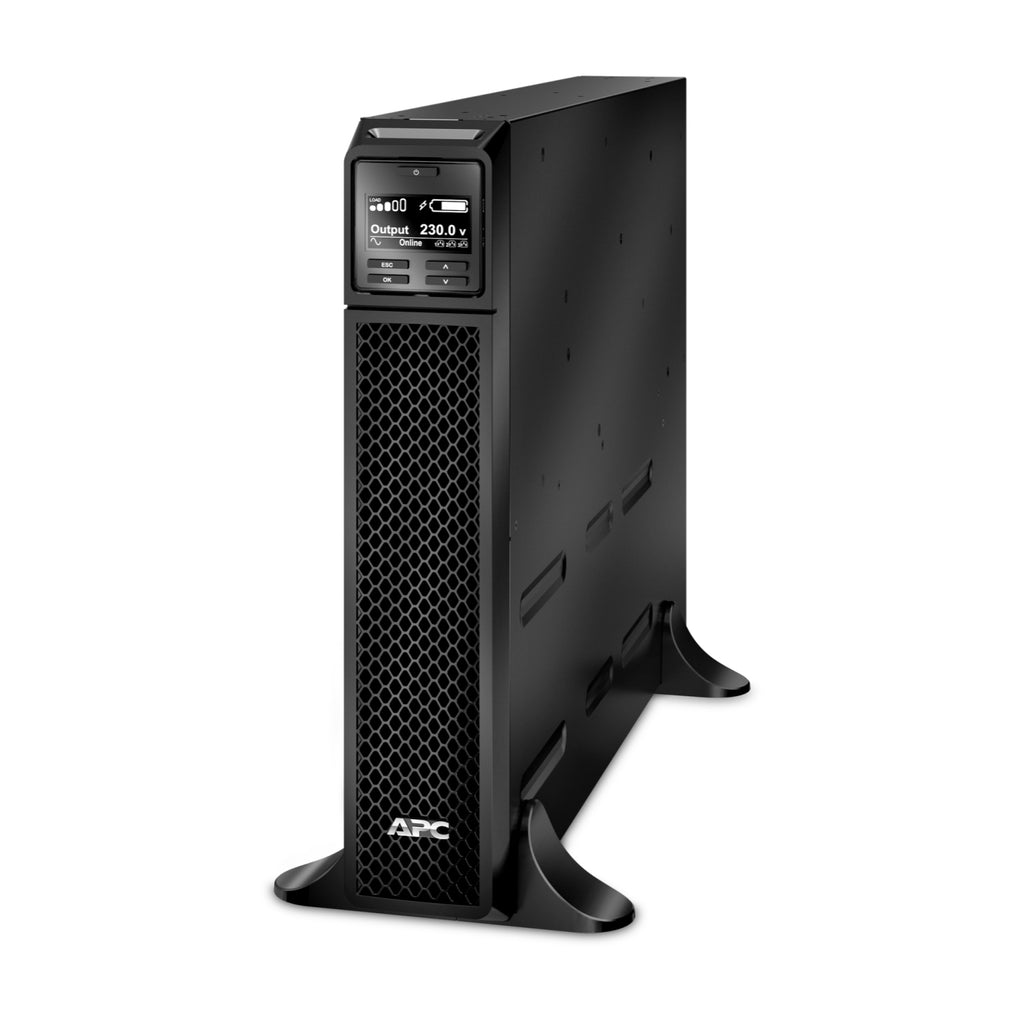

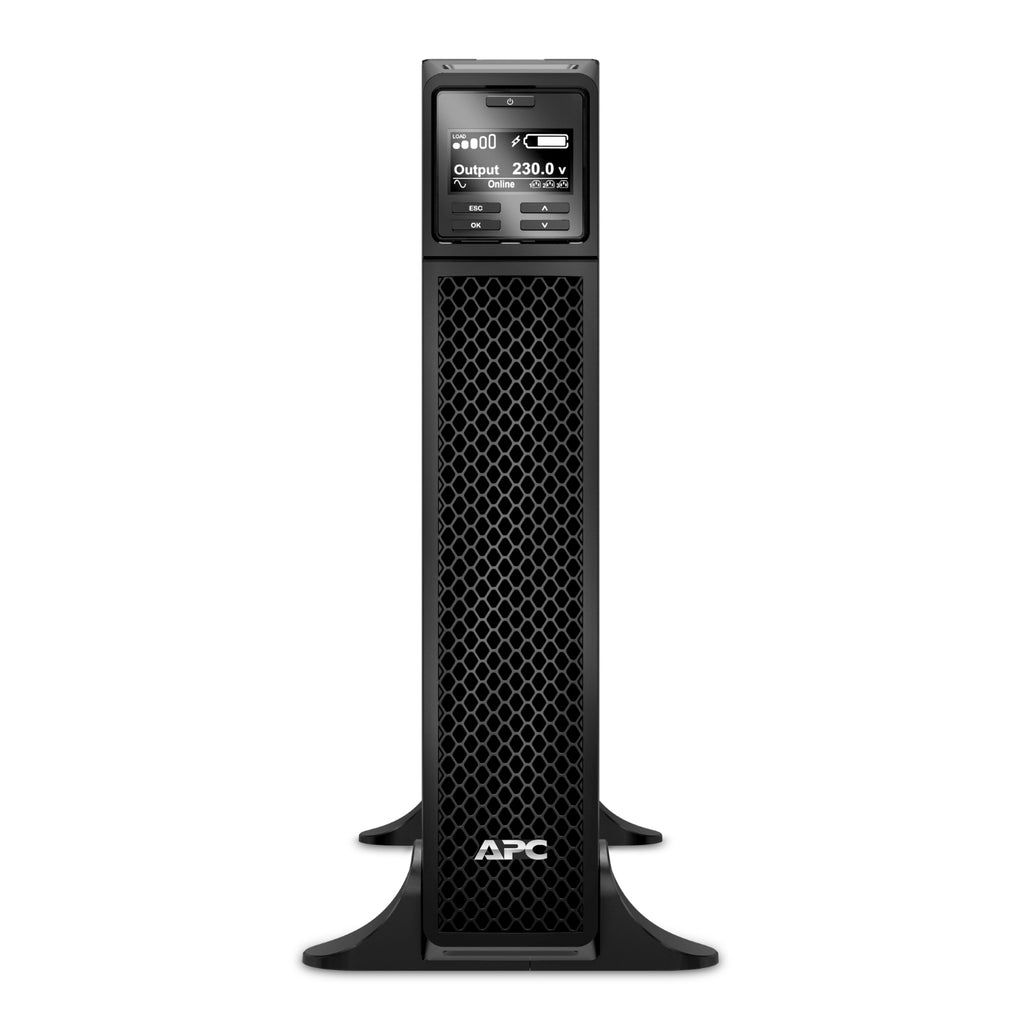

The APC Smart-UPS On-Line SRT2200XLI delivers high-density, true double-conversion on-line power protection for servers, storage, voice/data networks, and critical electronics. With 2200VA/1980W capacity, pure sine wave output, and extended runtime support, this UPS ensures clean power for sensitive equipment with zero transfer time. Ideal for IT environments and light industrial use, it features 10 IEC outlets, SmartSlot support for network management cards, and is rack/tower convertible (rail kits sold separately). Compatible with up to 10 external battery packs (SRT72BP) for extended uptime.
| Category | Details |
|---|---|
| Model | SRT2200XLI |
| UPS Type | Double Conversion On-Line |
| Form Factor | Tower (Rackmount convertible with SRTRK4/SRTRK3 kits, sold separately) |
| Input Voltage | 230V (compatible with 220V and 240V) |
| Output Voltage | 230V (configurable to 220V or 240V) |
| Power Capacity | 2200 VA / 1980 W |
| Input Connections | BS1363A, IEC 60320 C20, Schuko CEE 7/EU1-16P |

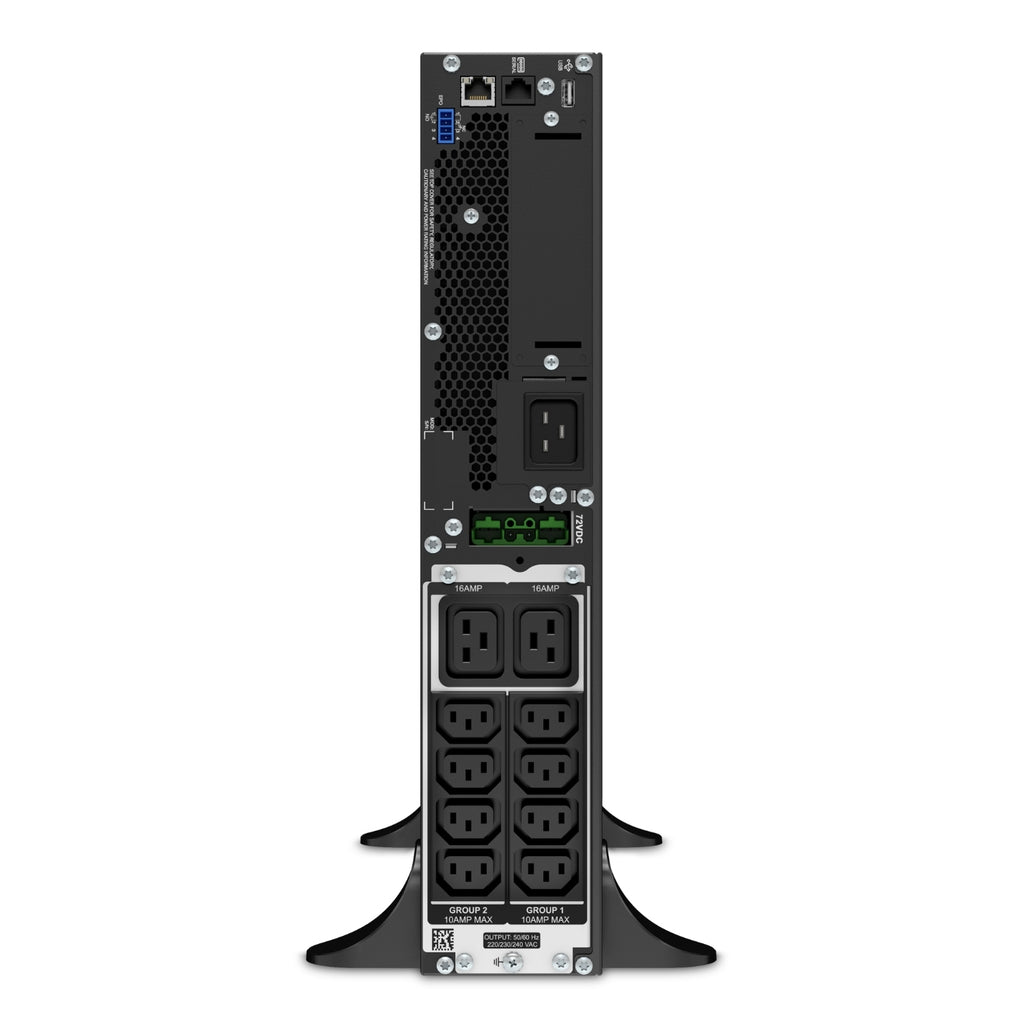

| Output Connections | 8 × IEC 60320 C13, 2 × IEC 60320 C19 |
| Battery Type | Lead-acid, user-replaceable (APCRBC141) |

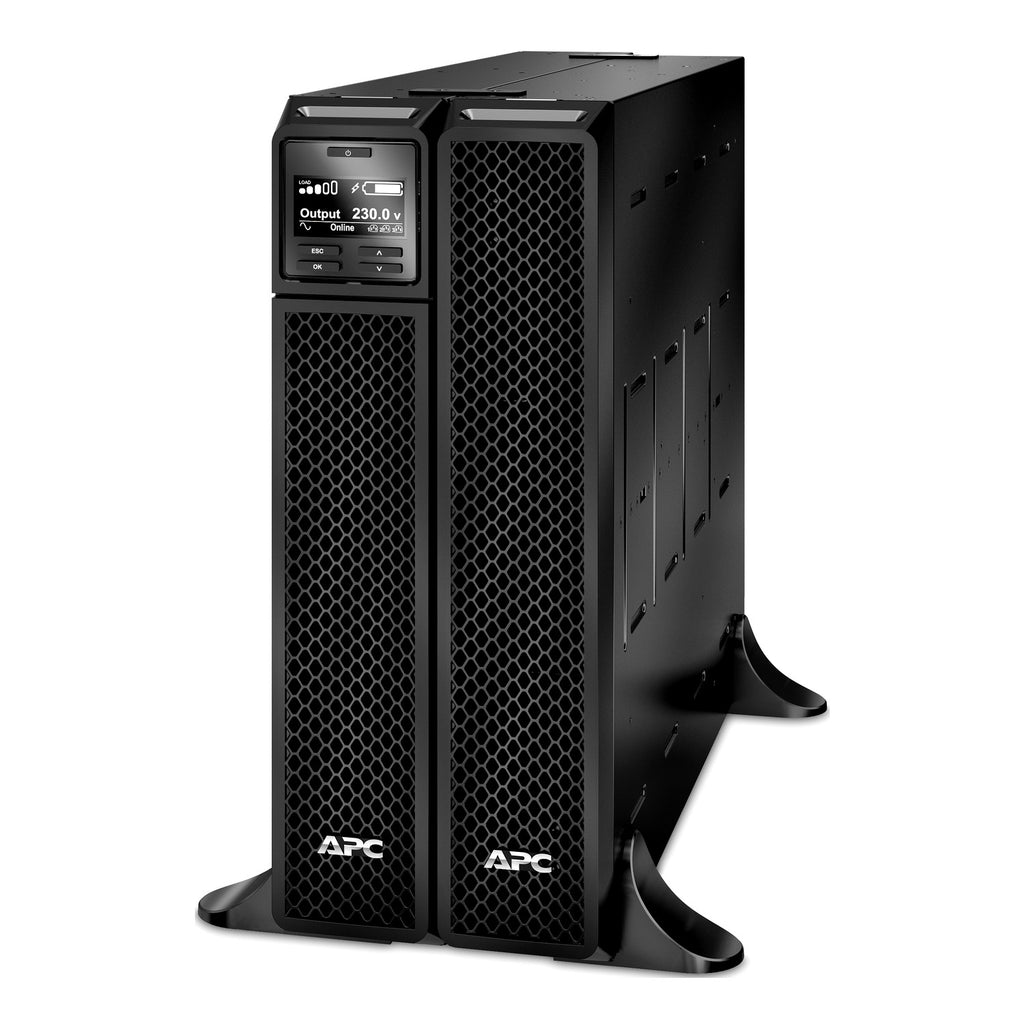

| Battery Runtime | Scalable with up to 10 external battery packs (SRT72BP) |
| Battery Recharge Time | Approx. 3 hours |
| Waveform Type | Pure sine wave |
| Efficiency | > 90% depending on load |
| Bypass | Internal (manual and automatic) |
| Dimensions (H × W × D) | 43.2 × 8.5 × 58.4 cm |
| Net Weight | 25 kg |
| Warranty | 3 years on UPS, 2 years on battery |
| Management Interface | SmartSlot, USB, Audible and Visual Alarms |
| Certifications | CE, UK PSTI, RCM, VDE, EAC |
| Environment | 0–40°C operating temp, 0–95% RH non-condensing |
| Noise Level | 55 dBA |
