Description

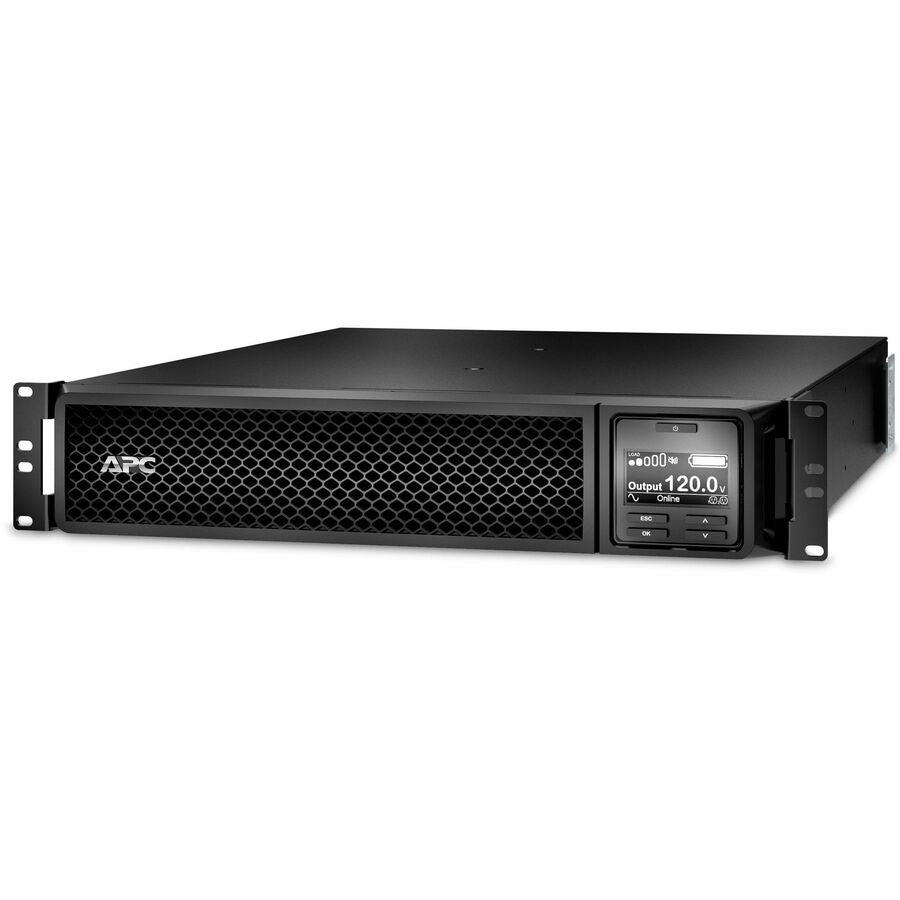

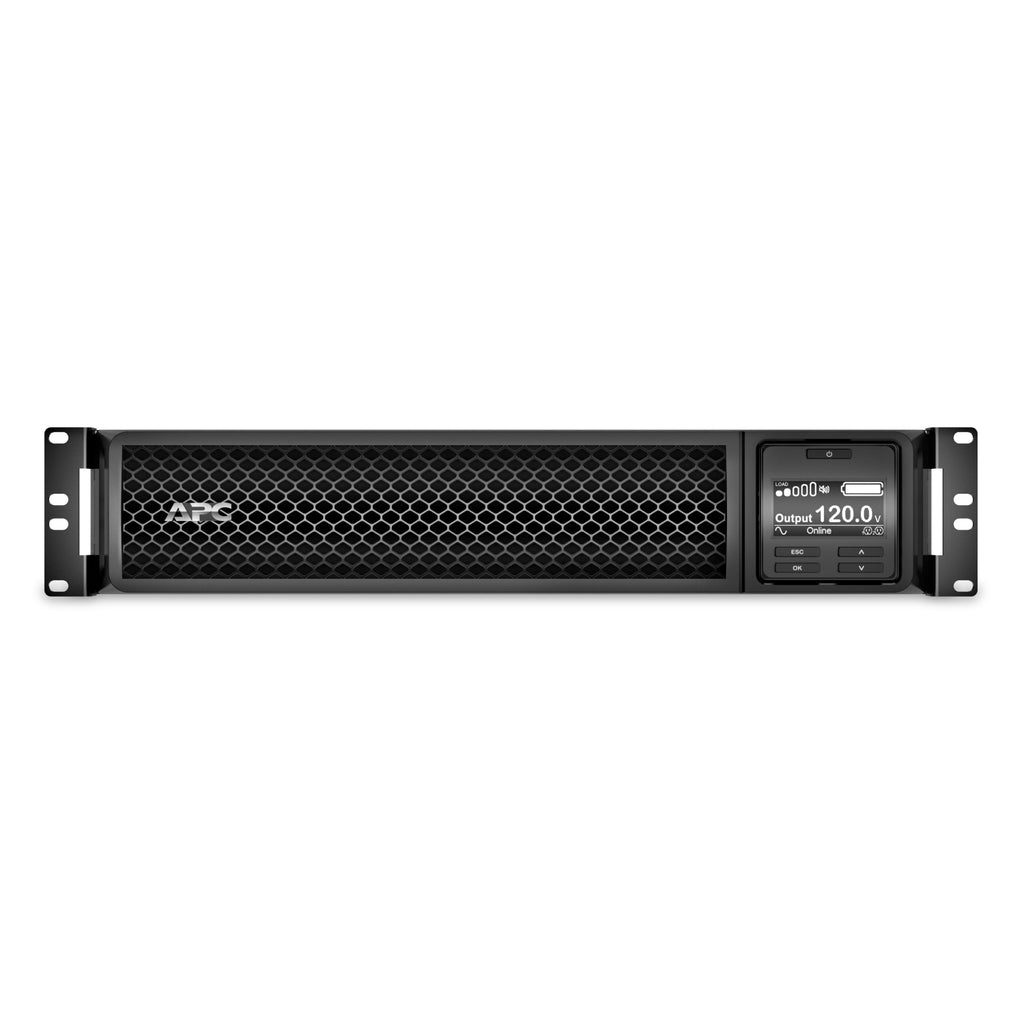

The APC Smart-UPS SRT2200RMXLA is a high-performance, double-conversion on-line UPS delivering 2200VA/1800W of pure sine wave power. Ideal for servers, voice/data networks, medical labs, and industrial systems, this 2U rackmount/tower convertible UPS includes a pre-installed network management card for remote monitoring. It supports extended runtime with up to 10 external battery packs (SRT72RMBP) and includes a rail kit, USB cable, and full installation hardware. Designed for maximum uptime, it provides reliable protection during power disturbances.
| Specification | Details |
|---|---|
| Model | SRT2200RMXLA |
| UPS Type | Double Conversion Online |
| Power Capacity | 2200VA / 1800W |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-20P |

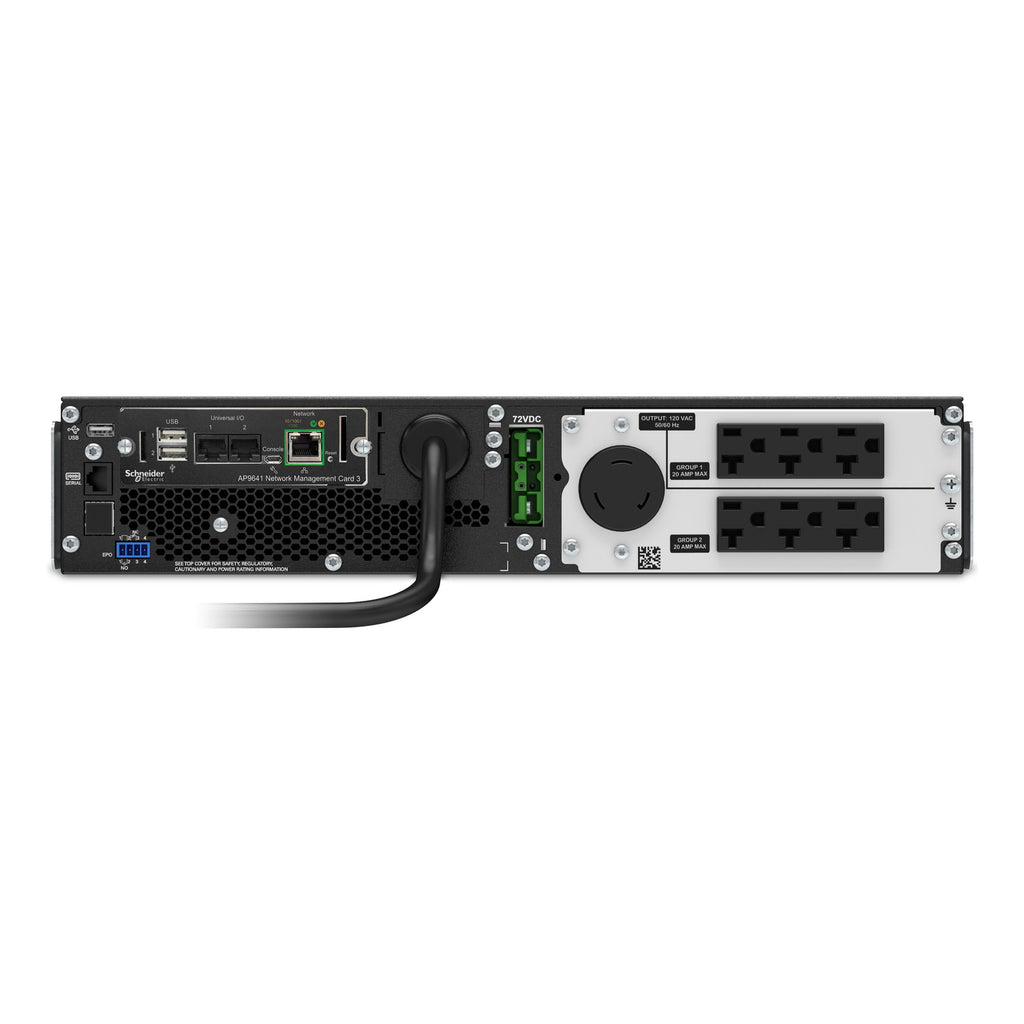

| Output Connections | 6x NEMA 5-20R, 1x NEMA L5-20R |
| Form Factor | 2U Rack/Tower Convertible |
| Mounting Hardware | Included (Rails, Brackets) |
| Battery Type | Lead-Acid (Replaceable: APCRBC141) |
| Runtime (at full load) | ~3 min 16 sec |
| Expandable Runtime | Yes, up to 10x SRT72RMBP battery packs |
| Recharge Time | 3 hours |
| Management Interface | Pre-installed Network Management Card |
| Communication Ports | USB, RJ-45, Serial |
| Certifications | ENERGY STAR V2.0 (USA) |
| Audible Noise | 55 dBA |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 0–95% non-condensing |
| Surge Energy Rating | 340 Joules |
| Color | Black |

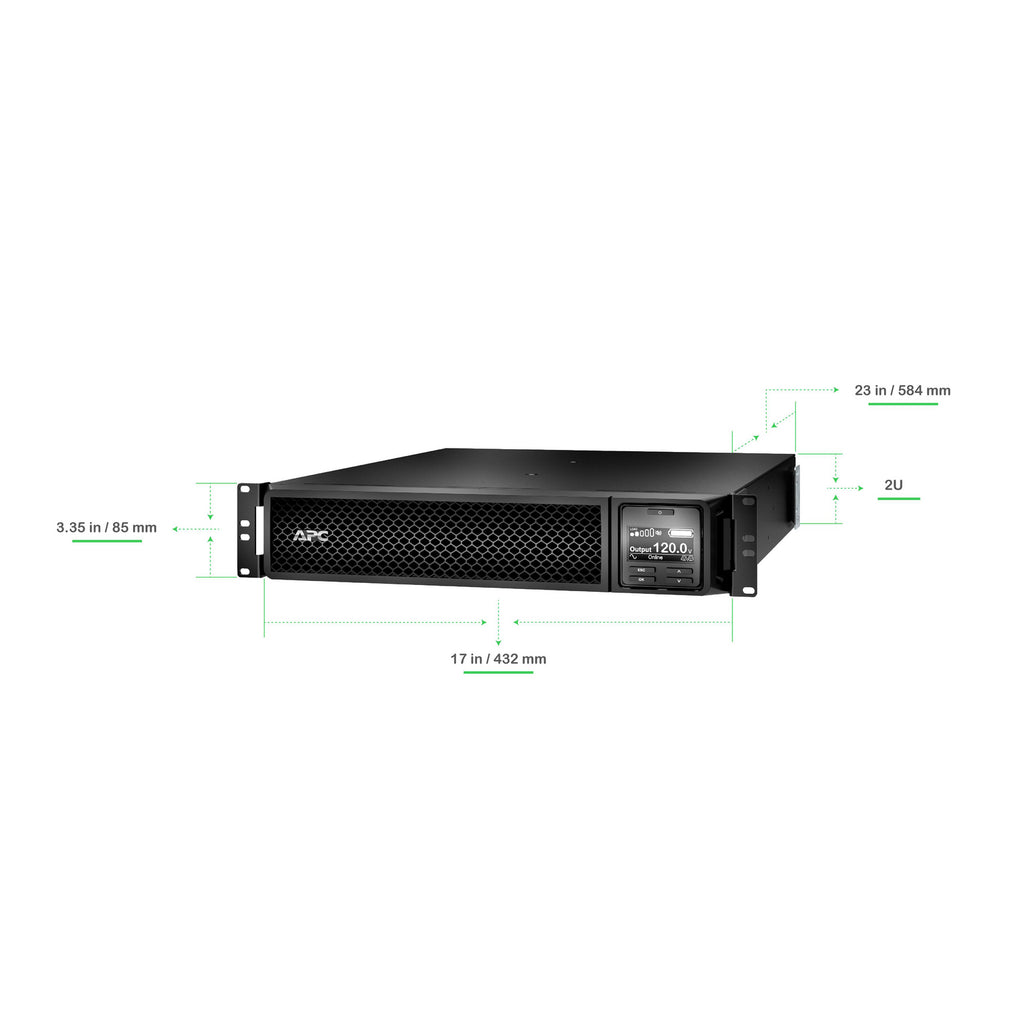

| Dimensions (H x W x D) | 3.35 x 17.01 x 22.99 in |
| Net Weight | 55.1 lbs (25 kg) |
| Warranty | 3 Years UPS / 2 Years Battery |
