Description

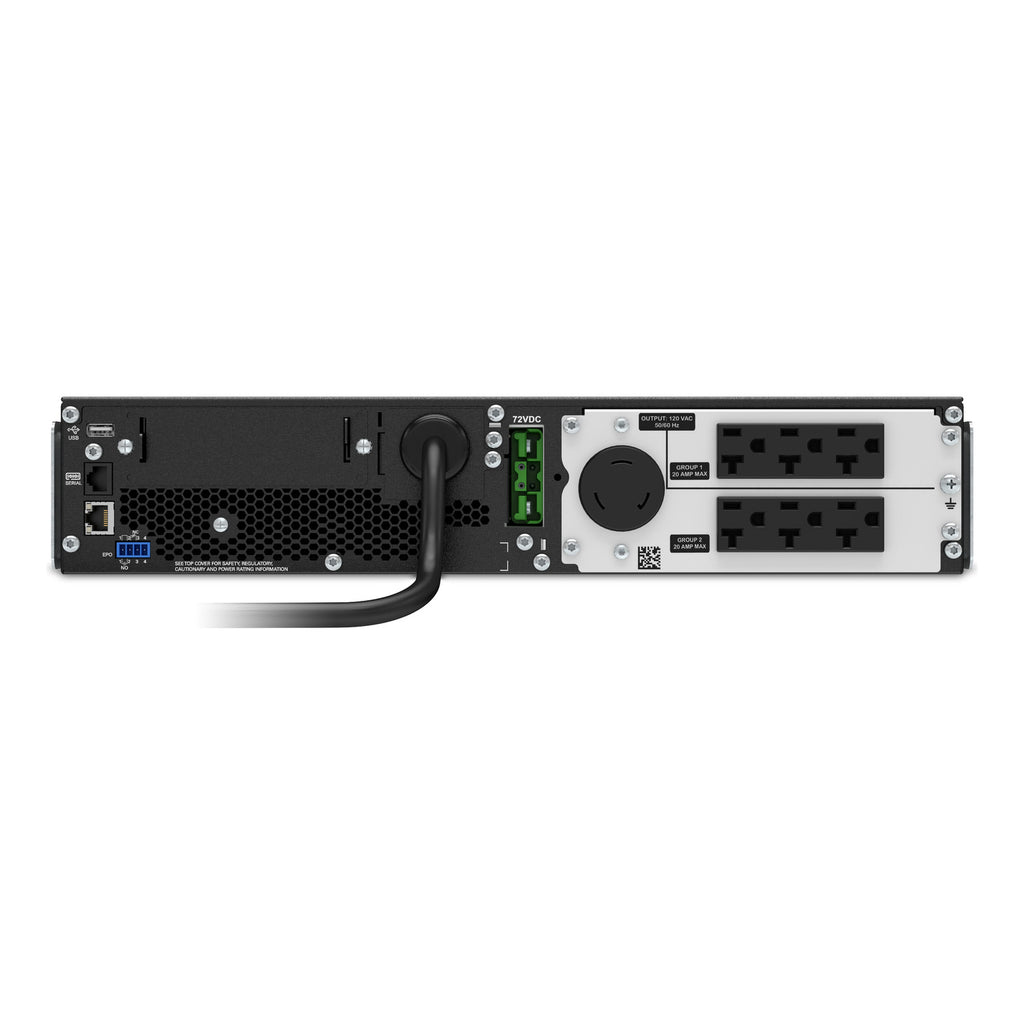

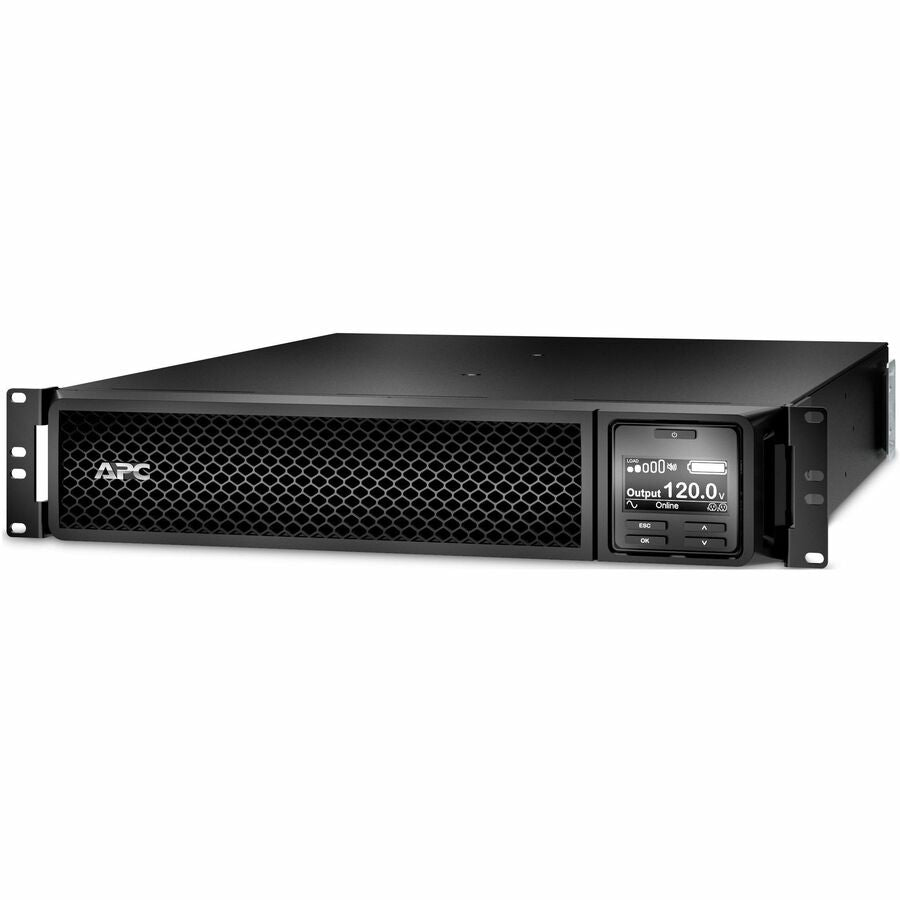

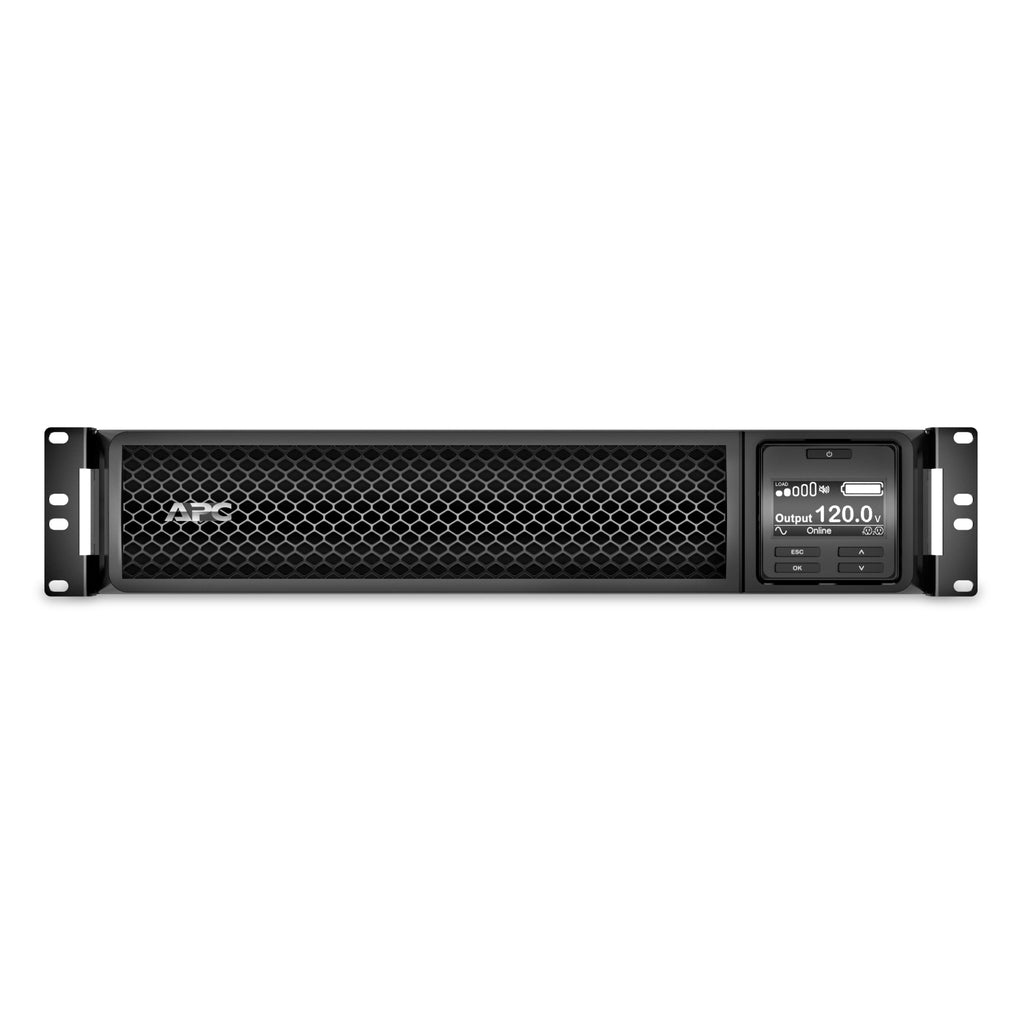

This APC Smart-UPS On-Line is designed to deliver reliable power protection and extended runtime for mission-critical IT systems. With 2200VA/1800W capacity, this 2U rackmount UPS features true double-conversion on-line topology, delivering clean, continuous sine wave power with zero transfer time. Ideal for servers, storage, medical labs, and industrial applications, it includes 6x NEMA 5-20R and 1x L5-20R outlets. A SmartSlot supports advanced management cards, while PowerChute enables graceful system shutdown. Expand runtime with up to 10 SRT72RMBP external battery packs.
| Specification | Details |
|---|---|
| Model | SRT2200RMXLAUS |
| UPS Type | Double Conversion Online |
| Rated Power (VA / W) | 2200VA / 1800W |
| Input Voltage | 120V |
| Input Connection | NEMA 5-20P |
| Output Voltage | 120V |
| Output Connections | 6x NEMA 5-20R, 1x NEMA L5-20R |
| Rack Size | 2U |
| Runtime (at full load) | Approx. 3 min 16 sec |
| Mounting | Rackmount (Rail Kit Included) |
| Battery Type | Lead-Acid (APCRBC141) |
| Extendable Runtime | Yes, supports up to 10x SRT72RMBP packs |
| Recharge Time | 3 hours |
| SmartSlot | 1 (for optional Network Management Card) |
| Communications Ports | USB, SmartSlot, EPO |
| Surge Protection | 340 Joules |
| Certifications | TAA Compliant, ENERGY STAR V2.0 |
| Included Accessories | USB cable, Software CD, Documentation, Mounting brackets & rails |
| Dimensions (H x W x D) | 3.35 x 17.01 x 22.99 in (8.5 x 43.2 x 58.4 cm) |
| Net Weight | 55.01 lbs (24.95 kg) |
| Warranty | 3 years UPS / 2 years battery |
