Description

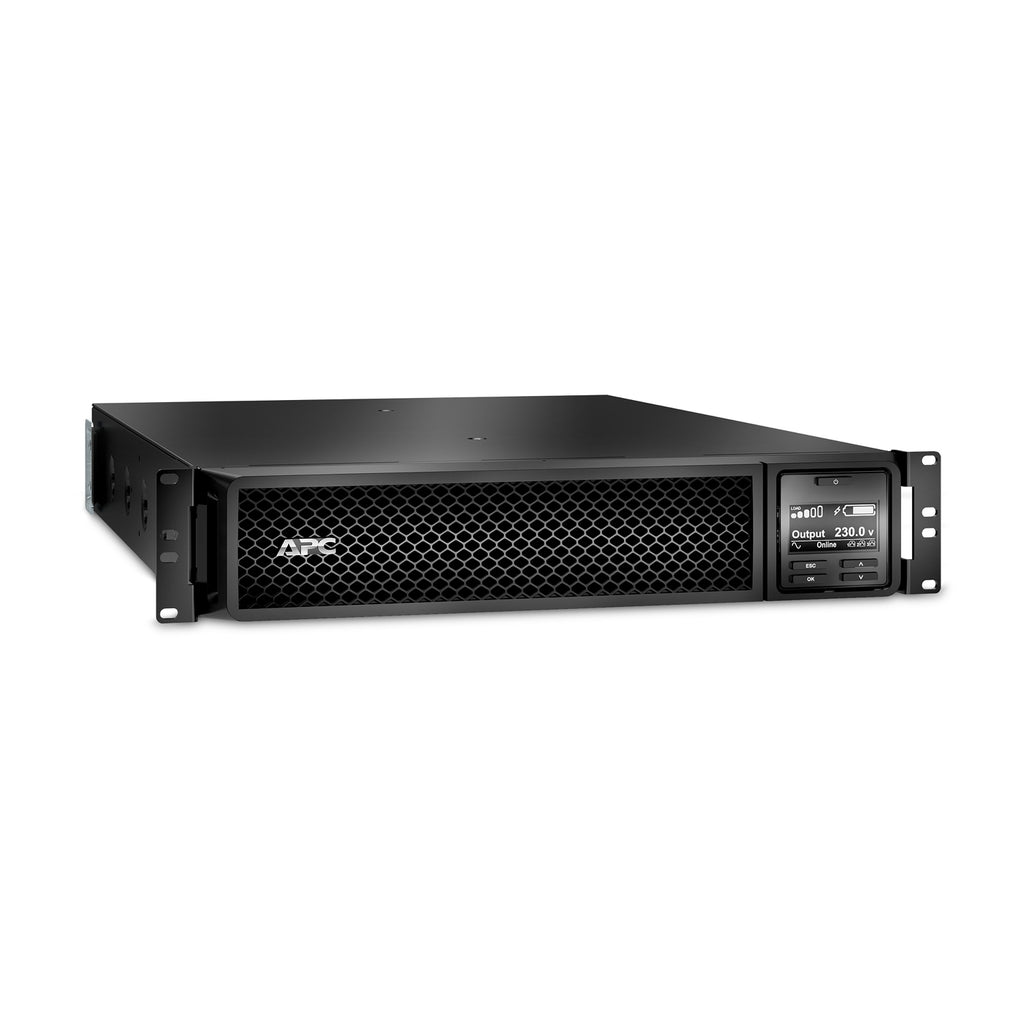

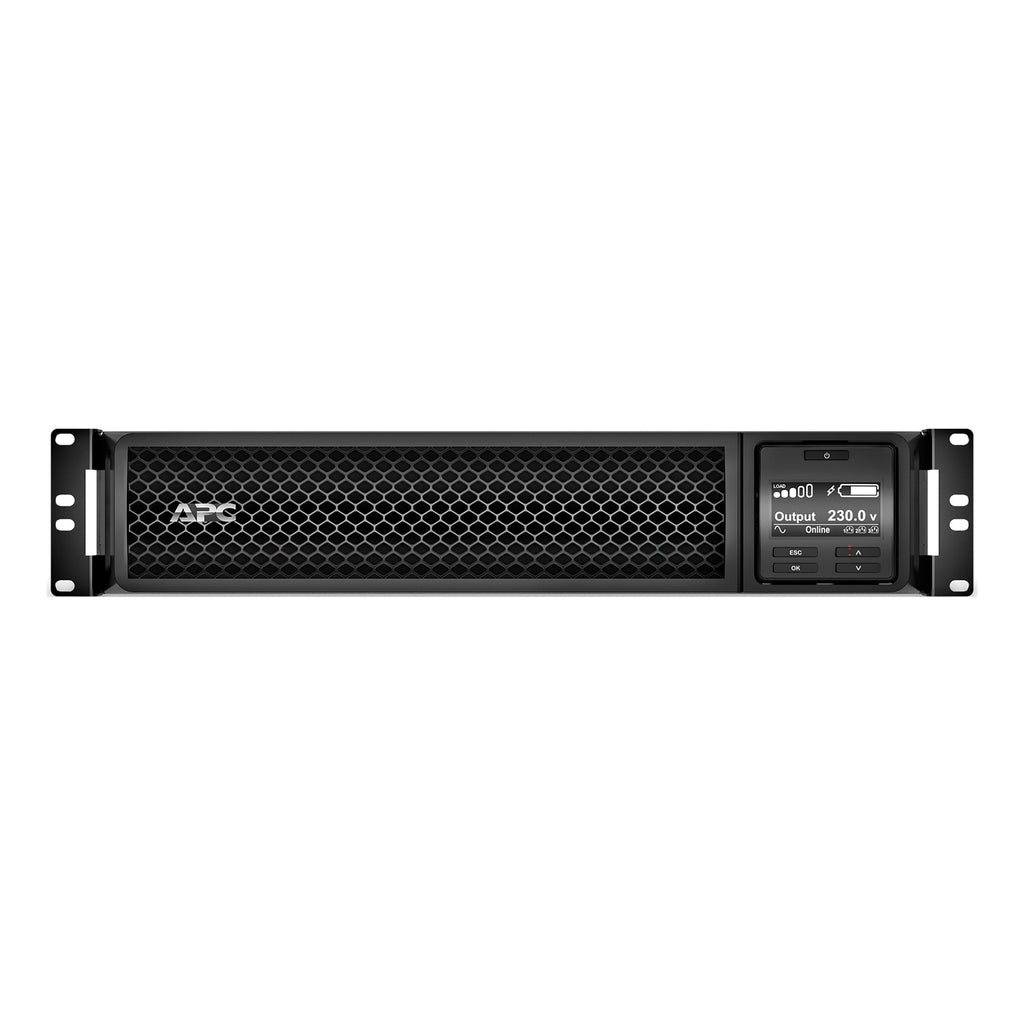

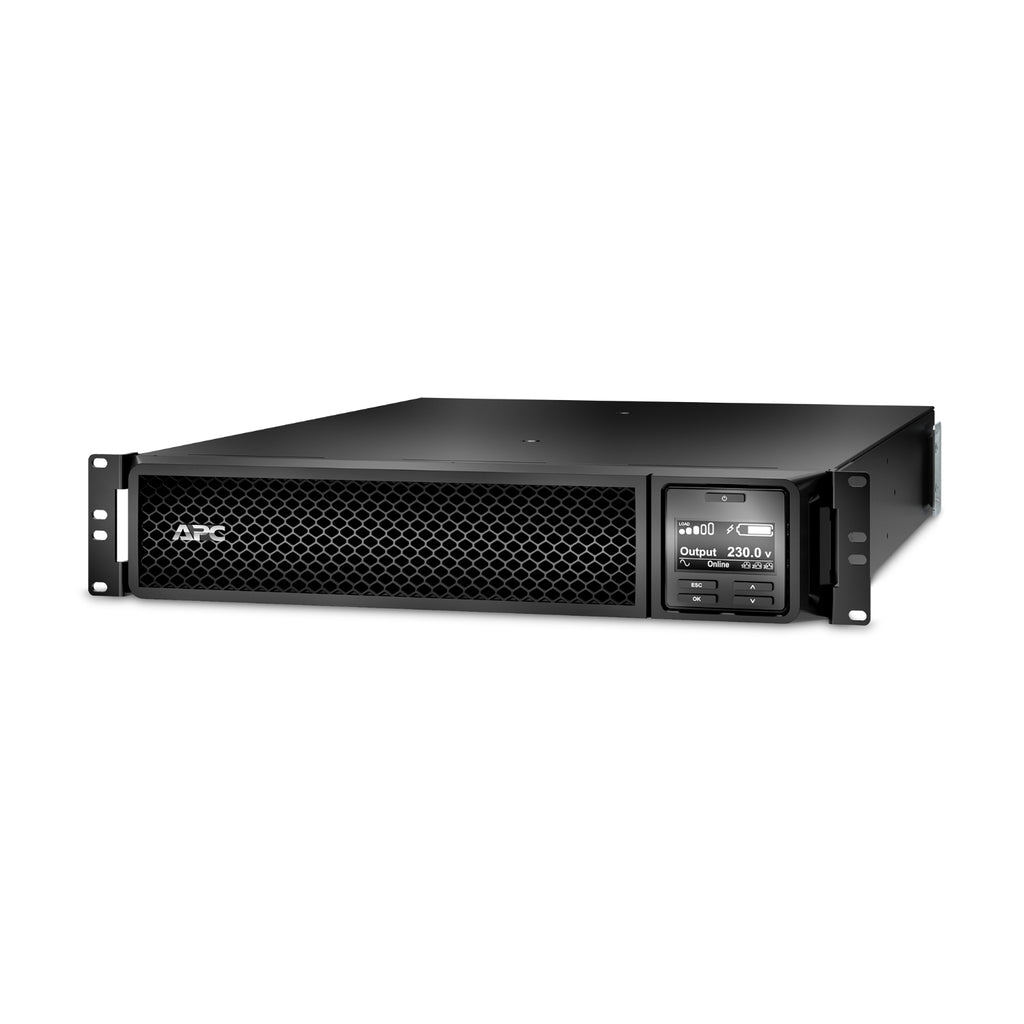

The APC Smart-UPS On-Line SRT2200RMXLI provides premium double-conversion online power protection in a compact 2U rack/tower convertible form factor. Delivering 2200VA/1980W of pure sine wave output, this UPS ensures zero transfer time for sensitive electronics and supports scalable runtime with up to 10 external battery packs (SRT72RMBP). Ideal for servers, storage, voice/data networks, medical labs, and light industrial equipment. It includes SmartSlot expandability, a rail kit, and supports APCRBC141 replacement batteries. Built for IT environments demanding continuous uptime, high power density, and intelligent management.
| Category | Details |
|---|---|
| Model | SRT2200RMXLI |
| UPS Type | Double-Conversion Online |
| Rated Power | 2200VA / 1980W |
| Output Voltage | 230V (adjustable: 220V/240V) |
| Input Voltage Range | 100–275V adjustable |
| Input Connections | BS1363A, IEC C20, Schuko CEE 7/EU1-16P |

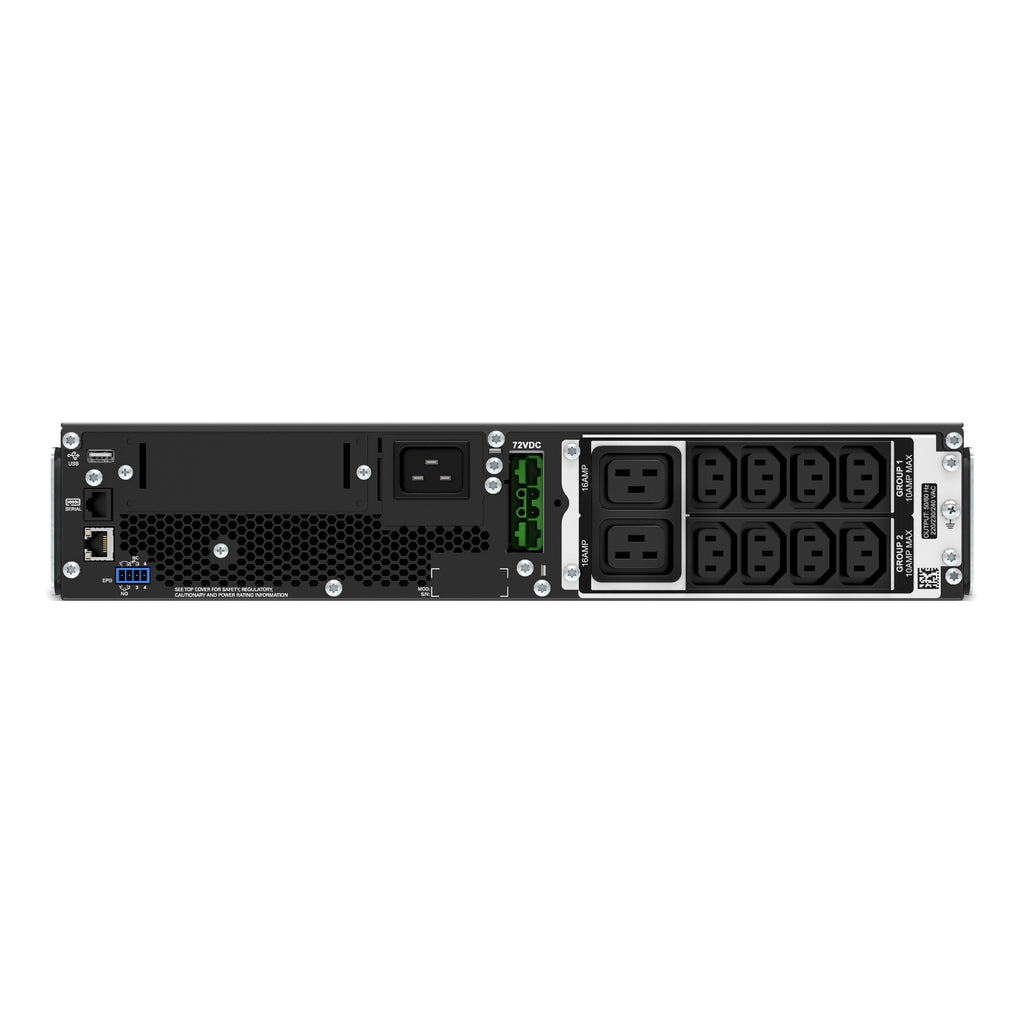

| Output Connections | 8x IEC C13, 2x IEC C19 |
| Form Factor | 2U Rackmount / Tower Convertible |

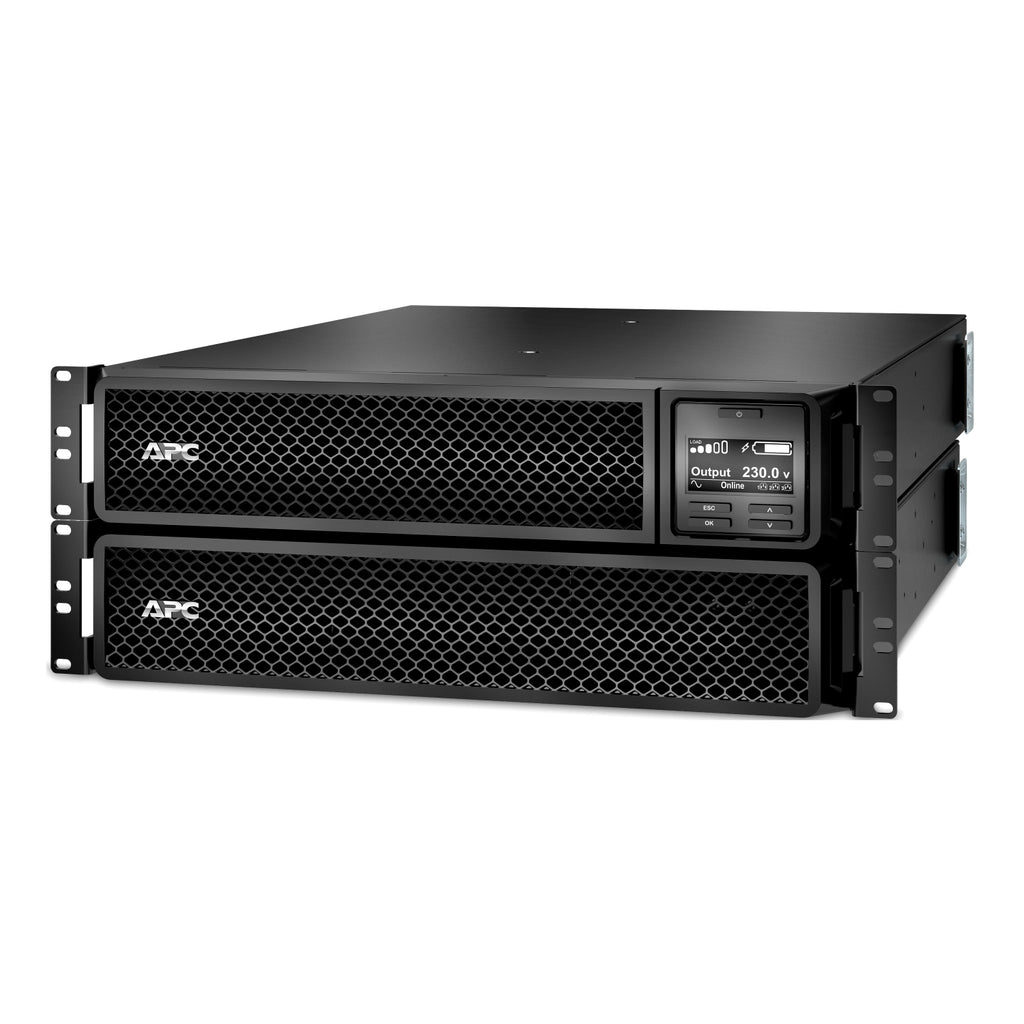

| Runtime Extension | Supports up to 10x SRT72RMBP battery packs |
| Battery Type | Lead-acid, 72V (Replacement: APCRBC141, 2-year warranty) |
| Recharge Time | 3 hours |
| Network Management | 1 SmartSlot (optional NMC), USB, Serial |
| Waveform Output | Pure Sine Wave |
| Surge Protection | 340 Joules |
| Color | Black |
| Dimensions (W x D x H) | 432mm x 584mm x 85mm (17.01 x 22.99 x 3.35 in) |
| Net Weight | 25 kg (55.1 lbs) |
| Certifications | CE, EAC, VDE, RCM, UK PSTI, EN/IEC 62040-1/2 |
| Operating Temp. | 0–40°C |
| Noise Level | 55 dBA |
| Warranty | 3 years UPS / 2 years battery |
| Included Accessories | Rail kit, USB cable, software CD, power cords, manuals |
