Description

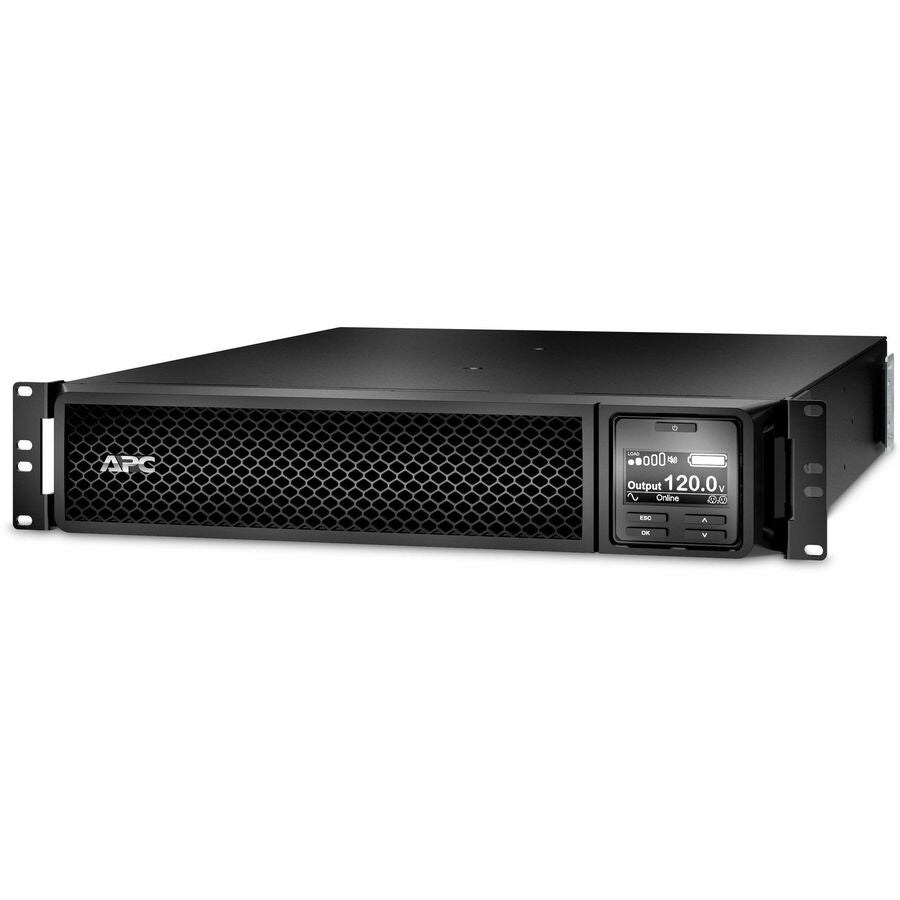

The APC Smart-UPS On-Line SRT3000RMXLA-NC delivers high-density, double-conversion online power protection for servers, storage, and network equipment. With 3kVA/2.7kW capacity, it ensures reliable power with pure sine wave output and offers extended runtime with the ability to connect up to 10 external battery packs (SRT96RMBP). This 2U rackmount UPS includes a pre-installed Network Management Card for remote monitoring and EcoStruxure IT integration. Ideal for IT, medical, and industrial environments, it supports both rack and tower configurations and comes with a rail kit and lead-acid battery.
| Category | Details |
|---|---|
| Model | SRT3000RMXLA-NC |
| Form Factor | 2U Rackmount (Rack/Tower Convertible, Rail Kit Included) |
| Capacity | 3000 VA / 2700 W |
| Input Voltage | 120V |
| Input Connection | NEMA L5-30P |
| Output Voltage | 120V |

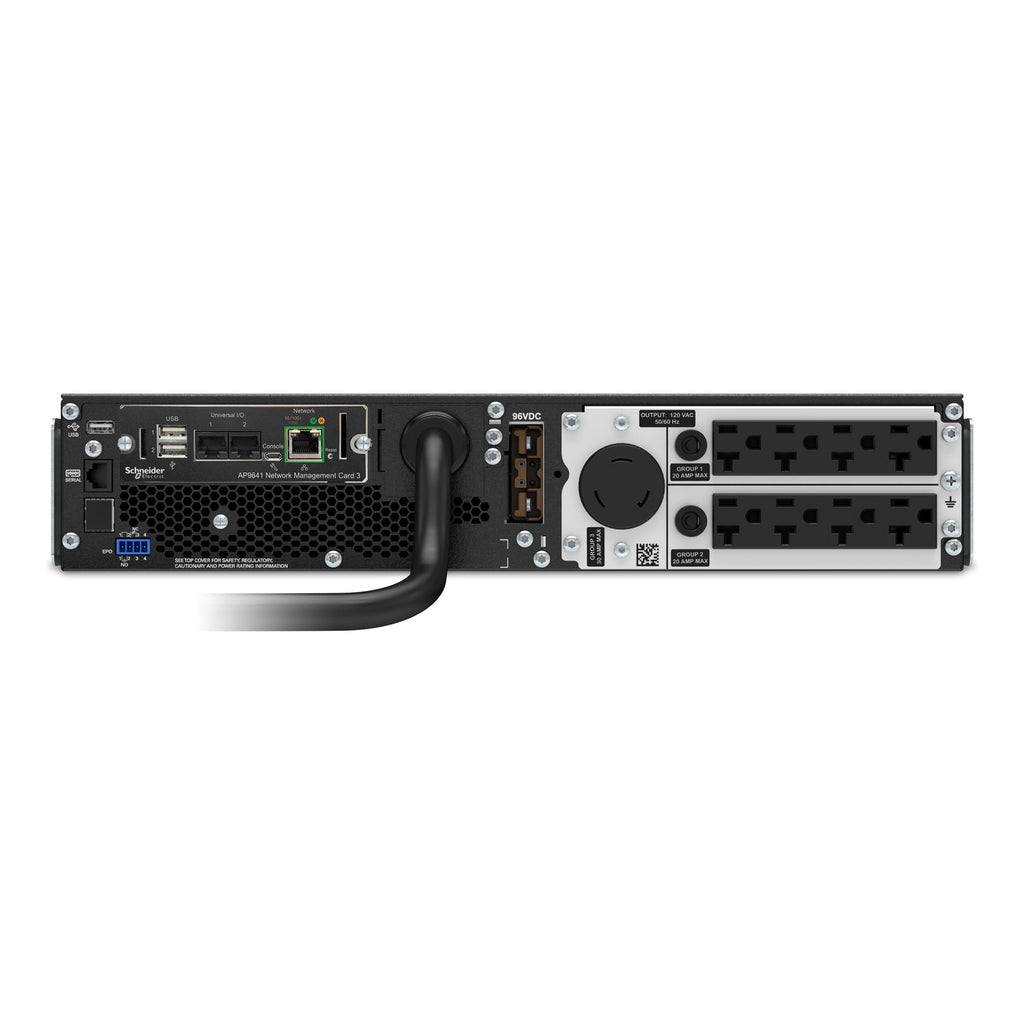

| Output Connections | 8x NEMA 5-20R, 1x NEMA L5-30R |
| Battery Type | Lead-Acid, APCRBC152 |
| Battery Runtime | Scalable, Add up to 10 x SRT96RMBP |
| Battery Recharge | 3 Hours Typical |
| Network Management | Included - Pre-installed Network Management Card |
| Waveform | Pure Sine Wave (Double Conversion Online) |
| Mounting | Rack Mountable, Horizontal |
| Certifications | ENERGY STAR V2.0 (USA), IP20 |
| Communication Ports | USB, SmartSlot, EPO |
| Surge Protection | 340 Joules |
| Operating Temp | 0 to 40 °C (32 to 104 °F) |

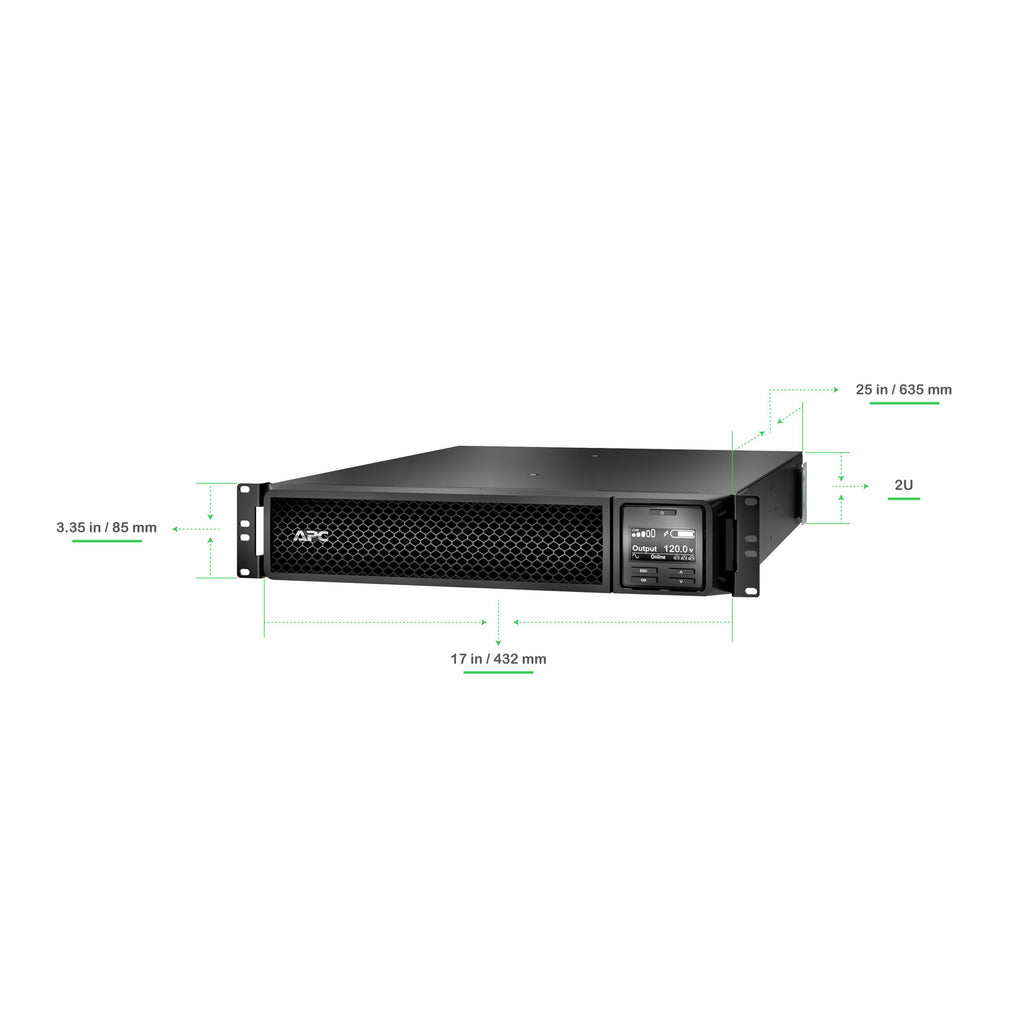

| Dimensions (WxDxH) | 17.01 x 25.00 x 3.35 in (43.2 x 63.5 x 8.5 cm) |
| Weight | 69.0 lbs (31.3 kg) |
| Warranty | 3-Year UPS Warranty, 2-Year Battery Warranty |
