Description

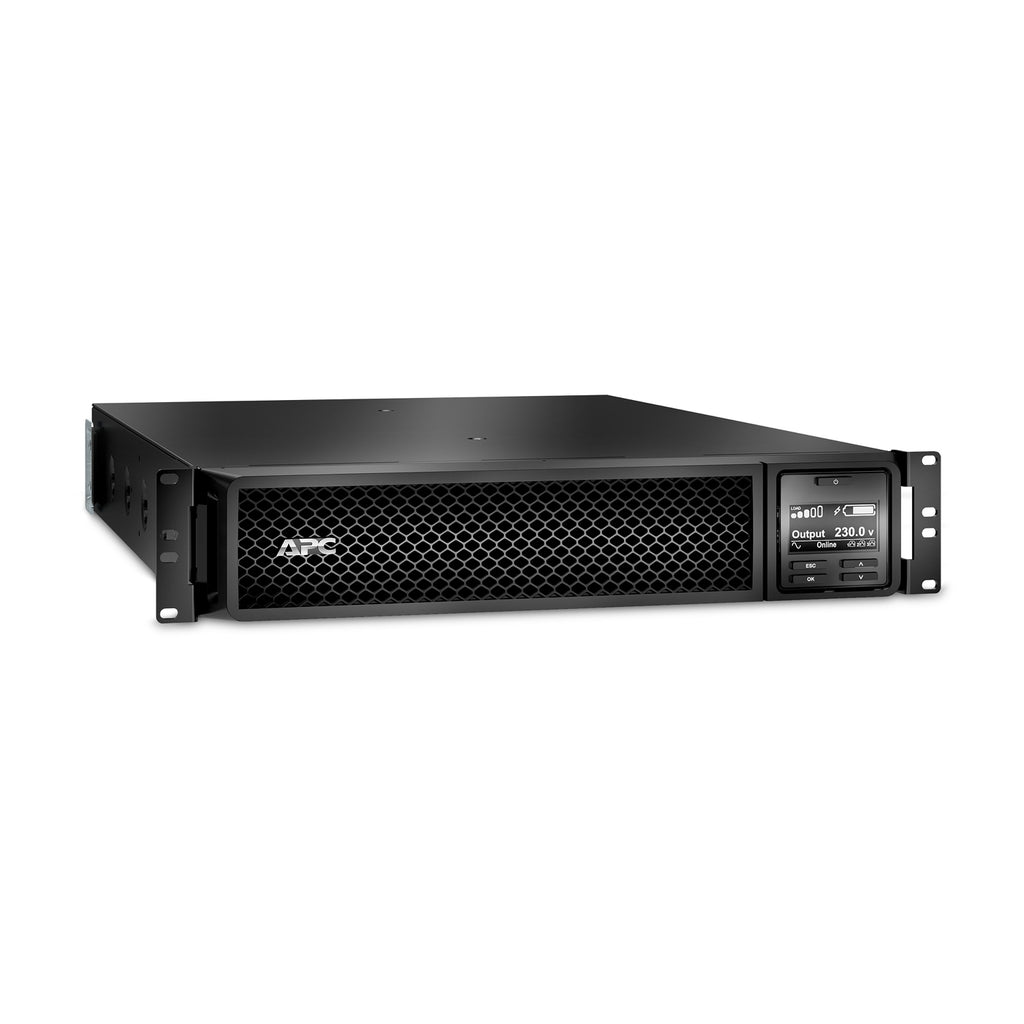

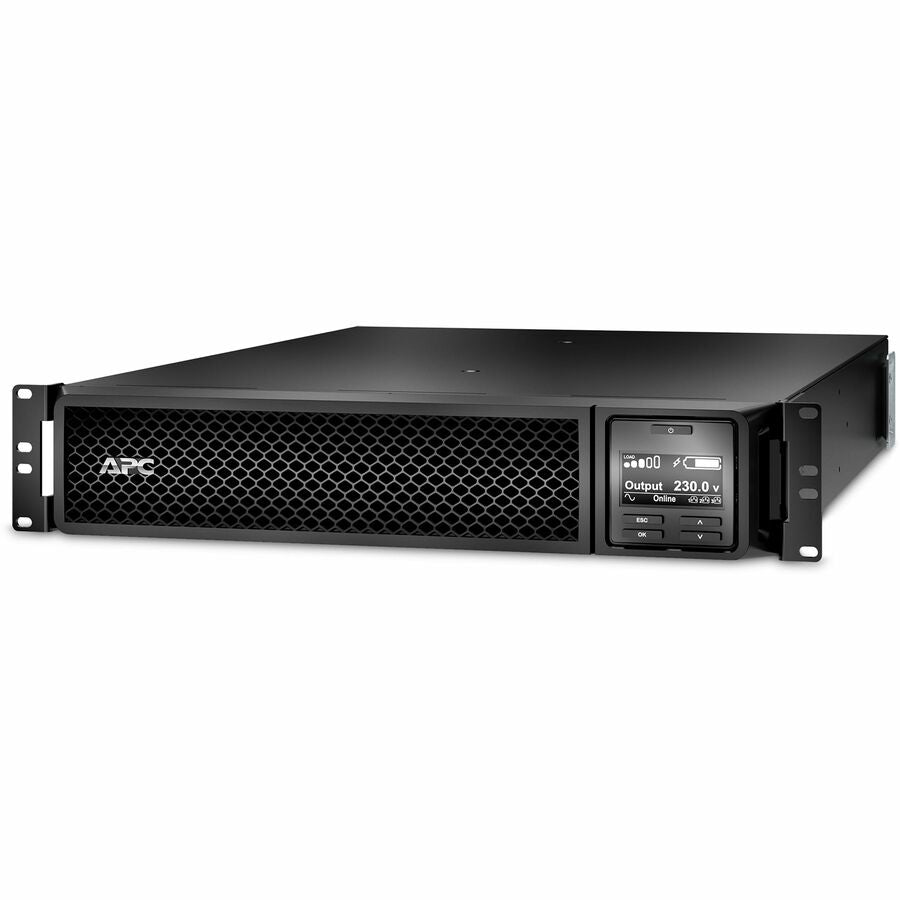

The APC Smart-UPS On-Line SRT3000RMXLW-IEC is a high-performance 3kVA/2.7kW double-conversion UPS in a 2U rackmount form factor. Designed for mission-critical applications, it provides continuous pure sine wave power with zero transfer time, ideal for servers, medical labs, storage systems, and industrial networks. This unit includes a rail kit, offers extended runtime capability with up to 10 external battery packs (SRT96RMBP), and features SmartSlot compatibility for advanced network management and integration with EcoStruxure IT. Comes with a 3-year UPS warranty and 2-year battery warranty.
| Specification | Details |
|---|---|
| Model | SRT3000RMXLW-IEC |
| Product Type | Uninterruptible Power Supply (UPS) |
| Topology | Double Conversion Online |
| Power Rating | 3kVA / 2.7kW |
| Input Voltage | 208V, 230V (also supports 220V, 240V) |
| Output Voltage | 208V, 230V (configurable to 220V, 240V) |
| Input Connections | BS1363A, IEC C20, Schuko CEE 7/EU1-16P |
| Output Connections | 6x IEC C13, 2x IEC C19, 2x IEC Jumpers |
| Form Factor | 2U Rackmount (Rail kit included) |
| Runtime (Full Load) | 3 mins 58 seconds @ 2.7kW |
| Battery Type | Lead-acid, Replaceable (APCRBC152) |
| Extended Battery Support | Up to 10x SRT96RMBP packs |
| Recharge Time | 3 hours |
| Mounting Options | Rack-mounted, horizontal |
| SmartSlot | Yes (1 slot available) |
| Communications | USB, SmartSlot, EPO, audible/visual alarms |
| Certifications | CE, EAC, ENERGY STAR V2.0, RCM, VDE, UK PSTI |
| Environmental | 0–40°C, 0–95% RH (non-condensing), 703 BTU/h thermal dissipation |
| Dimensions (H x W x D) | 3.35 x 17.01 x 25.00 in (8.5 x 43.2 x 63.5 cm) |
| Net Weight | 69.01 lbs (31.3 kg) |
| Warranty | 3 years UPS, 2 years battery |
