Description

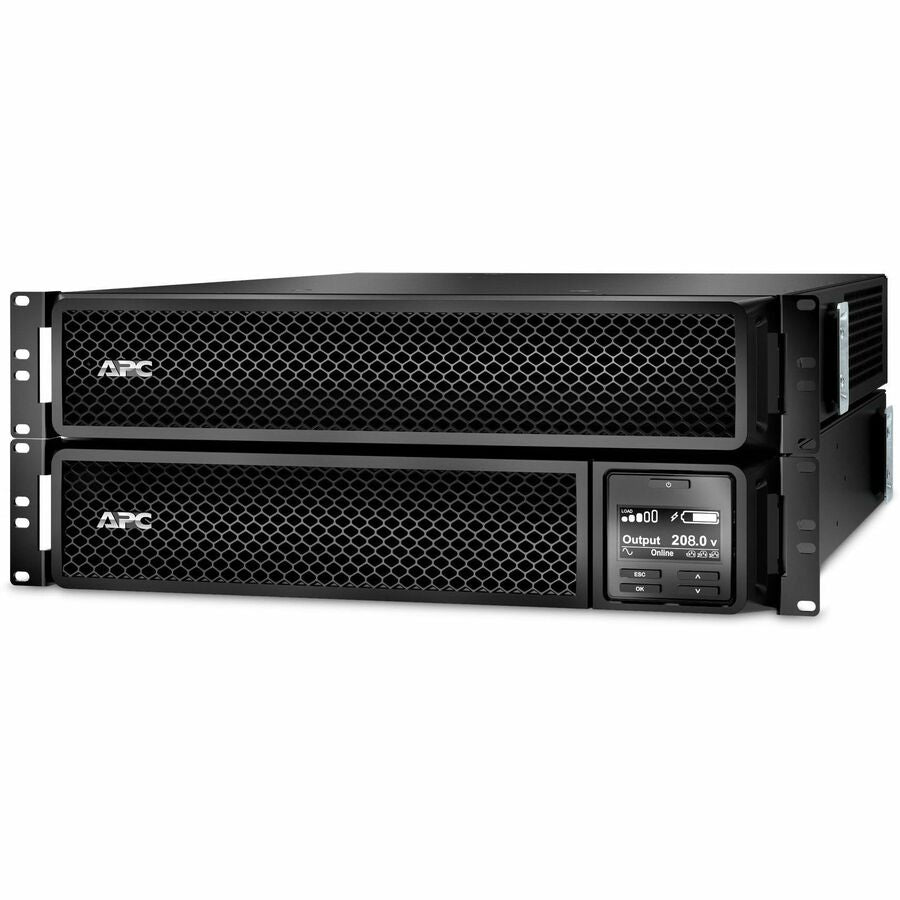

Ensure uninterrupted uptime with the APC Smart-UPS SRT3000RMXLT-5KTF, a 3kVA/2.7kW online double-conversion UPS in a space-saving 4U rackmount design. Ideal for IT, voice/data networks, and light industrial applications, this UPS delivers clean sine wave power with zero transfer time. It features 12x NEMA 5-20R and 2x NEMA L6-20R outlets, L6-20P input, and a built-in step-down transformer for 208V to 120V output. Includes rail kit, SmartSlot for optional network card, and expandable runtime with up to 10 battery packs (SRT96RMBP).
Specification | Details |
---|---|
Model | SRT3000RMXLT-5KTF |
Form Factor | 4U Rackmount (Convertible with rail kit) |
Power Capacity | 3000VA / 2700W |
Input Voltage | 208V (L6-20P) |
Output Voltage | 120V (via transformer), configurable 208/240V |

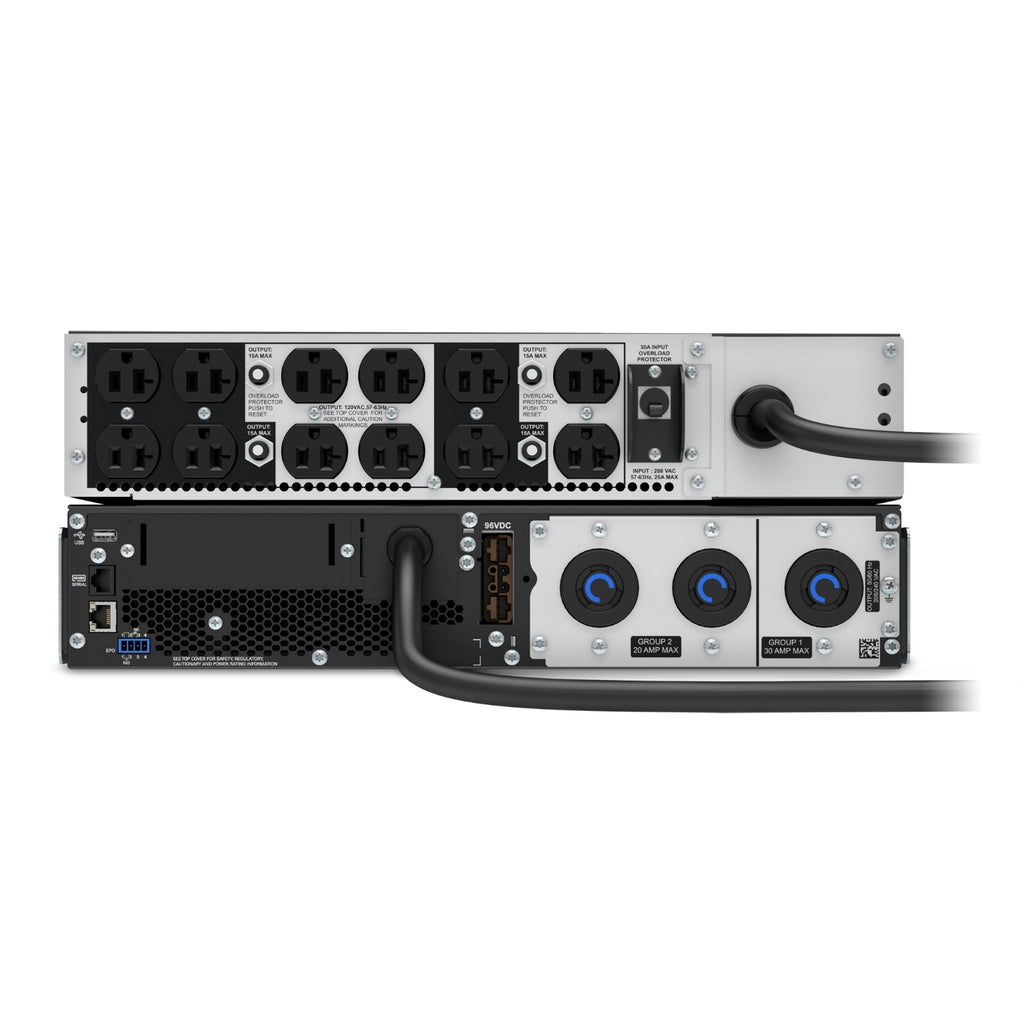

Output Connections | 12x NEMA 5-20R, 2x NEMA L6-20R |
Battery Type | Lead-Acid, APCRBC152 |
Runtime (Full Load) | Approx. 3 min 48 sec |
Expandable Runtime | Yes, supports up to 10x SRT96RMBP battery packs |
Management Slot | SmartSlot (1 free slot) |
Mounting Accessories | Rail kit included |
Communication Ports | USB, EPO support, SmartSlot |
Certifications | ENERGY STAR V2.0 |
Warranty | 3-year UPS, 2-year battery |
Dimensions (H x W x D) | 6.69ā x 17.01ā x 25.00ā (17 cm x 43.2 cm x 63.5 cm) |
Net Weight | 164 lbs (74.39 kg) |
