Description
The APC Smart-UPS SRT 5KXLT delivers reliable double-conversion online power protection for critical IT systems. This 5.4kVA/4.8kW pure sine wave UPS is ideal for servers, voice/data networks, medical labs, and light industrial applications. With a tower form factor, it features 2x NEMA L6-20R and 2x L6-30R outlets, a built-in network management card, and SmartSlot for accessories. Supports up to 10 external battery packs (SRT192BP) for extended runtime and integrates with EcoStruxure™ IT. Includes a 3-year UPS warranty and 2-year lead-acid battery warranty.
| Category | Details |
|---|---|
| Product Type | On-Line Double-Conversion UPS |
| Power Capacity | 5.4kVA / 4.8kW |
| Input Voltage | 208V (L6-30P) |
| Output Voltage | 208V (adjustable to 240V) |

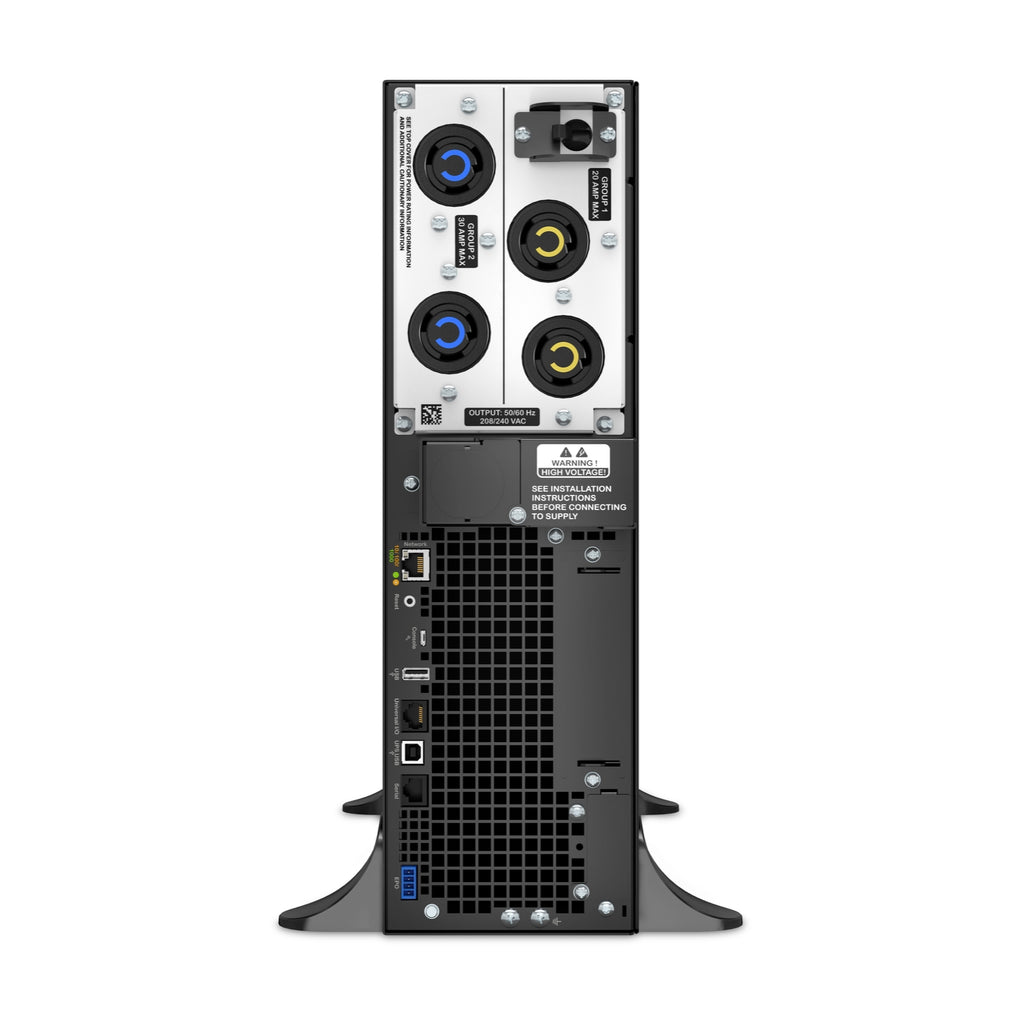

| Output Connections | 2x NEMA L6-20R, 2x NEMA L6-30R |
| Battery Type | Lead-Acid, 192V |
| Replacement Battery | APCRBC140 |
| Runtime Extension | Supports up to 10x SRT192BP packs |
| Form Factor | Tower (Rack-convertible with SRTRK2/SRTRK3) |
| Network Management | Network Card 3 + SmartSlot |
| Software | PowerChute Network Shutdown |
| Efficiency | High-efficiency Online mode |
| Bypass Type | Automatic & Manual Internal Bypass |
| Waveform | Pure Sine Wave |
| Crest Factor | 3:1 |
| Alarms | Audible & Visual |
| Surge Protection | 480 Joules |
| Color | Black |
| Dimensions (H x W x D) | 17.01 in x 5.12 in x 28.31 in |
| Weight | 123.0 lb (55.79 kg) |
| Warranty | 3 years (UPS), 2 years (Battery) |
