Description

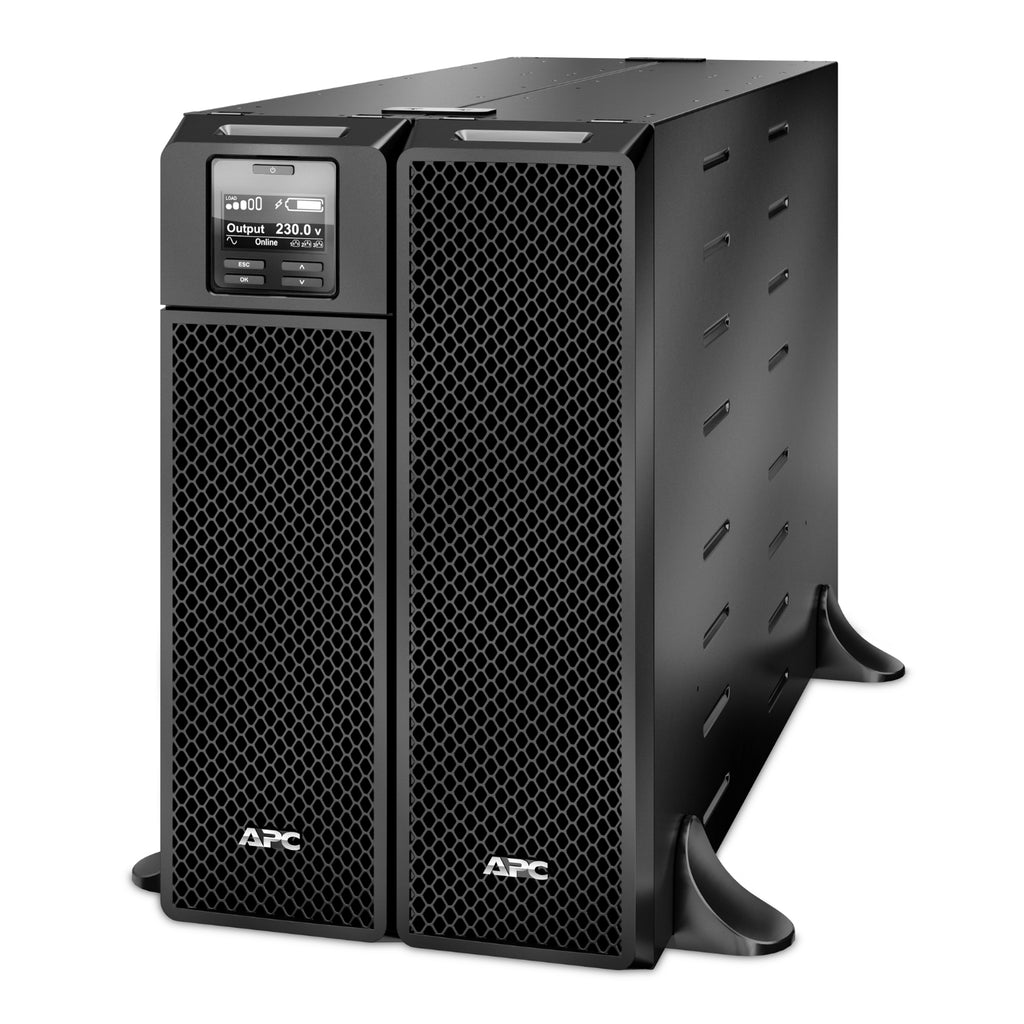

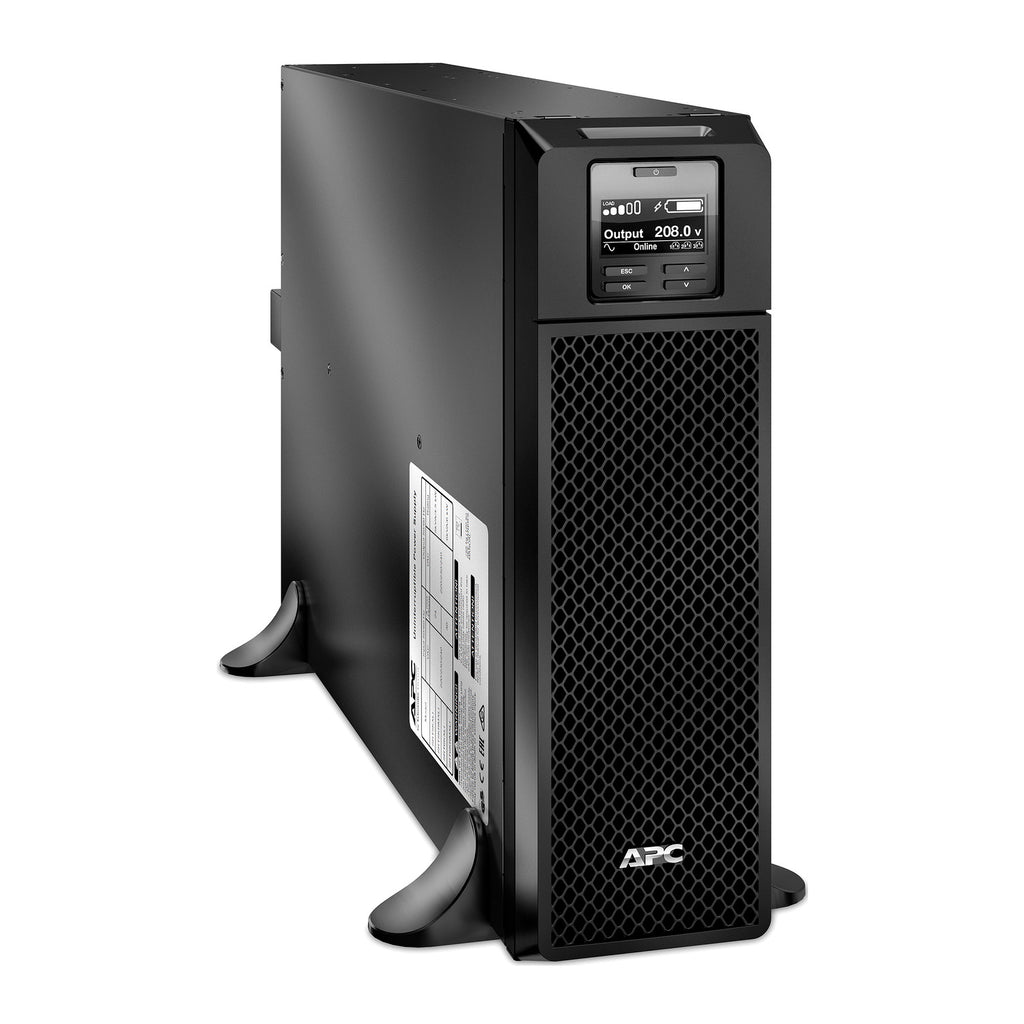

The APC Smart-UPS On-Line SRT5KXLT-IEC is a high-performance 5kVA/4.8kW double-conversion tower UPS, ideal for critical IT and industrial applications. Featuring pure sine wave output, this 208V UPS ensures reliable backup for servers, storage, voice/data networks, and medical or light industrial use. It includes 4x IEC C13 and 4x IEC C19 outlets, and NEMA L6-30P input, plus jumper cables for connectivity.
Equipped with a pre-installed Network Management Card, SmartSlot, and PowerChute shutdown software, it supports remote management and integration with EcoStruxure IT. Compatible with up to 10 external battery packs (e.g., SRT192BP2US or SRT192RMBPUS) for extended runtime. Includes 3-year UPS and 2-year battery warranty.
| Attribute | Details |
|---|---|
| Model | SRT5KXLT-IEC |
| Topology | Double Conversion Online |
| Form Factor | Tower |
| Power Rating | 5kVA / 4.8kW |
| Input Voltage | 208V (adjustable 100–275V) |
| Input Connection | NEMA L6-30P |
| Output Voltage | 208V (240V optional) |

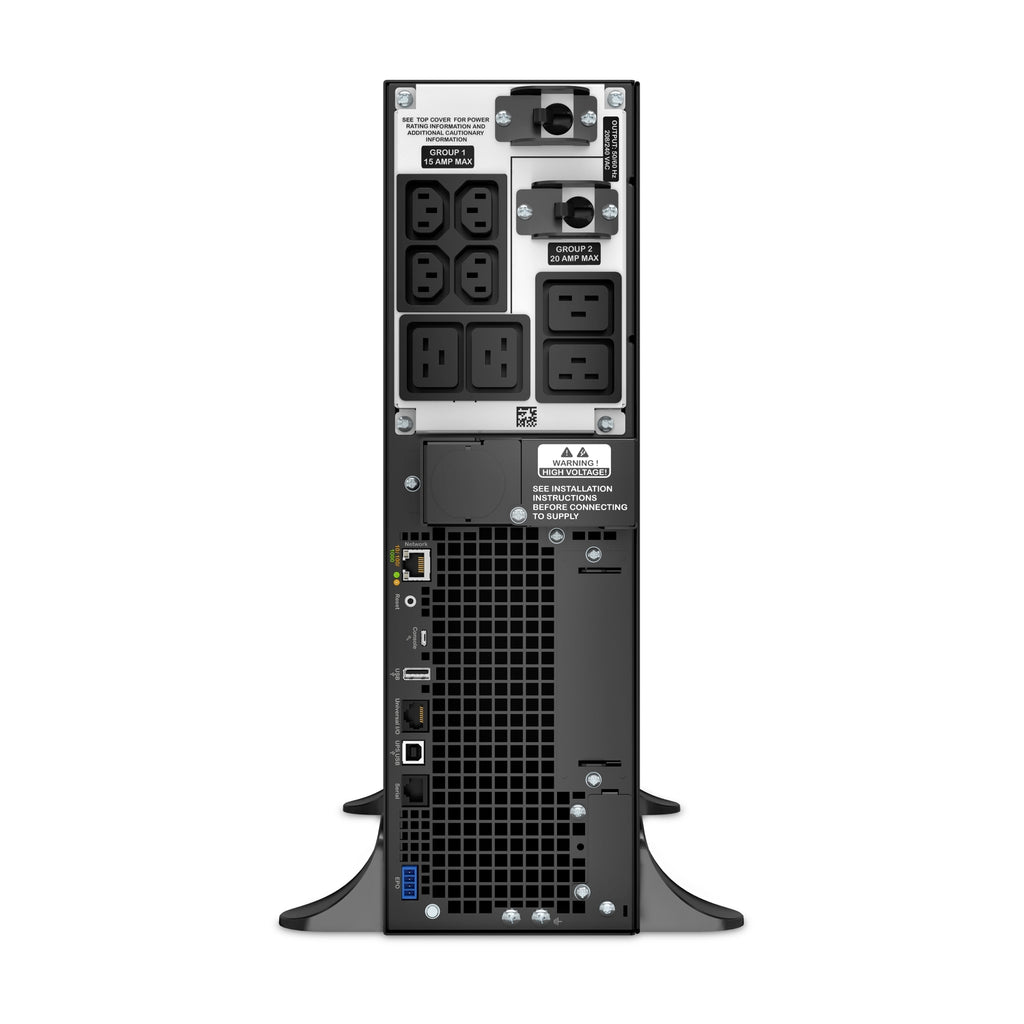

| Output Connections | 4x IEC C13, 4x IEC C19, 2x IEC jumpers |
| Battery Type | Lead-acid, 192V |
| Extendable Runtime | Yes, up to 10 packs (e.g., SRT192BP2US) |
| Included Battery Modules | None (order separately) |
| Recharge Time | 1.5 hours |
| Efficiency | ENERGY STAR V2.0 certified |
| Network Management | Pre-installed NMC with environmental monitoring |
| Communication Ports | USB, SmartSlot, EPO |
| Waveform | Pure Sine Wave |
| Surge Protection | 480 Joules |
| Mounting Option | Rack mount capable with SRTRK2/SRTRK3 (sold separately) |
| Dimensions (H x W x D) | 17.01 x 5.12 x 28.31 in |
| Weight | 123 lbs (55.79 kg) |
| Warranty | 3 years (UPS), 2 years (battery) |
