Description

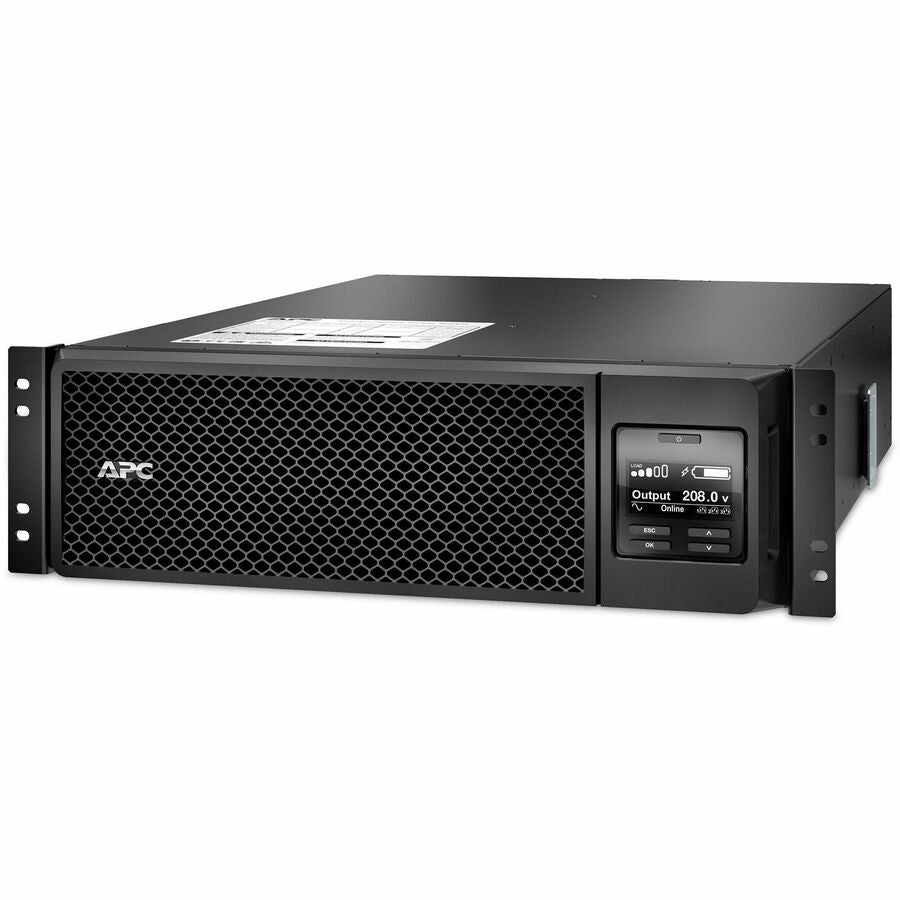

The APC Smart-UPS SRT5KRMXLT is a high-performance 5.4kVA/4.8kW double-conversion on-line UPS designed for mission-critical applications. This 3U rackmount unit features pure sine wave output, scalable runtime, and advanced battery monitoring. Equipped with a pre-installed Network Management Card and SmartSlot, it enables seamless integration into IT environments. The UPS includes a rail kit, NEMA L6-30P input, and 2x L6-20R + 2x L6-30R outlets. It's ideal for servers, data centers, medical labs, and industrial setups needing high availability and secure power.
| Category | Details |
|---|---|
| Model | SRT5KRMXLT |
| Form Factor | Rackmount 3U (Rail kit included) |
| Power Capacity | 5.4kVA / 4.8kW |
| Input Voltage | 208V (also supports 240V) |
| Input Connection | NEMA L6-30P |
| Output Voltage | 208V (configurable to 240V) |

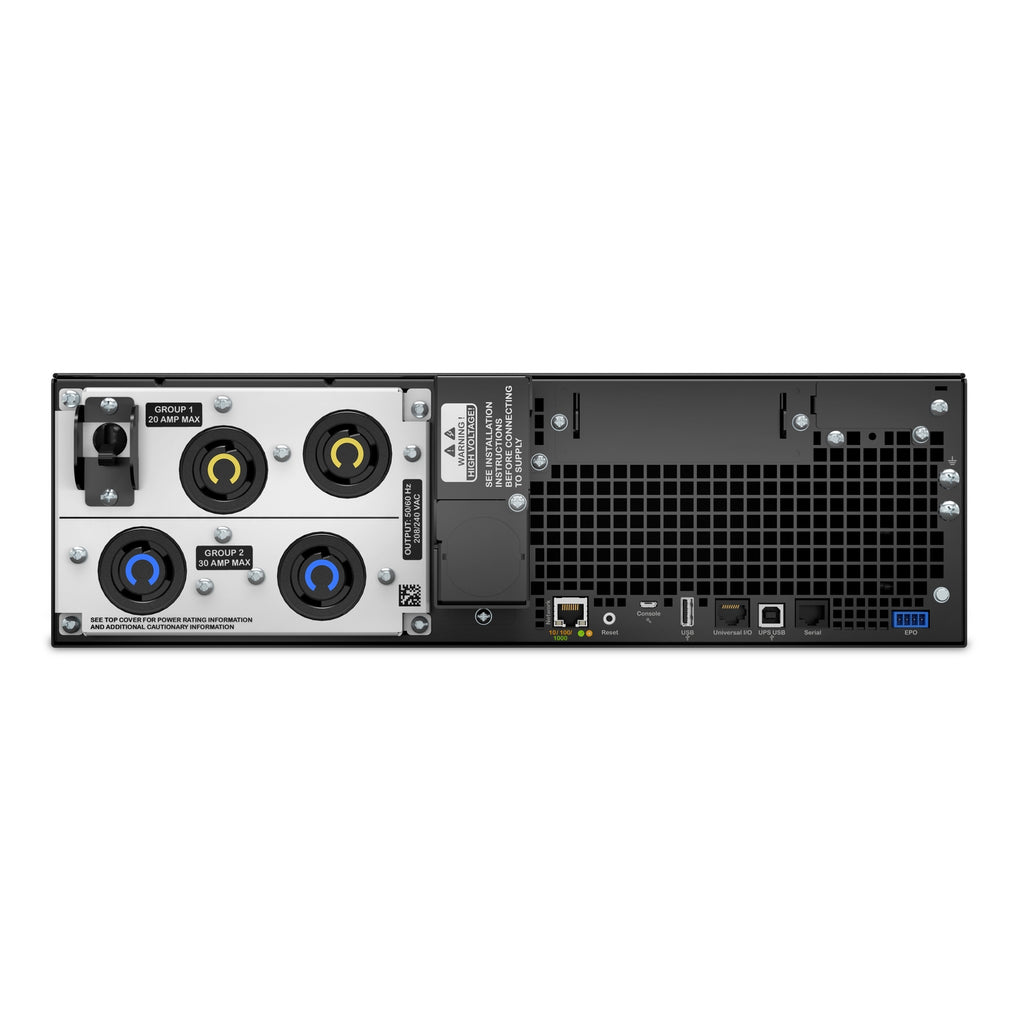

| Output Connections | 2x NEMA L6-20R, 2x NEMA L6-30R |
| Waveform Output | Pure sine wave |
| Runtime Expandable | Yes, up to 10 external battery packs (SRT192RMBP) |
| Battery Type | Lead-Acid, 192V (Replacement: APCRBC140) |
| Recharge Time | 1.5 hours |
| Communication Ports | USB, RJ-45, SmartSlot (1 free slot) |
| Pre-installed Cards | Network Management Card with environmental monitoring |
| Bypass | Internal (Automatic & Manual) |
| Certifications | ENERGY STAR V2.0, NOM |
| Operating Temp | 0–40°C |
| Acoustic Noise | 55 dBA |

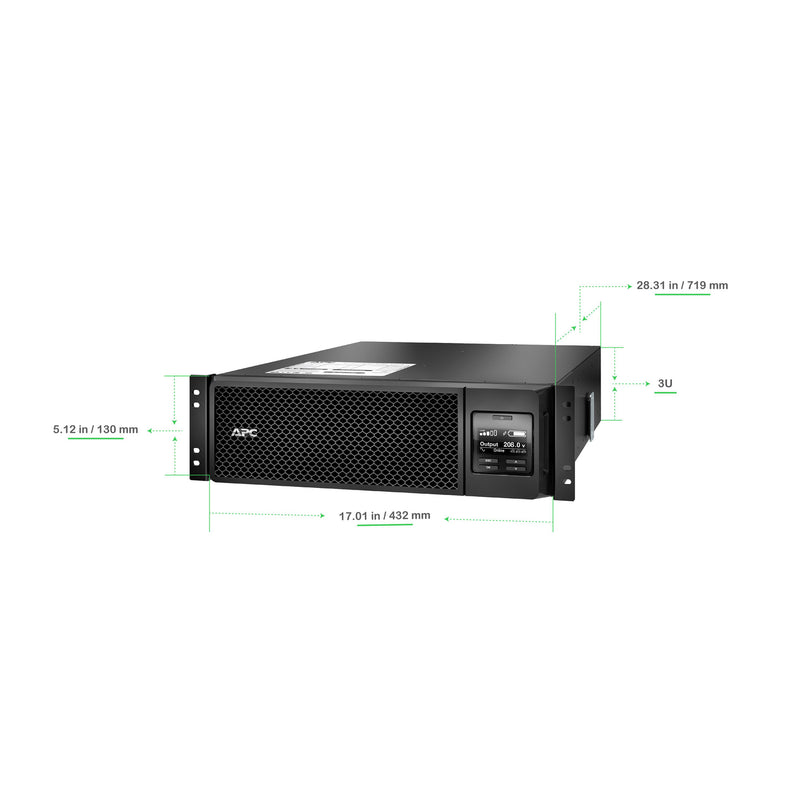

| Dimensions (WxDxH) | 17.01 x 28.31 x 5.12 in (43.2 x 71.9 x 13 cm) |
| Weight | 123 lb (55.79 kg) |
| Warranty | 3 years UPS, 2 years battery |
| Replacement Battery | APCRBC140 – 192V 5.1Ah lead-acid |
