Description

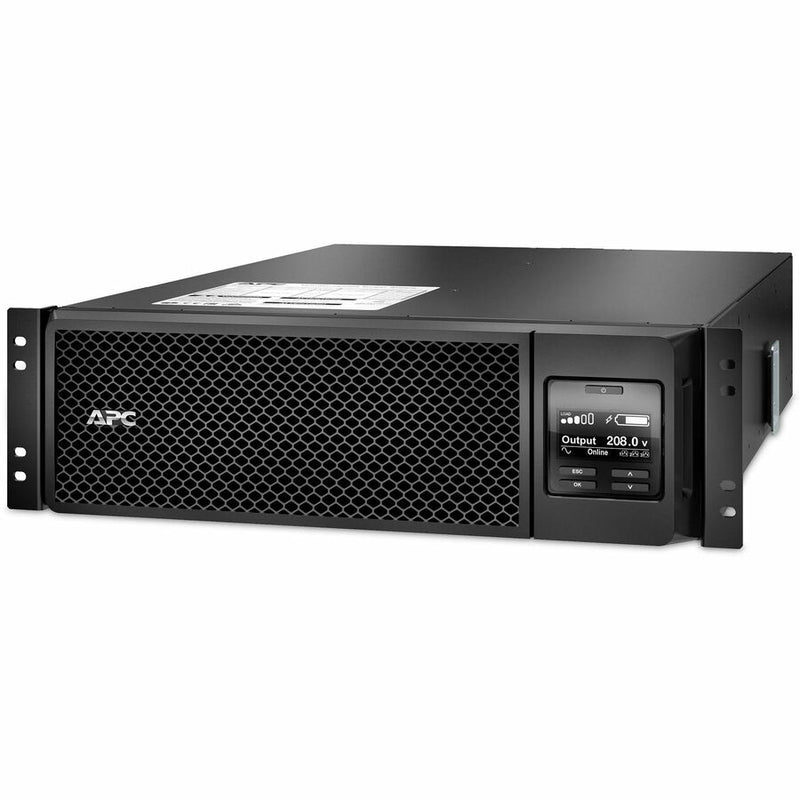

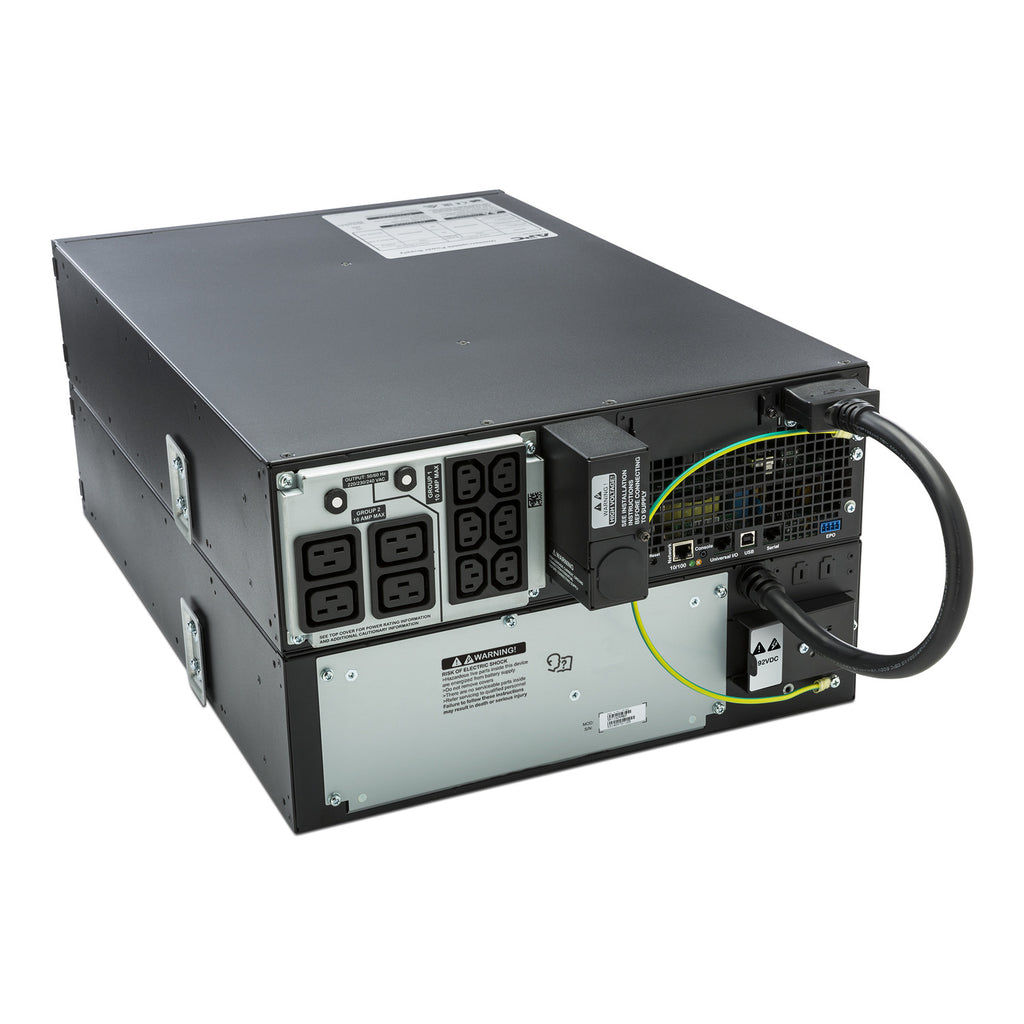

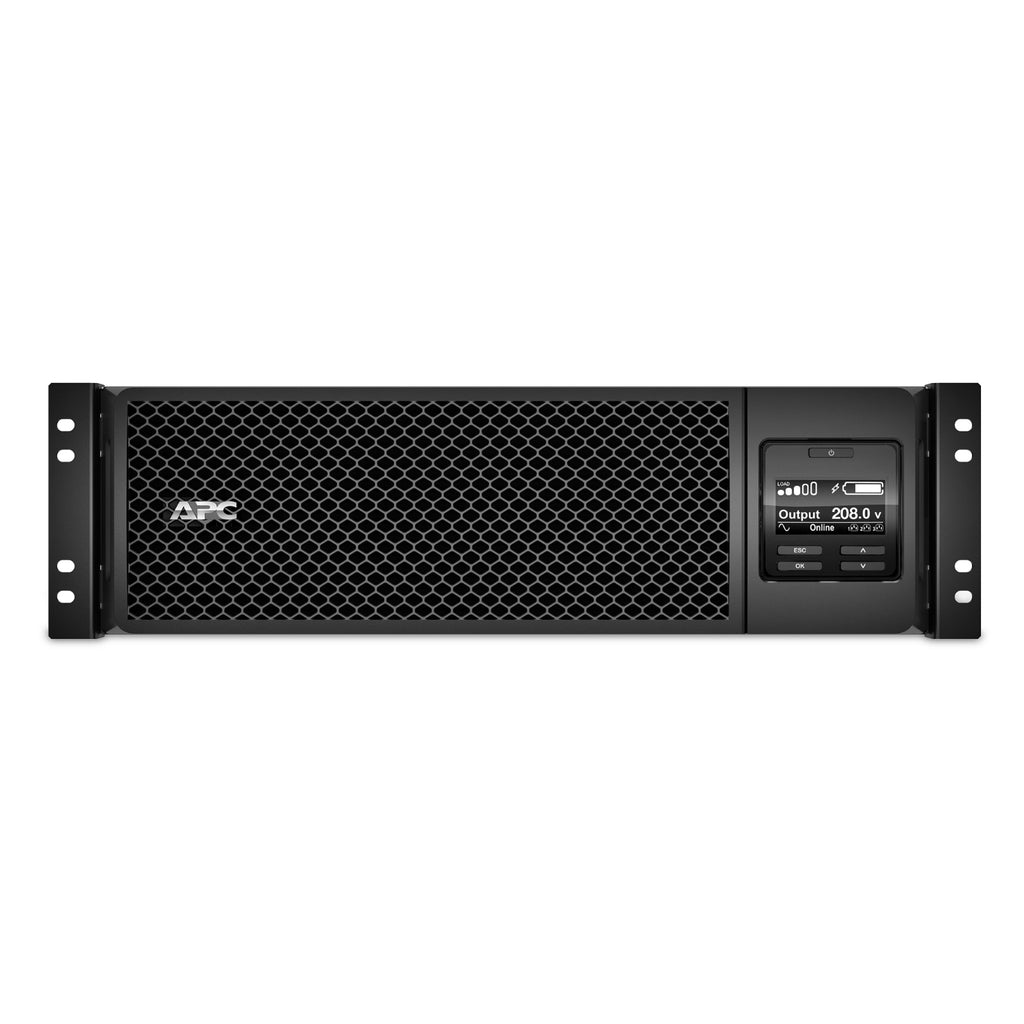

The APC Smart-UPS SRT5KRMXLT-IEC delivers high-performance power protection for critical IT infrastructure. With double-conversion online topology, this 5kVA/4.8kW rackmount UPS provides pure sine wave output, ensuring clean and consistent power for servers, networks, storage, and industrial applications. This 3U UPS features a NEMA L6-30P input, 4x IEC C13 and 4x IEC C19 outlets, and is capable of supporting up to 10 external battery packs (SRT192RMBP) for extended runtime.

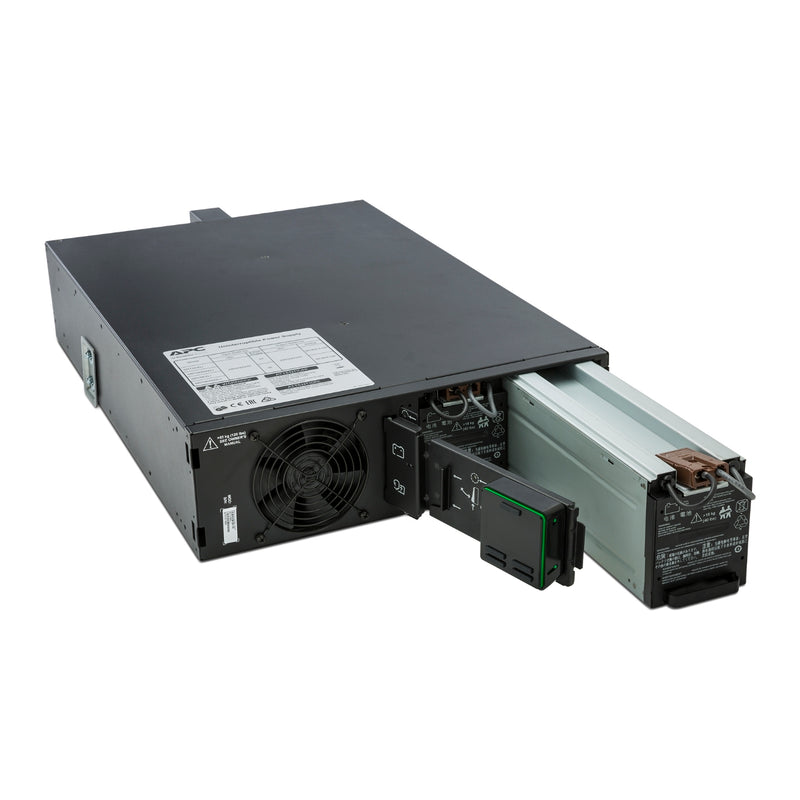

Designed for flexibility, it includes rack/tower convertible hardware and a pre-installed Network Management Card for remote monitoring. Battery replacement is supported with the APCRBC140 cartridge. A 3-year UPS warranty and 2-year battery warranty are included.
| Category | Details |
|---|---|
| Model | SRT5KRMXLT-IEC |
| Form Factor | Rackmount 3U (Convertible w/ rail kit) |
| Power Capacity | 5kVA / 4.8kW |
| Input Voltage | 208V (NEMA L6-30P), adjustable 100–275V at half load |
| Output Voltage | 208V / 240V |

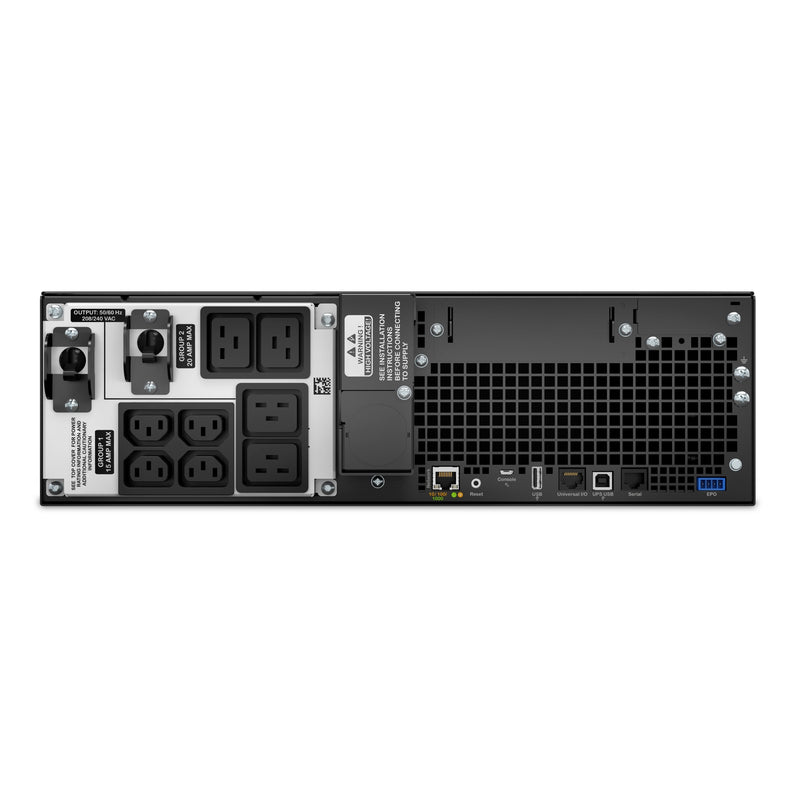

| Output Connections | 4x IEC 60320 C13, 4x IEC 60320 C19, 2x IEC jumpers |
| Battery Type | Lead-acid, 192V, 5.1Ah |
| Battery Replacement | APCRBC140 (2-year warranty, $769) |
| Extendable Runtime | Supports up to 10x SRT192RMBP battery packs |
| Recharge Time | 1.5 hours |
| Management | Network Management Card 3 pre-installed, SmartSlot expansion available |
| Waveform Output | Pure sine wave (double conversion online) |
| Efficiency | High-efficiency online mode, Energy Star V2.0 certified |
| Surge Protection | 480 Joules |
| Alarms | Audible/visible with severity levels |
| Noise Level | 55 dBA |
| Temperature Range | 0–40 °C (operating), -15–45 °C (storage) |
| Humidity | 0–95% RH non-condensing |
| Mounting | Horizontal, front rack-mounted (hardware included) |
| Dimensions (HxWxD) | 5.12 x 17.01 x 28.31 in (13 x 43.2 x 71.9 cm) |
| Weight | 123 lbs (55.79 kg) |
| Warranty | 3 years UPS, 2 years battery |
