Description

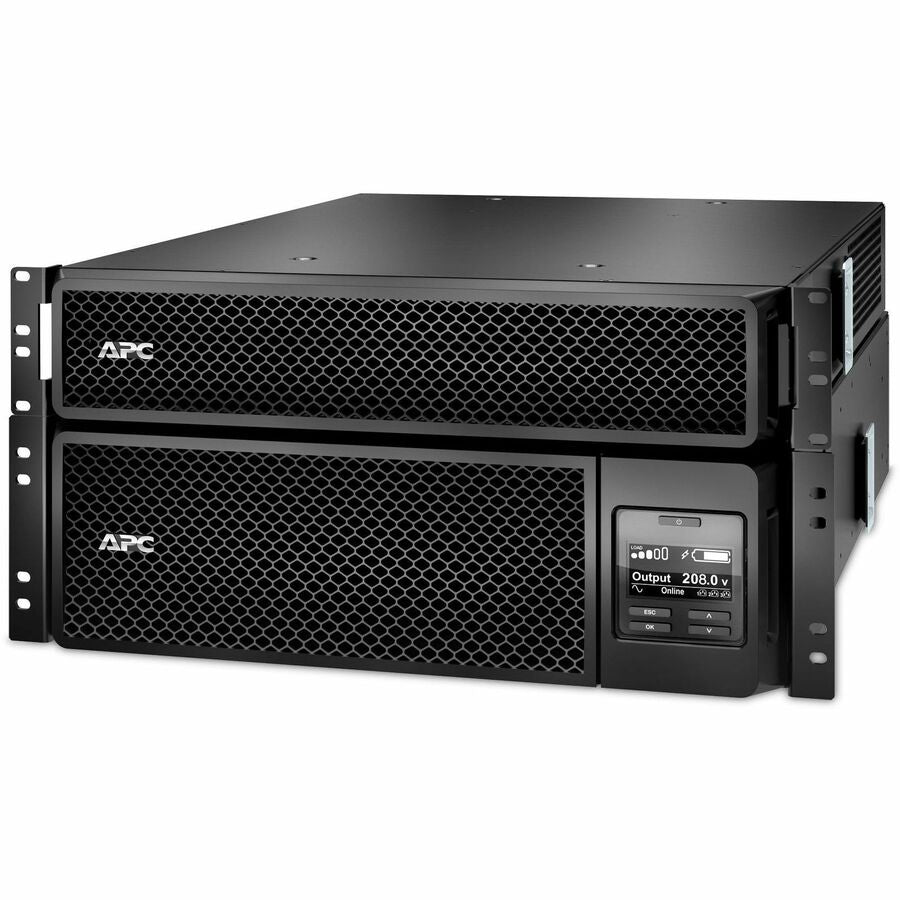

The APC SRT5KRMXLT-5KTF Smart-UPS On-Line delivers high-performance power protection for critical systems. With a 5kVA/4.8kW double-conversion architecture, it provides reliable pure sine wave output in a compact 5U rackmount form. This UPS supports mission-critical servers, networks, and labs with extended runtime capability and full network management. It features a built-in transformer for 208V to 120V conversion, SmartSlot expansion, and comes with a pre-installed Network Management Card for seamless remote monitoring. Includes rackmount kit and supports up to 10 external battery packs (SRT192RMBP) for scalability.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT5KRMXLT-5KTF |
| UPS Type | On-Line Double Conversion |
| Power Capacity | 5kVA / 4.8kW |
| Input Voltage | 208V (NEMA L6-30P) |
| Output Voltage | 120V (via built-in transformer) |

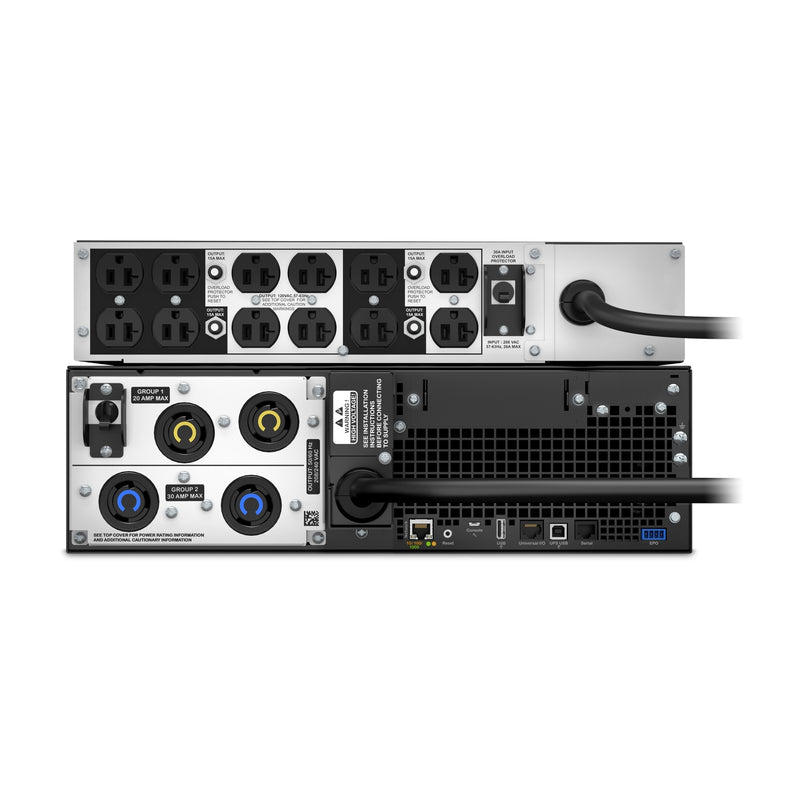

| Output Connections | 12x NEMA 5-20R, 2x L6-20R, 2x L6-30R |
| Rack Units | 5U |
| Form Factor | Rackmount (rail kit included) |
| Battery Type | Lead-Acid (APCRBC140) |
| Extendable Runtime | Yes (Supports up to 10x SRT192RMBP) |
| Battery Recharge Time | 1.5 hours |
| Runtime at Full Load | Approx. 3 min 27 sec @ 4800W |
| Battery Life | 3 to 5 years |
| Network Management | Included (Network Management Card 3) |
| Management Interface | USB, SmartSlot, Web/SNMP |
| Waveform | Pure Sine Wave |
| Bypass Type | Automatic and Manual Internal Bypass |
| Certifications | ENERGY STAR V2.0, TAA Compliant |
| Noise Level | 55 dBA |
| Dimensions (HxWxD) | 21.8 x 43.2 x 71.9 cm |
| Net Weight | 98.88 kg (217.99 lbs) |
| Warranty | 3 Years (UPS), 2 Years (Battery) |
