Description

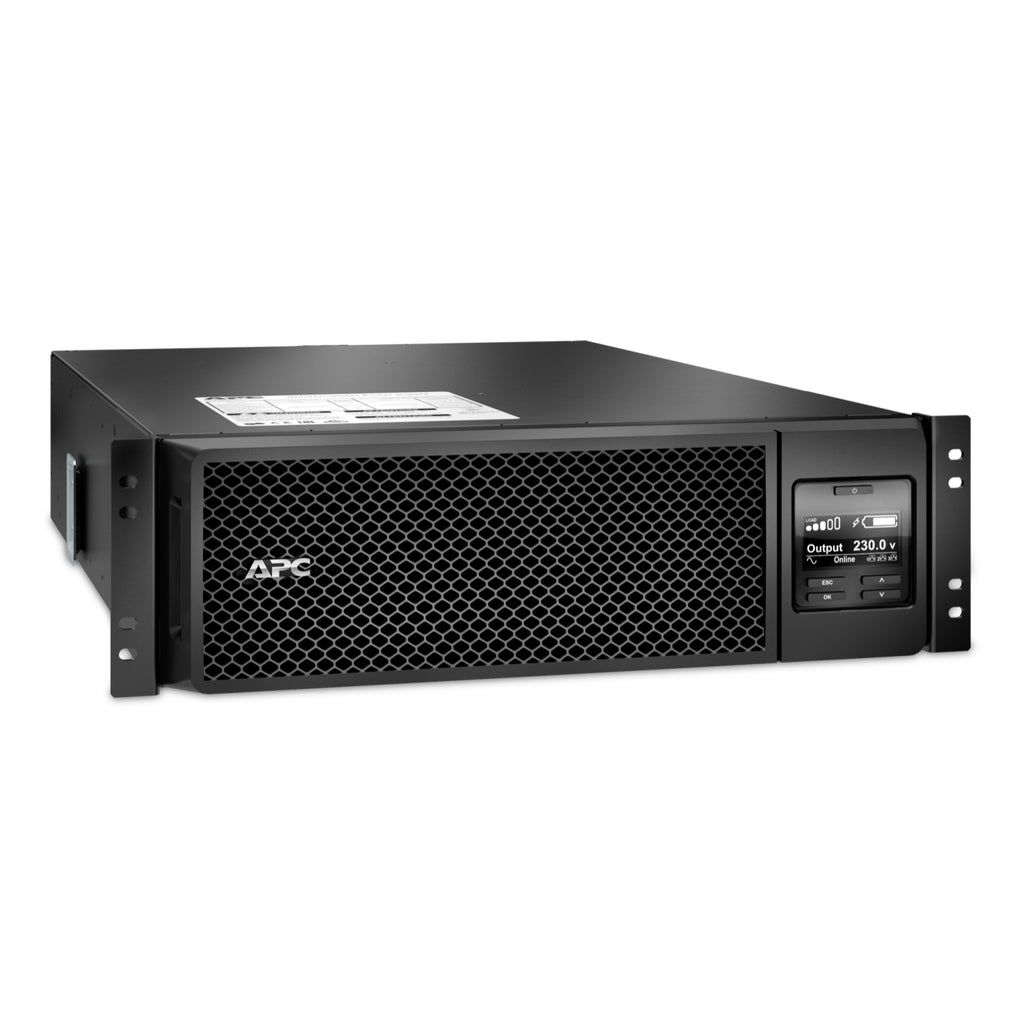

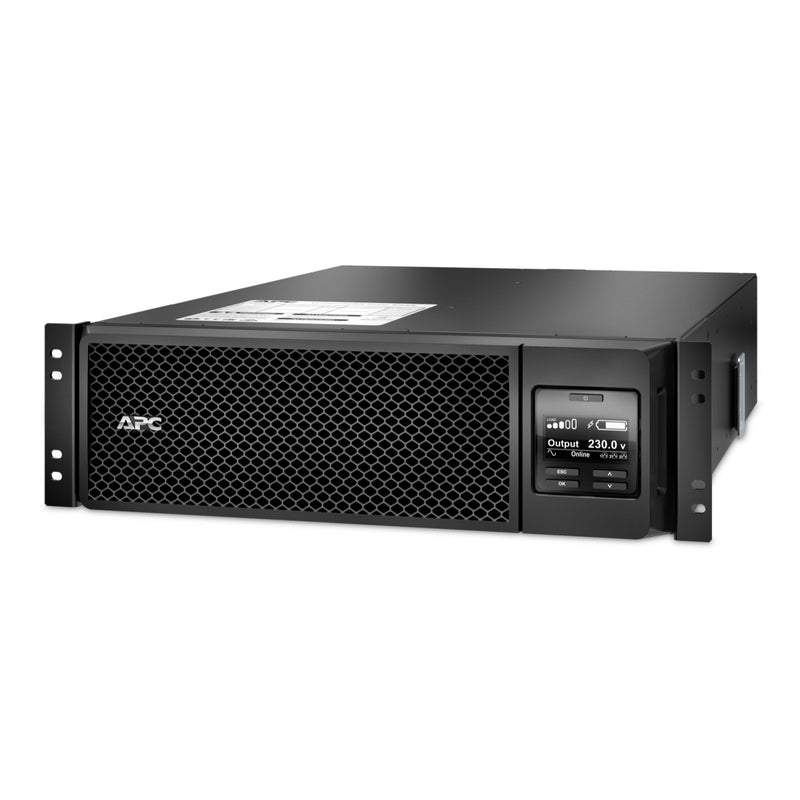

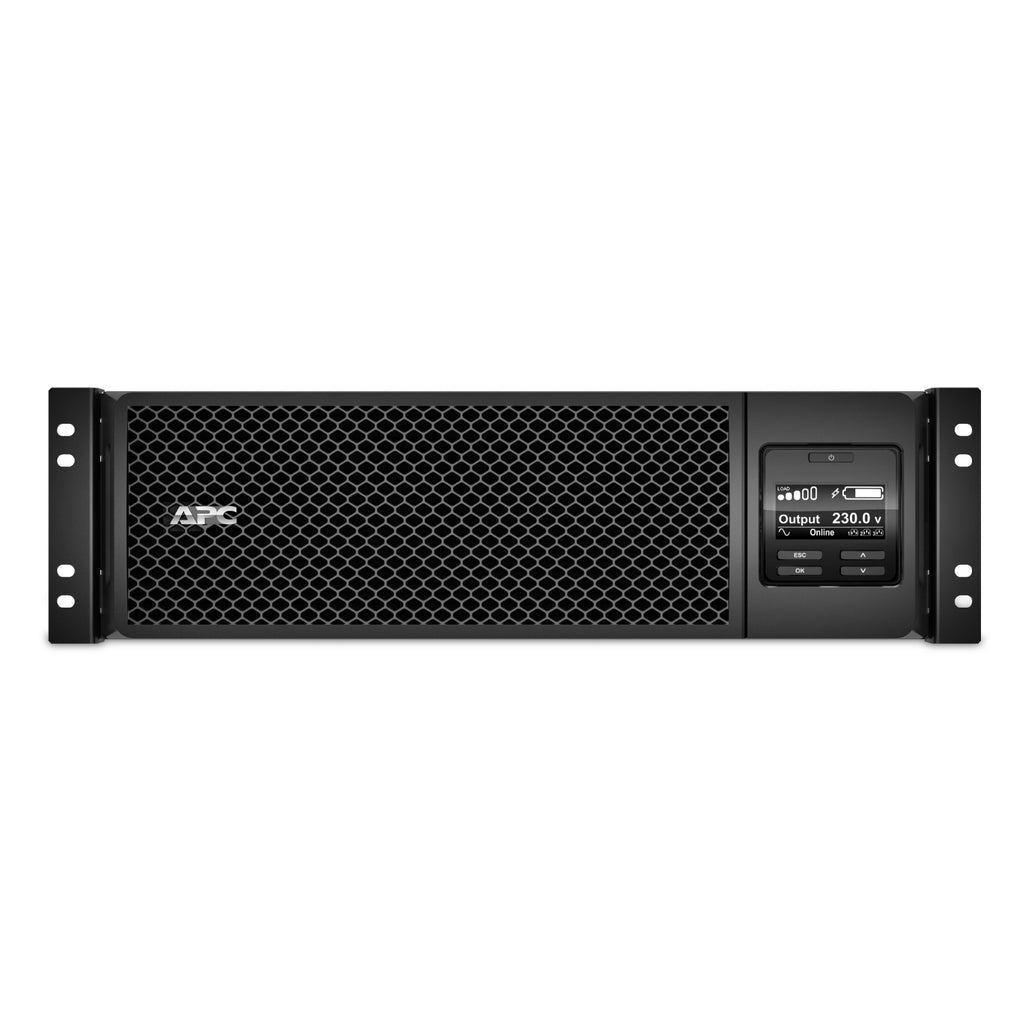

The APC Smart-UPS SRT5KRMXLI is a high-performance double-conversion on-line UPS designed to provide scalable runtime and seamless power protection for servers, storage, networking equipment, and light industrial applications. This 5kVA/4.5kW 3U rackmount UPS offers pure sine wave output, embedded Network Management Card, and extended runtime capabilities by supporting up to 10 external battery packs (SRT192RMBP). Includes rail kit for rack/tower installation flexibility. Compatible with APC APCRBC140 replacement battery.
| Category | Details |
|---|---|
| Model | SRT5KRMXLI |
| Type | Smart-UPS On-Line (Double Conversion) |
| Form Factor | Rackmount 3U |
| Rated Power | 5000 VA / 4500 W |
| Input Voltage | 230V (adjustable: 100–275V) |
| Input Connector | Hard wire 3-wire (1P+N+E) |
| Output Voltage | 230V (also supports 220V, 240V) |

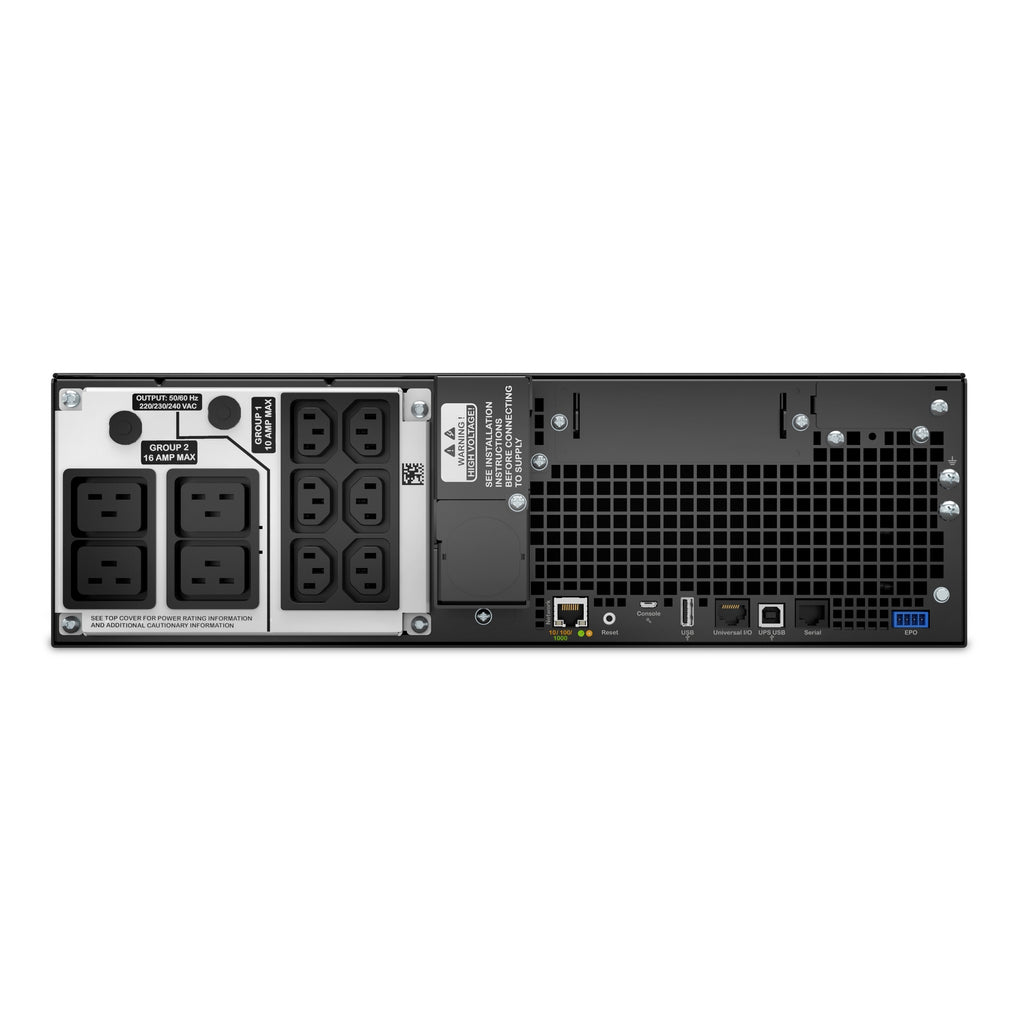

| Output Connectors | 6x IEC C13, 4x IEC C19, 2x IEC jumper cables |
| Waveform | Sine wave |
| Runtime (Full Load) | Approx. 3 mins 59 secs |
| Battery Type | Lead-acid, 192V, Recharge Time: 1.5 hrs |

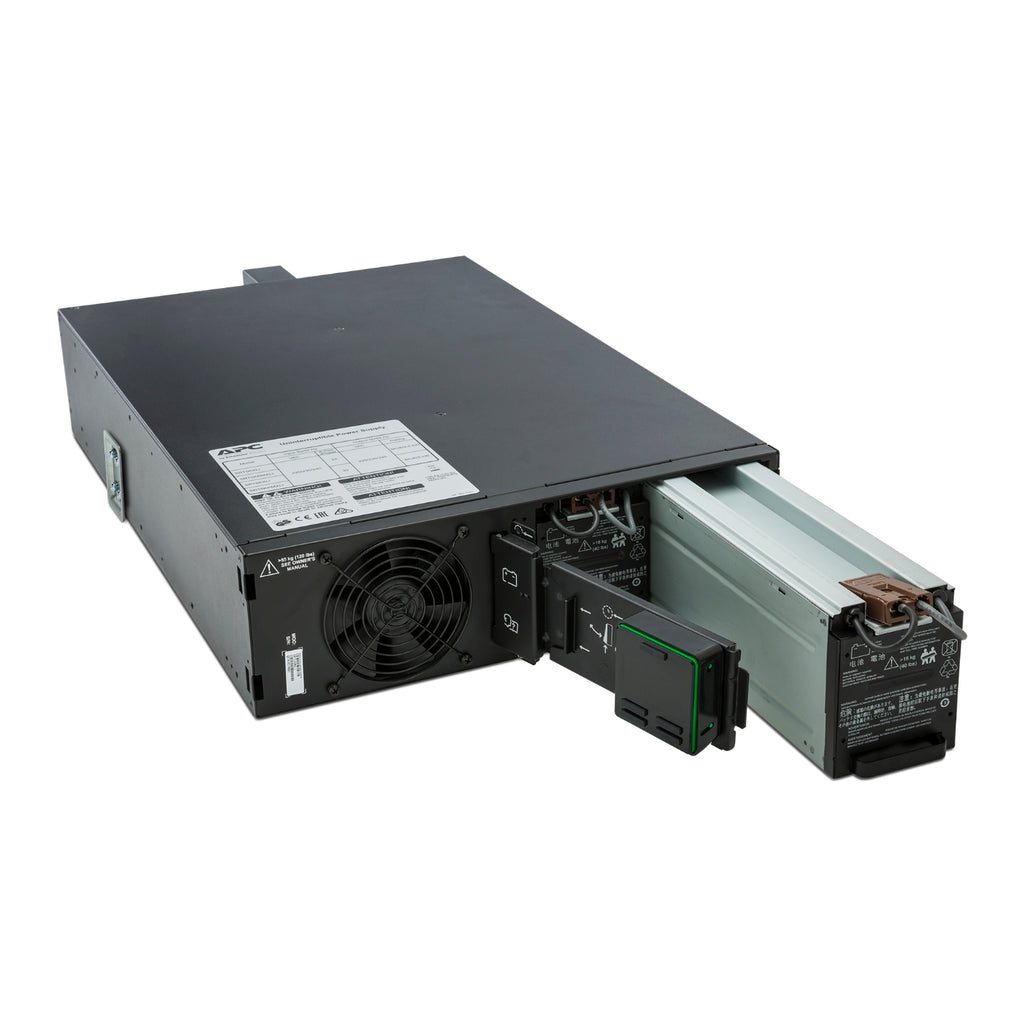

| Replacement Battery | APCRBC140 (5.1Ah, VRLA, 192VDC, 2-year warranty) |

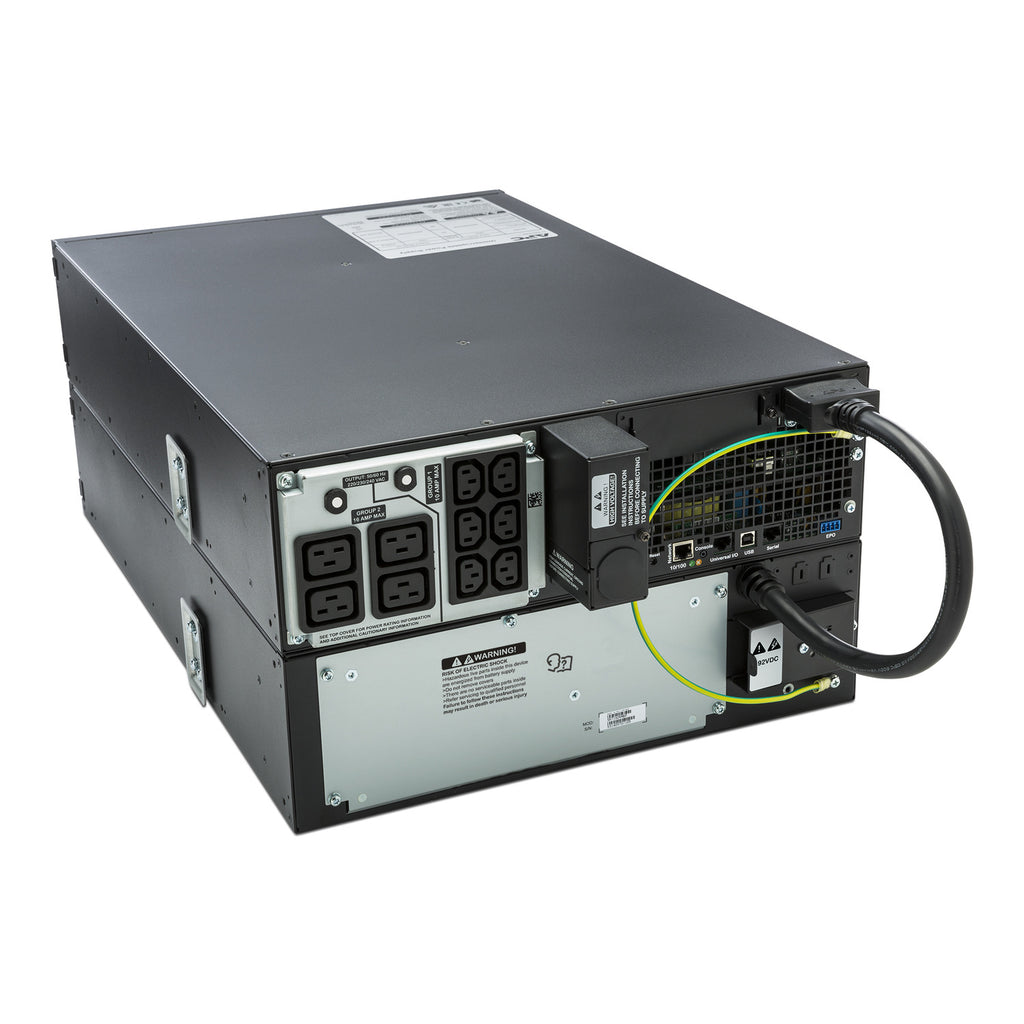

| External Battery Packs | Supports up to 10x SRT192RMBP |
| Management | Embedded Network Management Card 3, PowerChute Network Shutdown |
| Certifications | CE, VDE, EAC, IRAM, RCM |
| Compliances | EN/IEC 62040-1:2019, EN/IEC 62040-2:2018 |
| Dimensions (HxWxD) | 13 cm x 43.2 cm x 71.94 cm |
| Weight | 54.43 kg (Shipping: 69.4 kg) |
| Color | Black |
| Mounting | Horizontal Rack Mount (Rail Kit Included) |
| Warranty | 3 years UPS, 2 years battery |
| Noise Level | 55 dBA |
| Communication Ports | USB, SmartSlot (1 free slot) |
| Surge Protection | 480 J |
| Environmental Range | Operating: 0–40°C, Storage: -15–45°C, 0–95% RH (non-condensing) |
