Description

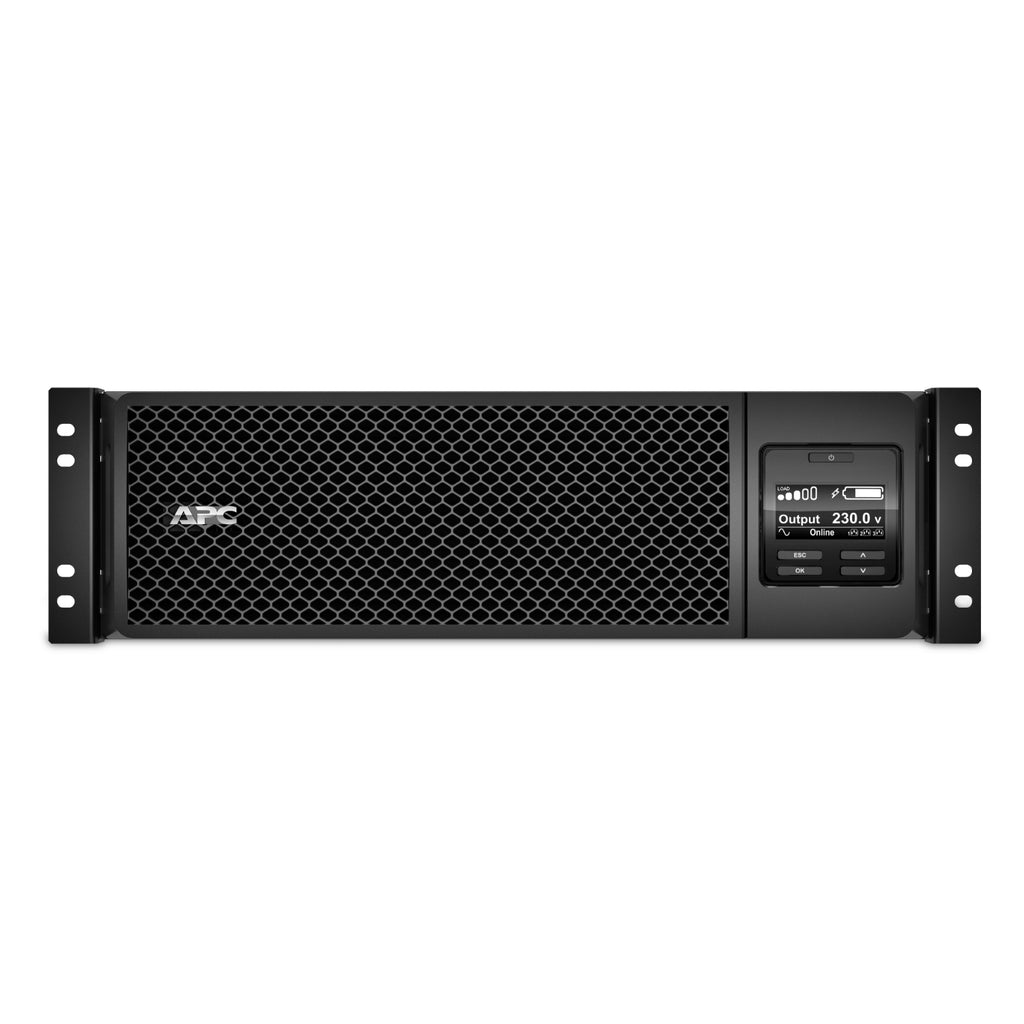

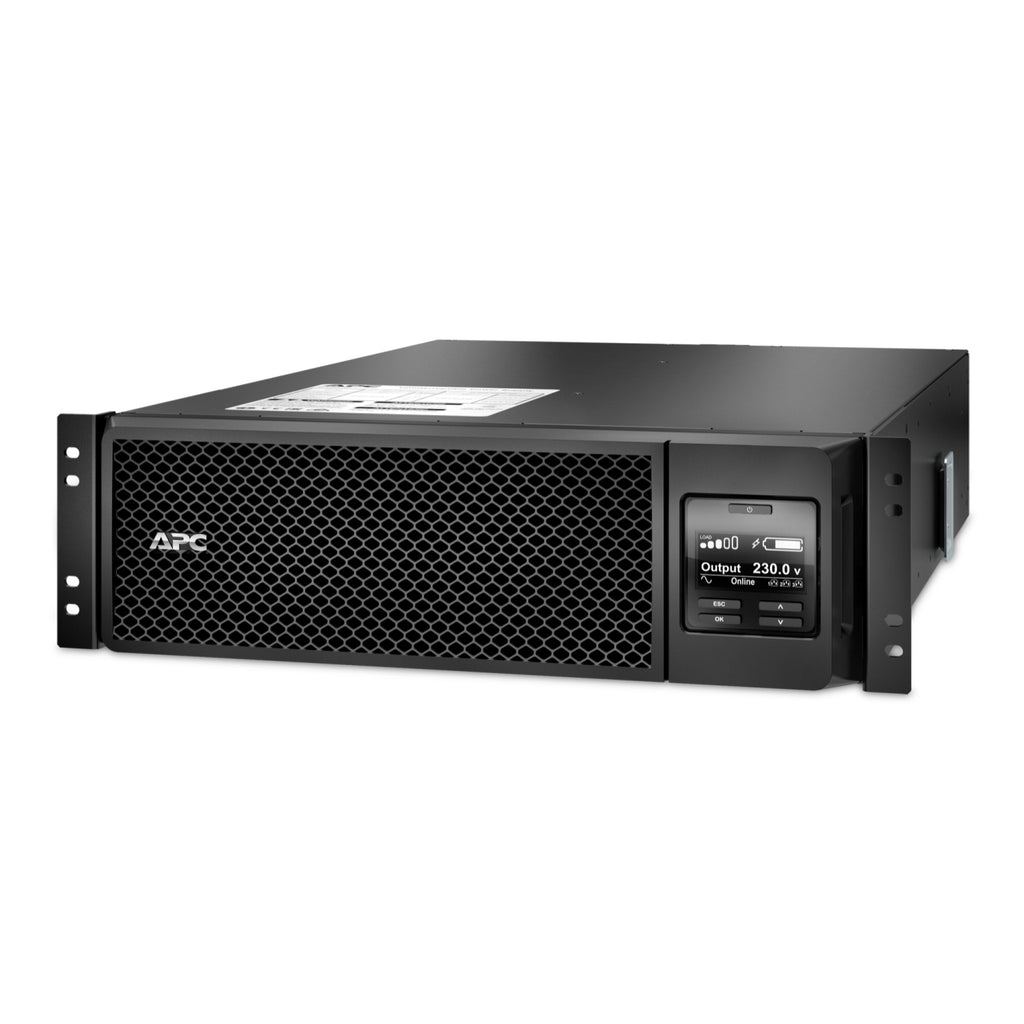

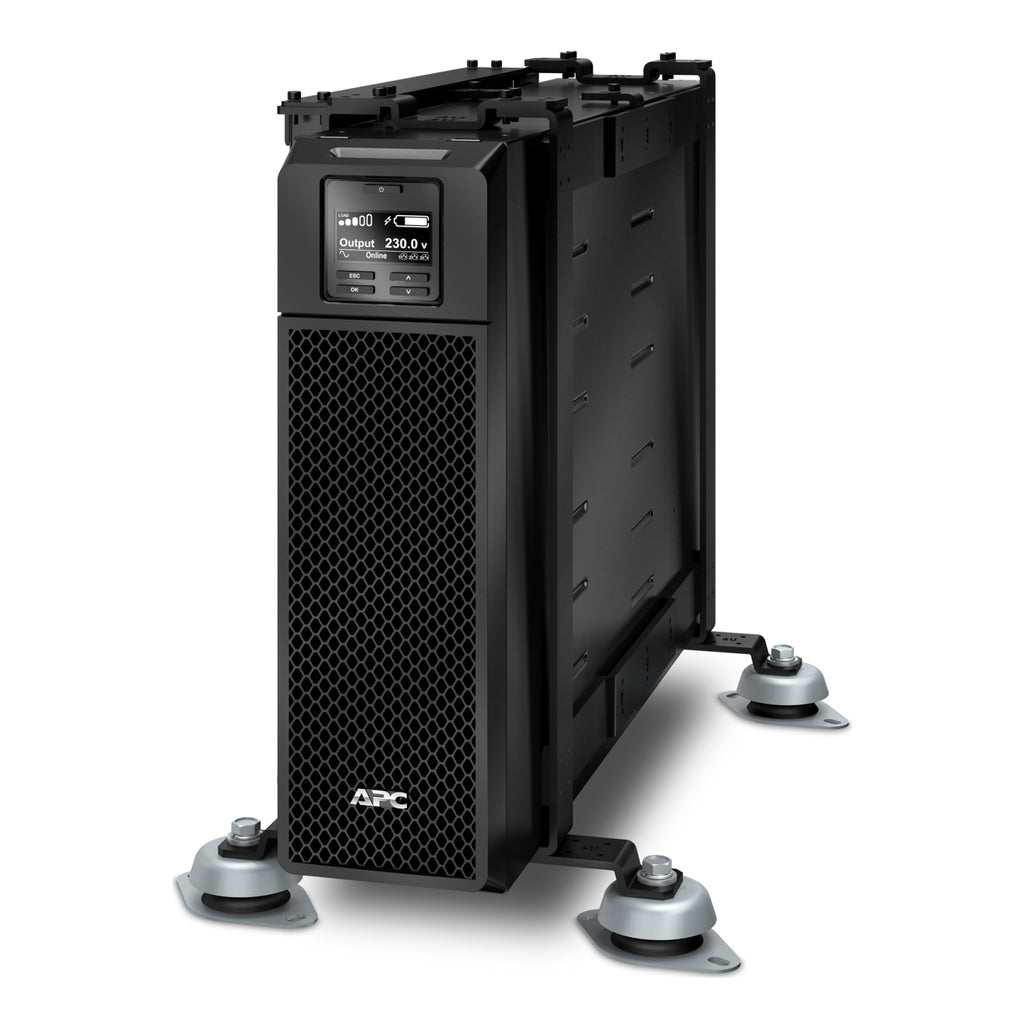

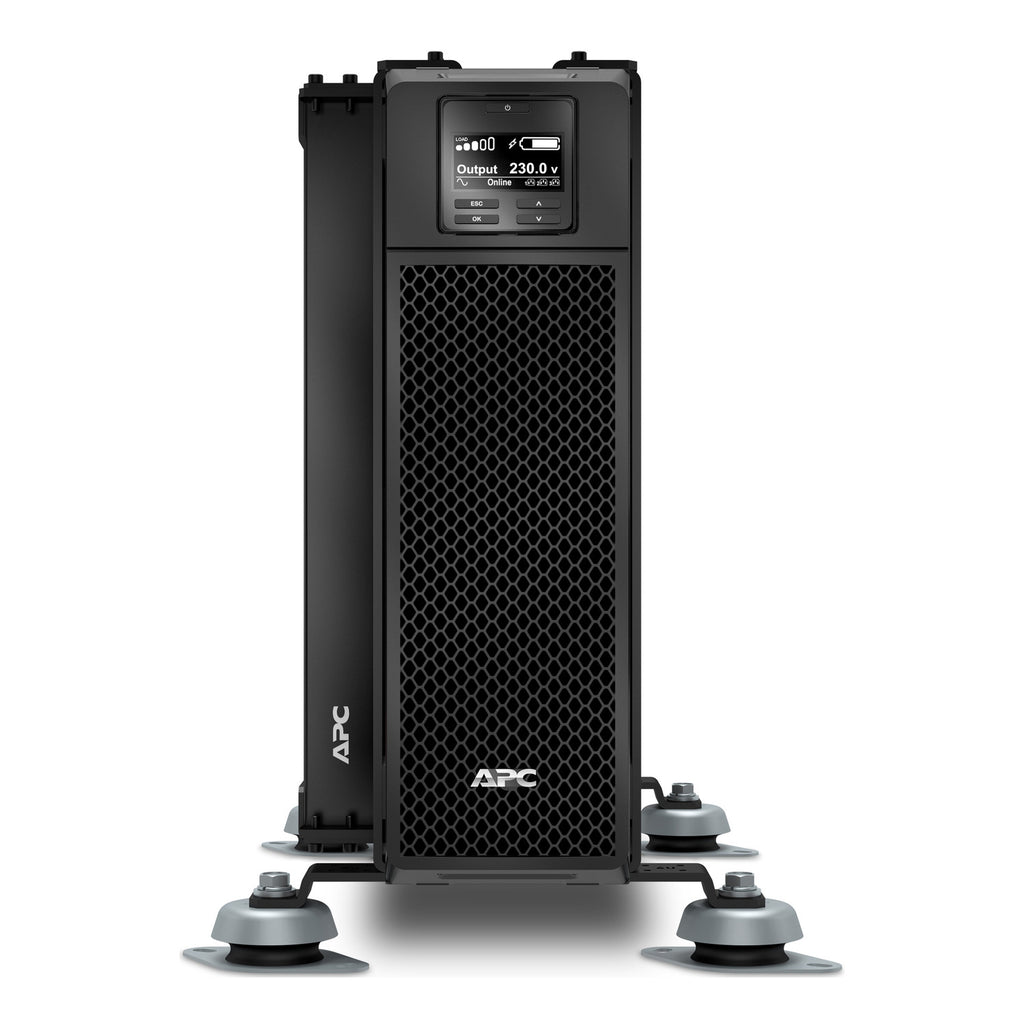

The APC Smart-UPS SRT 5000VA RM 230V Marine (SRT5KRMXLIM) delivers robust, double-conversion online power protection in a rackmount form factor, specially designed for shipboard and transportation applications. This marine-grade UPS offers 4500W of clean, reliable power to protect sensitive equipment, with extended runtime support and hot-swappable batteries. It features high efficiency, low harmonic distortion, internal bypass, and advanced battery management for critical environments demanding resilience at sea or on the move.
| Category | Details |
|---|---|
| SKU | SRT5KRMXLIM |
| Brand | APC by Schneider Electric |
| Type | Rackmount UPS - Marine Grade |
| Form Factor | 3U Rack-Mountable |
| Power Capacity | 5000 VA / 4500 W |
| Input Voltage | 220/230/240V |
| Output Voltage | 220/230/240V |

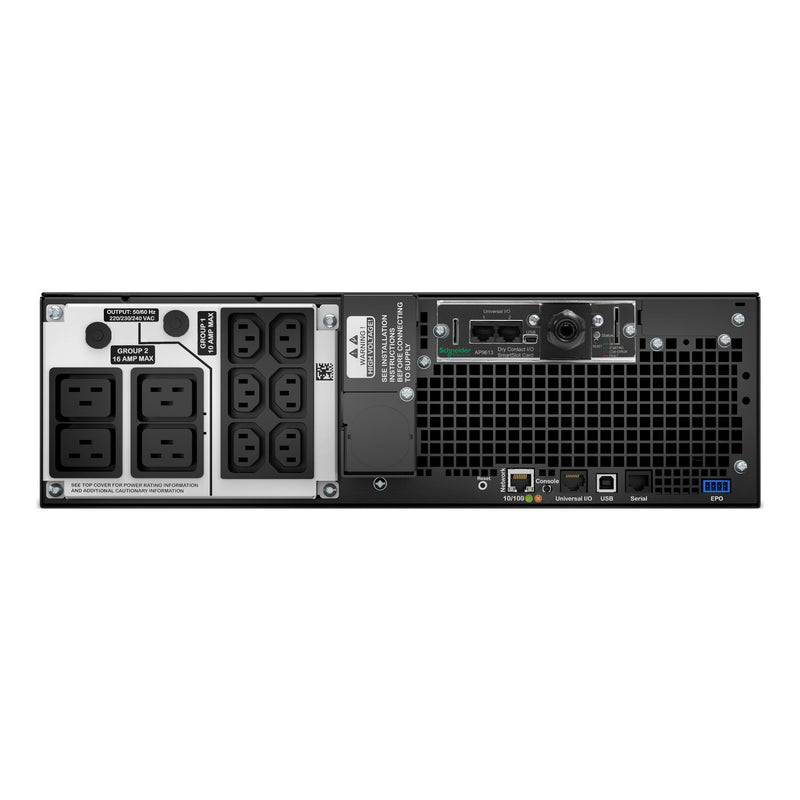

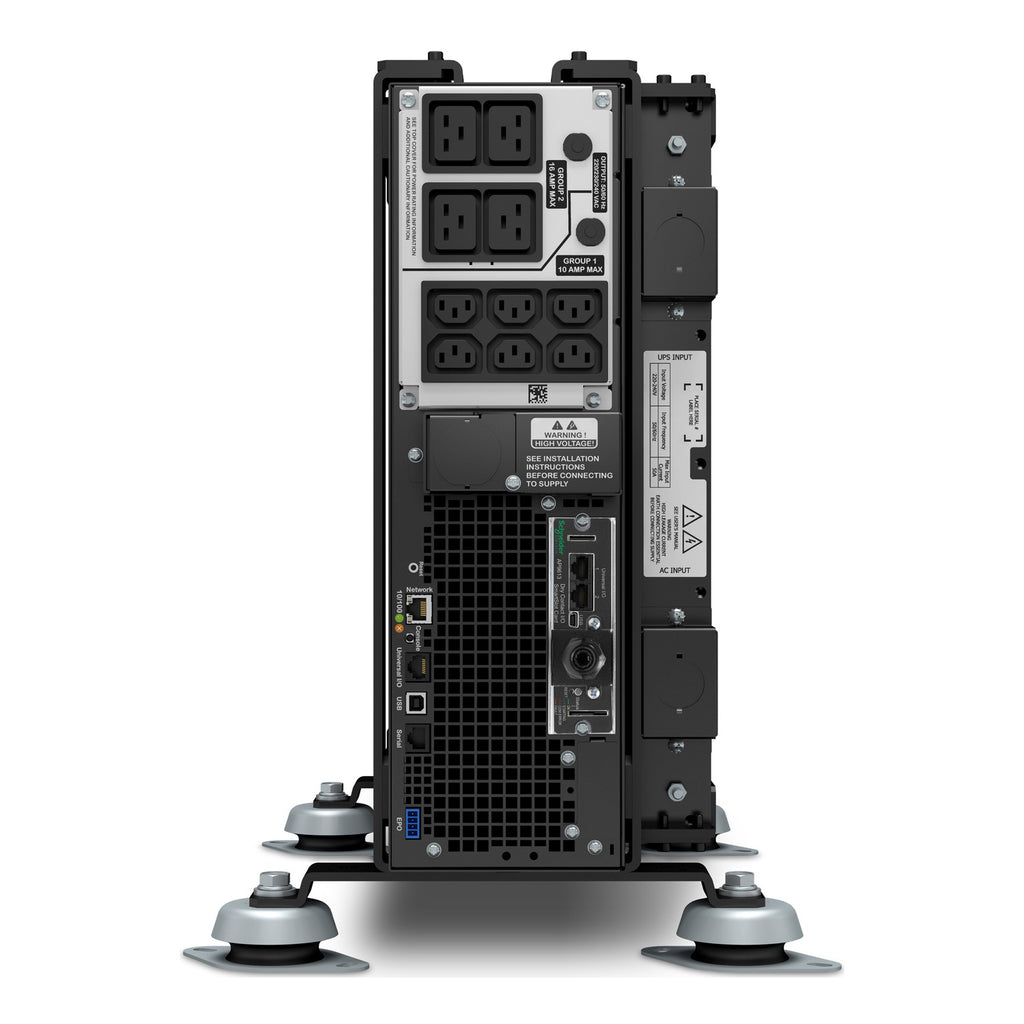

| Output Connections | 6 × IEC 60320 C13, 4 × IEC 60320 C19, 2 × IEC jumpers |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lead-acid, User-replaceable |
| Runtime Expandable | Yes |
| Battery Recharge Time | 1 hour |
| Replacement Battery | APCRBC140 |
| Surge Protection | 480 Joules |
| Efficiency | Optimized with online double conversion |
| Bypass | Automatic and Manual Internal Bypass |
| Mounting Hardware | Included (Brackets, Support Rails) |
| USB Connectivity | Yes |
| Dimensions (HxWxD) | 13 × 43.2 × 71.94 cm |
| Weight | 54.43 kg |
| Certifications | DNV, CE, RCM, VDE, EAC |
| IP Rating | IP20 |
| Operating Temp | 0°C to 40°C |
| Warranty | 3 years UPS, 2 years battery |
