Description

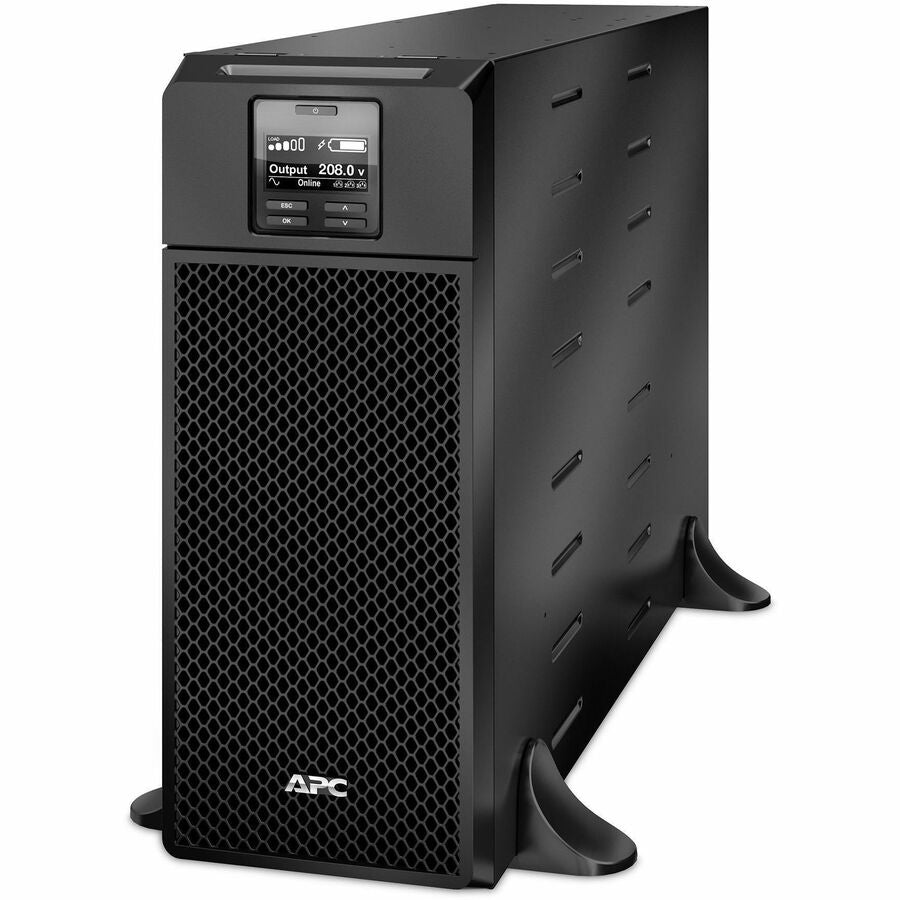

The APC Smart-UPS On-Line SRT6KXLT delivers reliable 6kVA/6kW pure sine wave backup power for critical IT infrastructure. This tower-form UPS features double-conversion online topology for consistent output, built-in network monitoring via an embedded Network Management Card, and support for up to 10 external battery packs (SRT192BP) for extended runtime. With 2x L6-20R and 3x L6-30R NEMA outlets, the SRT6KXLT is ideal for servers, data centers, labs, and voice/data networks. Compatible with rack/tower rail kits SRTRK2 and SRTRK3 (sold separately).
Specification | Details |
---|---|
Model | APC SRT6KXLT |
Form Factor | Tower (Rack/Tower Convertible) |
Power Capacity | 6kVA / 6kW |
Input Voltage | 208V / 240V |
Input Type | Hard Wire 3-wire (2PH + G) |
Output Voltage | 208V / 240V |

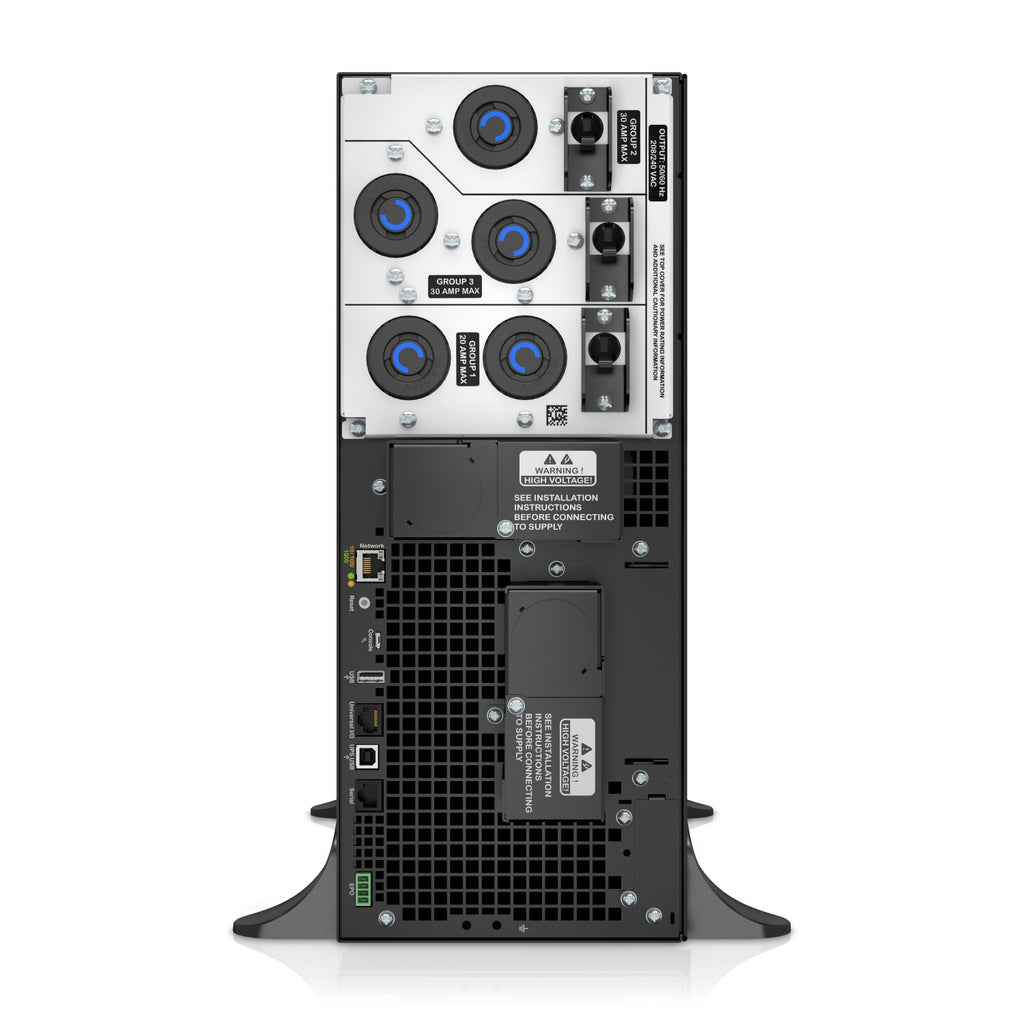

Output Connections | 2x NEMA L6-20R, 3x NEMA L6-30R |
Topology | Double Conversion Online |
Waveform Type | Pure Sine Wave |
Battery Type | Lead-Acid (APCRBC140) |
Runtime Extension | Supports up to 10x SRT192BP Battery Packs |
Battery Recharge Time | Approx. 1.5 hours |
Network Management | Embedded Network Management Card |
Communication Interfaces | USB, SmartSlot, EPO |
Mounting | Vertical (Rail kits SRTRK2/SRTRK3 sold separately) |
Dimensions (H x W x D) | 43.2 x 17.4 x 71.9 cm (17.01 x 6.85 x 28.31 in) |
Weight | 61.23 kg (134.99 lbs) |
Certifications | ENERGY STAR V2.0, UL 1778, FCC Class A, NOM |
Operating Temperature | 0–40°C (32–104°F) |
Noise Level | 55 dBA |
Surge Protection | 480 Joules |
Warranty | 3 Years (UPS), 2 Years (Battery) |
Replacement Battery | APCRBC140 |
Country of Origin | Philippines |
