Description

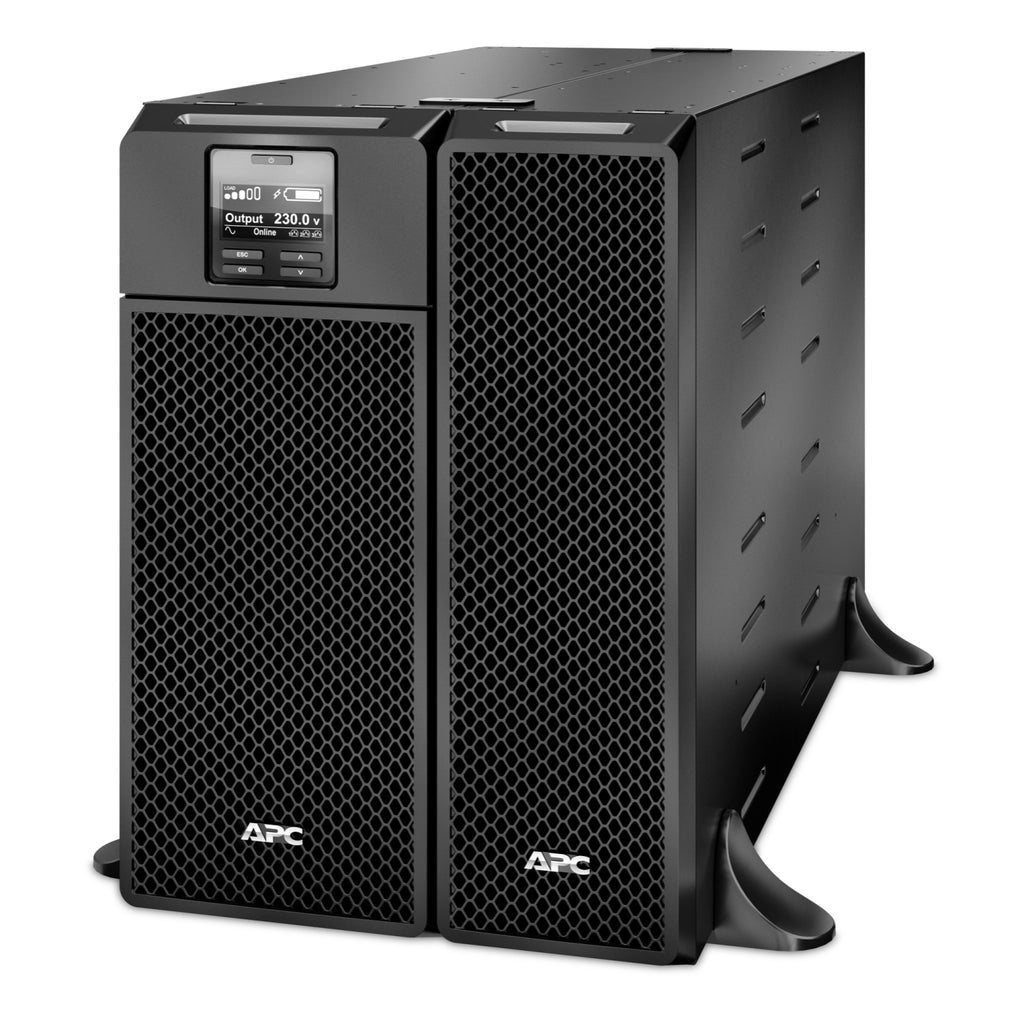

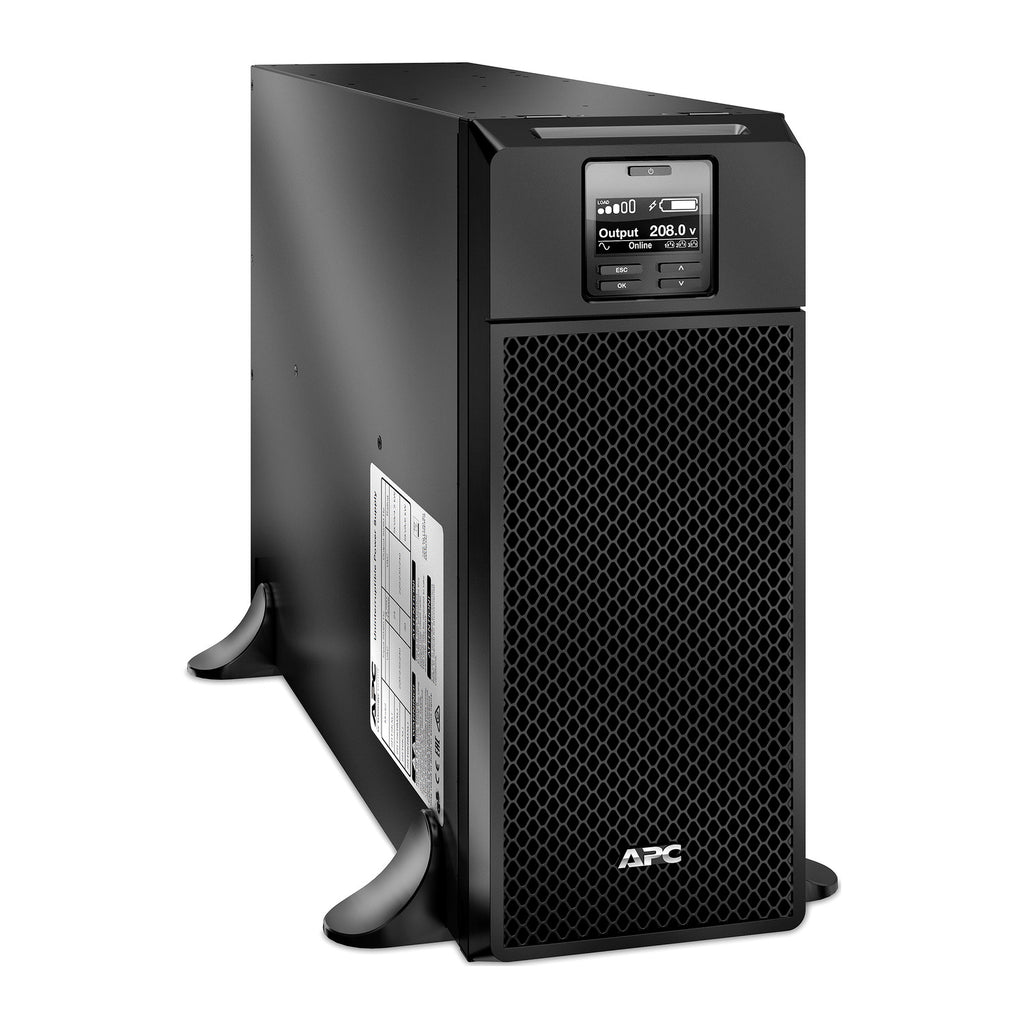

The APC Smart-UPS SRT6KXLT-IEC is a 6kVA/6kW double-conversion on-line tower UPS designed for high-availability IT environments. With pure sine wave output, internal bypass, and support for extended runtime, it ensures seamless protection for servers, networking gear, and lab equipment. It features 6x IEC C13 and 4x IEC C19 outlets, SmartSlot support, and comes equipped with a pre-installed Network Management Card for remote monitoring and control. Compatible with up to 10 external battery packs and replacement battery APCRBC140.
| Attribute | Details |
|---|---|
| SKU | SRT6KXLT-IEC |
| UPS Type | Double-conversion On-Line |
| Power Capacity | 6kVA / 6kW |
| Input Voltage | 208V (Adjustable: 100–275V) |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V |

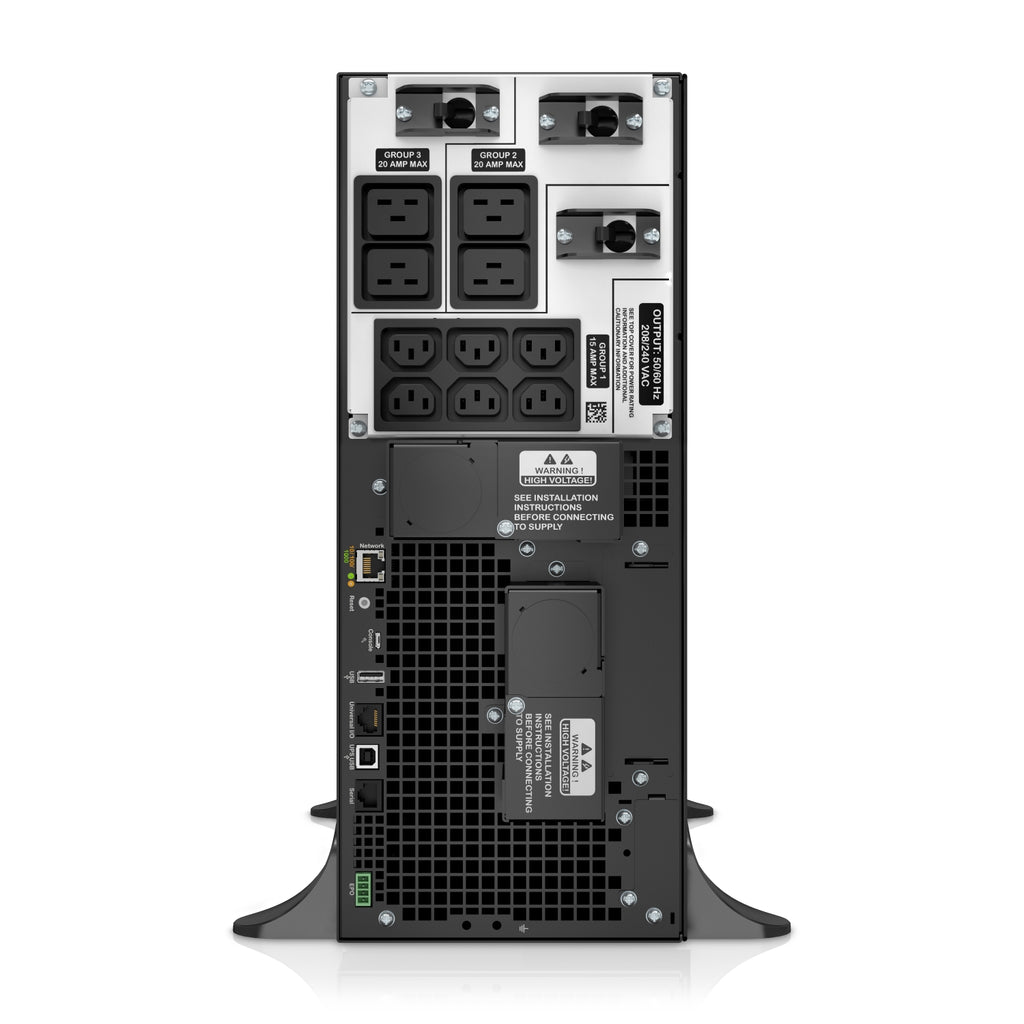

| Output Connections | 6x IEC 60320 C13, 4x IEC 60320 C19, 2x IEC jumpers |
| Waveform Output | Pure Sine Wave |
| Battery Type | Lead-acid, 192V |
| Replacement Battery | APCRBC140 |
| Extendable Runtime | Yes, up to 10x SRT192BP battery packs |
| Recharge Time | 1.5 hours typical |
| Included Accessories | USB cable, CD with software, Temp probe, Web/SNMP card, Documentation |
| Management Features | Network Management Card 3, SmartSlot, EcoStruxure-ready |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A |
| Noise Level | 55 dBA |
| Dimensions (HxWxD) | 17.01 x 6.85 x 28.31 in (43.2 x 17.4 x 71.9 cm) |
| Weight | 131.99 lbs (59.87 kg) |
| Mounting | Tower (Rack-mountable with optional SRTRK2 or SRTRK3 kits) |
| Warranty | 3 years UPS, 2 years battery |
