Description

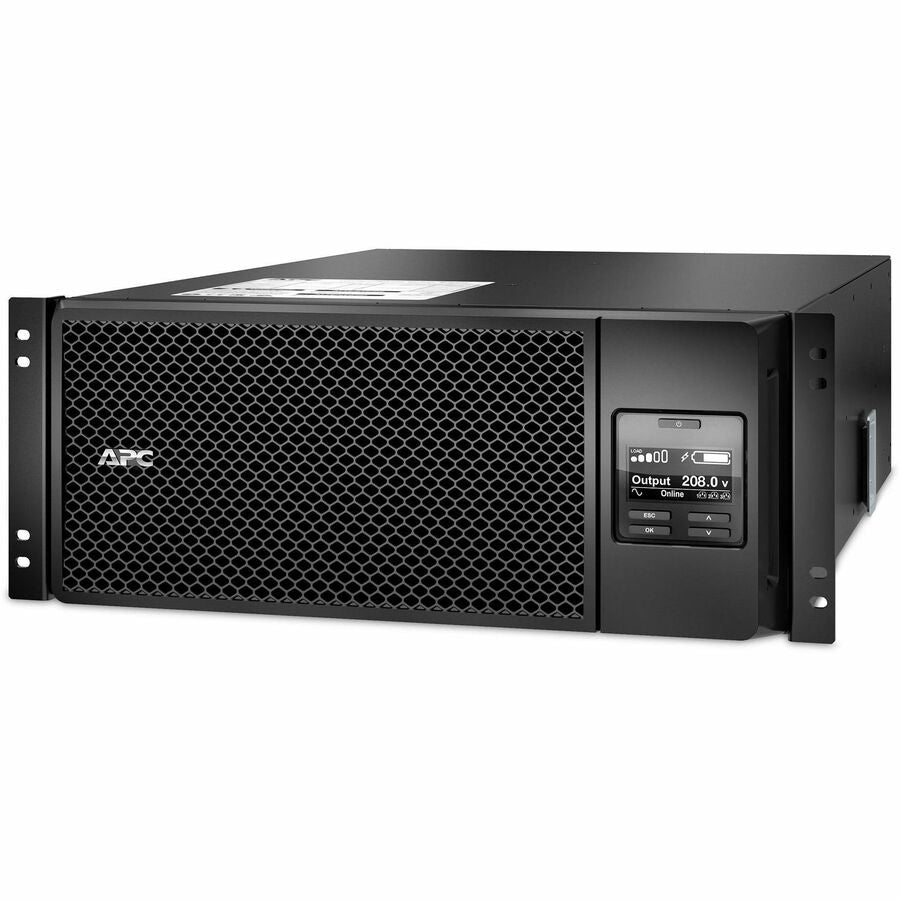

Ensure continuous uptime with the APC Smart-UPS SRT6KRMXLT, a 6kVA/6kW double-conversion online UPS designed for mission-critical IT environments. This 4U rackmount unit delivers pure sine wave power and extended runtime with support for up to 10 external battery packs. It includes 2x NEMA L6-20R and 3x NEMA L6-30R outlets, a pre-installed Network Management Card, SmartSlot, and a rail kit for easy installation. Compatible with EcoStruxure IT and features a 3-year UPS warranty and 2-year battery warranty.
| Category | Details |
|---|---|
| Model | APC SRT6KRMXLT |
| Form Factor | 4U Rackmount |
| Topology | Double-Conversion Online |
| Power Capacity | 6kVA / 6kW |
| Input Voltage | 208V (Hard Wire 3-wire, 2PH + G) |
| Output Voltage | 208V / 240V |

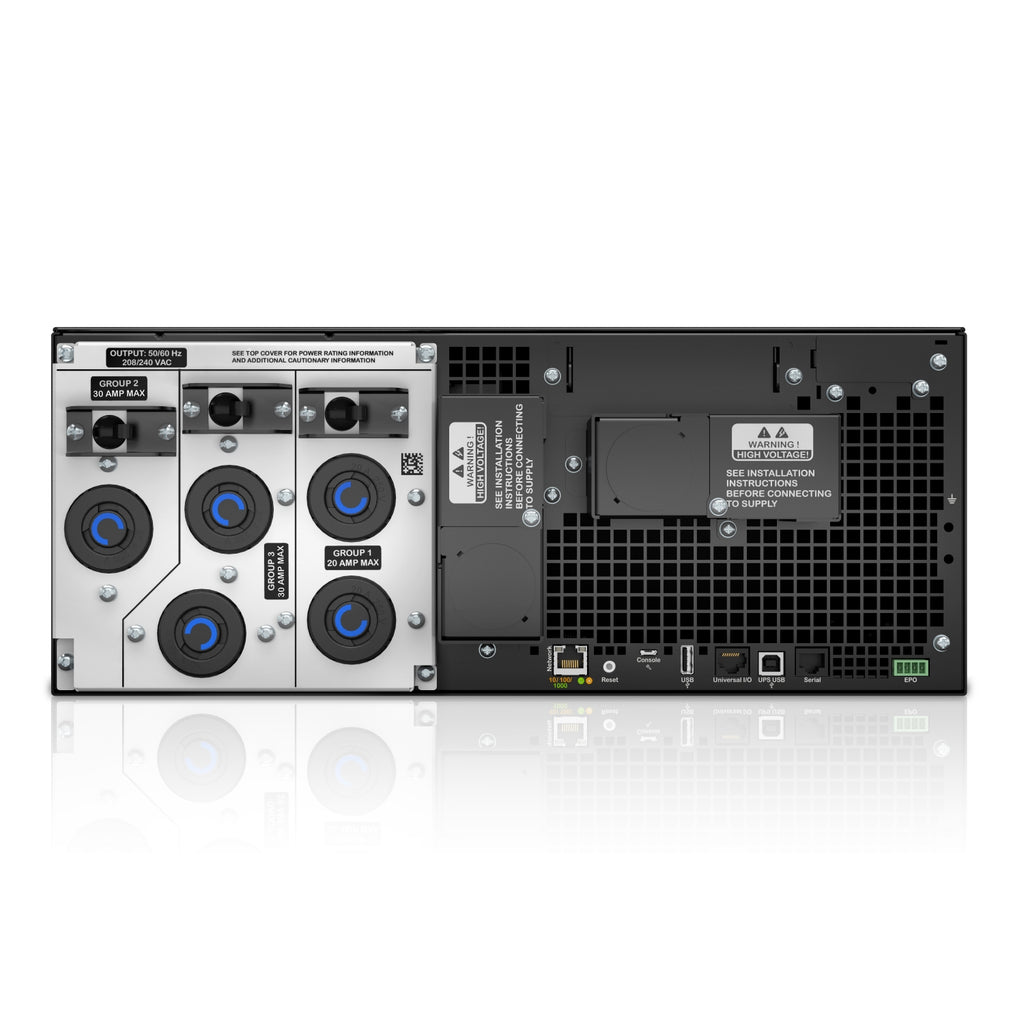

| Output Connections | 2x NEMA L6-20R, 3x NEMA L6-30R |
| Battery Type | Lead-acid, 192V |
| Replacement Battery | APCRBC140 |
| Extended Runtime | Supports up to 10 external battery packs (SRT192RMBP) |
| Recharge Time | 1.5 hours |
| Battery Warranty | 2 Years |
| UPS Warranty | 3 Years (Repair or Replace) |
| Runtime (at full load) | Approx. 2 min 17 sec |
| Efficiency | Viewable via APC Efficiency Graph |
| Network Management | Embedded Network Card + SmartSlot (1 Free Slot) |
| Communications | USB, SNMP, Emergency Power Off (EPO), Audible/Visual Alarms |

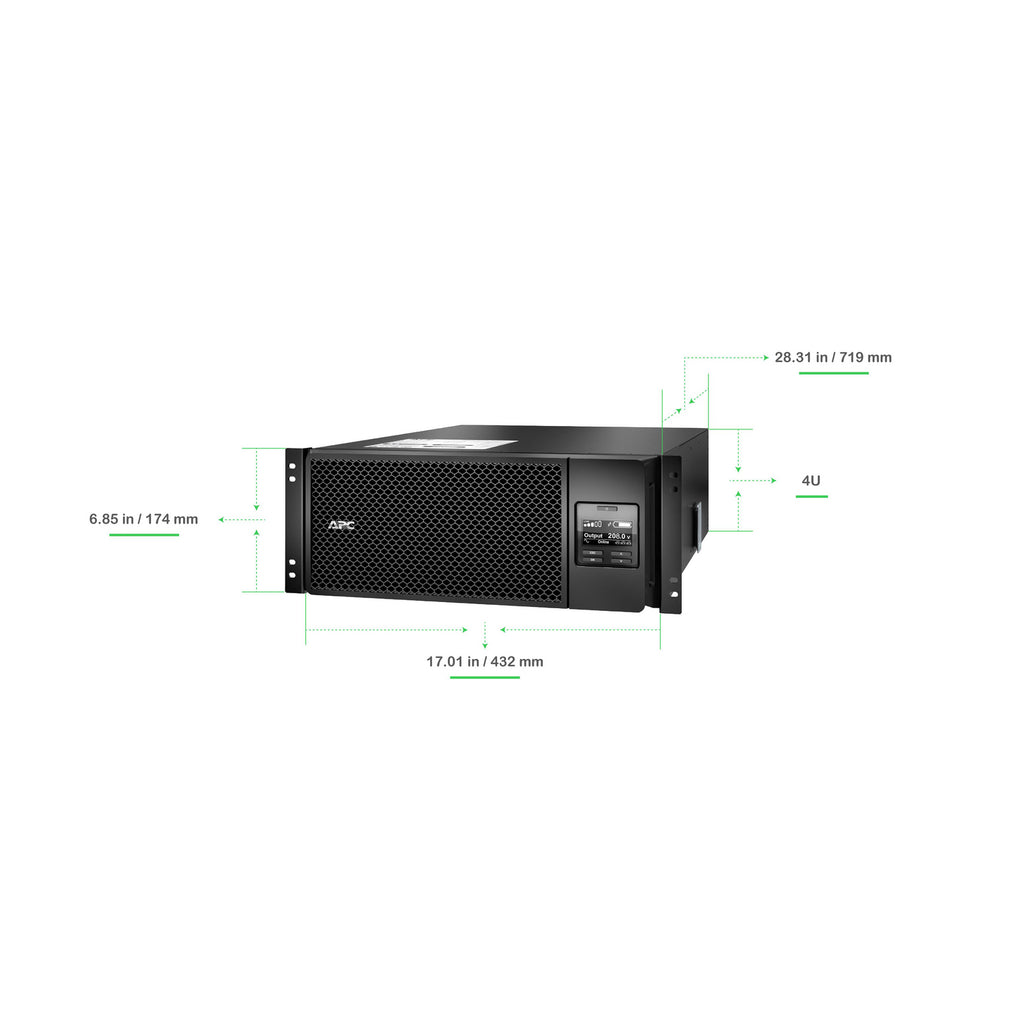

| Dimensions (H x W x D) | 17.4 cm x 43.2 cm x 71.9 cm |
| Weight | 61.23 kg |
| Mounting Kit | Included (Rail kit, brackets, hardware) |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Class A, NOM |
| Environmental | 0–40°C Operating, 0–95% RH Non-condensing, IP20 |
| Acoustic Level | 55 dBA |
| Surge Protection | 480 Joules |
| GTIN | 731304308522 |
| Country of Origin | Philippines |
