Description

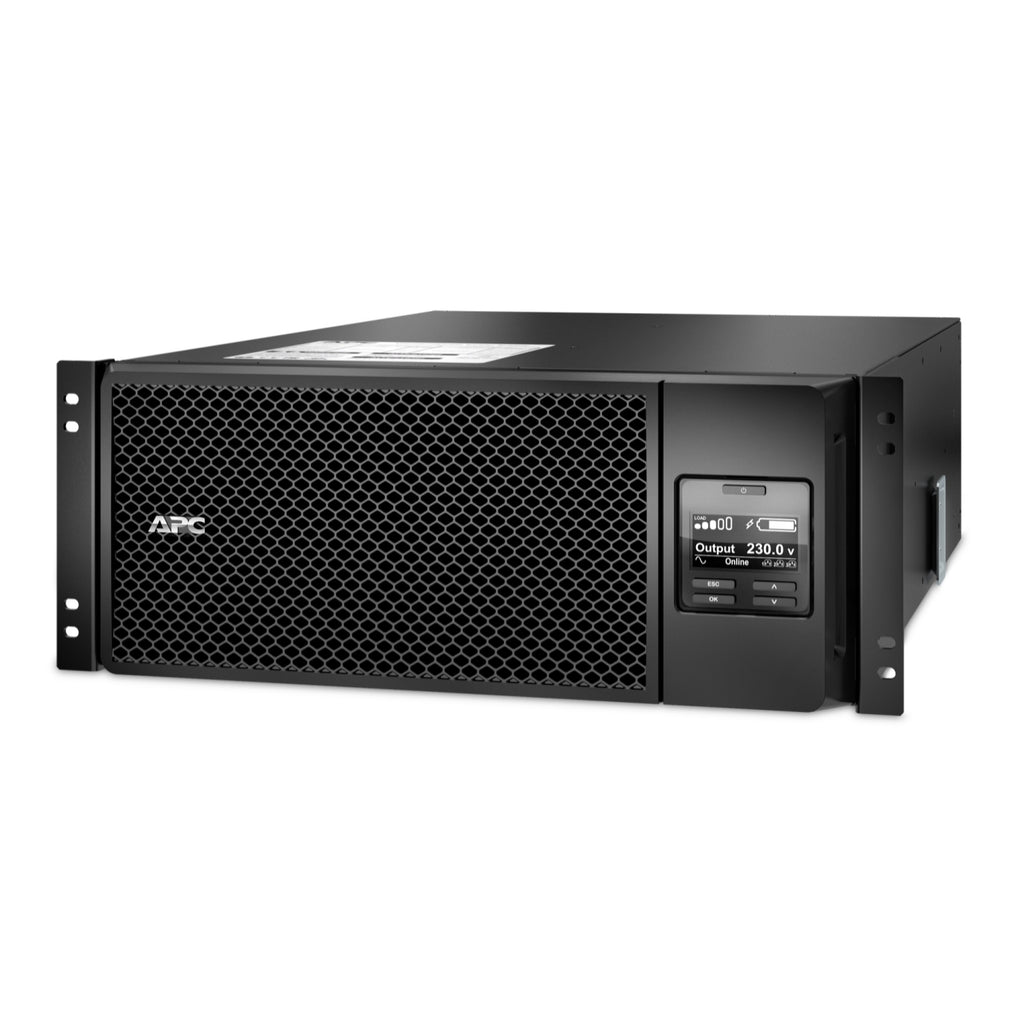

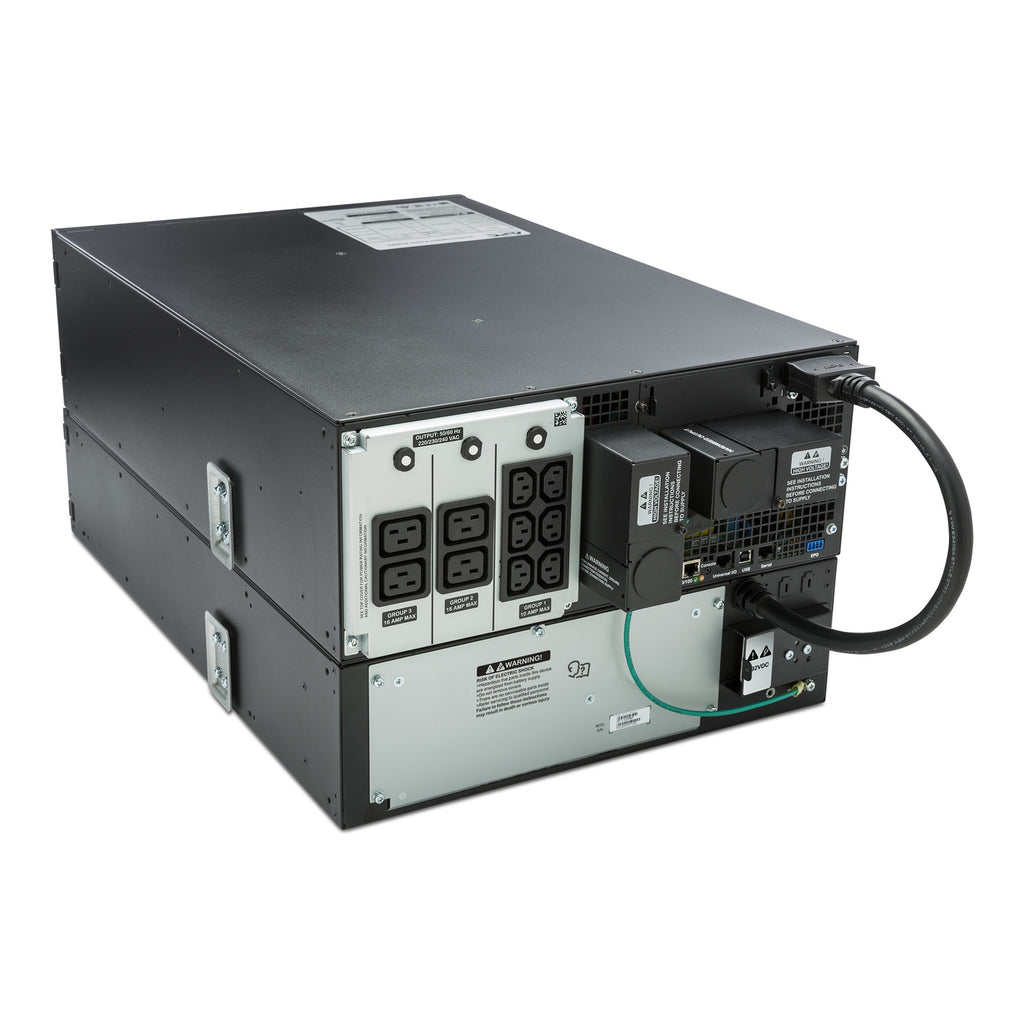

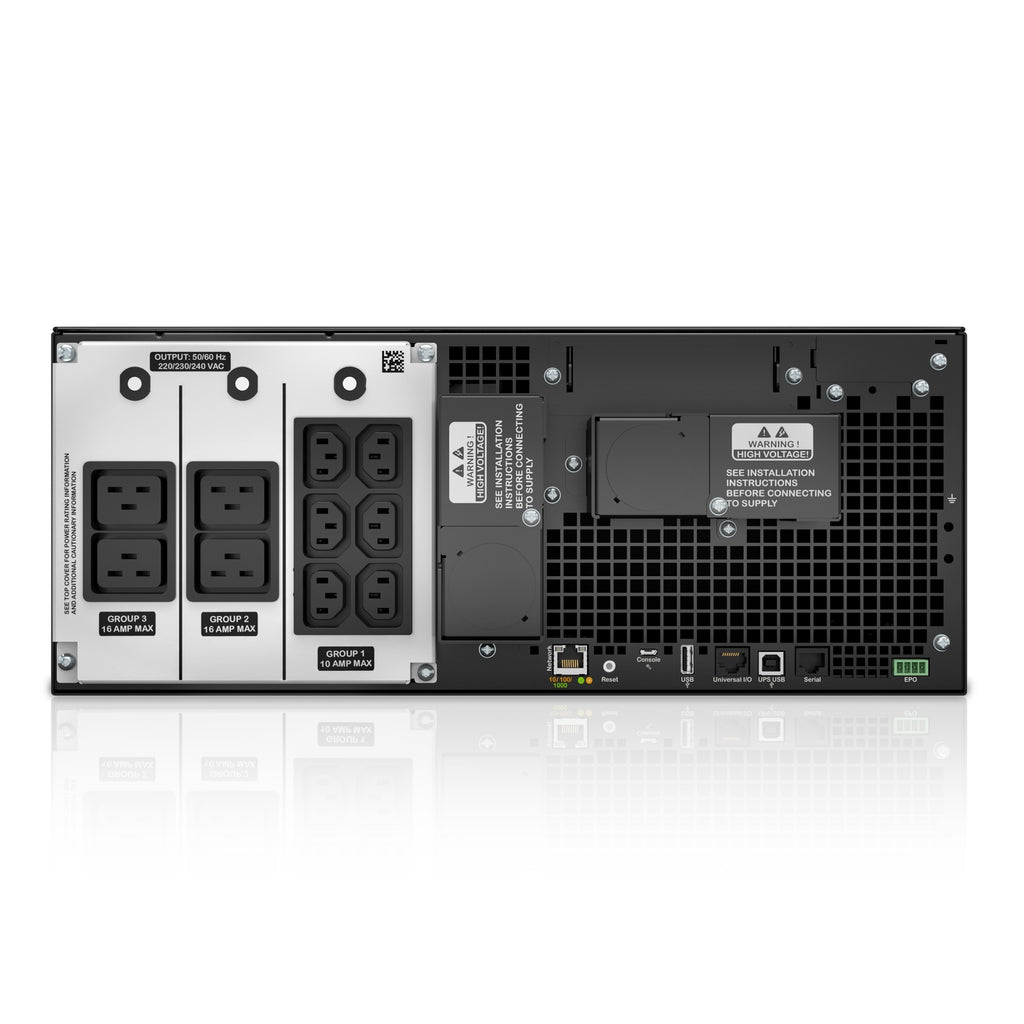

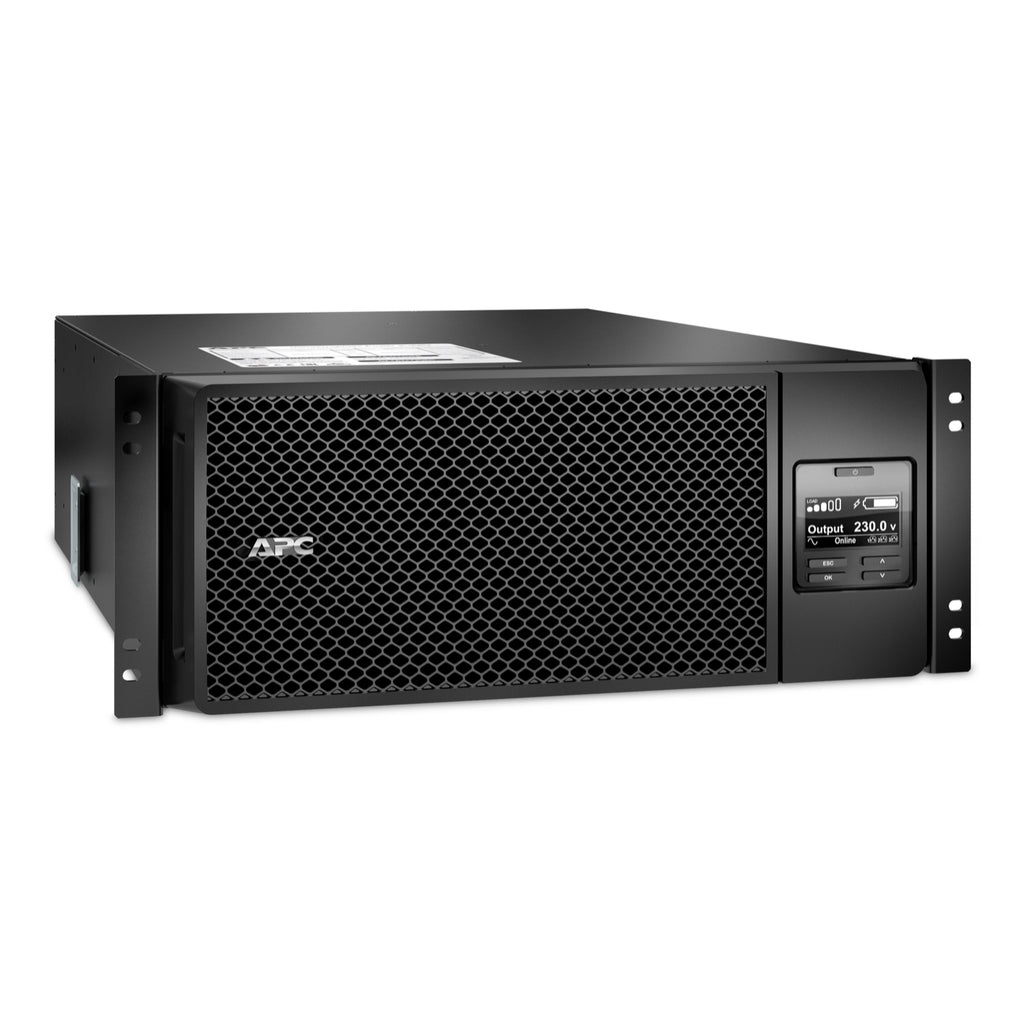

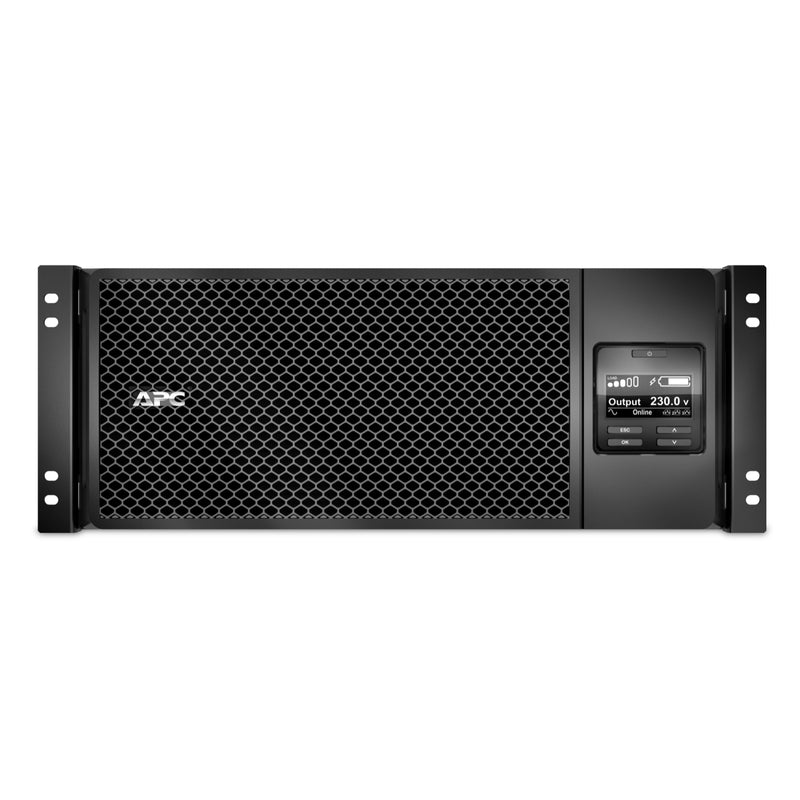

The APC Smart-UPS SRT6KRMXLI delivers reliable, high-density, double-conversion online power protection in a compact 4U rackmount form. Designed for critical IT loads in server rooms, medical labs, and industrial settings, this UPS ensures zero transfer time and pure sine wave output. It includes 6x IEC C13 and 4x IEC C19 outlets, SmartSlot for expansion, and an embedded Network Management Card for remote monitoring. The unit supports up to 10 external battery packs (SRT192RMBP) for extended runtime and is compatible with the APCRBC140 replacement battery. EcoStruxure IT-ready and includes a 3-year UPS warranty (2 years for battery).
| Category | Details |
|---|---|
| Model | APC Smart-UPS SRT6KRMXLI |
| Form Factor | Rackmount 4U |
| Input Voltage | 230V (220V/240V supported) |
| Input Connection | Hard wire 3-wire (1P + N + E) |
| Output Voltage | 230V (220V/240V selectable) |
| Output Connections | 6x IEC C13, 4x IEC C19, 2x IEC jumpers |
| Power Capacity | 6kVA / 6kW |
| Runtime Extension | Supports up to 10x SRT192RMBP external battery packs |

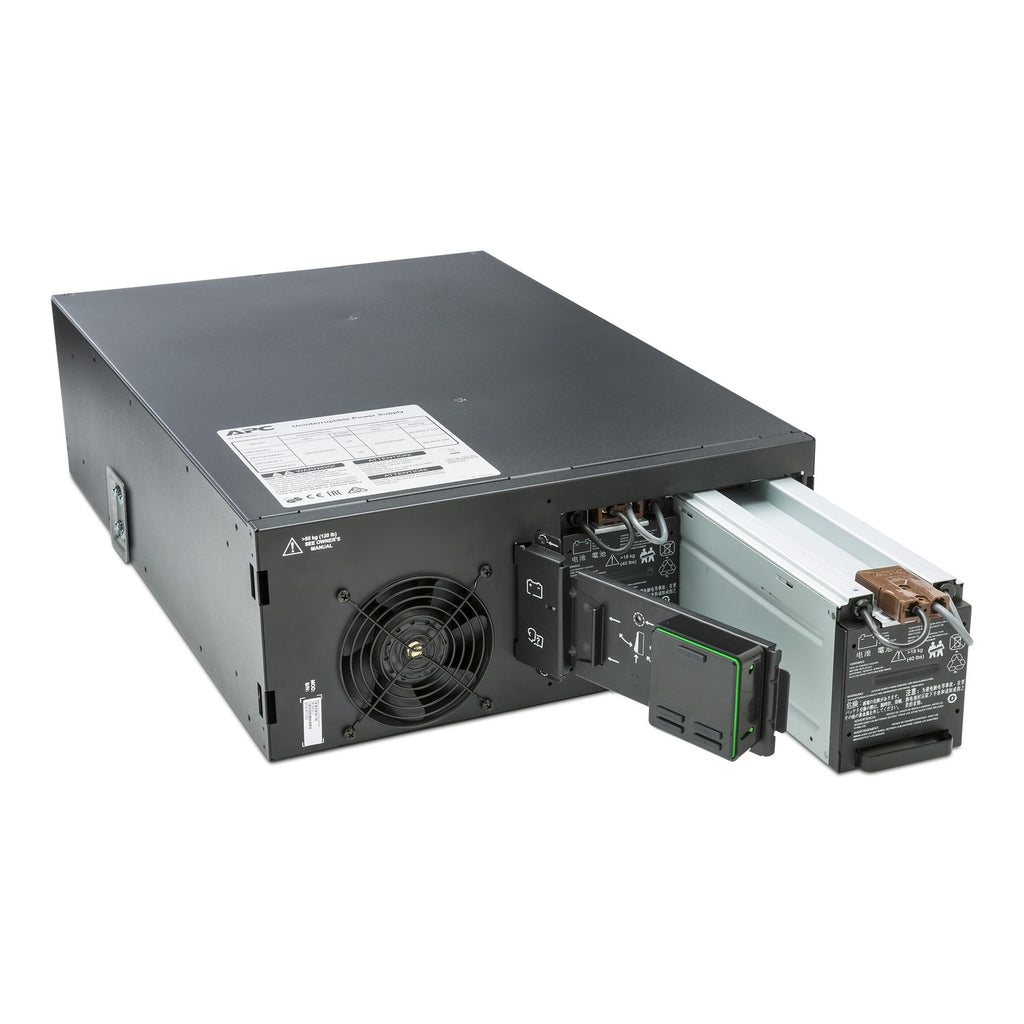

| Battery Type | Lead-acid, 192V, Replaceable with APCRBC140 |
| Recharge Time | 1.5 hours |
| Network Management | Embedded Network Card 3 (with environmental monitoring) |
| SmartSlot Expansion | 1 free slot |
| Mounting Kit | Included (rack rails & brackets) |
| Dimensions (HxWxD) | 17.4 x 43.2 x 71.94 cm |
| Weight | 60 kg (67 kg packed) |
| Certifications | CE, EAC, RCM, IRAM, VDE, EN/IEC 62040-1/2 |
| Operating Temp | 0–40°C |
| Humidity Tolerance | 0–95% RH non-condensing |
| Noise Level | 55 dBA |
| Included Accessories | Rail kit, USB cable, software CD, temperature probe, network card, guides |
| Warranty | 3 years (UPS), 2 years (battery) |
