Description

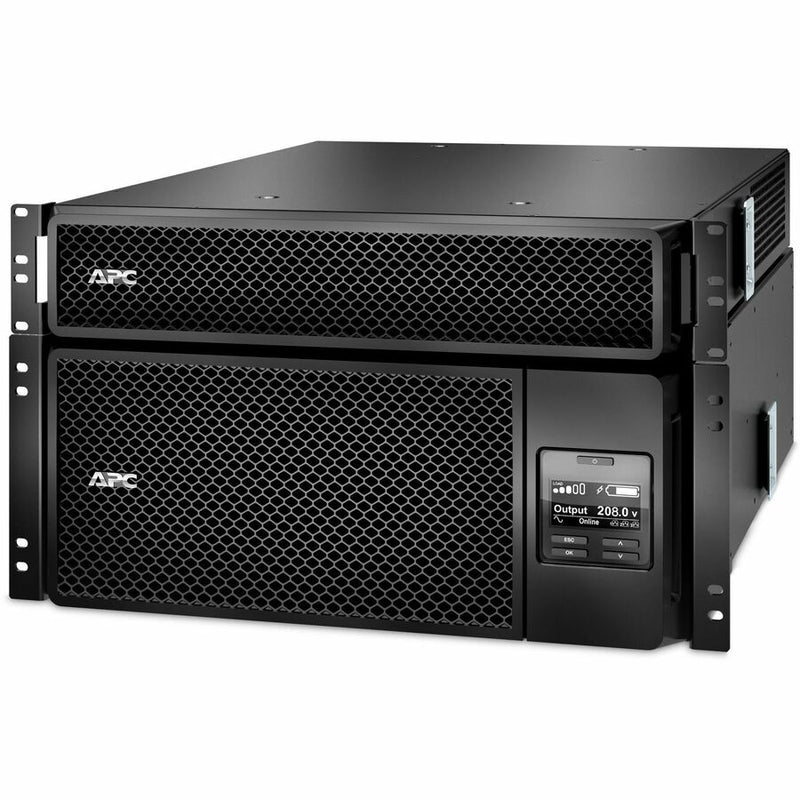

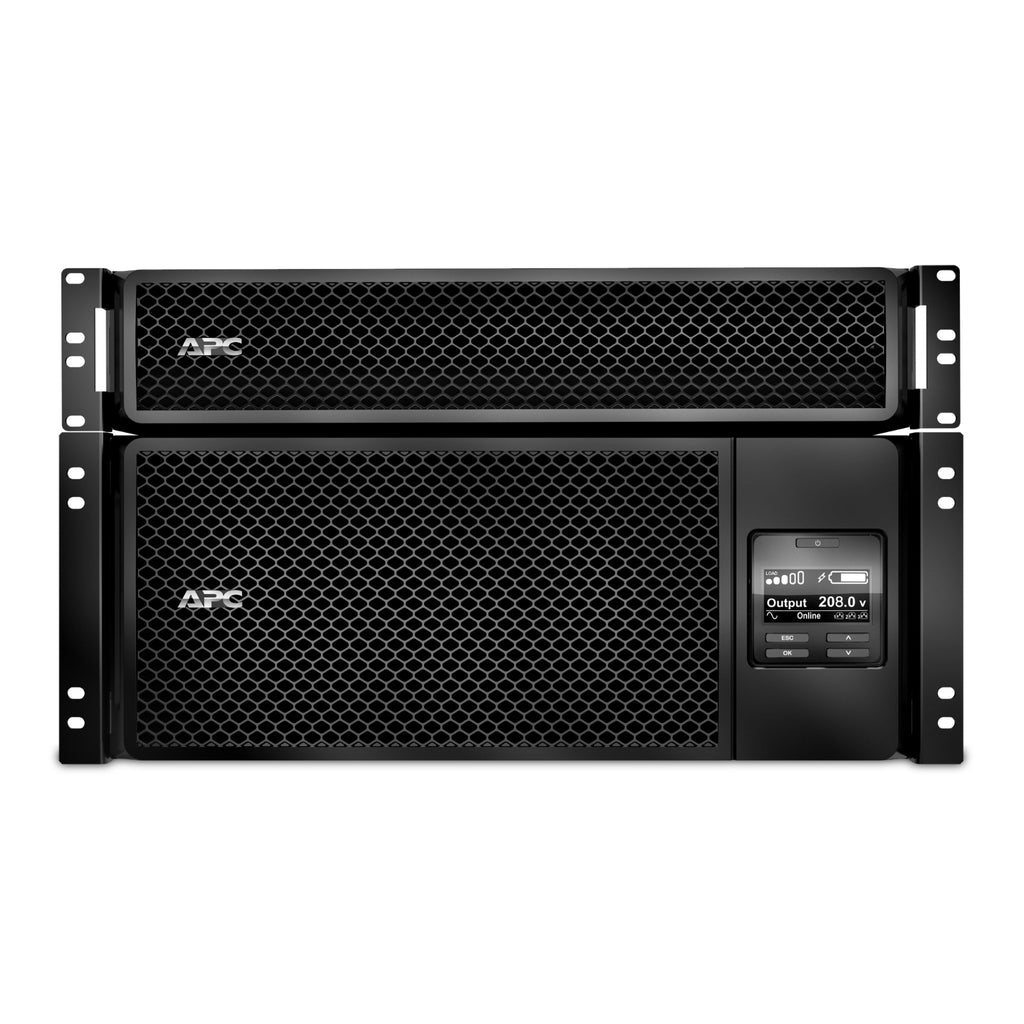

The APC Smart-UPS On-Line SRT6KRMXLT-5KTF delivers 6kVA/6kW of reliable double-conversion online power in a compact 6U rackmount form factor. Engineered for critical IT and industrial applications, it features pure sine wave output, automatic internal bypass, and a transformer for 208V to 120V conversion. With 12 NEMA 5-20R, 2 L6-20R, and 2 L6-30R outlets, the unit supports extended runtime via up to 10 external battery packs (SRT192RMBP). A built-in network management card enables remote monitoring and PowerChute integration, while SmartSlot allows optional add-ons. Rail kit and essential accessories included.
| Category | Details |
|---|---|
| Model | SRT6KRMXLT-5KTF |
| Form Factor | 6U Rackmount |
| Power Capacity | 6kVA / 6kW |
| Input Voltage | 208V (Hard Wire 3-wire: 2P + E) |
| Output Voltage | 120V (via transformer) |

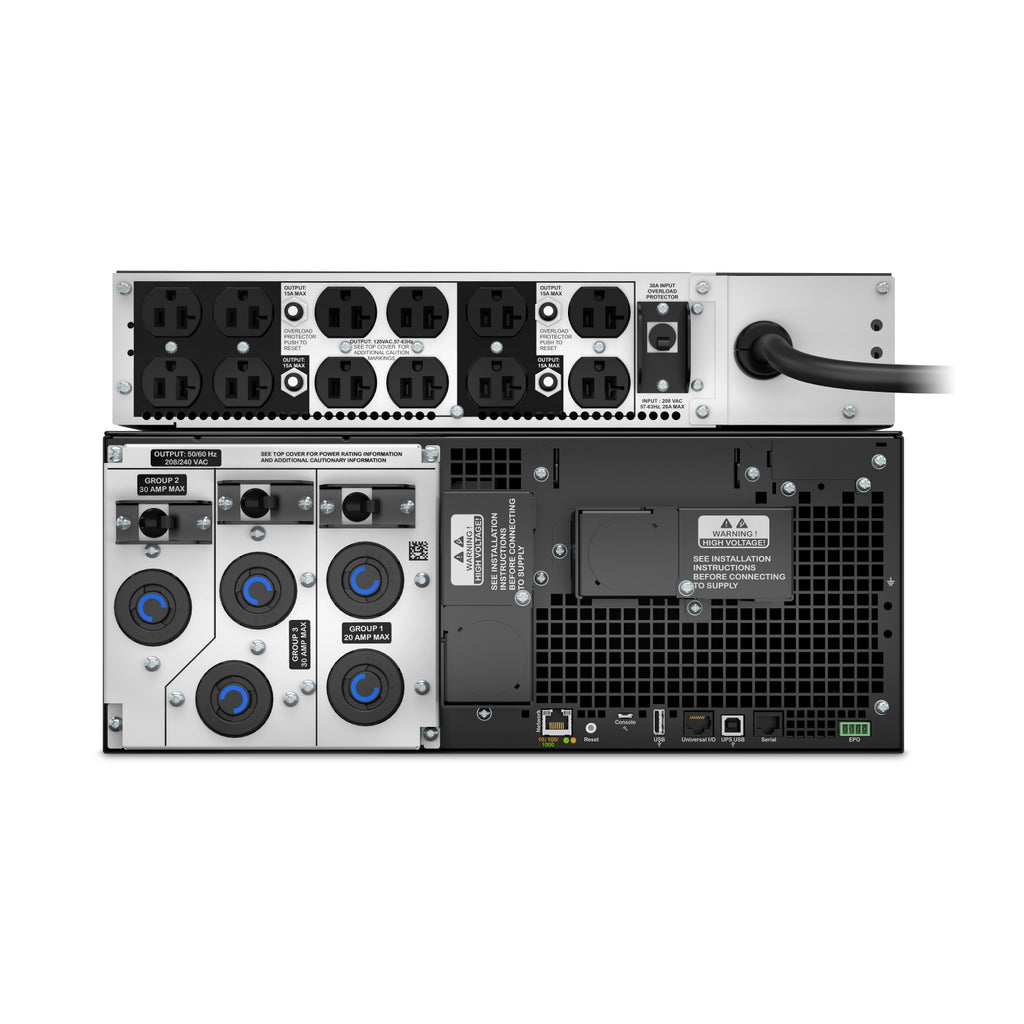

| Output Connections | 12× NEMA 5-20R, 2× NEMA L6-20R, 2× NEMA L6-30R |
| Topology | Double-Conversion Online |
| Waveform | Pure Sine Wave |
| Runtime (Full Load) | Approx. 2 min 17 sec |
| Battery Type | Lead-Acid (APCRBC140, 192V) |
| Extendable Runtime | Yes (up to 10x SRT192RMBP packs) |
| Recharge Time | 1.5 hours |
| Management Interface | Network Management Card 3 + SmartSlot |
| Included Accessories | USB cable, software CD, probe, mounting rails/brackets, installation guide |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A |
| Dimensions (H × W × D) | 10.35 in × 17.01 in × 28.31 in (263 mm × 432 mm × 719 mm) |
| Net Weight | 230.01 lbs (104.33 kg) |
| Warranty | 3 years (UPS), 2 years (battery) |
