Description

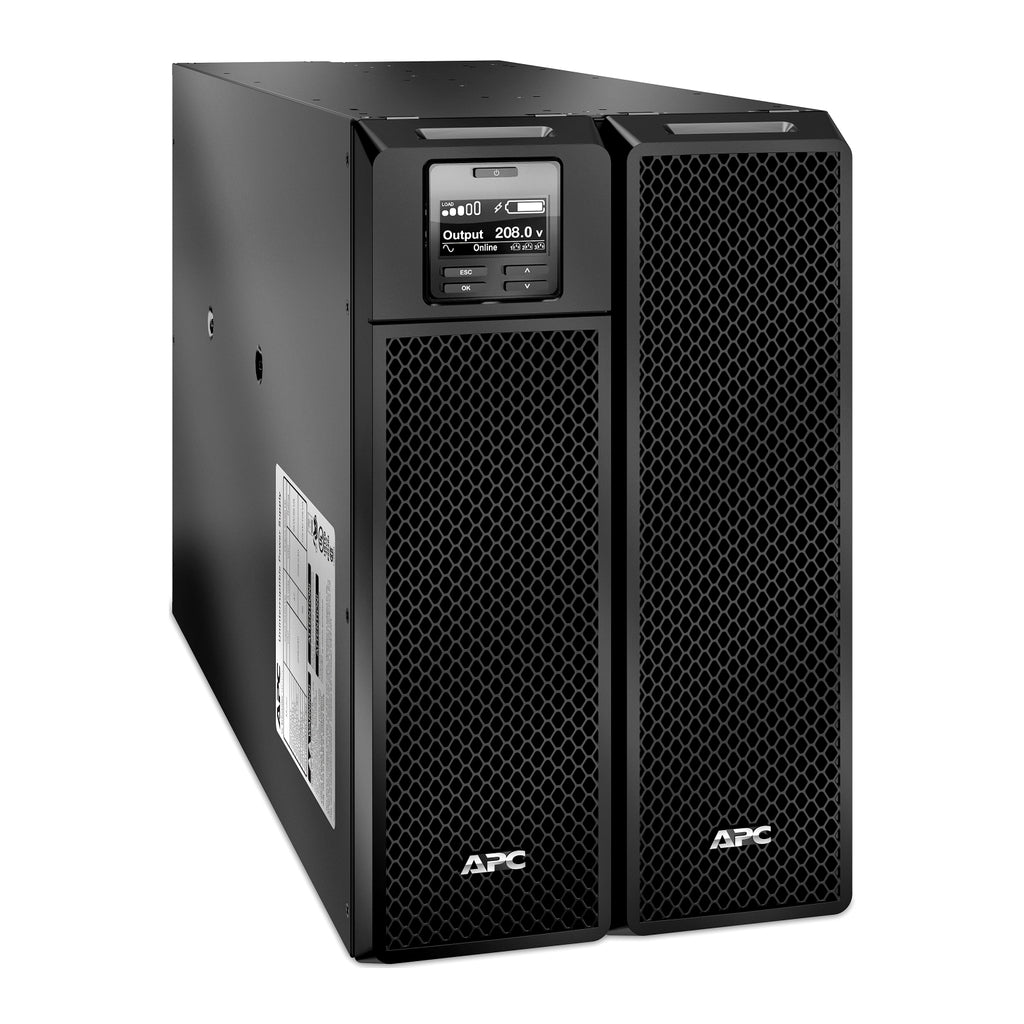

The APC Smart-UPS On-Line SRT8KXLT is a high-performance 8kVA/8kW tower UPS designed for demanding IT environments. This double-conversion UPS delivers consistent, pure sine wave power and supports extended runtime with up to 10 external battery packs (SRT192BP2). Featuring 4x NEMA L6-20R and 2x L6-30R outlets, this UPS supports critical systems like servers, networks, and labs. It includes a Network Management Card, PowerChute Network Shutdown software, and is EcoStruxure™ IT compatible. Replacement battery APCRBC140 is available. Rail kits (SRTRK2 or SRTRK3) sold separately for rack conversion.
| Specification | Details |
|---|---|
| Model | APC Smart-UPS On-Line SRT8KXLT |
| Power Capacity | 8kVA / 8kW |
| Topology | Double-conversion online |
| Form Factor | Tower (Rack-mountable with optional kit) |
| Input Voltage | 208V / 240V |
| Output Voltage | 208V / 240V |
| Input Connection | Hard wire 3-wire (2P+E) |

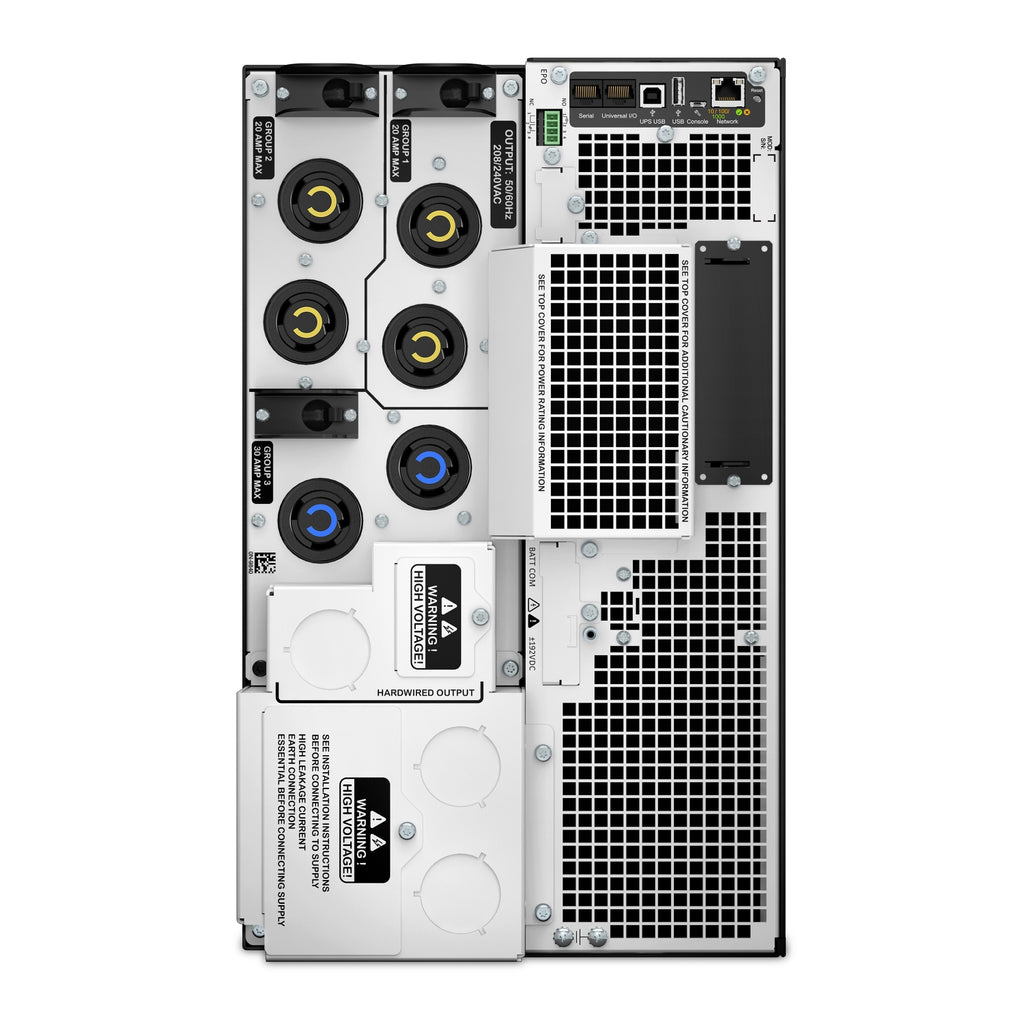

| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Battery Type | Lead-acid, Replaceable (APCRBC140) |
| Extendable Runtime | Yes, supports up to 10x SRT192BP2 battery packs |
| Recharge Time | Approx. 1.5 hours |
| Efficiency | ENERGY STAR® Certified |
| Management Interface | Network Management Card + SmartSlot |
| Software Included | PowerChute Network Shutdown, EcoStruxure™ IT ready |
| Dimensions (HxWxD) | 43.2 x 26.3 x 71.5 cm (17.01 x 10.35 x 28.15 in) |
| Weight | 111.58 kg (245.99 lb) |
| Noise Level | 55 dBA |
| Operating Temp Range | 0 to 40°C (32 to 104°F) |
| Warranty | 3 years UPS, 2 years battery |
| Replacement Battery | APCRBC140 (192V, 5.1Ah) – $769.00 |
| Rail Kits (optional) | SRTRK2 (4-post), SRTRK3 (2-post) |
