Description

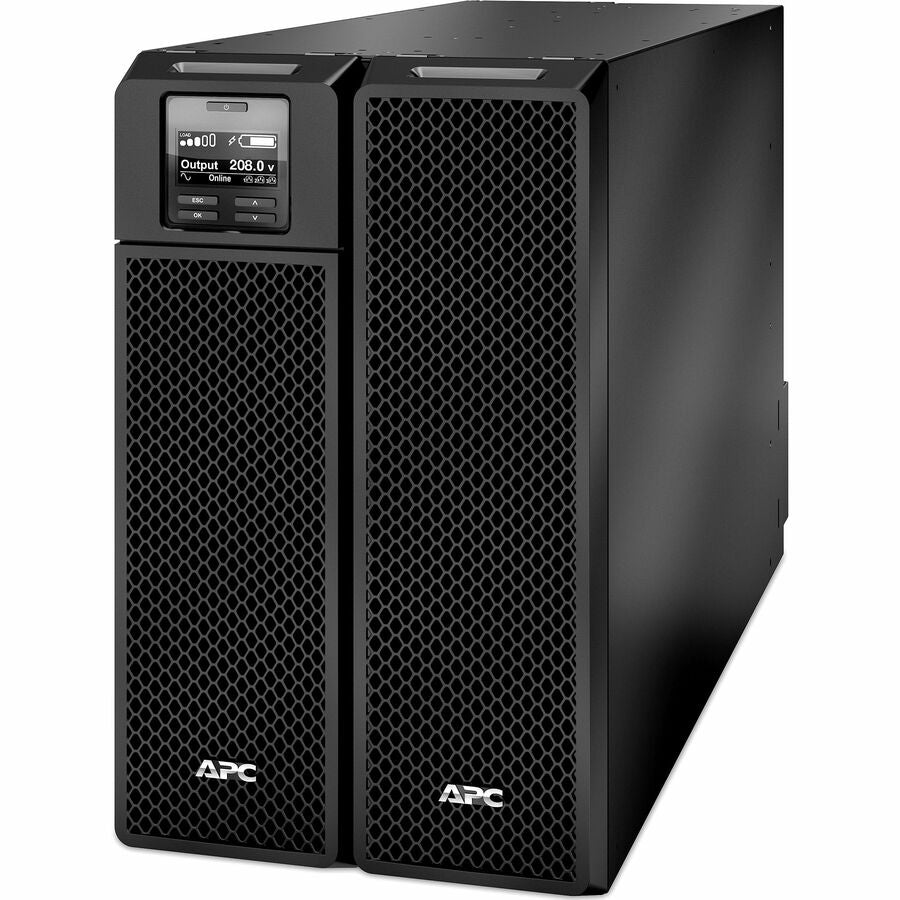

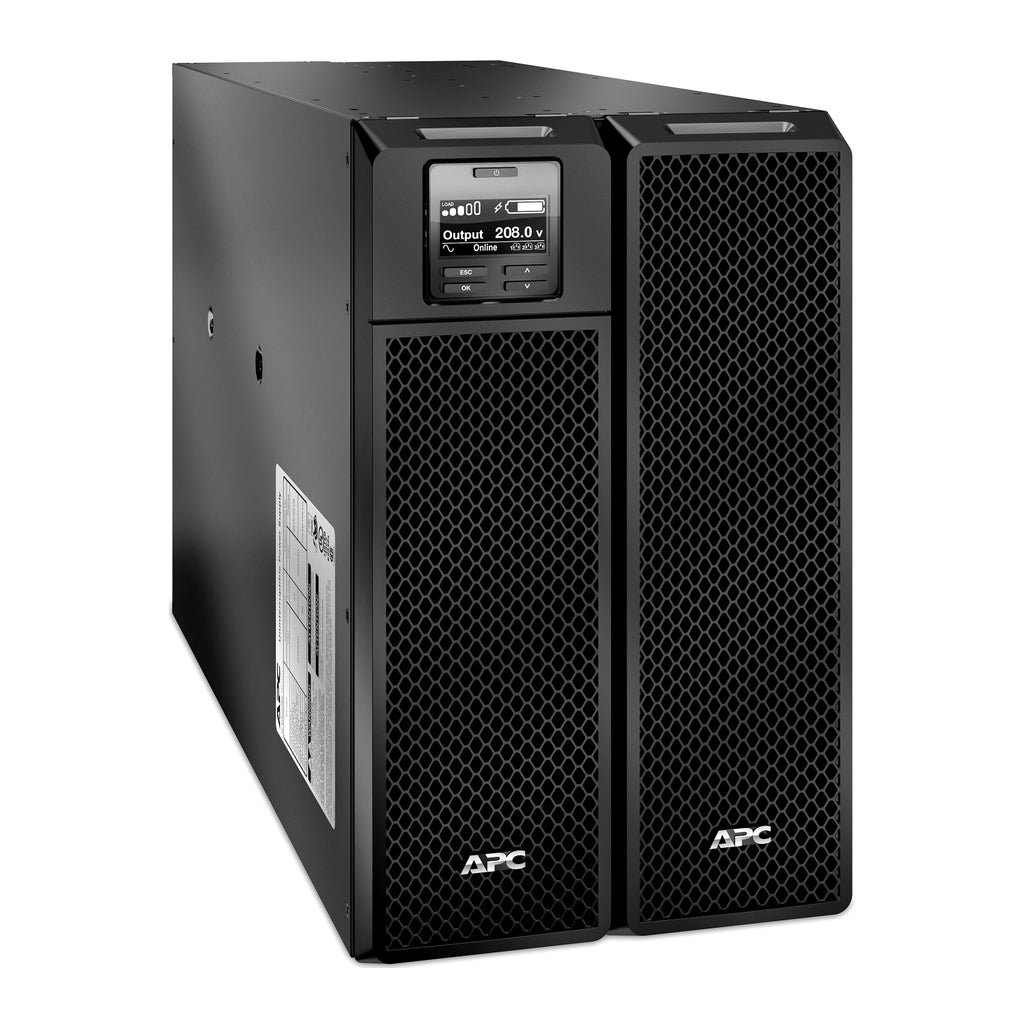

This APC Smart-UPS SRT8KXLTUS is a high-performance on-line UPS designed to protect mission-critical IT equipment and ensure business continuity. Delivering 8kVA/8kW of double-conversion pure sine wave power, it supports both rack and tower configurations (rail kits sold separately) and features 2x NEMA L6-30R and 4x L6-20R outlets.
With an embedded Network Management Card, SmartSlot for optional add-ons, and compatibility with up to 10 external battery packs (SRT192BP2), it provides extended runtime and seamless management. Ideal for server rooms, labs, and light industrial environments. Includes a 1-year Secure Network Management Card subscription. Replacement battery APCRBC140 is available.
| Attribute | Details |
|---|---|
| Model | SRT8KXLTUS |
| Topology | Double Conversion Online |
| Power Capacity | 8kVA / 8kW |
| Input Voltage | 208V (also supports 240V) |
| Input Type | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V (configurable to 240V) |

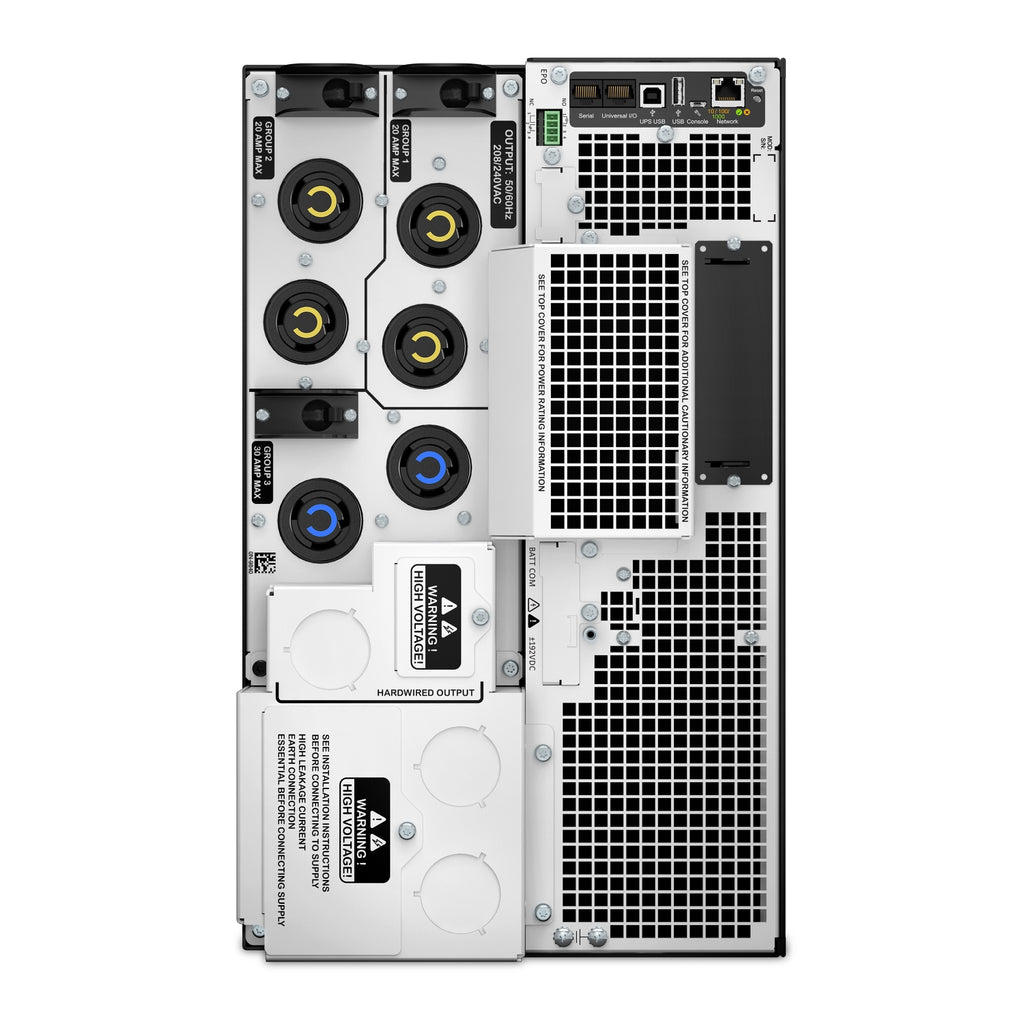

| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Waveform Type | Sine Wave |
| Battery Type | Lead-Acid (APCRBC140) |
| Battery Recharge Time | 1.5 hours |

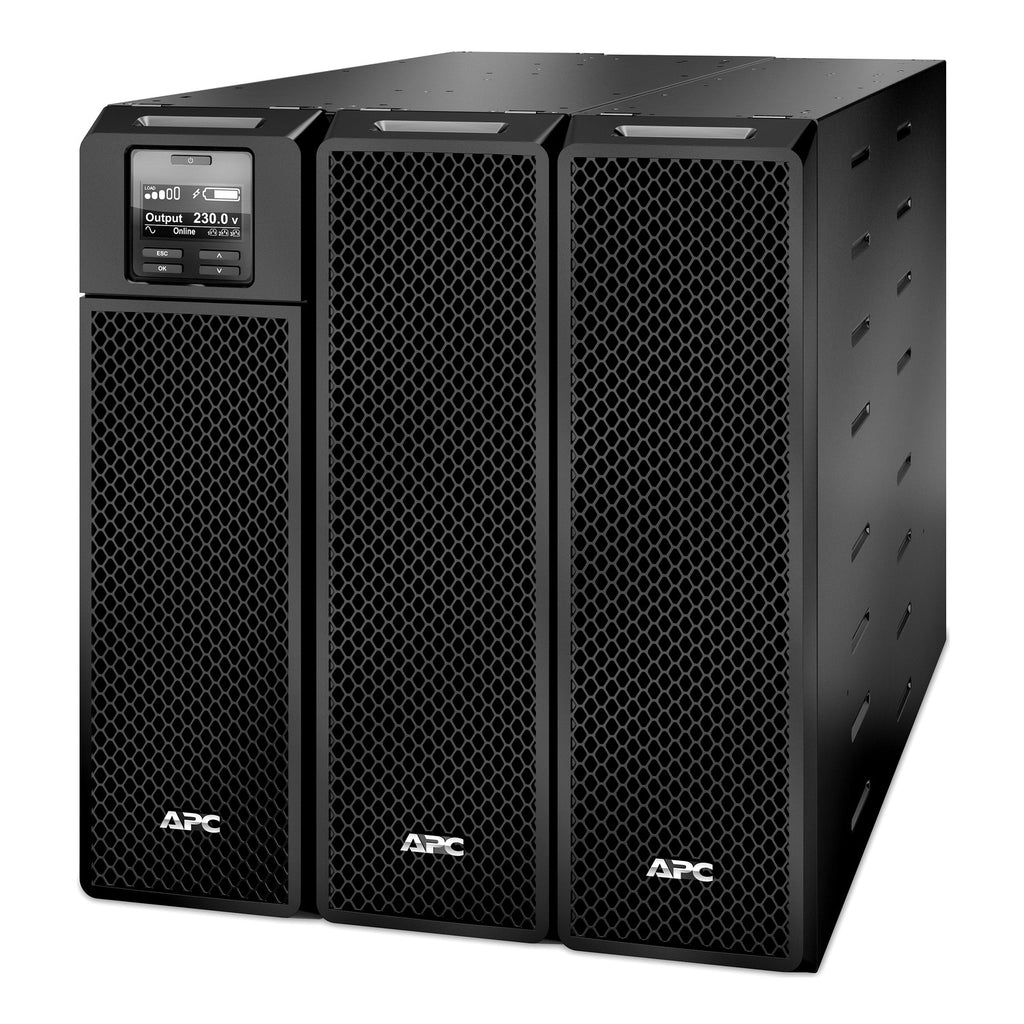

| Extended Runtime Capability | Up to 10x SRT192BP2 packs |
| Rack Height | 6U (Rack/Tower Convertible) |
| Network Management | Preinstalled NMC with Environmental Monitoring |
| SmartSlot Expansion | 1 Slot Available |
| Mounting Kit | Not included (compatible with SRTRK2 / SRTRK3) |
| Certifications | TAA, UL 1778, ENERGY STAR V2.0, FCC Class A, NOM |
| Operating Temp / Humidity | 0–40°C / 0–95% non-condensing |
| Audible Noise | 55 dBA |
| Warranty | 3 Years UPS, 2 Years Battery |
| Dimensions (H x W x D) | 17.01 x 10.35 x 28.15 in |
| Net Weight | 245.99 lbs (111.58 kg) |
