Description

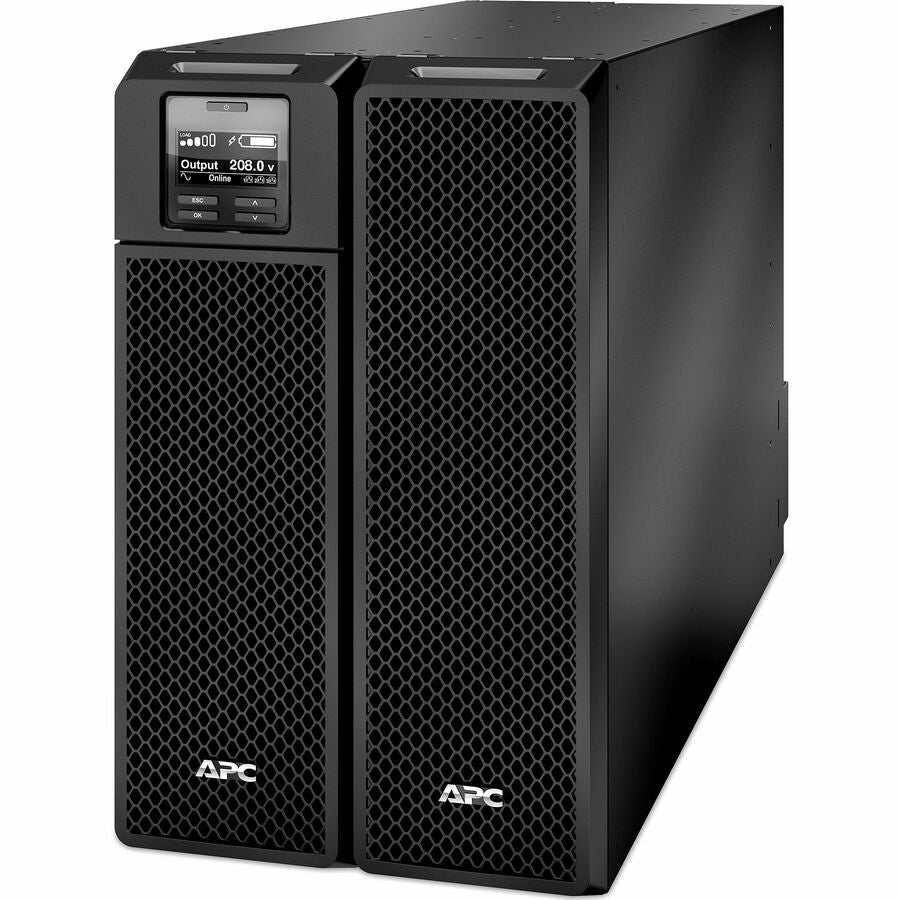

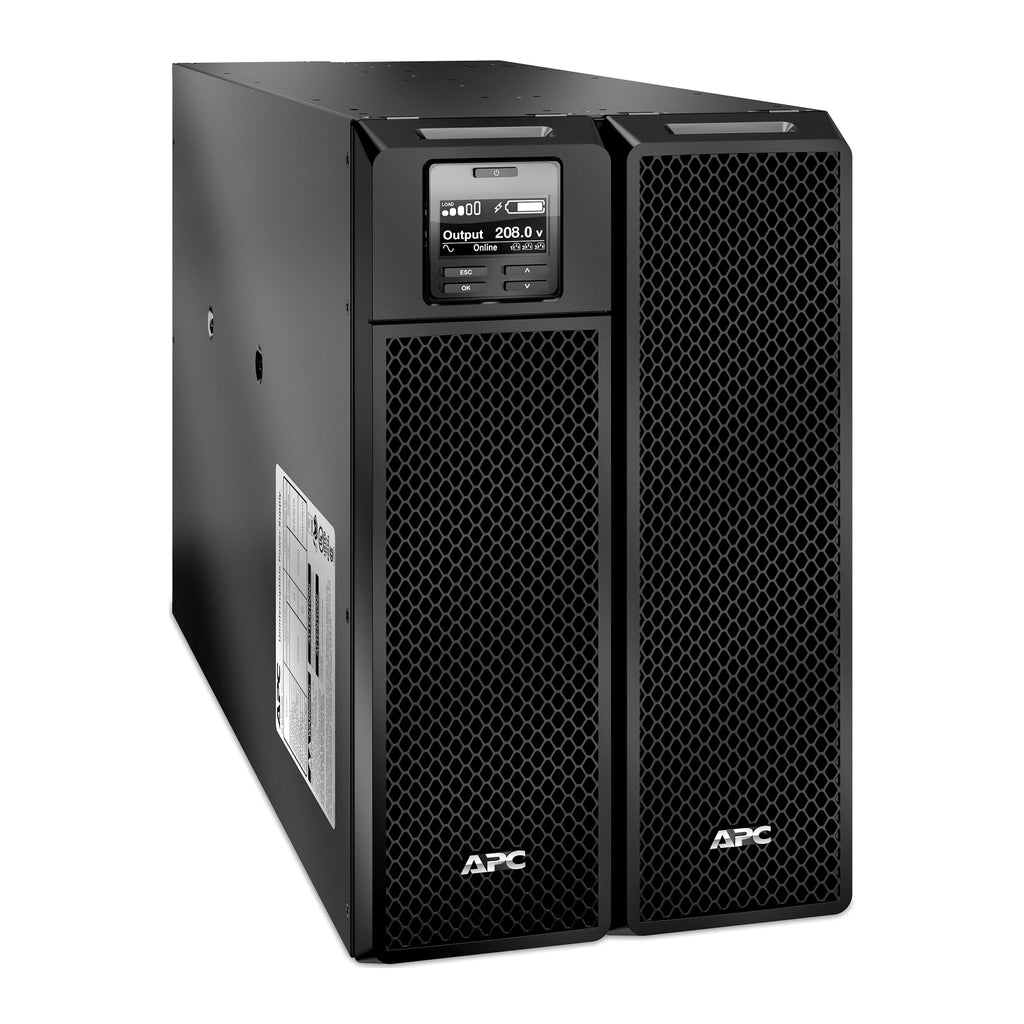

This APC Smart-UPS SRT8KXLT-IEC is an 8kVA/8kW double-conversion online UPS designed for reliable power protection in high-demand IT environments. Delivering pure sine wave output, it supports critical infrastructure like servers, networks, medical labs, and light industrial applications. It includes 6x IEC C13 and 4x IEC C19 outlets, 3 IEC jumper cables, and a built-in Network Management Card. The unit supports up to 10 external battery packs (SRT192BP2) for extended runtime and is compatible with EcoStruxure™ IT and third-party monitoring platforms. Includes a 3-year UPS warranty and 2-year battery warranty.
| Specification | Details |
|---|---|
| Model | SRT8KXLT-IEC |
| Form Factor | Tower (Rack-mountable with optional kit) |
| Topology | Double Conversion Online |
| Power Capacity | 8kVA / 8kW |
| Input Voltage | 208V (Adjustable: 100–275V) |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V (adjustable to 240V) |
| Output Connections | 6x IEC C13, 4x IEC C19, 3x IEC jumper cables |
| Waveform | Pure Sine Wave |
| Efficiency | ENERGY STAR V2.0 certified |
| Battery Type | Lead-Acid, Replaceable (APCRBC140) |
| Battery Voltage | ±192V |

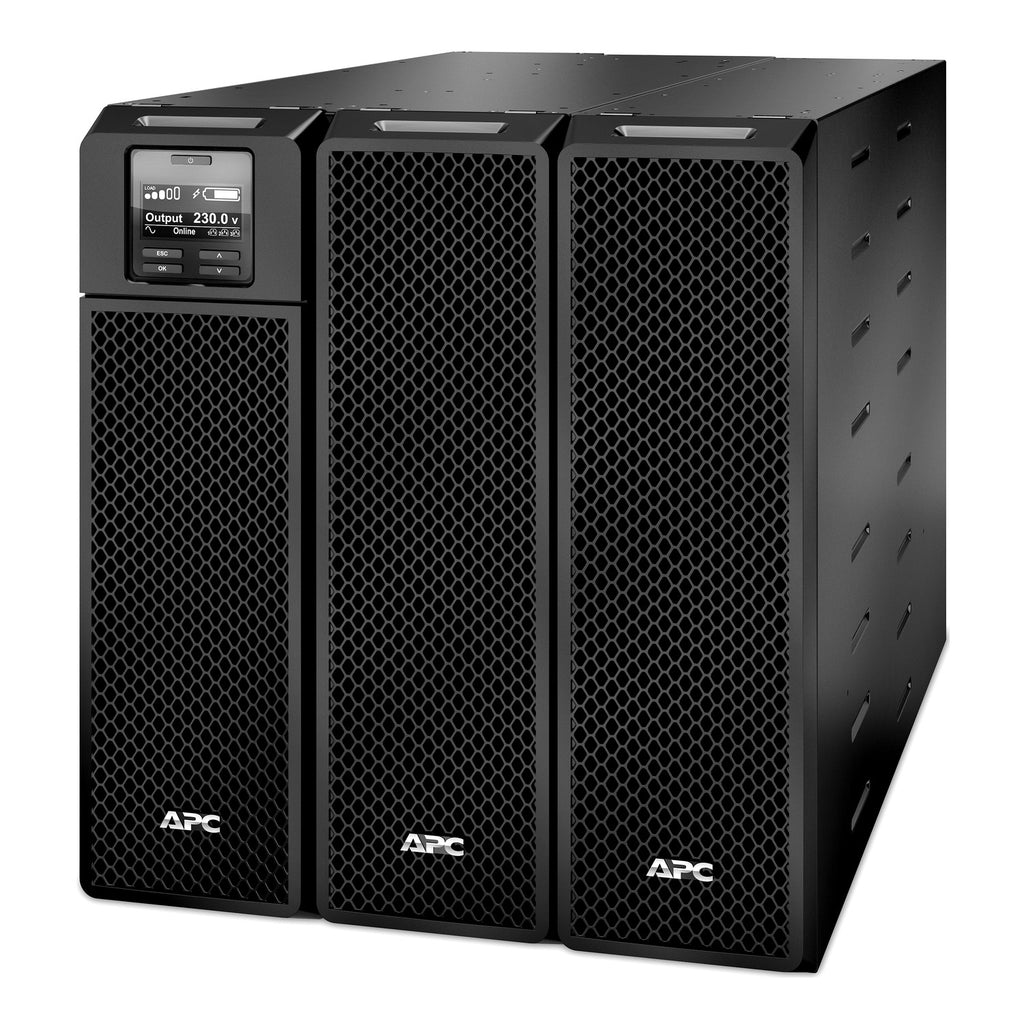

| Extendable Runtime | Yes – Up to 10x external packs (SRT192BP2) |
| Recharge Time | 1.5 hours |
| Included Accessories | Network Card, USB Cable, Software CD, Temp Probe, Manuals |
| Management | Built-in Network Management Card + SmartSlot |
| Remote Monitoring | EcoStruxure™ IT Ready, SNMP |
| Audible Alarms | Prioritized by severity |
| Bypass Type | Internal (Automatic and Manual) |
| Certifications | ENERGY STAR, UL 1778, FCC Part 15 Class A |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% (non-condensing) |
| Acoustic Noise | 55 dBA |
| Dimensions (HxWxD) | 17.01 x 10.35 x 28.15 in (43.2 x 26.3 x 71.5 cm) |
| Net Weight | 245.99 lb (111.58 kg) |
| Warranty | 3 years for UPS, 2 years for battery |
| Rail Kit Compatibility | SRTRK2 (4-post), SRTRK3 (2-post) – sold separately |
| Emergency Power Off (EPO) | Yes |
