Description

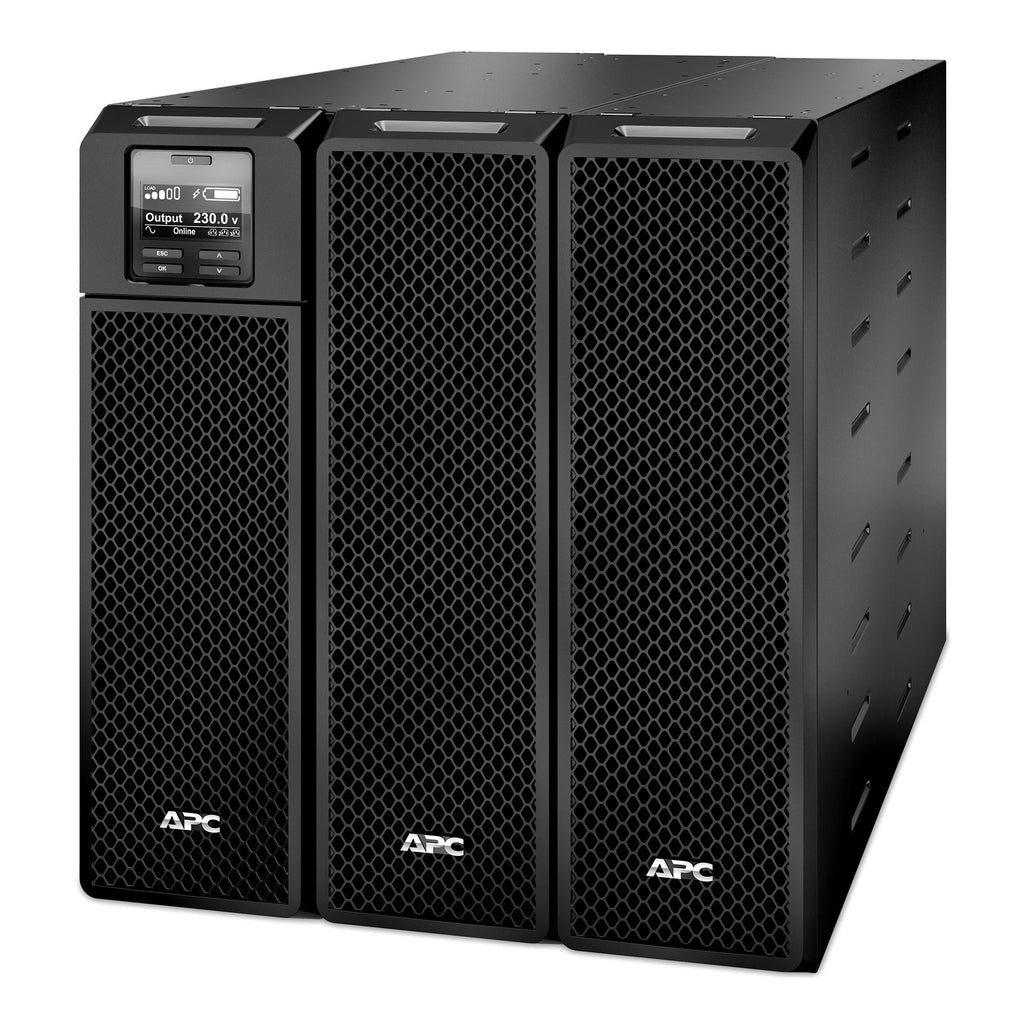

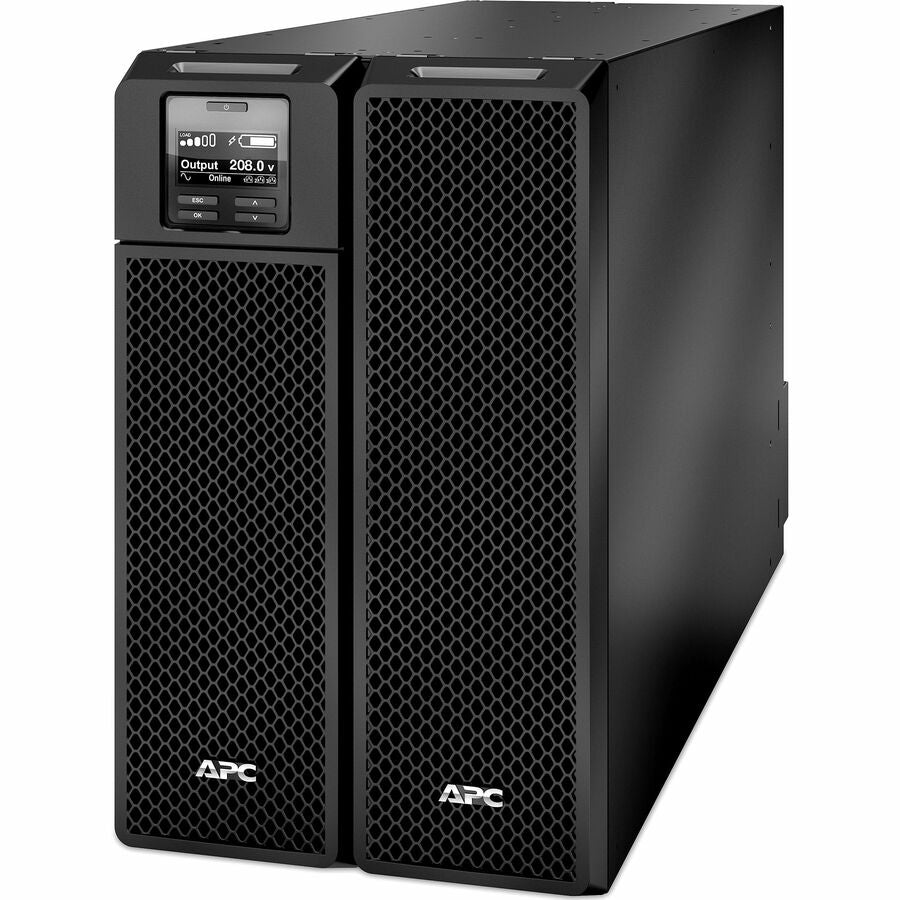

The APC Smart-UPS SRT8KXLT30 delivers 8kVA/8kW of pure sine wave, double-conversion online power protection for mission-critical systems. Designed for servers, voice/data networks, storage, and lab environments, this tower UPS features 6x NEMA L6-30R outlets, a built-in network management card, and SmartSlot expandability. It supports up to 10 external battery packs (SRT192BP2) for extended runtime and is compatible with EcoStruxure IT and third-party monitoring platforms. Optional rail kits (SRTRK2/SRTRK3) allow for rack-mount conversion. Replacement battery: APCRBC140.
| Specifications | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT8KXLT30 |
| UPS Type | Double-Conversion Online |
| Power Capacity | 8kVA / 8kW |
| Input Voltage | 208V (adjustable to 240V) |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V |
| Output Connections | 6x NEMA L6-30R |
| Battery Type | Lead-Acid (replaceable with APCRBC140) |
| Extendable Runtime | Yes (supports up to 10x SRT192BP2) |
| Recharge Time | Approx. 1.5 hours |
| Network Management | Built-in NMC 3 with environmental monitoring |
| SmartSlot Expansion | 1 available slot |
| Mounting Type | Tower (Rack-mountable with SRTRK2/SRTRK3 kit) |
| Dimensions (HxWxD) | 17.01 x 10.35 x 28.15 in (43.2 x 26.3 x 71.5 cm) |
| Weight | 245.99 lbs (111.58 kg) |
| Warranty | 3 years on UPS, 2 years on battery |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A |
| Operating Temp Range | 32Ā°F to 104Ā°F (0Ā°C to 40Ā°C) |
