Description
The APC Smart-UPS On-Line SRT8KRMXLT is a high-performance 8kVA/8kW 6U rackmount UPS designed to protect mission-critical systems with double-conversion online technology. It provides pure sine wave output for servers, data centers, and industrial applications. This model supports extended runtime with up to 10 external battery packs (SRT192RMBP2), includes a rail kit for rack/tower conversion, and features 4x L6-20R + 2x L6-30R NEMA outlets. A pre-installed Network Management Card enables remote UPS monitoring and integration with EcoStruxure IT or third-party systems. Comes with a 3-year UPS warranty and 2-year battery warranty. Compatible replacement battery: APCRBC140.
| Specification | Details |
|---|---|
| Model | SRT8KRMXLT |
| Form Factor | 6U Rackmount |
| Power Capacity | 8kVA / 8kW |
| Input Voltage | 208V (Hard Wire 3-wire, 2PH + G) |
| Output Voltage | 208V (adjustable to 240V) |

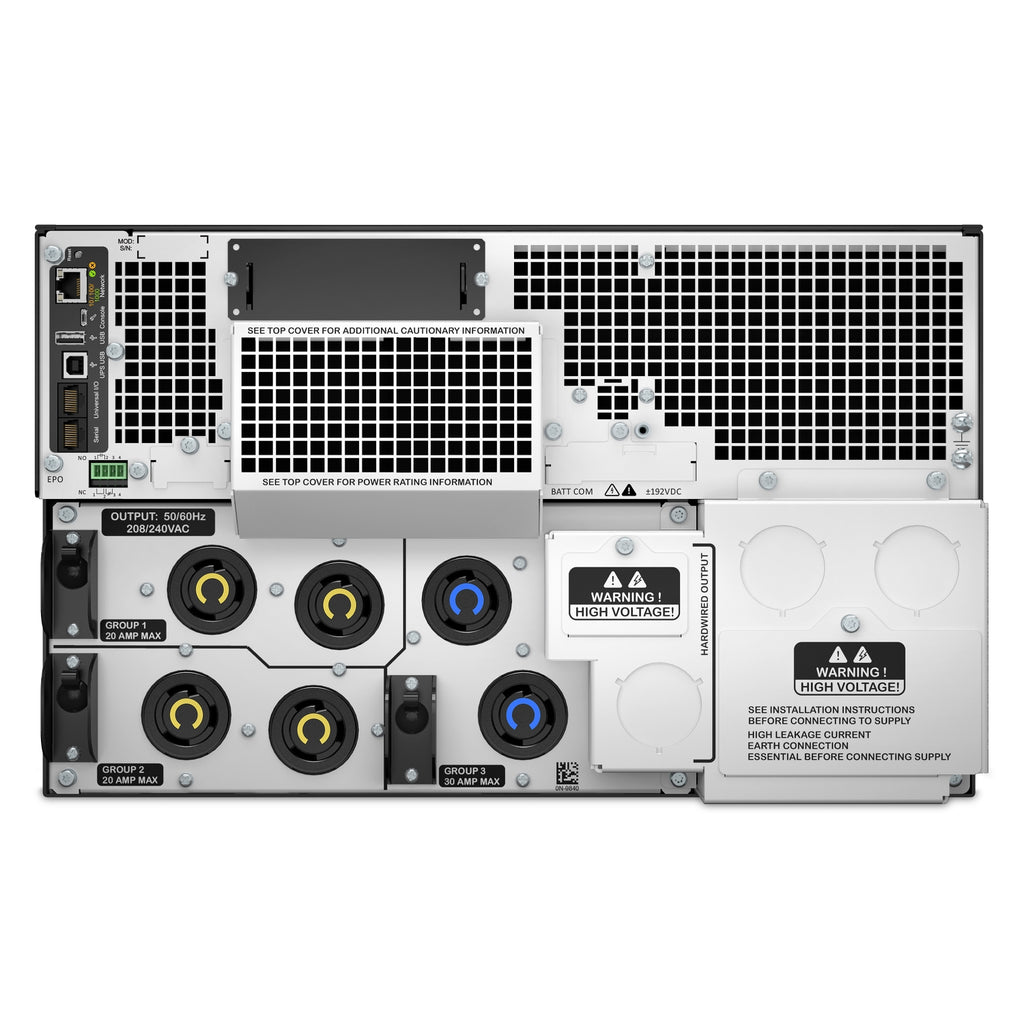

| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |

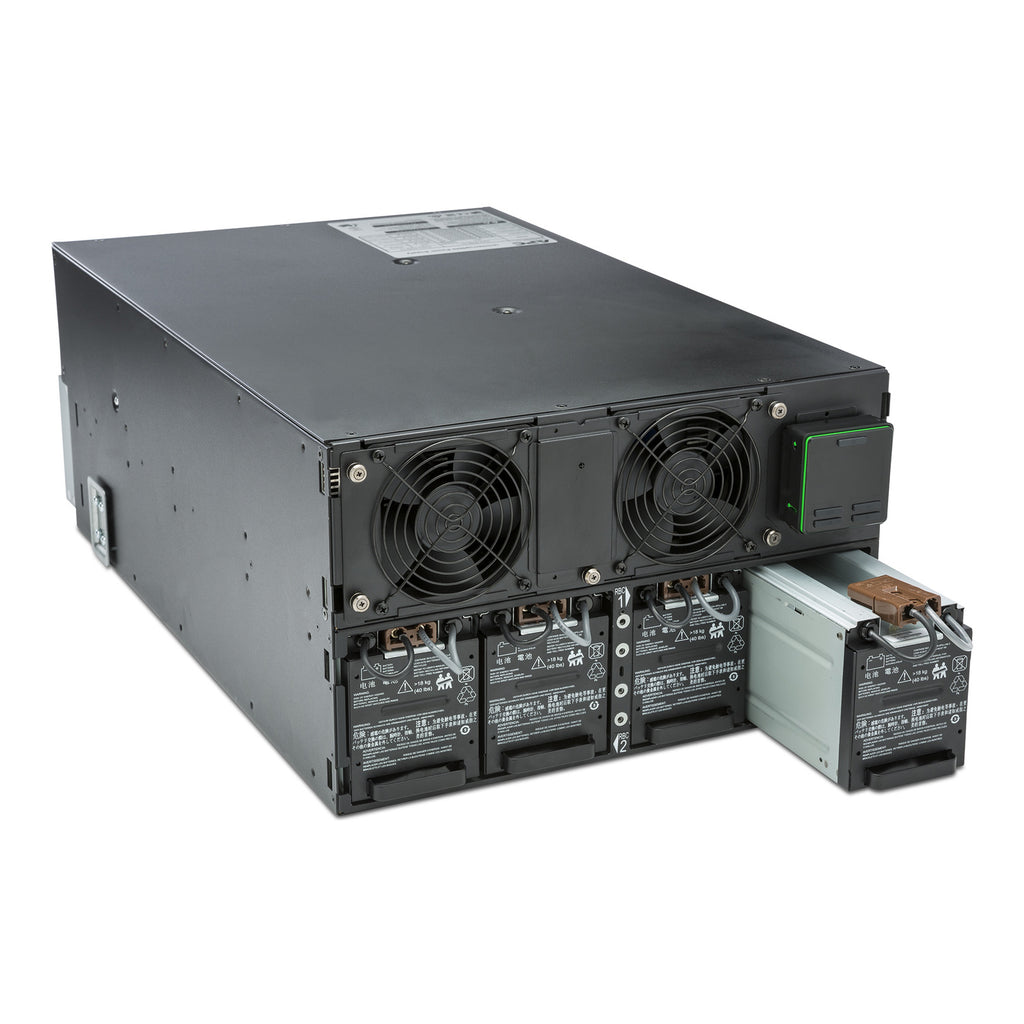

| Battery Type | Lead-acid, hot-swappable |
| Replacement Battery | APCRBC140 |
| Extendable Runtime | Supports up to 10x SRT192RMBP2 battery packs |
| Runtime (Full Load) | 5 min 10 sec |
| Recharge Time | 1.5 hours |
| Efficiency | ENERGY STAR V2.0 Certified |
| Network Management | Embedded Network Management Card (Pre-installed) |
| SmartSlot | 1 available |
| Topology | Double Conversion Online |
| Certifications | ENERGY STAR, UL 1778, FCC Part 15 Class A, NOM |
| Warranty | 3 years UPS, 2 years battery |

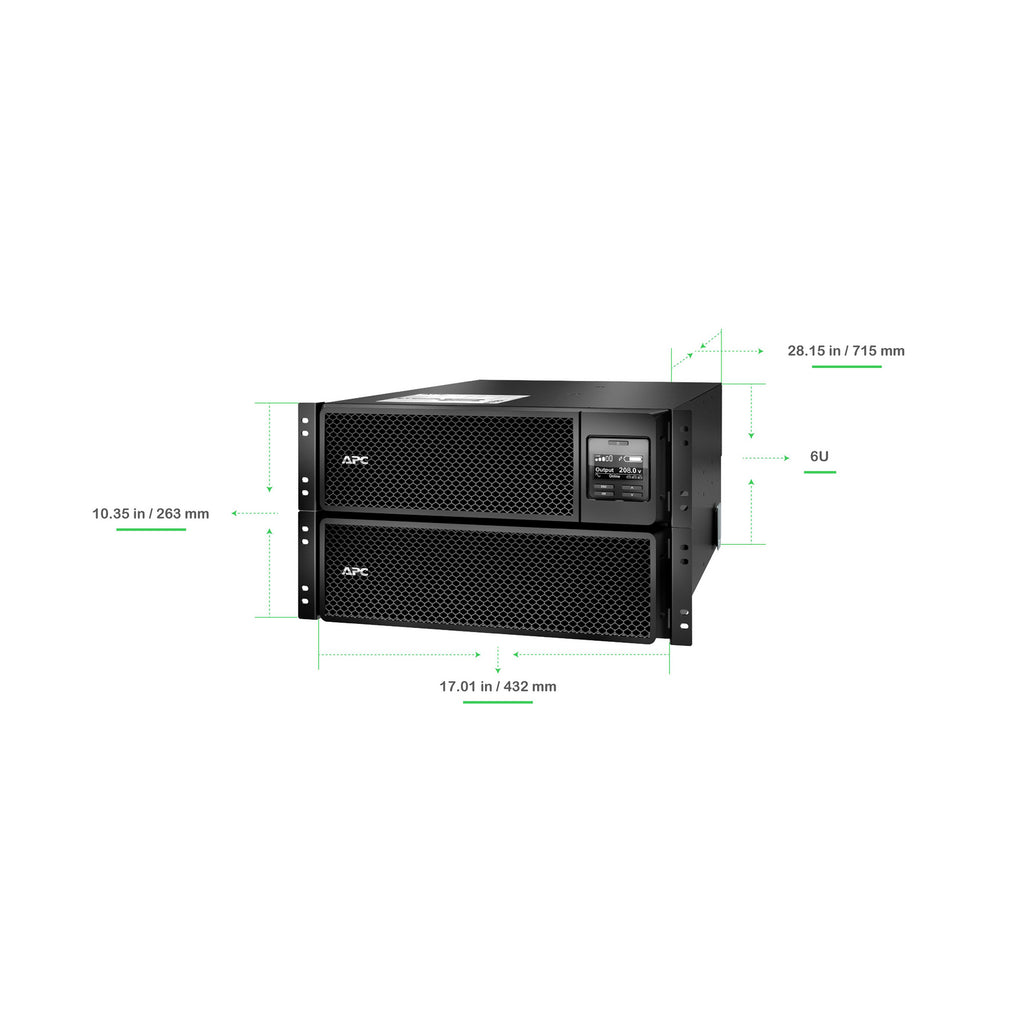

| Dimensions (HxWxD) | 10.35 x 17.01 x 28.15 in (263 x 432 x 715 mm) |
| Weight | 245.99 lbs (111.58 kg) |
| Environmental | Operating Temp: 0–40°C, Humidity: 0–95% RH (non-condensing) |
| Included Accessories | Rail kit, USB cable, temperature probe, software CD, documentation, NMC |
