Description

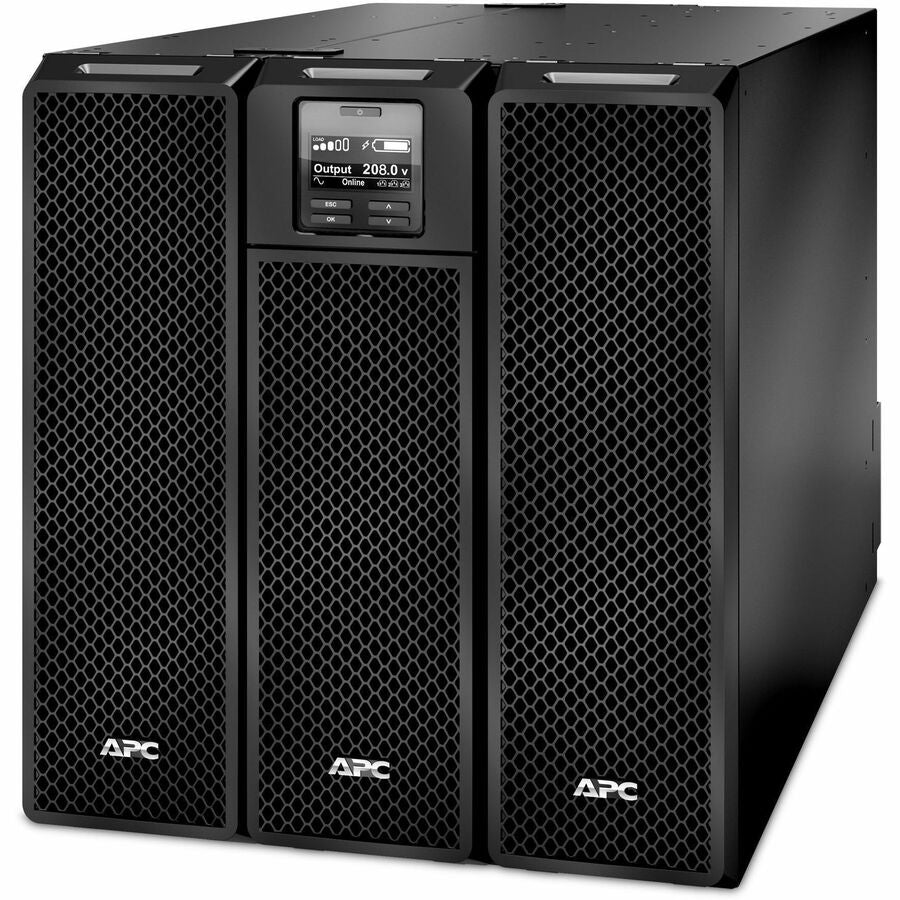

The APC Smart-UPS SRT8KXLT-5KTF delivers reliable, scalable power protection for servers, networks, and critical electronics. This double-conversion 8kVA/8kW on-line tower UPS supports up to 10 external battery packs (SRT192BP2) for extended runtime and comes with a transformer for 208V to 120V conversion. Features include network-based management via the embedded Network Management Card, SmartSlot for add-on accessories, and compatibility with EcoStruxure IT. Ideal for IT, healthcare, and light industrial applications. Compatible with SRTRK2/SRTRK3 rail kits (sold separately).
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT8KXLT-5KTF |
| Form Factor | Tower (Rack Convertible - Rails sold separately) |
| Topology | Double Conversion Online |
| Power Capacity | 8kVA / 8kW |
| Input Voltage | 208V (240V compatible) |
| Output Voltage | 120V / 208V / 240V |
| Input Connection | 1x Hard Wire 3-wire (2PH + G) |

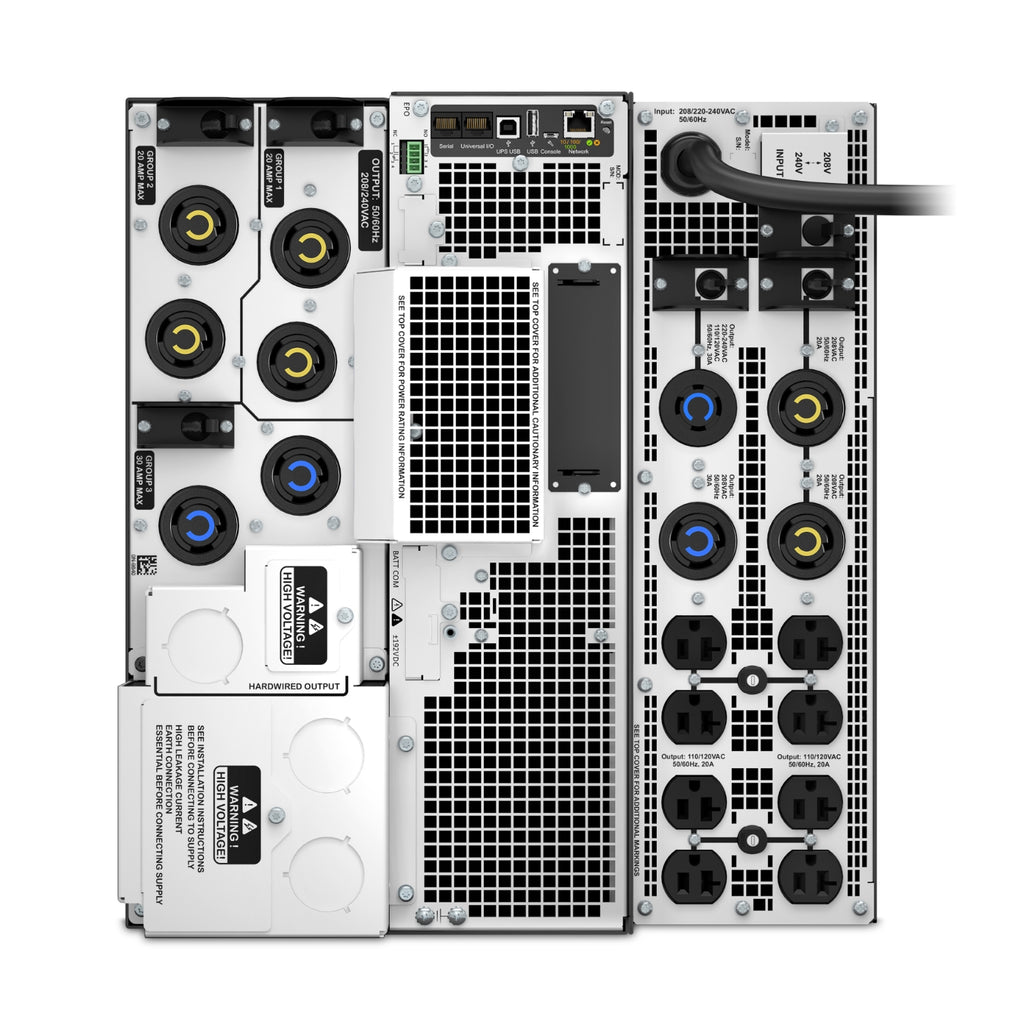

| Output Connections | 8x NEMA 5-20R, 6x L6-20R, 2x L6-30R, 1x L14-30R |
| Battery Type | Lead-Acid, Replaceable (APCRBC140) |
| Runtime Extendable | Yes (up to 10 external packs: SRT192BP2) |
| Recharge Time | 1.5 hours |
| Network Management | Included Network Management Card (SNMP/Web) |
| Management Software | PowerChute Network Shutdown |
| Mounting | Tower (rack with SRTRK2 or SRTRK3) |
| Color | Black |
| Warranty | 3 Years UPS / 2 Years Battery |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Class A |
| Dimensions (HxWxD) | 17.01 x 15.43 x 28.15 in (43.2 x 39.2 x 71.5 cm) |
| Weight | 370.99 lbs (168.28 kg) |
| Noise Level | 55 dBA |
| Environmental Tolerance | 0–40°C, 0–95% RH (non-condensing) |
