Description

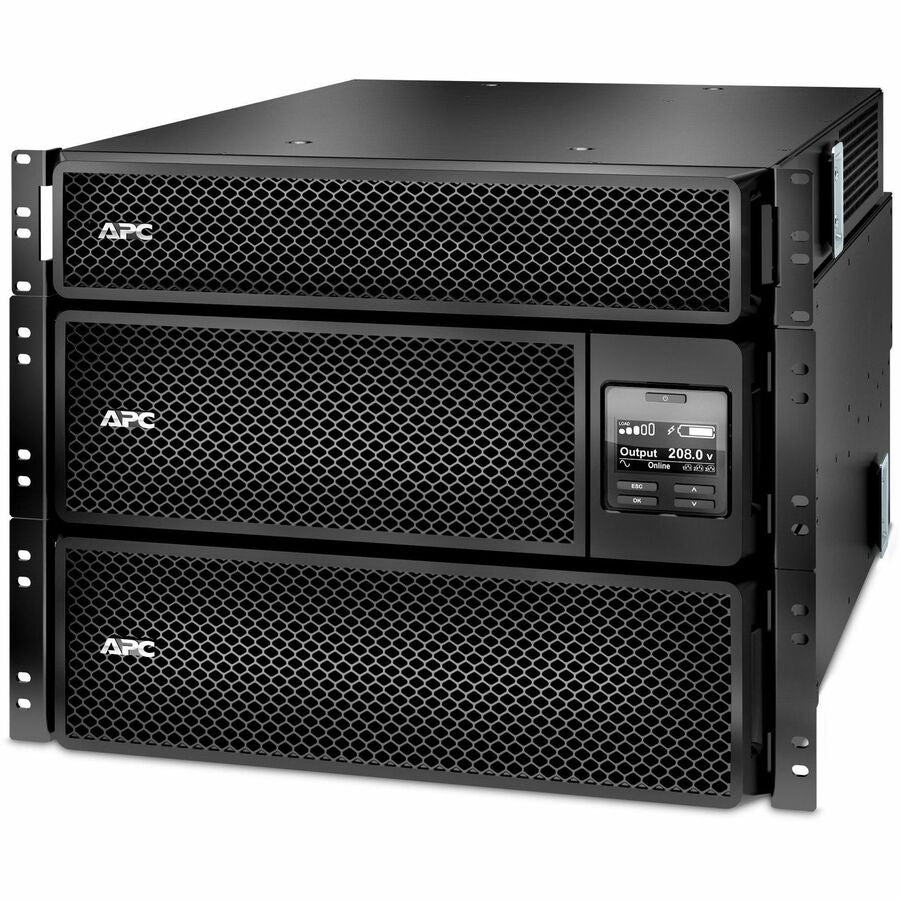

The APC Smart-UPS SRT8KRMXLT-5KTF delivers reliable 8kVA/8kW double-conversion online power in an 8U rackmount form factor, ideal for data centers, labs, and network closets. It features 12 NEMA 5-20R, 4 L6-20R, and 1 L6-30R outlets, and supports up to 10 external battery packs (SRT192RMBP2) for extended runtime. This unit includes a transformer (208V to 120V), SmartSlot with pre-installed Network Management Card, PowerChute software, and a complete rail kit for easy rack integration.
| Feature | Details |
|---|---|
| Model | SRT8KRMXLT-5KTF |
| VA / Watt Rating | 8000 VA / 8000 W |
| Input Voltage | 208V (Hard Wire 3-wire: 2PH + G) |
| Output Voltage | 120V |
| Output Connections | 12x NEMA 5-20R, 4x NEMA L6-20R, 1x NEMA L6-30R |
| Form Factor | 8U Rackmount (rail kit included) |
| Battery Type | Lead-Acid, Recharge time: 1.5 hrs |
| Replacement Battery | APCRBC140 |
| Extendable Runtime | Yes, supports up to 10x SRT192RMBP2 packs |
| Network Management | Embedded NMC (Network Management Card 3), SmartSlot |
| Included Accessories | Rail kit, USB cable, software CD, temp probe, install guide |
| Certifications | ENERGY STAR V2.0, FCC part 15 class A, UL 1778 |
| Environment Support | 0–40°C operation, 0–95% humidity, 55 dBA noise |
| Warranty | 3 years UPS, 2 years battery |
| Dimensions (HxWxD) | 13.86 x 17.01 x 28.15 in (35.2 x 43.2 x 71.5 cm) |
| Weight | 340.99 lbs (154.67 kg) |
| GTIN | 731304732969 |
