Description

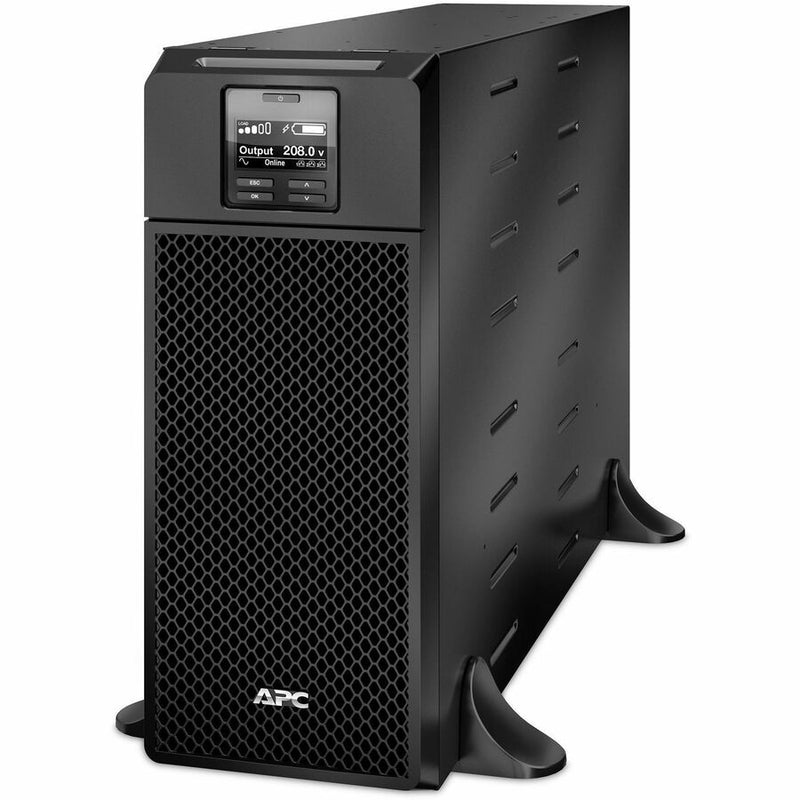

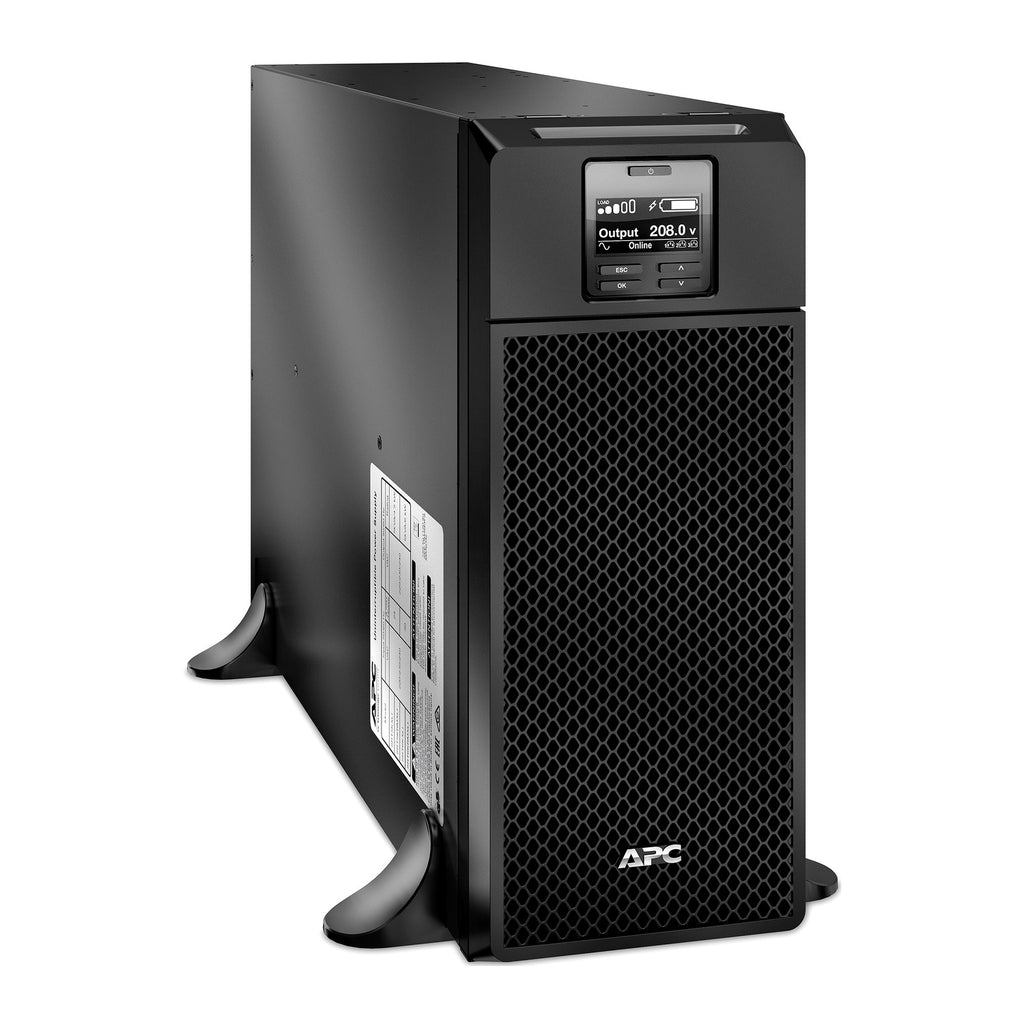

The APC Smart-UPS SRT6KXLTUS delivers reliable double-conversion online power protection for mission-critical servers, storage, and network equipment. This 6kVA/6kW UPS provides consistent sine wave output and supports extended runtime through optional external battery packs. Featuring 2x NEMA L6-20R and 3x NEMA L6-30R outlets, this rack/tower convertible model includes a Network Management Card and SmartSlot for remote monitoring and graceful shutdown via PowerChute Network Shutdown. Compatible with EcoStruxure IT and backed by a 3-year warranty (2 years for battery), it's ideal for demanding IT, healthcare, and light industrial environments. Rail kits sold separately.
| Specification | Details |
|---|---|
| Model | SRT6KXLTUS |
| Topology | Double-Conversion Online |
| Power Capacity | 6kVA / 6kW |
| Input Voltage | 208V (Hardwire 3-wire, 2PH + G) |
| Output Voltage | 208V (240V optional) |

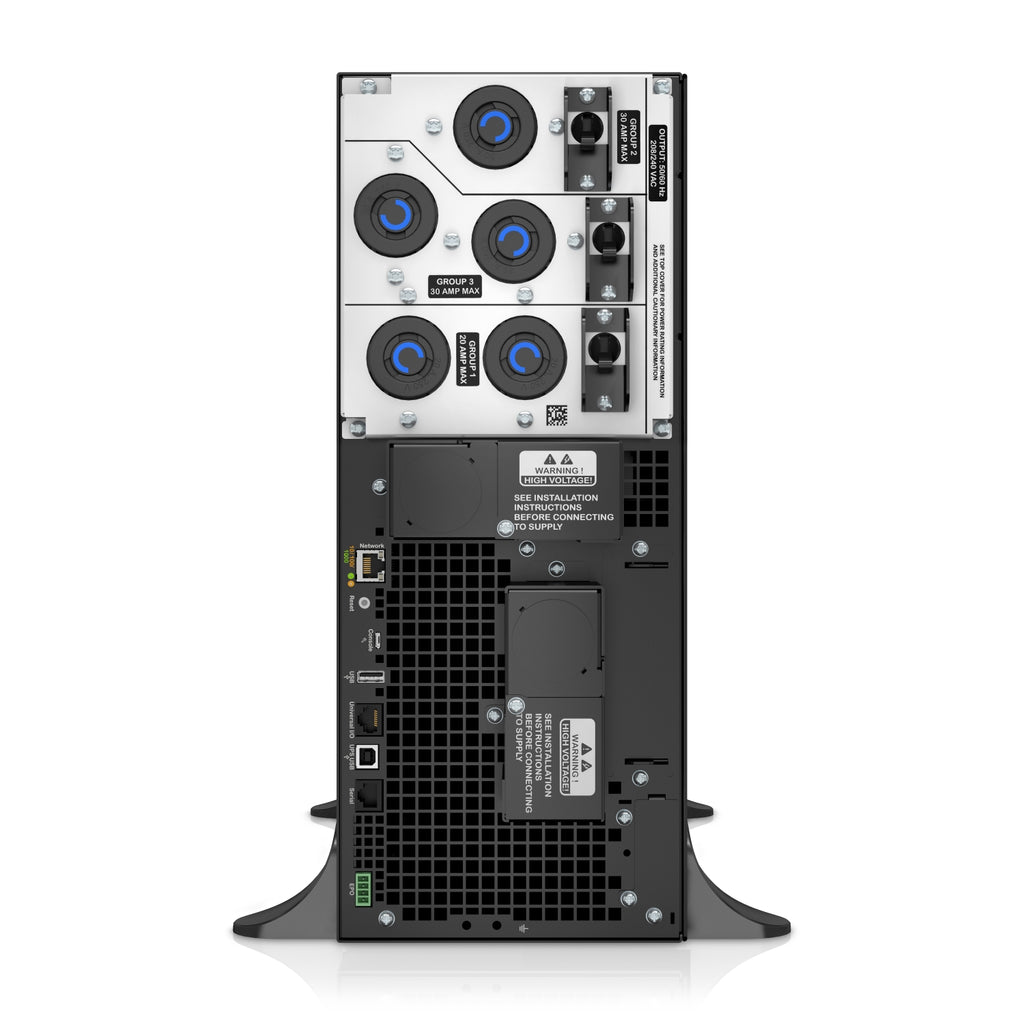

| Outlets | 3x NEMA L6-30R, 2x NEMA L6-20R |
| Form Factor | Rack/Tower Convertible (Rail kits SRTRK2/SRTRK3 sold separately) |

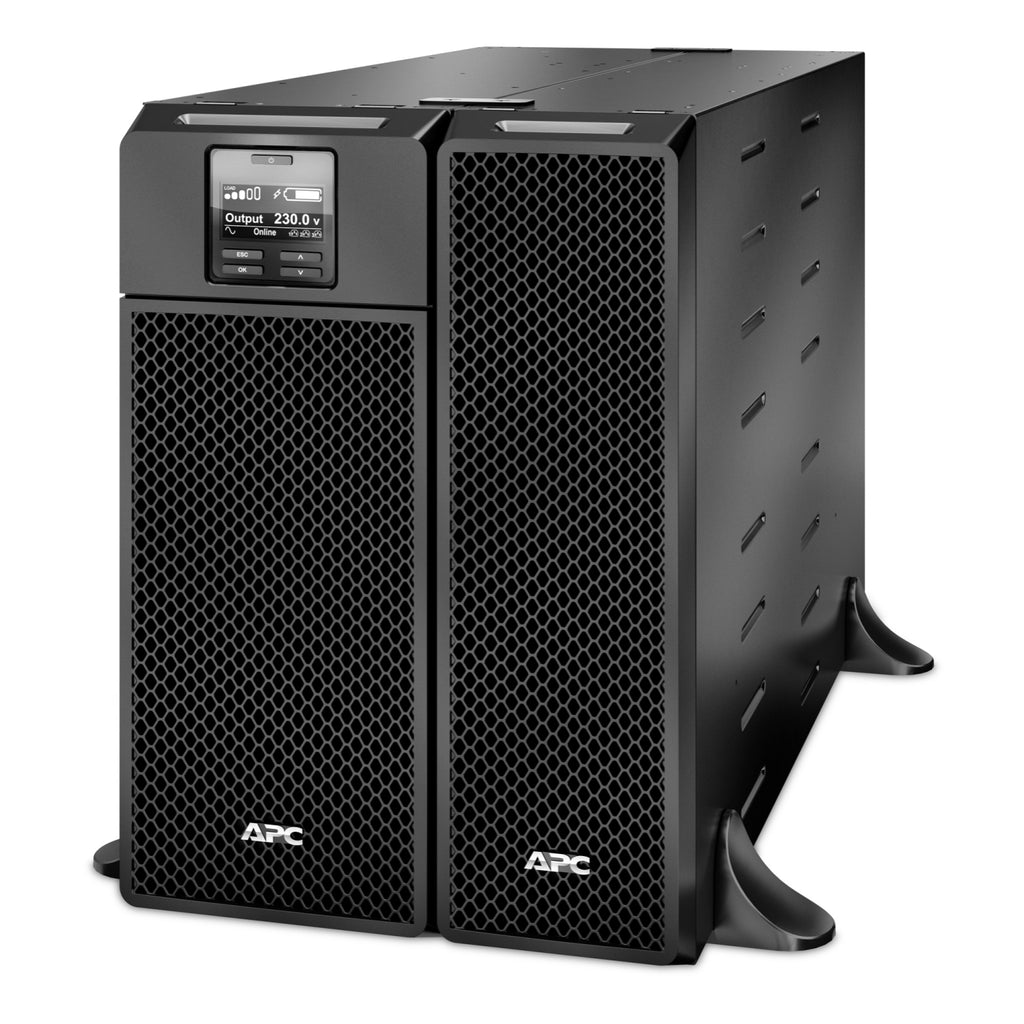

| Runtime Extension | Supports up to 10x external battery packs (SRT192BPUS) |
| Battery Type | Lead-Acid (APCRBC140 Replacement) |
| Recharge Time | 1.5 hours |
| Network Management | Embedded Network Management Card with SmartSlot |
| Remote Monitoring | EcoStruxure IT, PowerChute Network Shutdown |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A, NOM, TAA compliant |
| Surge Protection | 480 Joules |
| Mounting | Rack-mounted (with kit), vertical tower use also supported |
| Dimensions (H x W x D) | 17.01 x 6.85 x 28.31 in (43.2 x 17.4 x 71.9 cm) |
| Net Weight | 134.99 lb (61.23 kg) |
| Operating Temp | 0 to 40 °C (32 to 104 °F) |
| Warranty | 3 years repair/replace (UPS), 2 years (battery) |
