Description

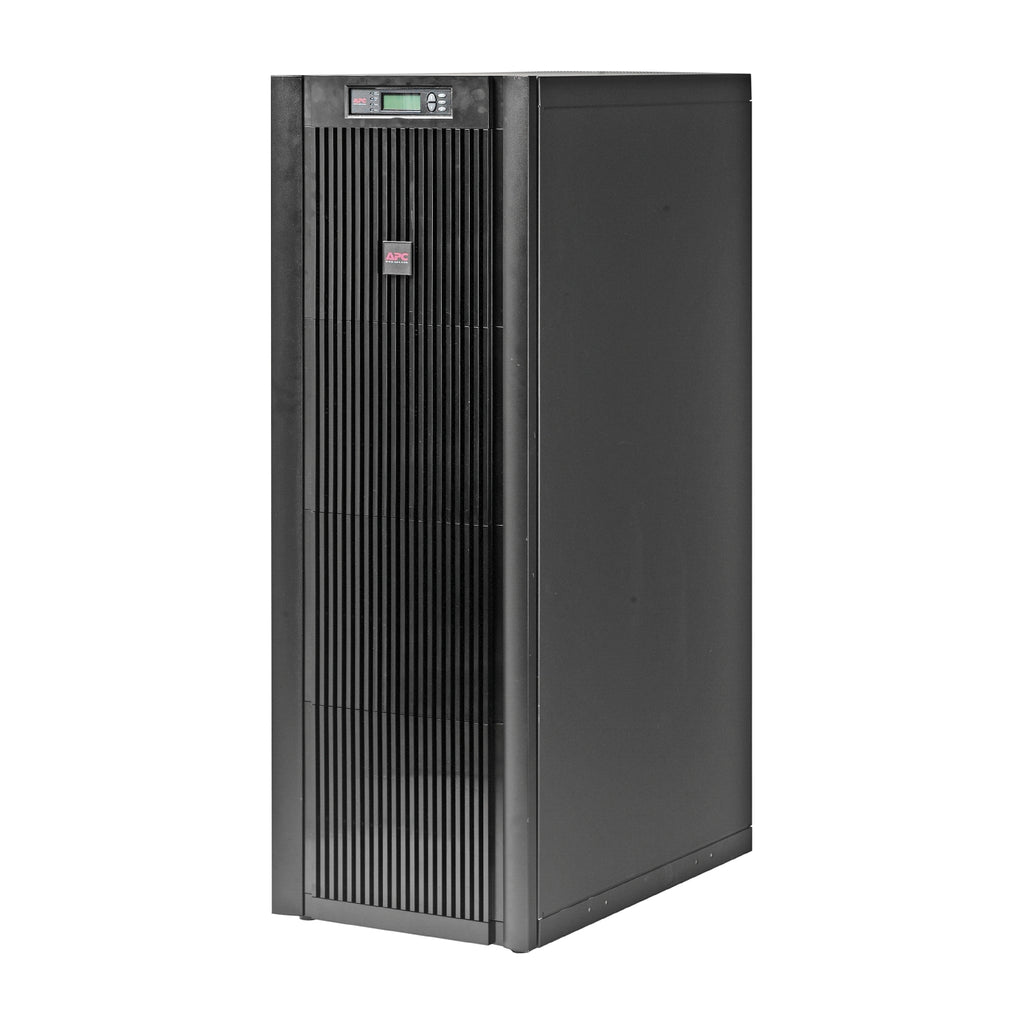

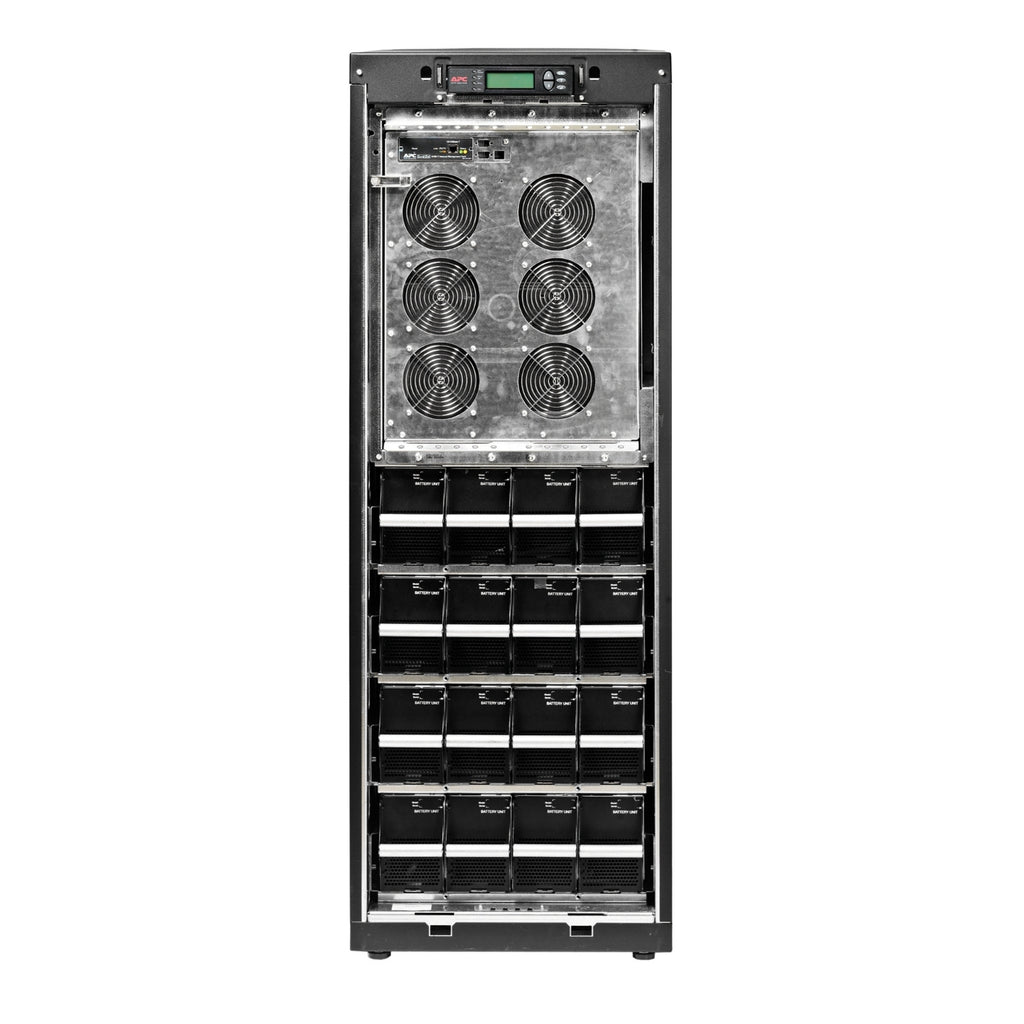

The APC Smart-UPS VT SUVTP20KF3B4S delivers centralized three-phase power protection with scalable battery runtime, making it ideal for small data centers, large retail spaces, and mission-critical environments. Featuring a 20kVA capacity, 3 battery modules (expandable to 4), integrated maintenance bypass, and start-up service (5x8), this UPS ensures continuous uptime and efficient operation. Built-in dual mains input, hot-swappable components, and parallel capability offer superior flexibility and redundancy. Enjoy the reliability of Smart-UPS technology with best-in-class efficiency and space-saving design.
| Specification | Details |
|---|---|
| SKU | SUVTP20KF3B4S |
| Power Capacity | 20,000 VA / 16,000 W |
| Input Voltage | 208V 3-phase (also supports 220V) |
| Output Voltage | 120V, 208V, 208V 3-phase, 220V |
| Bypass Type | Built-in Maintenance & Static Bypass |
| Battery Type | VRLA, 3 battery modules (expandable to 4) |
| Runtime at Full Load | ~11 min 30 sec at 16,000 W |
| Topology | Double Conversion Online |
| Redundancy | Parallel Capable |
| Efficiency | 94% typical, 55 dBA noise level |
| Communication | Network Mgmt Card 2, RS-232, EPO supported |
| Mounting | Floor-standing (Not rack-mountable) |
| Start-Up Service | Included (5x8) |
| Certifications | UL 1778, cUL Listed |
| Operating Temp | 0 to 40°C (32 to 104°F) |
| Dimensions (H x W x D) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 1183.49 lbs (536.82 kg) |
| Warranty | 1 Year Repair or Replace |
