Description
The APC Smart-UPS X SMX2KR2UNCX145 is a high-performance uninterruptible power supply (UPS) offering 2000VA/1800W pure sine wave output in a convertible 2U rack/tower form. It supports critical IT and edge computing environments, with user-selectable 100–127V input, advanced battery management, and a 10 ft input cord for versatile installations.
Preinstalled with a Network Management Card, it allows for remote UPS monitoring and integration with EcoStruxure™ IT and third-party platforms. Add up to 10 external battery packs for extended runtime. Features include 3 switchable outlet groups, emergency power off, and a compatible replacement battery cartridge (APCRBC117). Comes with mounting hardware and APC temperature sensor for complete infrastructure control.
| Category | Details |
|---|---|
| SKU / Part Number | SMX2KR2UNCX145 |

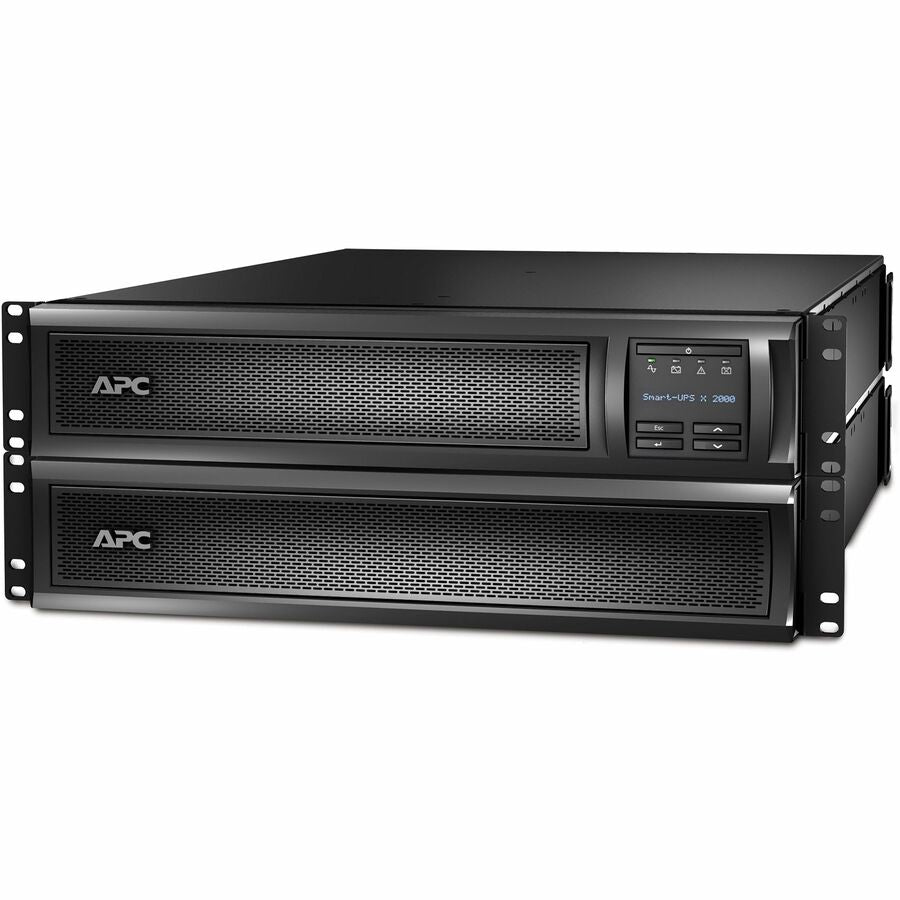

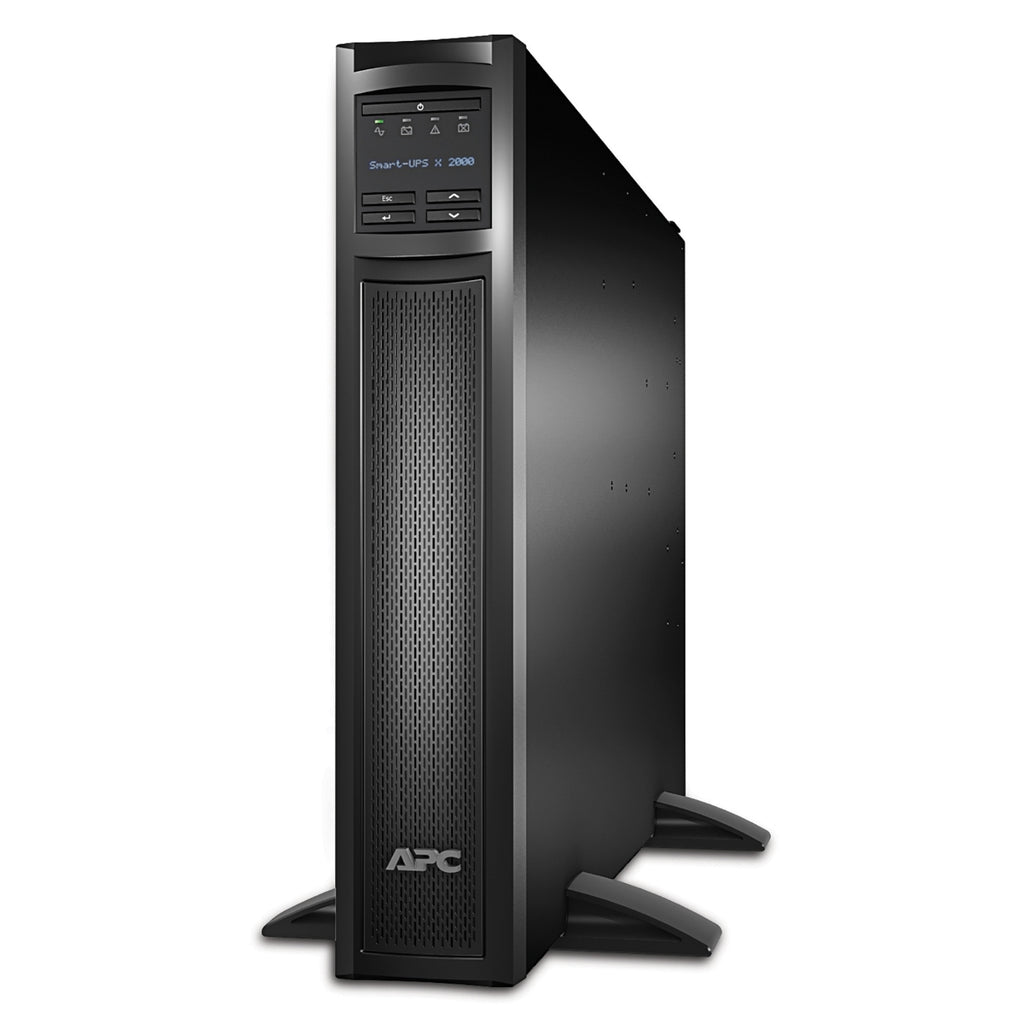

| Form Factor | 2U Rack/Tower Convertible |
| Capacity | 2000VA / 1800W |
| Input Voltage | 100–127V user-selectable |
| Input Connection | NEMA L5-20P |
| Cord Length | 10 ft (3.05 m) |

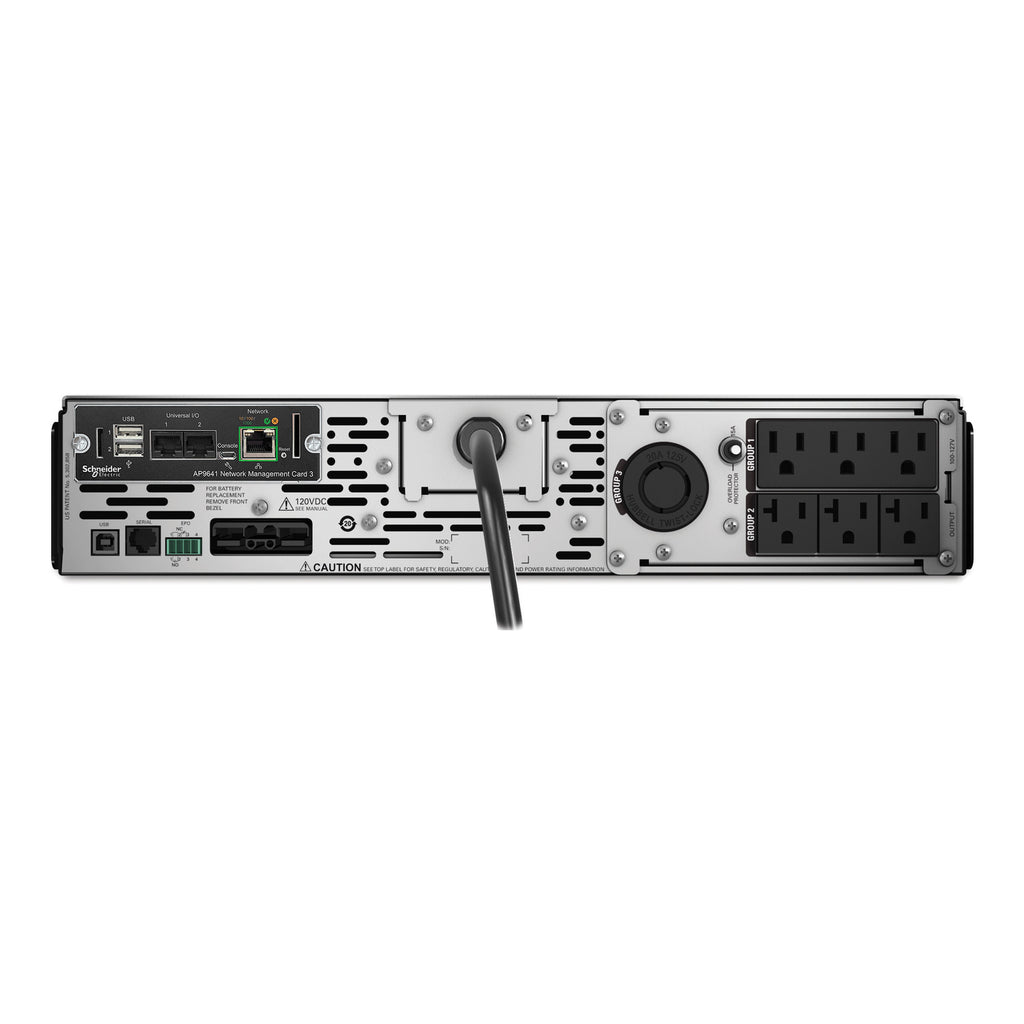

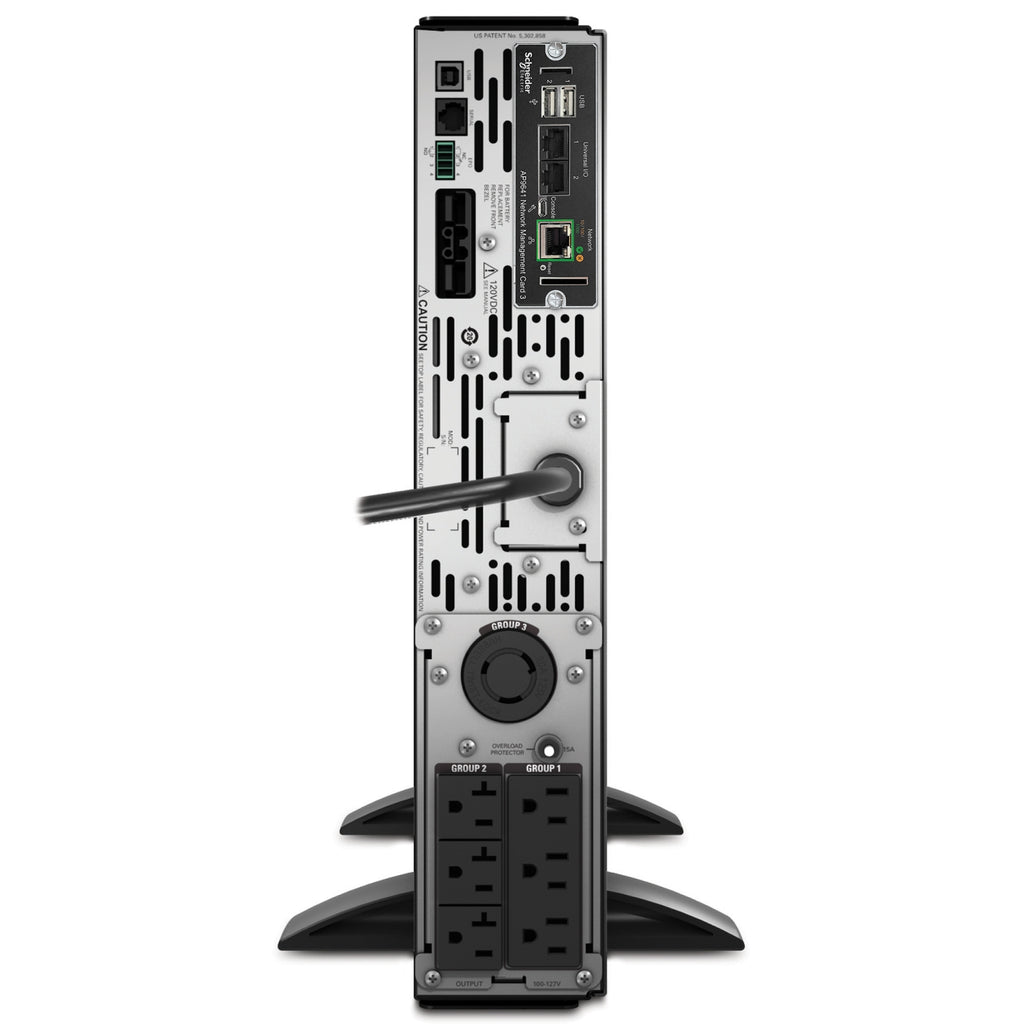

| Output Connections | 3x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-20R |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lead-Acid, Replaceable (APCRBC117) |
| Extended Runtime | Supports up to 10 external packs (SMX120RMBP2U) |
| Recharge Time | 3 hours |
| Communication | Preinstalled NMC with environmental monitoring |
| Runtime at Full Load | ~10 mins at 1800W |
| Rack Mount Kit | Included (with stabilizing feet and rails) |
| Management Software | PowerChute Network Shutdown included |
| LCD Display | Multifunction LCD with alarms and status indicators |
| Surge Protection | 540 Joules, multi-pole filtering |
| Certifications | CSA, NOM, BSMI, TÜV, VCCI Class A |
| Environment | 0–40°C operation, 0–95% humidity (non-condensing) |
| Warranty | 3-year UPS / 2-year battery |
| Dimensions (H x W x D) | 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm) |
| Net Weight | 84.77 lbs (38.45 kg) |
| Replacement Battery | APCRBC117 |
