Description
The APC Smart-UPS X SMX2200HV delivers reliable, line-interactive sine wave power in a 4U convertible rack/tower format. Designed for servers, networking hardware, and mission-critical systems, it features a 2200VA/1980W capacity with extended runtime options via up to 10 external battery packs. Equipped with 8x IEC C13 and 2x C19 outlets, SmartSlot for network management, and user-selectable voltage from 200V to 240V, this UPS ensures optimal uptime and control. Its short depth design saves rack space while the replaceable APCRBC143 battery cartridge ensures simplified maintenance.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | SMX2200HV |

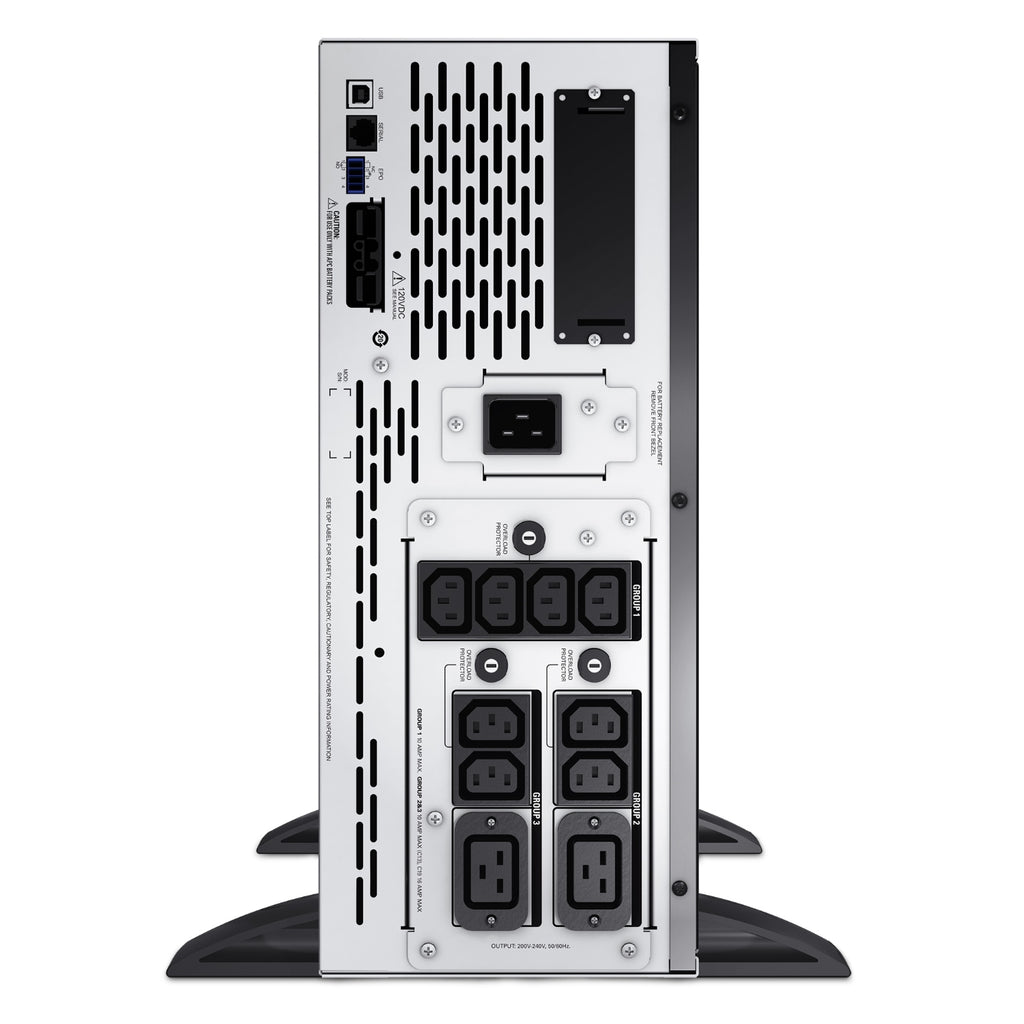

| Form Factor | 4U Rack/Tower Convertible |
| Input Voltage | 208V, 220V, 230V, 240V |
| Input Connection | IEC 320 C20 (Includes: BS1363A, Schuko) |
| Output Voltage | 208V, 220V, 230V, 240V |

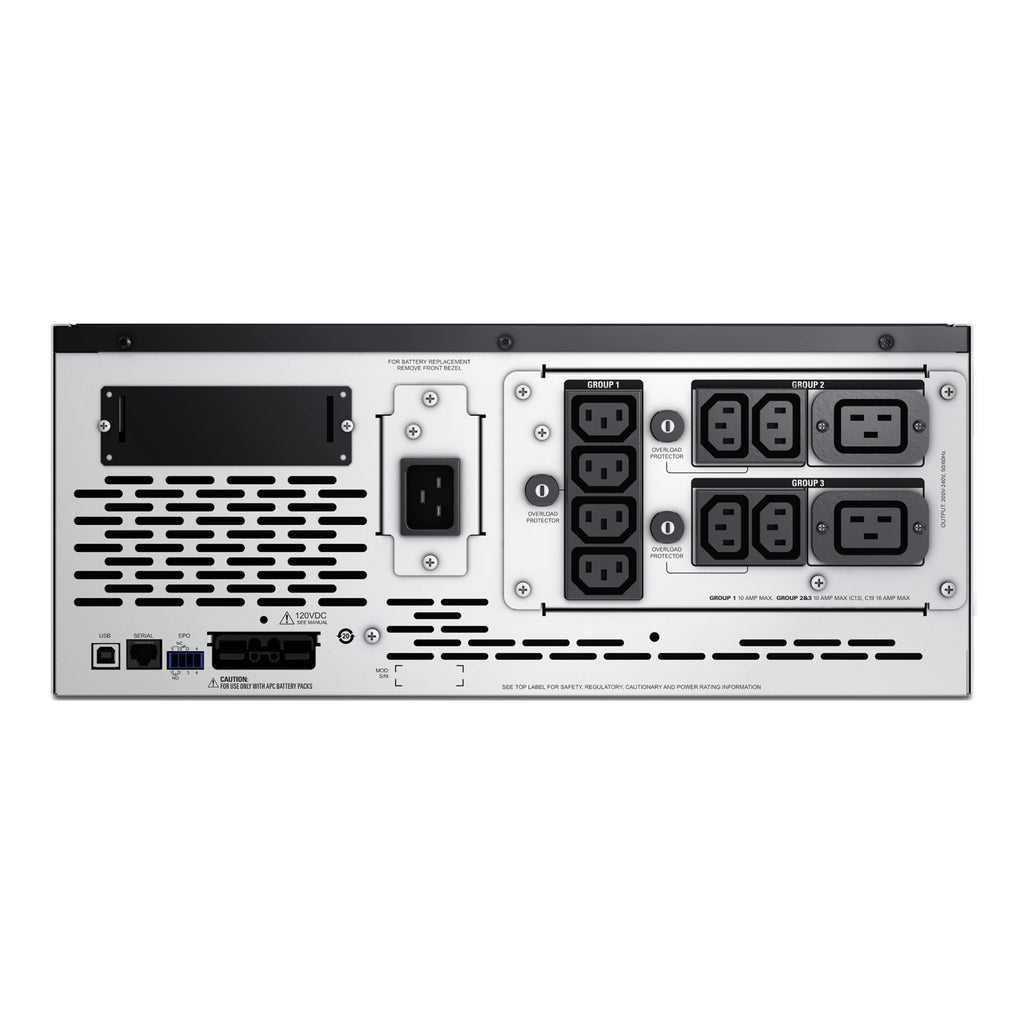

| Output Connections | 8x IEC 320 C13, 2x IEC 320 C19 |
| Power Capacity | 2200VA / 1980W |
| Battery Type | Lead-acid (User-replaceable: APCRBC143) |

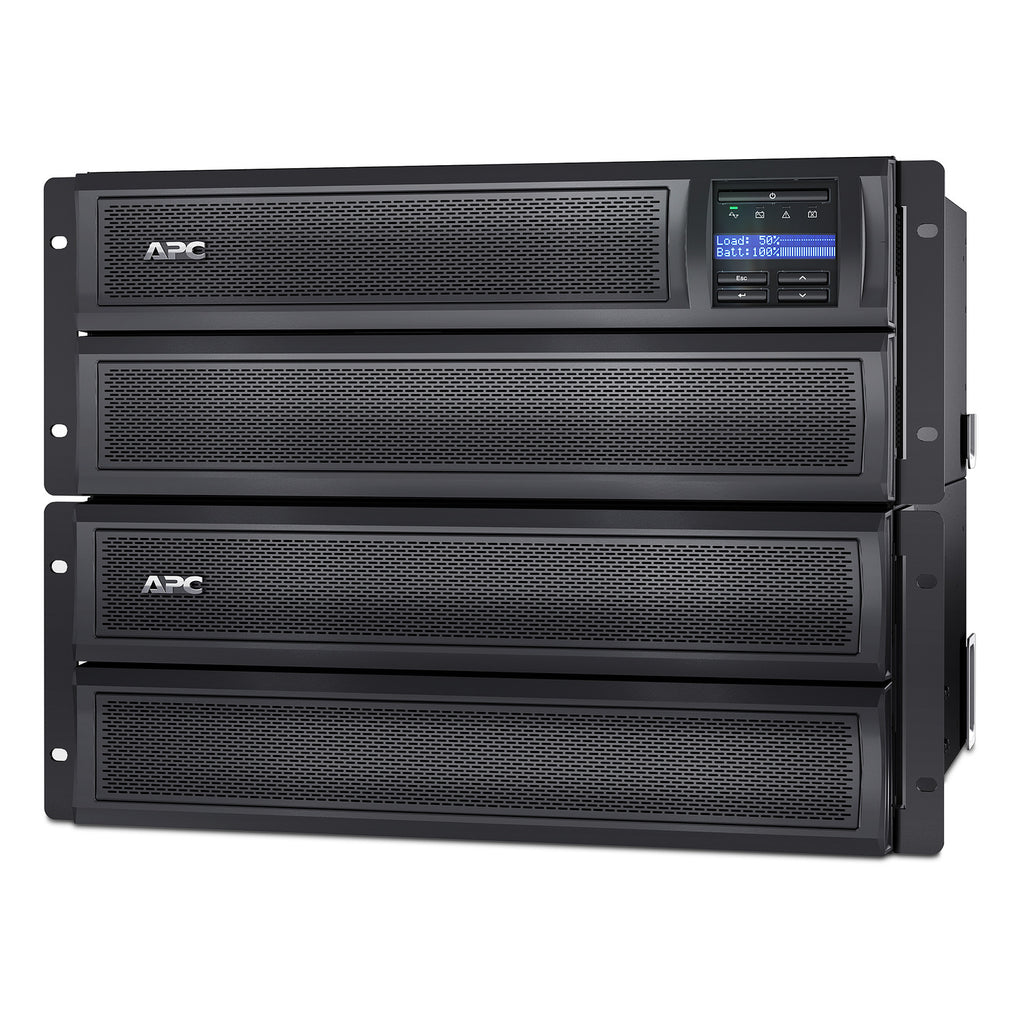

| Extendable Runtime | Yes (Supports up to 10 SMX120BP packs) |
| Runtime (Full Load) | Approx. 9 minutes at 1980W |
| Communication Ports | USB, RS-232, SmartSlot |

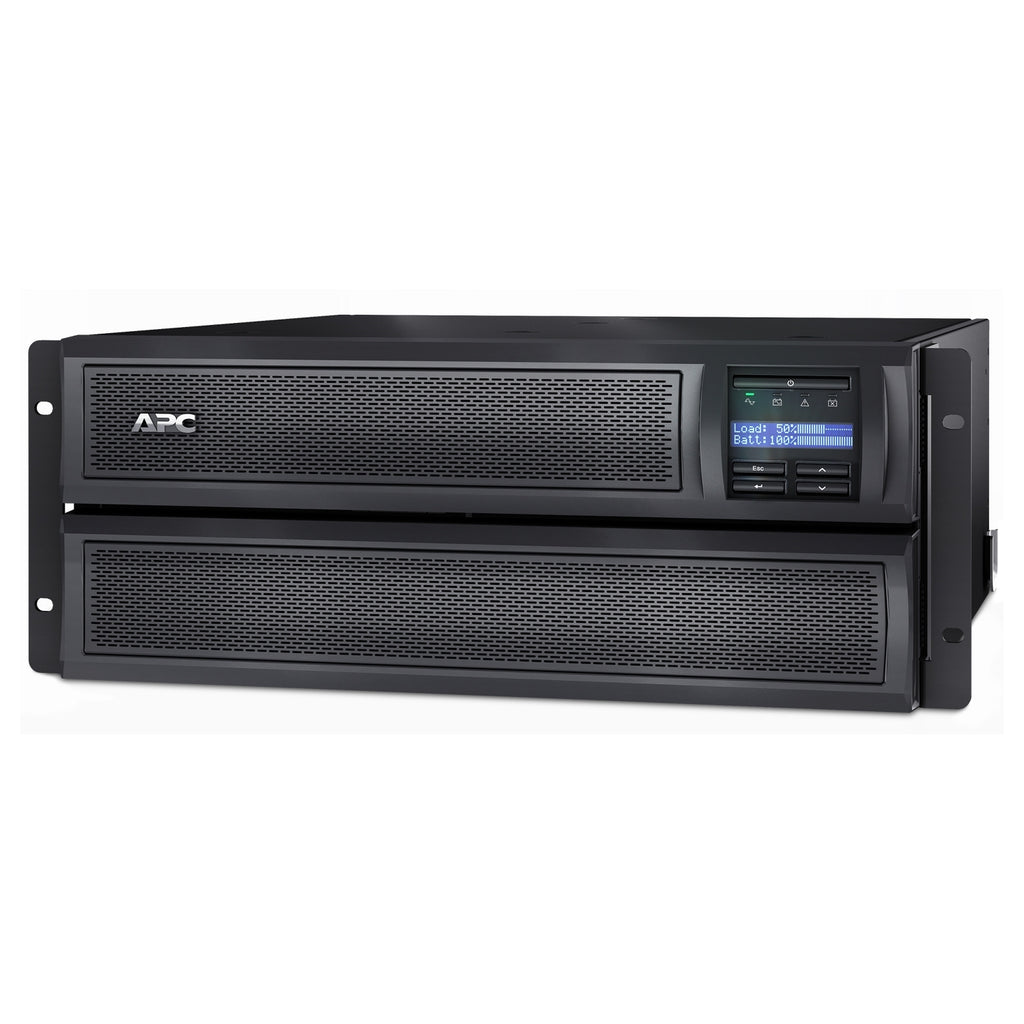

| LCD Display | Multi-function LCD status/control console |
| Surge Protection | 645 Joules |
| Waveform Output | Pure Sine Wave |
| Mounting Accessories | Rack Mount Rails, Tower Stabilizers |
| Dimensions (H x W x D) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.01 lbs (38.56 kg) |
| Certifications | CE, VDE, EAC, RCM, UK PSTI, IRAM, TISI |
| Warranty | 3 Years (UPS), 2 Years (Battery) |
| Country of Origin | Philippines |
