Description

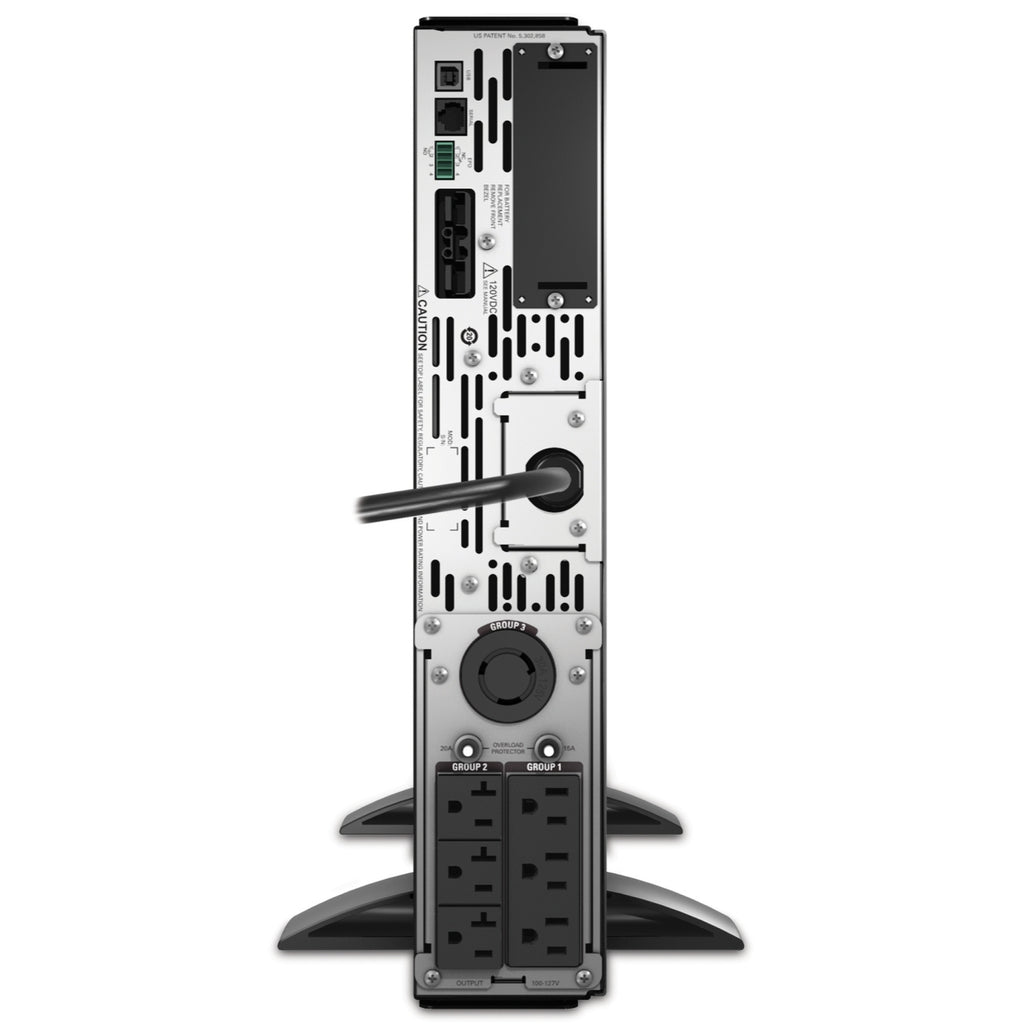

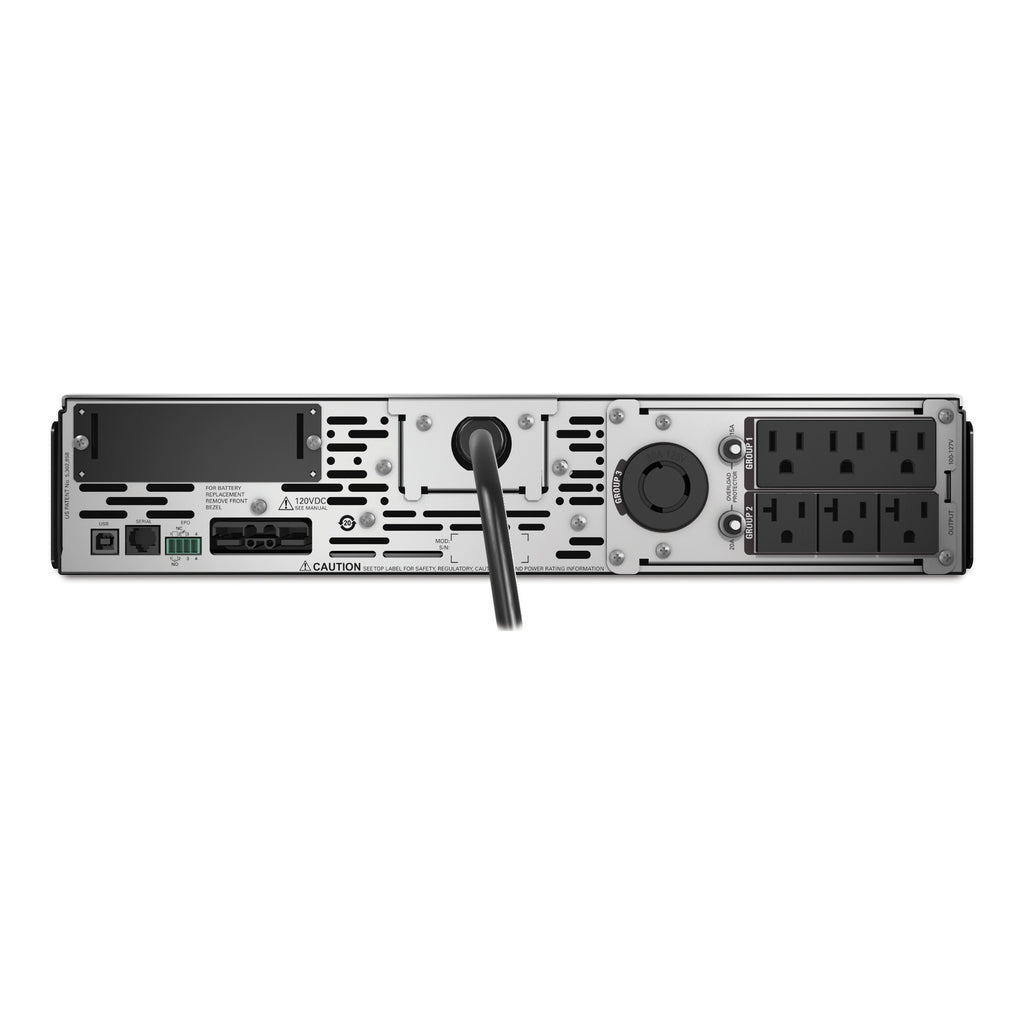

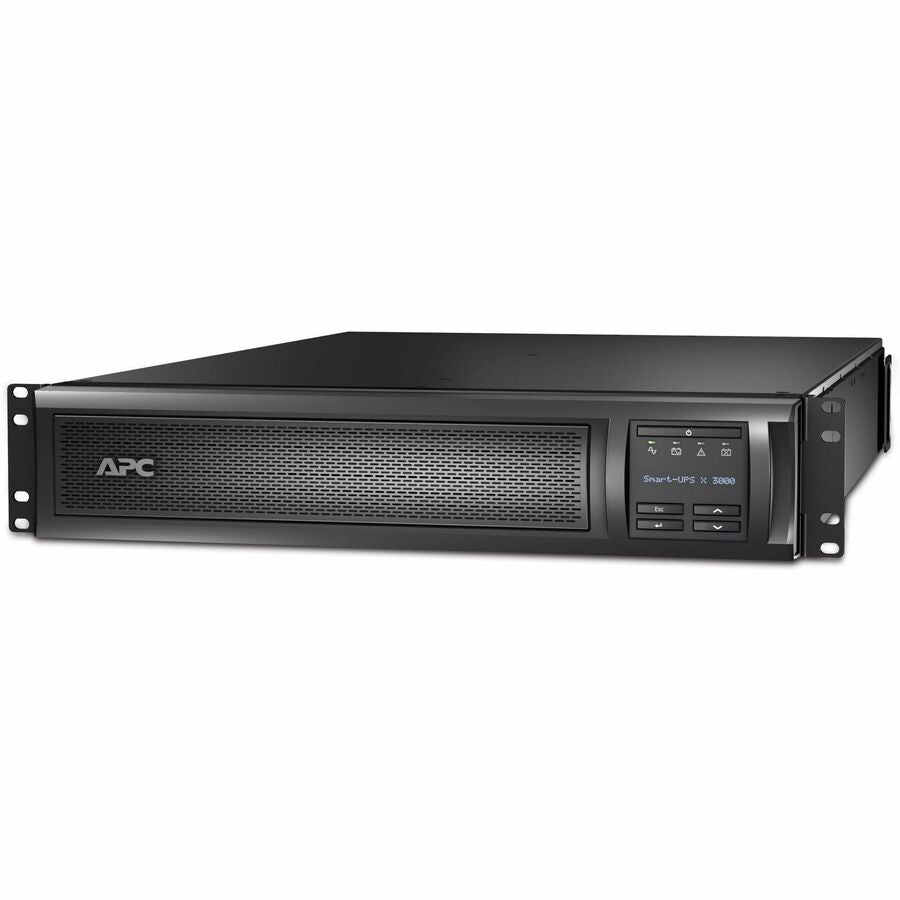

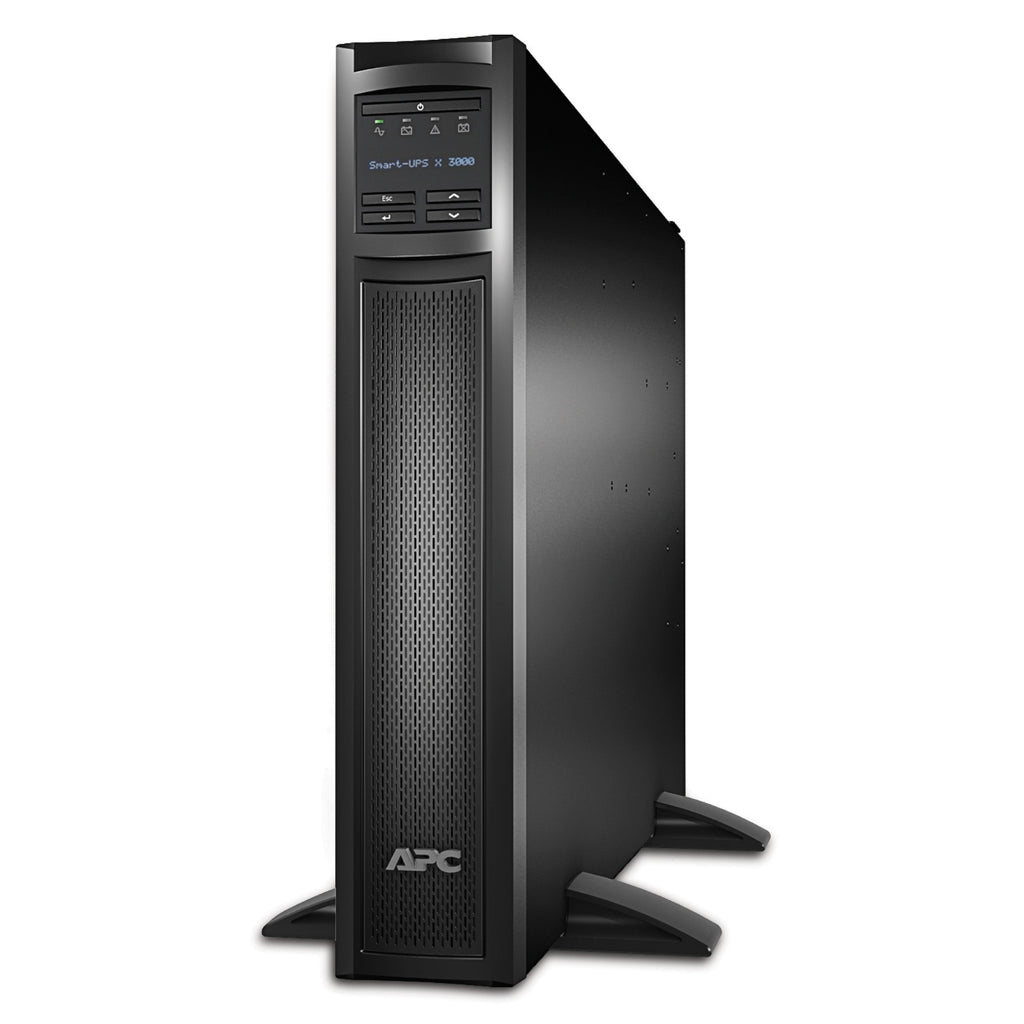

The APC Smart-UPS X SMX3000RMLVUS is a reliable 2880VA/2700W line-interactive UPS designed for IT professionals and network administrators. It delivers pure sine wave output in a compact 2U convertible rack/tower form factor with a NEMA L5-30P input and 7 total outlets (3x 5-15R, 3x 5-20R, 1x L5-30R). This model supports extended runtime with up to 10 external battery packs (SMX120RMBP2U), offers automatic voltage regulation (AVR), and integrates with EcoStruxure™ and PowerChute™ for intelligent power management. TAA compliant, it includes rack rails, stabilizing feet, and user-replaceable APCRBC117 batteries for fast serviceability.
| Key Specifications | Details |
|---|---|
| Model | SMX3000RMLVUS |
| Form Factor | 2U Rack/Tower Convertible |
| Power Capacity | 2880VA / 2700W |
| Input Voltage | 120V (100–127V selectable) |
| Input Plug Type | NEMA L5-30P |
| Output Voltage | 120V (100/110/127V selectable) |
| Output Connections | 3x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| UPS Topology | Line Interactive with AVR |
| Waveform Type | Pure Sine Wave |
| Runtime @ Full Load | Approx. 6 mins @ 2700W |

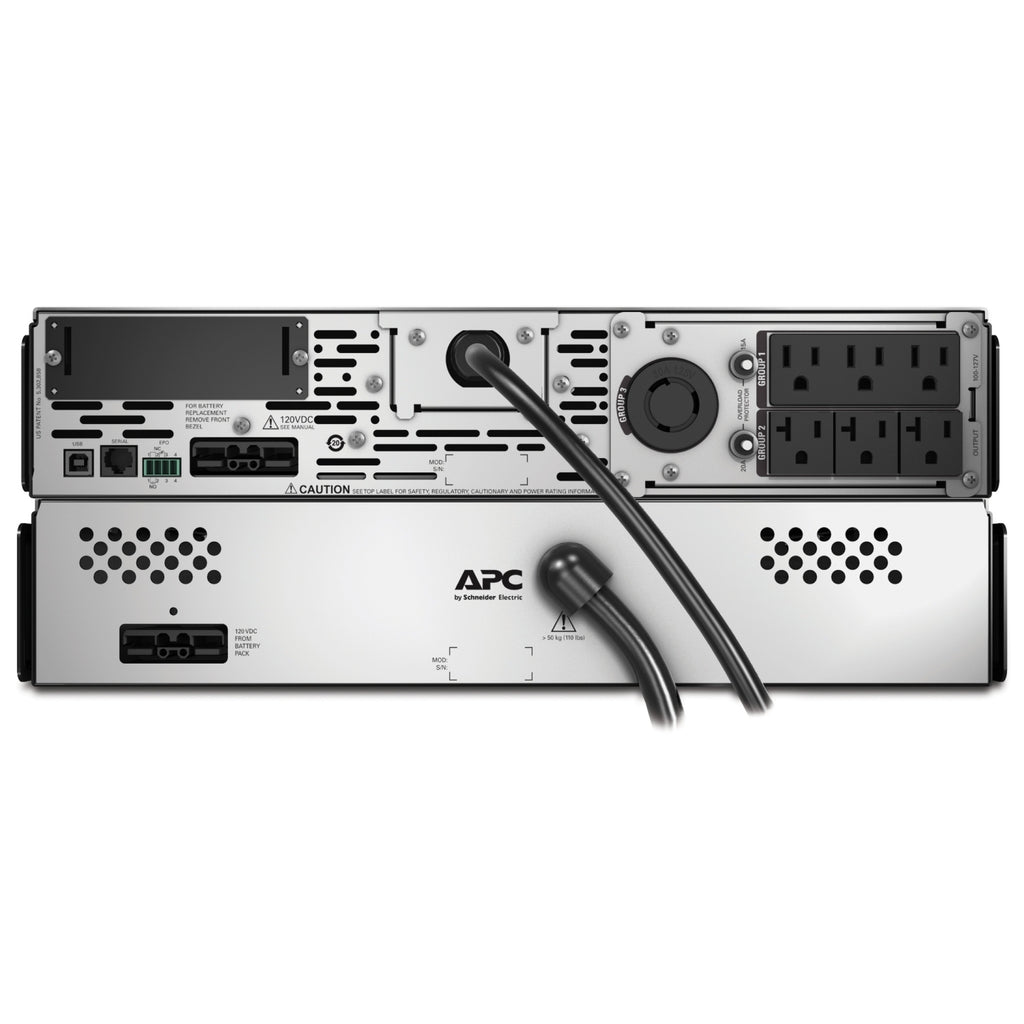

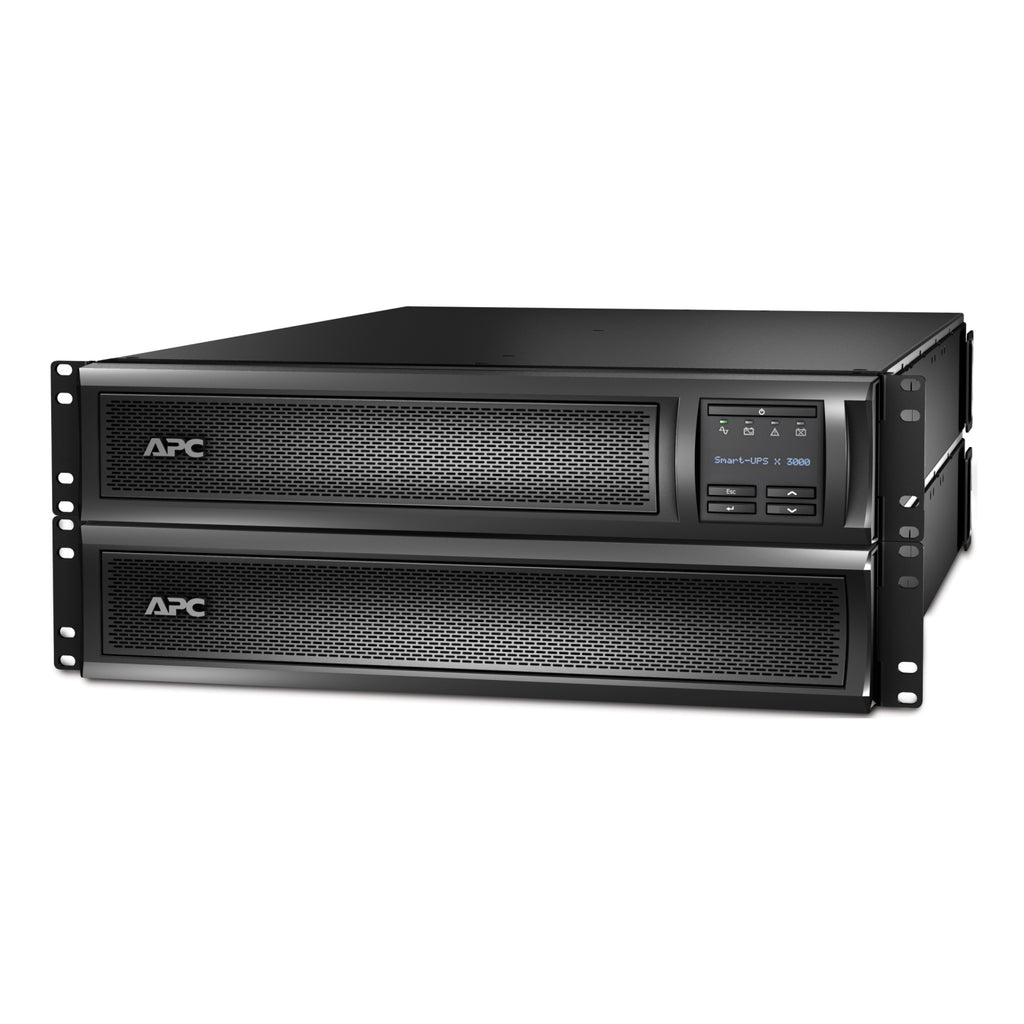

| Extended Runtime Capable | Yes, up to 10x SMX120RMBP2U battery packs |
| Replacement Battery | APCRBC117 (included, 2-year warranty) |
| Battery Recharge Time | 3 hours |
| Interface Ports | USB, Serial, SmartSlot (1 slot) |
| Management Software | PowerChute, EcoStruxure IT Compatible |
| Display | Multifunction LCD with LED indicators |
| Surge Energy Rating | 540 Joules |
| Rack Mount Kit | Included (rails + stabilizing feet) |
| Certifications | TAA, CSA, NOM, BSMI, TÜV, VCCI, UL 1449 |
| Warranty | 3 years UPS, 2 years battery |
| Dimensions (HxWxD) | 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm) |
| Weight | 84.77 lbs (38.45 kg) |
