Description

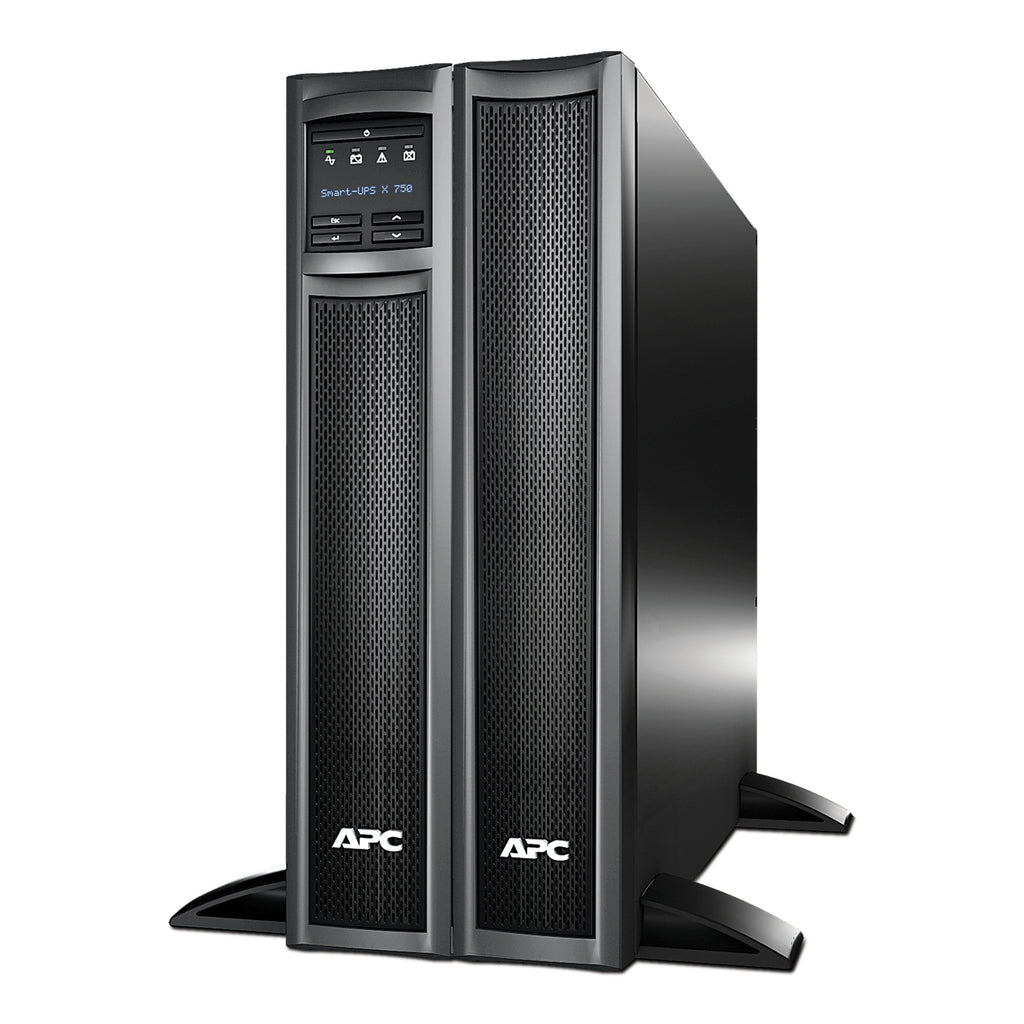

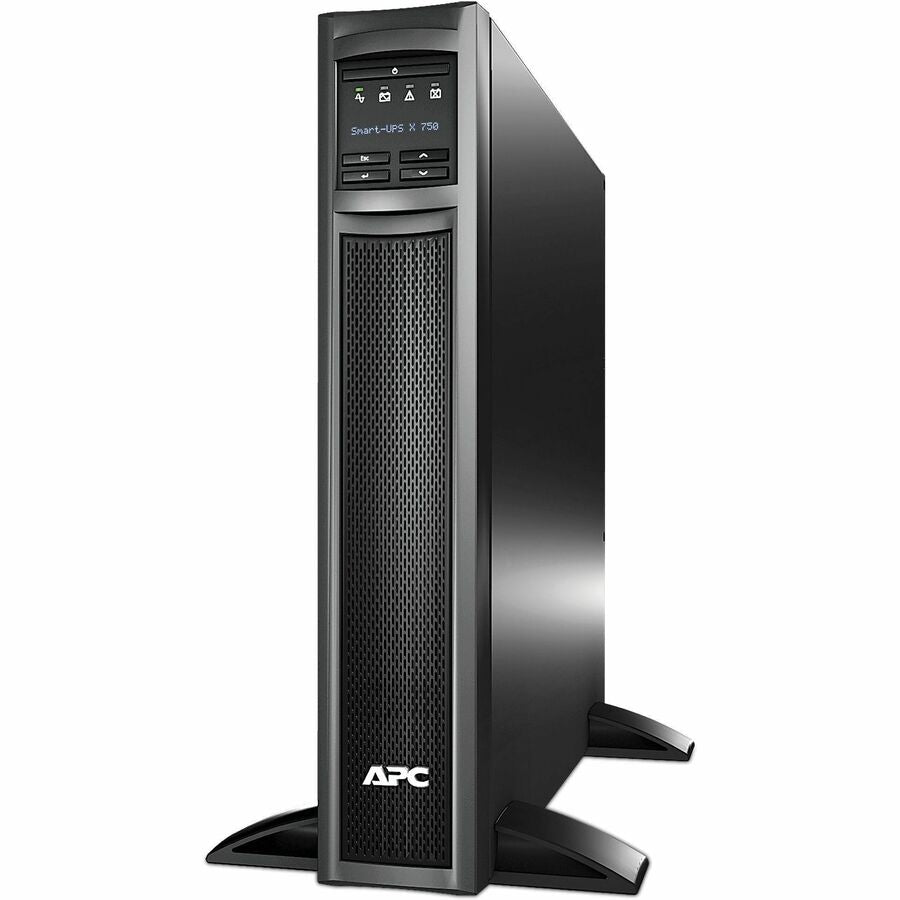

The APC Smart-UPS X SMX750CNC is a 750VA/675W line-interactive UPS designed for IT managers who need reliable power protection and extended runtime in edge, network, or server environments. This 2U rack/tower convertible UPS delivers pure sine wave output, ensuring uninterrupted performance for mission-critical devices. It includes 8 NEMA 5-15R outlets, a SmartConnect Ethernet port for cloud monitoring, and a preinstalled Network Management Card for advanced remote management.
With support for up to five external battery packs, the SMX750CNC offers scalable runtime to protect your systems during extended outages. It includes an Emergency Power Off (EPO) function, one switchable outlet group for granular control, and temperature monitoring via the included APC AP9335T sensor. Backed by a 3-year hardware warranty and 2-year battery coverage, extendable by registration, this Smart-UPS is a robust solution for ensuring business continuity.
| Specification | Details |
|---|---|
| SKU / Model | SMX750CNC |
| UPS Type | Line Interactive with Pure Sine Wave |

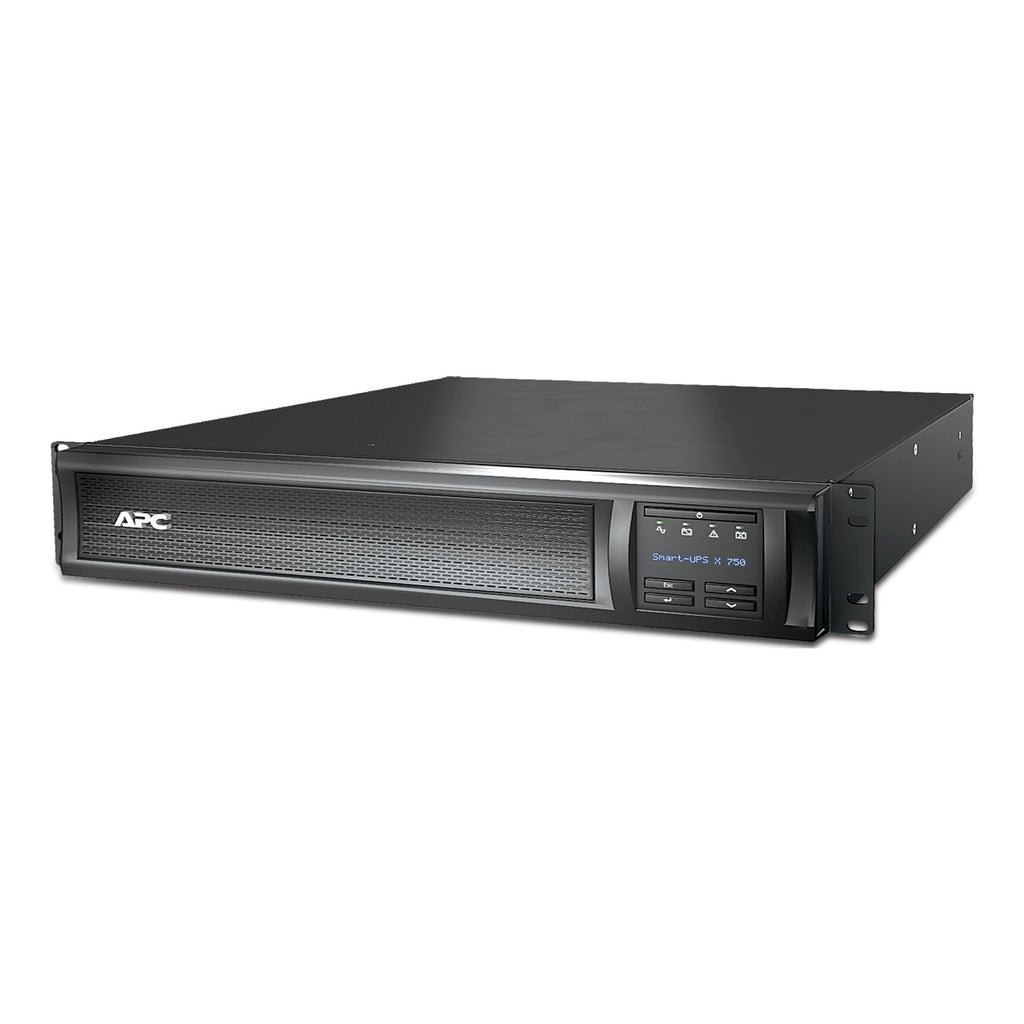

| Form Factor | Rack/Tower Convertible – 2U |
| Input Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Output Voltage | 120V |

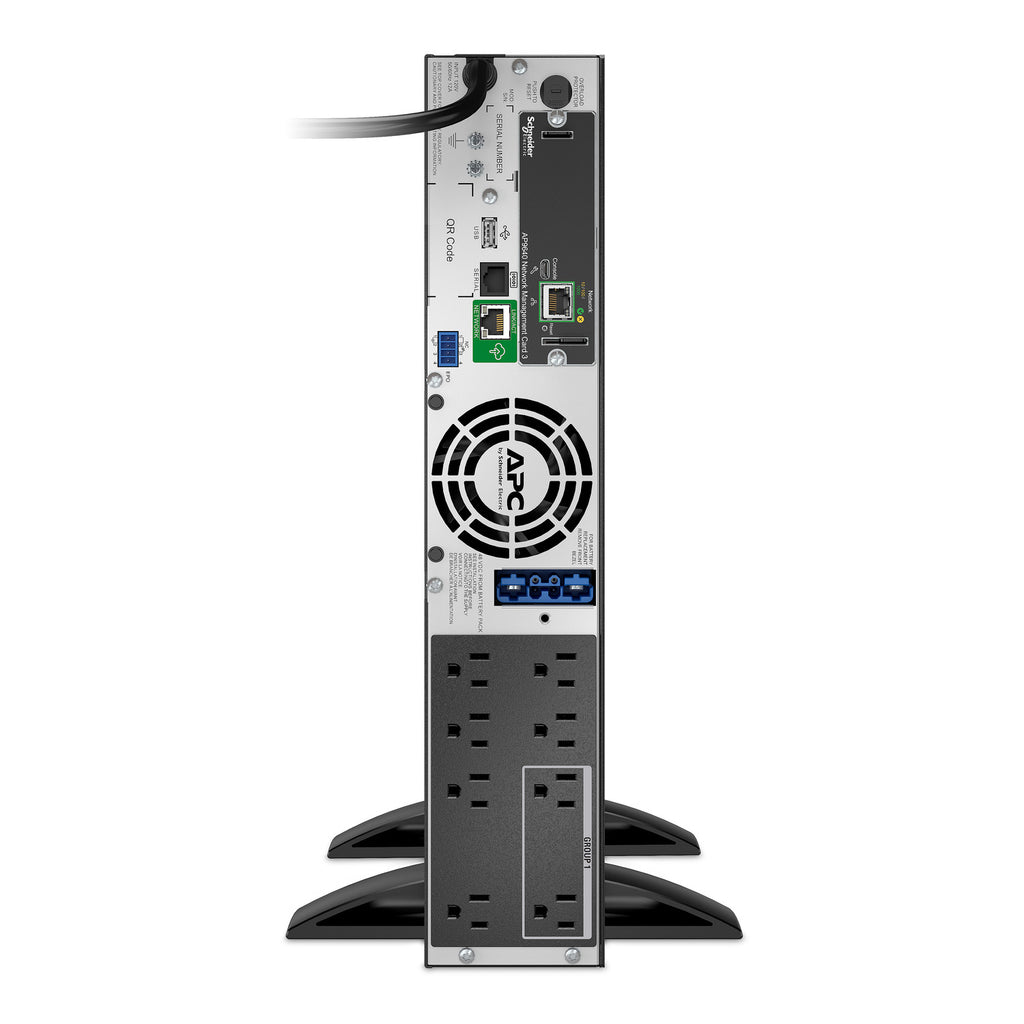

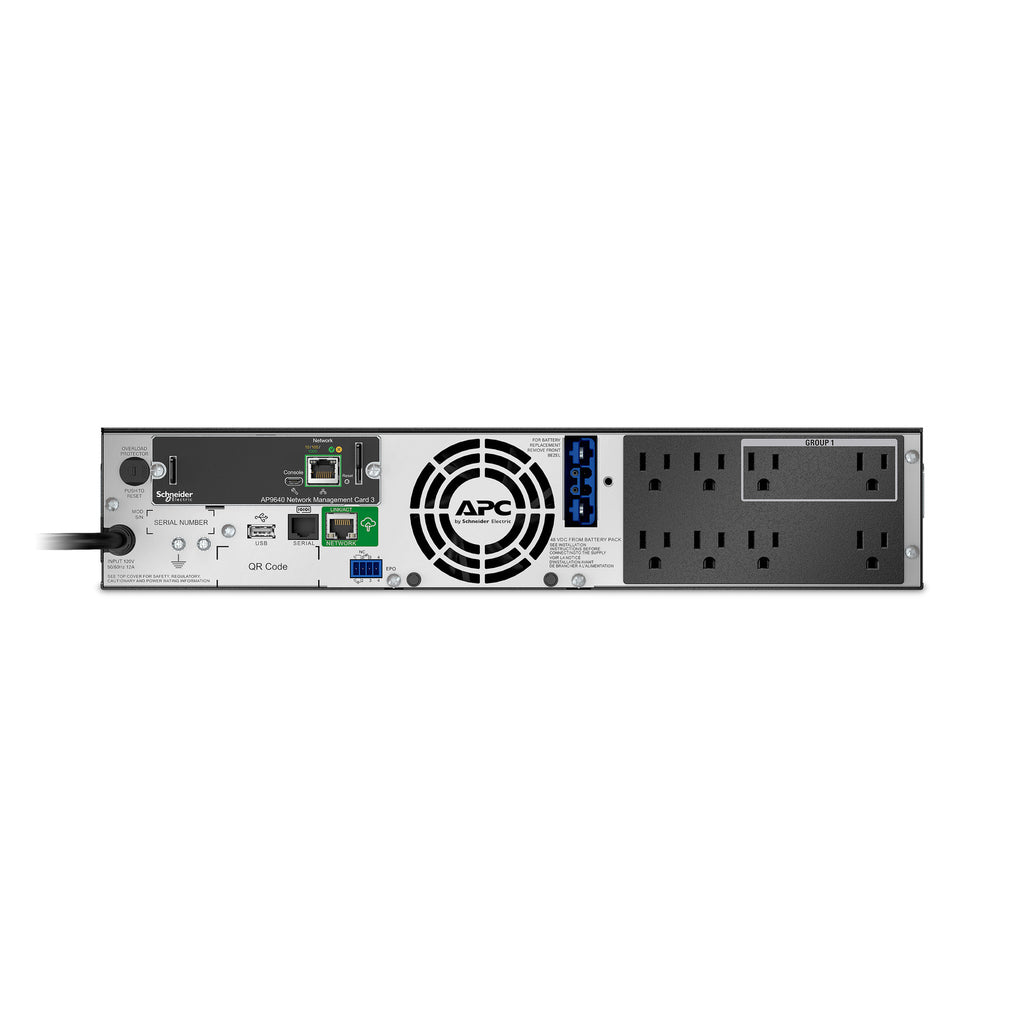

| Output Connections | 8x NEMA 5-15R |
| Power Capacity | 750 VA / 675 W |
| Max Configurable Power | 750 VA / 675 W |
| Runtime (Full Load) | 11.5 mins @ 660W |
| Runtime (Half Load) | 27 mins @ 330W |
| Battery Type | Lead-Acid (User Replaceable) |
| External Battery Support | Up to 5x SMX48RMBP2U |
| Recharge Time | Approx. 3 hours |
| Included Accessories | USB cable, Rack mount kit, RS-232 cable, AP9335T sensor |
| Management Ports | SmartConnect Ethernet, Preinstalled NMC (SmartSlot) |
| LCD Display | Multi-function status/control console |
| Emergency Power Off (EPO) | Yes |
| Surge Protection Rating | 645 Joules |
| Mounting | 2-post and 4-post racks with optional rail kit (SU032A) |
| Dimensions (H x W x D) | 3.50 x 17.01 x 19.29 in (8.9 x 43.2 x 49 cm) |
| Net Weight | 48.61 lbs (22.05 kg) |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Certifications | cUL Listed, ENERGY STAR V2.0 |
| Warranty | 3-Year UPS, 2-Year Battery (extendable with registration) |
| Country of Origin | Philippines |
| GTIN | 731304401117 |
