Description

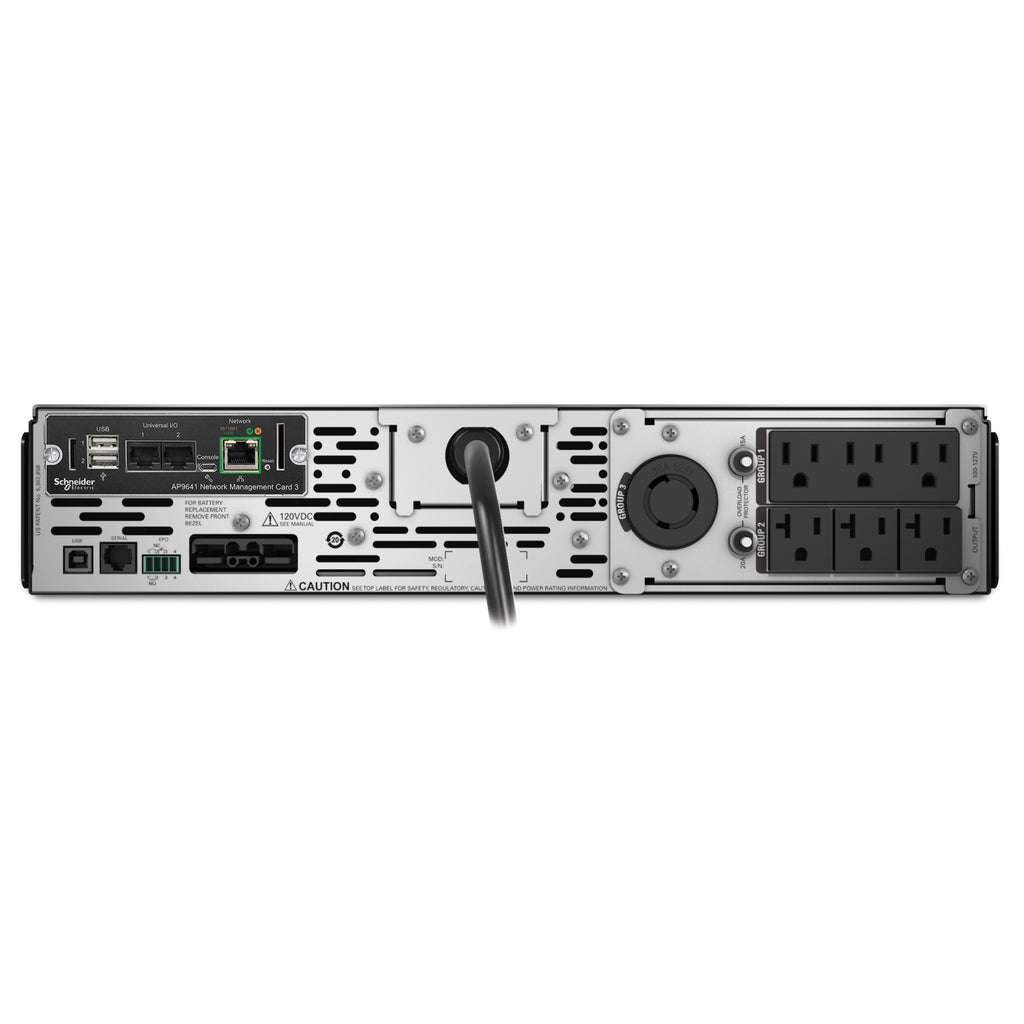

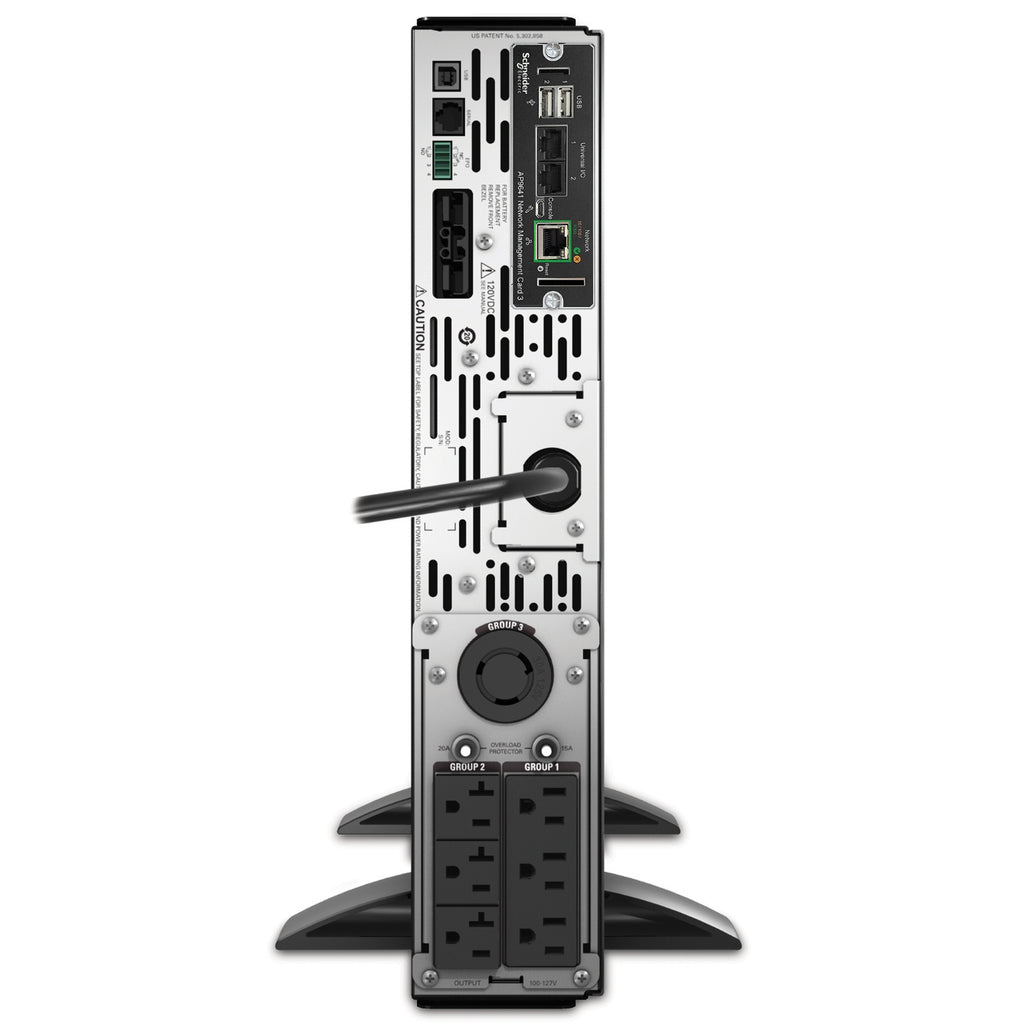

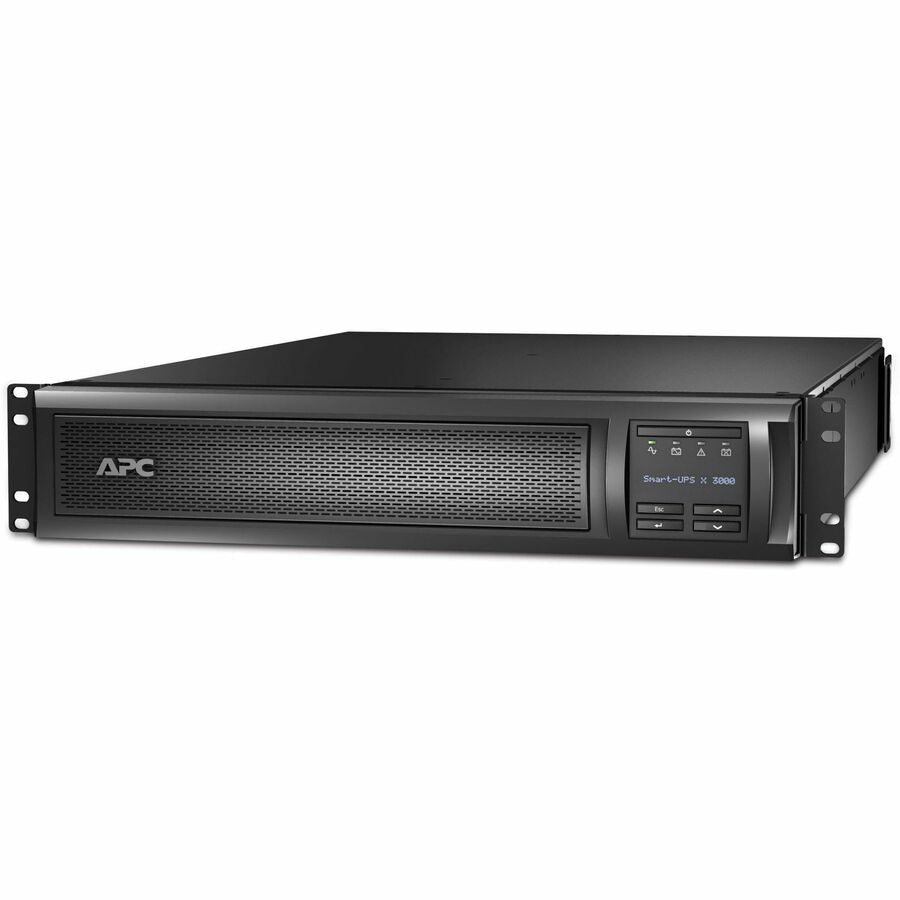

The APC Smart-UPS X SMX3KRMLVNCUS delivers reliable power protection and scalable battery runtime ideal for servers, point-of-sale, routers, switches, and other network devices. This 2880VA/2700W line interactive UPS features a 2U rack/tower convertible design, pure sine wave output, and extended runtime capabilities. It includes a preinstalled Network Management Card for remote monitoring and control, a SmartSlot, and user-selectable 100V–127V settings. Equipped with multiple NEMA outlets, it supports up to 10 additional battery packs and includes a 1-year Secure NMC subscription. Compatible with replacement battery APCRBC117US.
| Specification | Details |
|---|---|
| Model | SMX3KRMLVNCUS |
| Topology | Line Interactive |

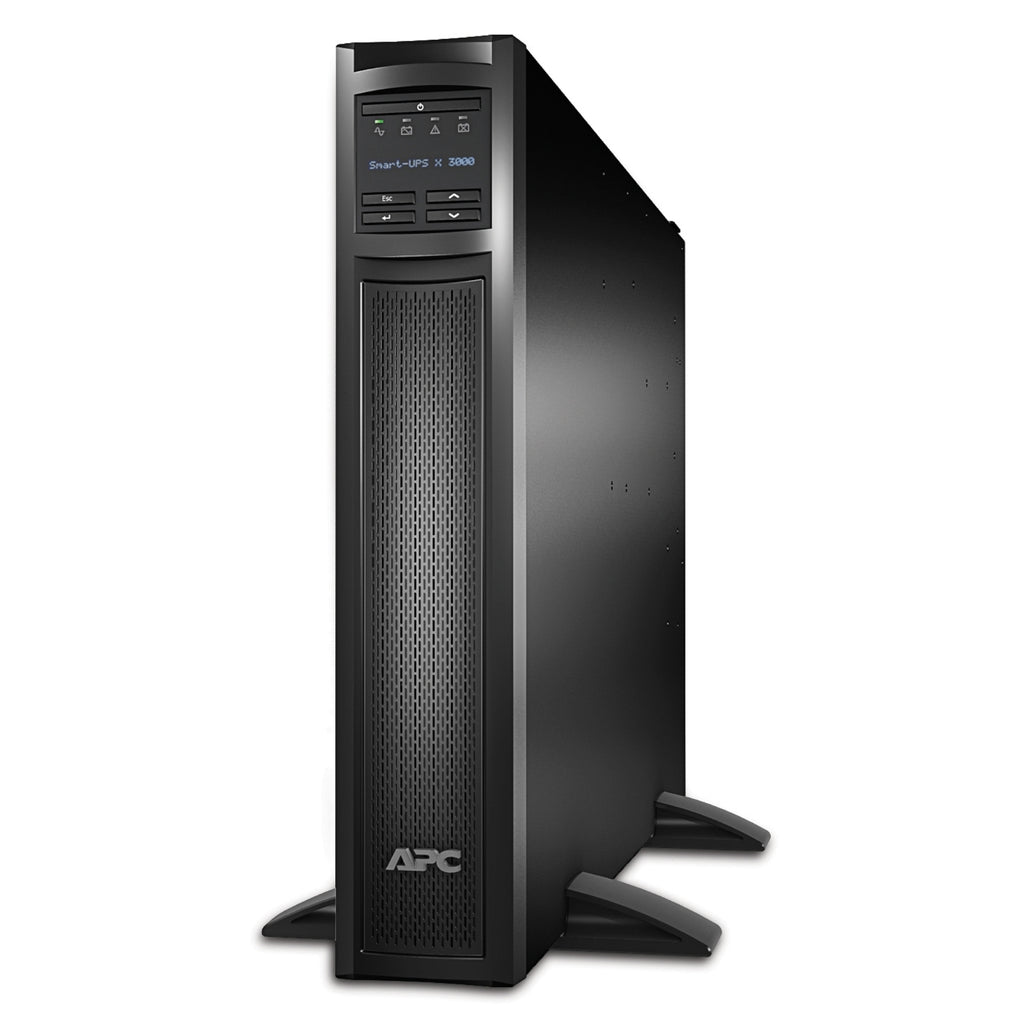

| Form Factor | Rack/Tower Convertible (2U) |
| Rated Power | 2880 VA / 2700 W |
| Output Voltage | 120V (user-selectable: 100V–127V) |
| Input Voltage | 120V (Range: 70–153V) |
| Input Connection | NEMA L5-30P |
| Output Connections | 3x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| Battery Type | Lead-acid, user-replaceable |
| Replacement Battery | APCRBC117US |
| Battery Runtime | Up to 6 minutes @ full load |

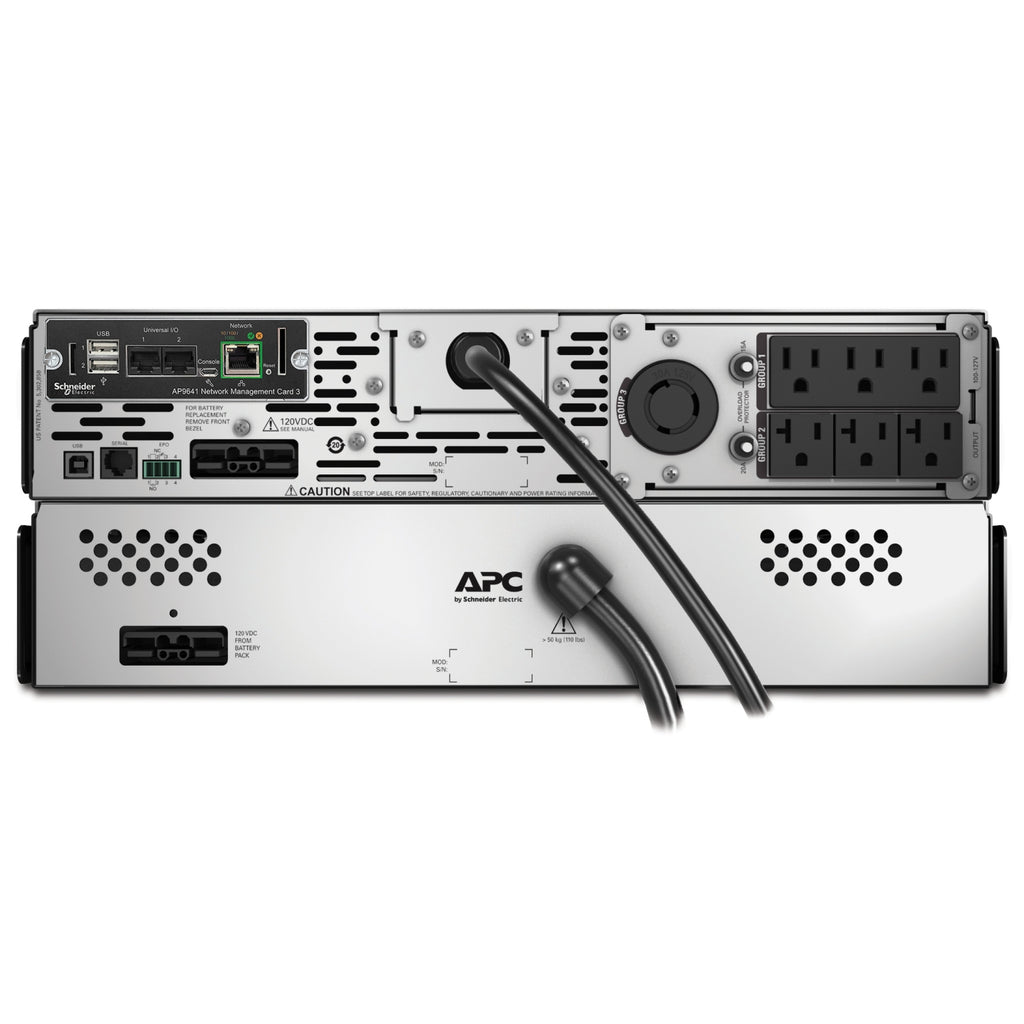

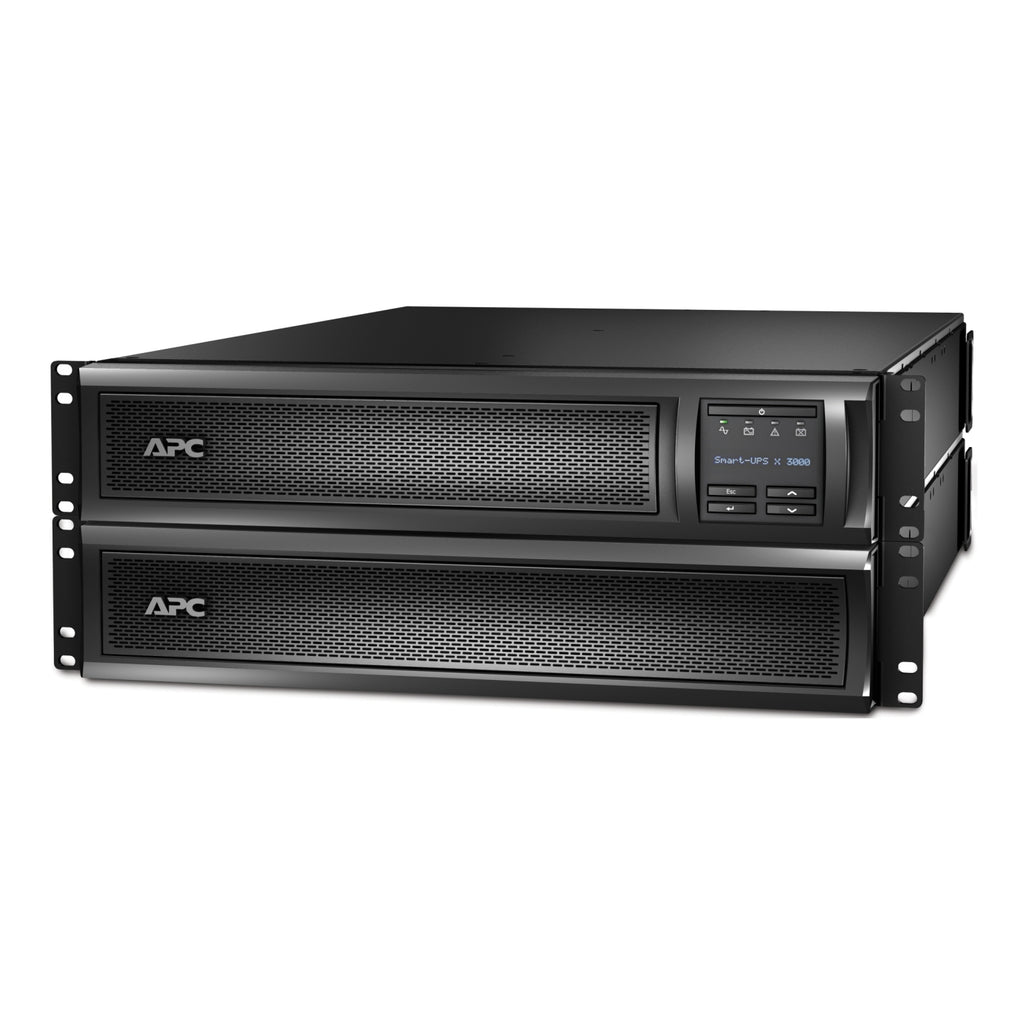

| Battery Expansion | Supports up to 10x SMX120RMBP2U |
| Battery Recharge Time | 3 hours |
| Network Management | Preinstalled NMC + 1-Year Secure NMC Subscription |
| Management Software | PowerChute Network Shutdown |
| Display | LCD + LED indicators |
| EPO (Emergency Power Off) | Yes |
| Mounting Hardware | Included (rack rails + tower feet) |
| Dimensions (HxWxD) | 3.35 x 17.01 x 26.26 in (2U) |
| Weight | 84.77 lbs (38.45 kg) |
| Operating Temp | 32–104°F (0–40°C) |
| Certifications | TAA, CSA, NOM, TÜV, VCCI Class A, BSMI |
| Surge Protection | 540 Joules |
| Warranty | 3 years (UPS), 2 years (battery) |
