Description
Note: This model is being discontinued. Please refer to the replacement model APDU9967.

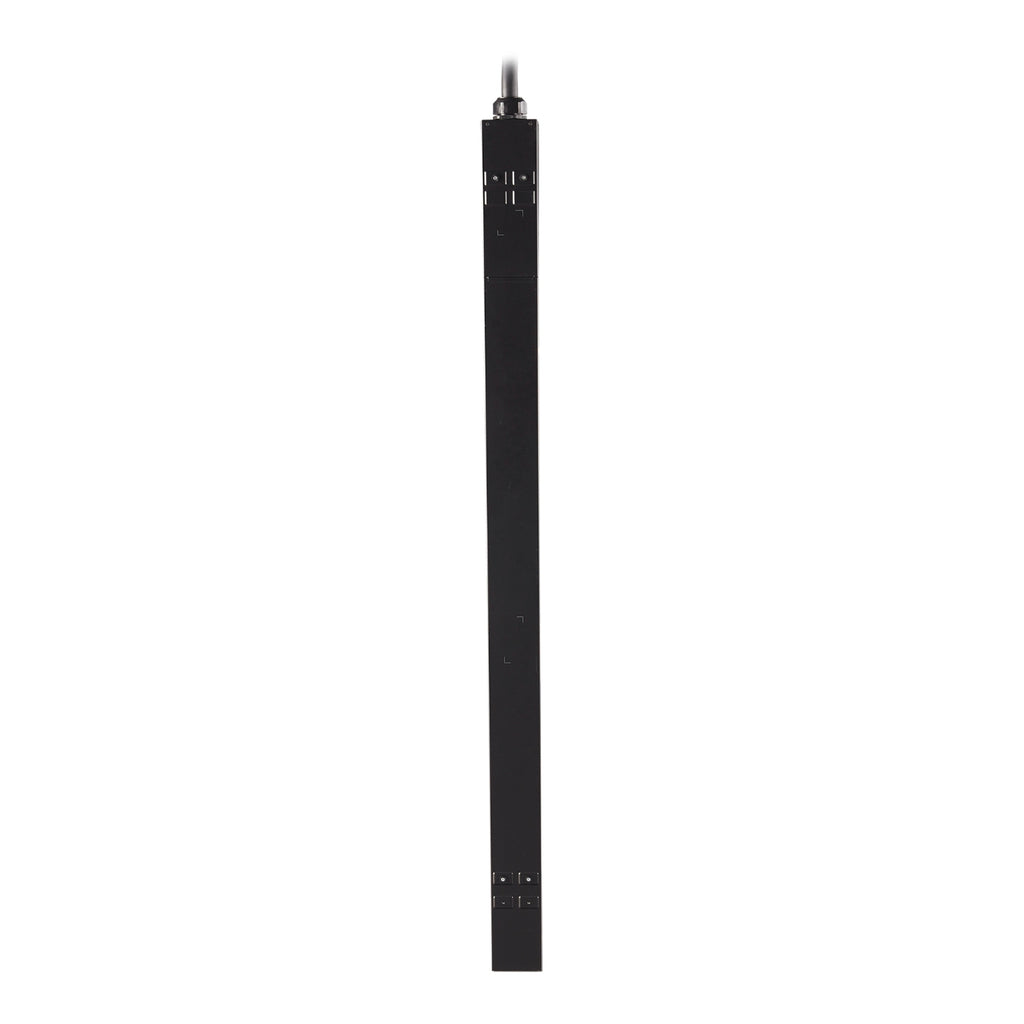

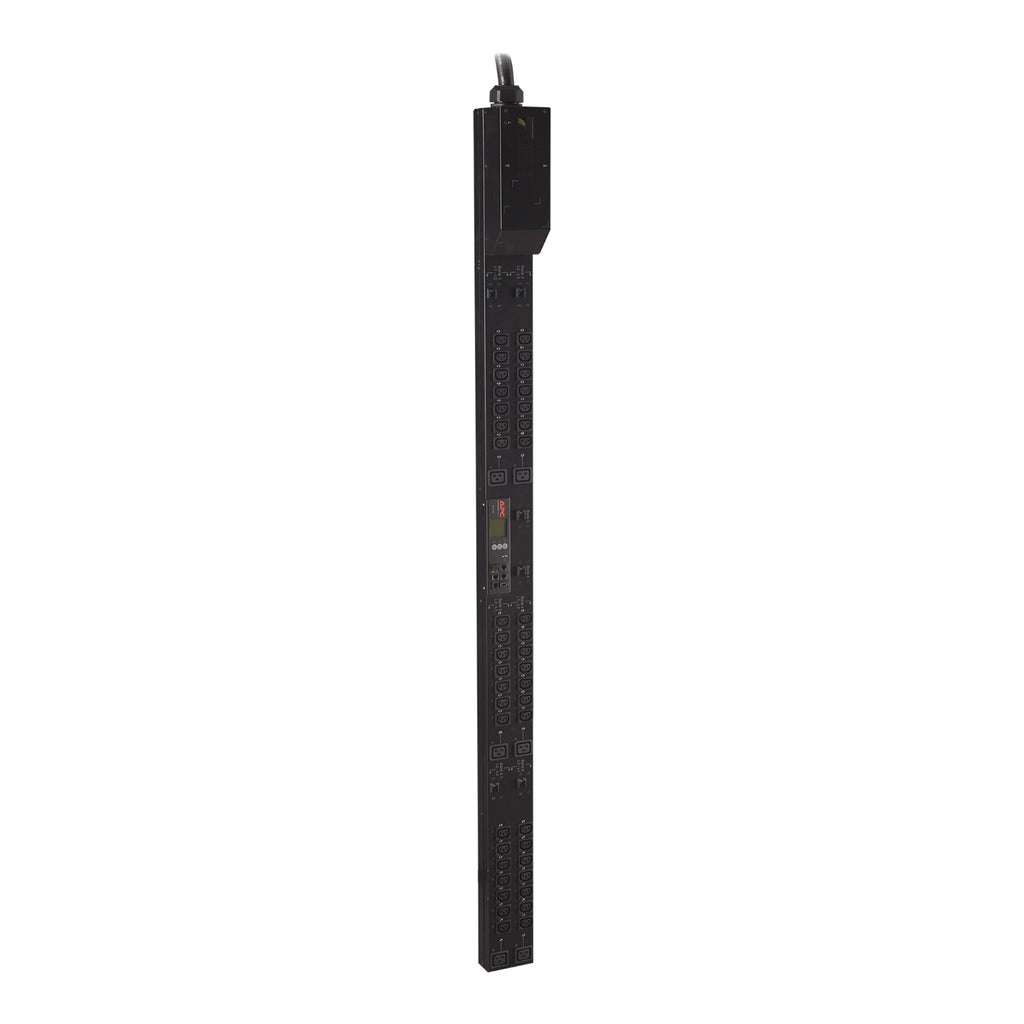

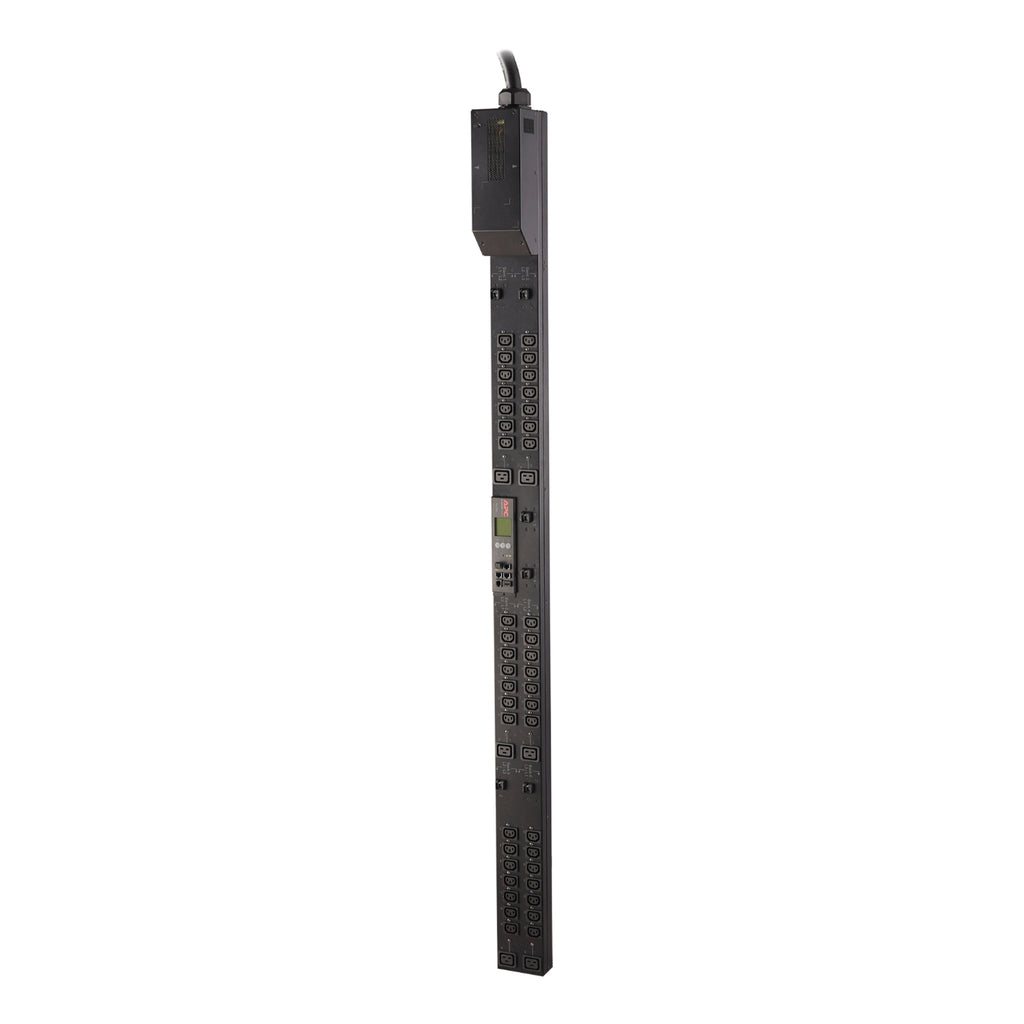

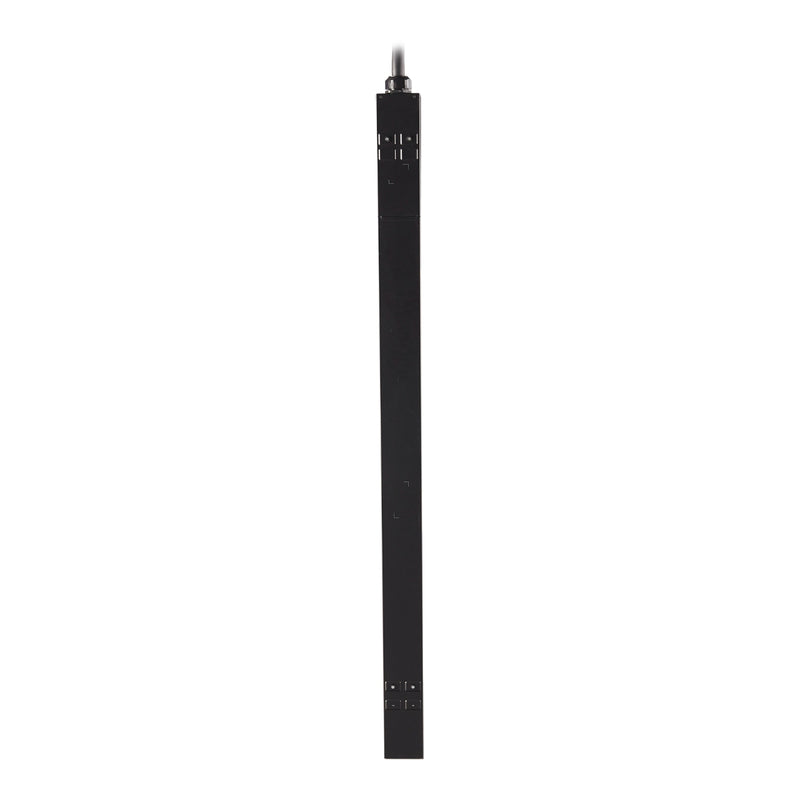

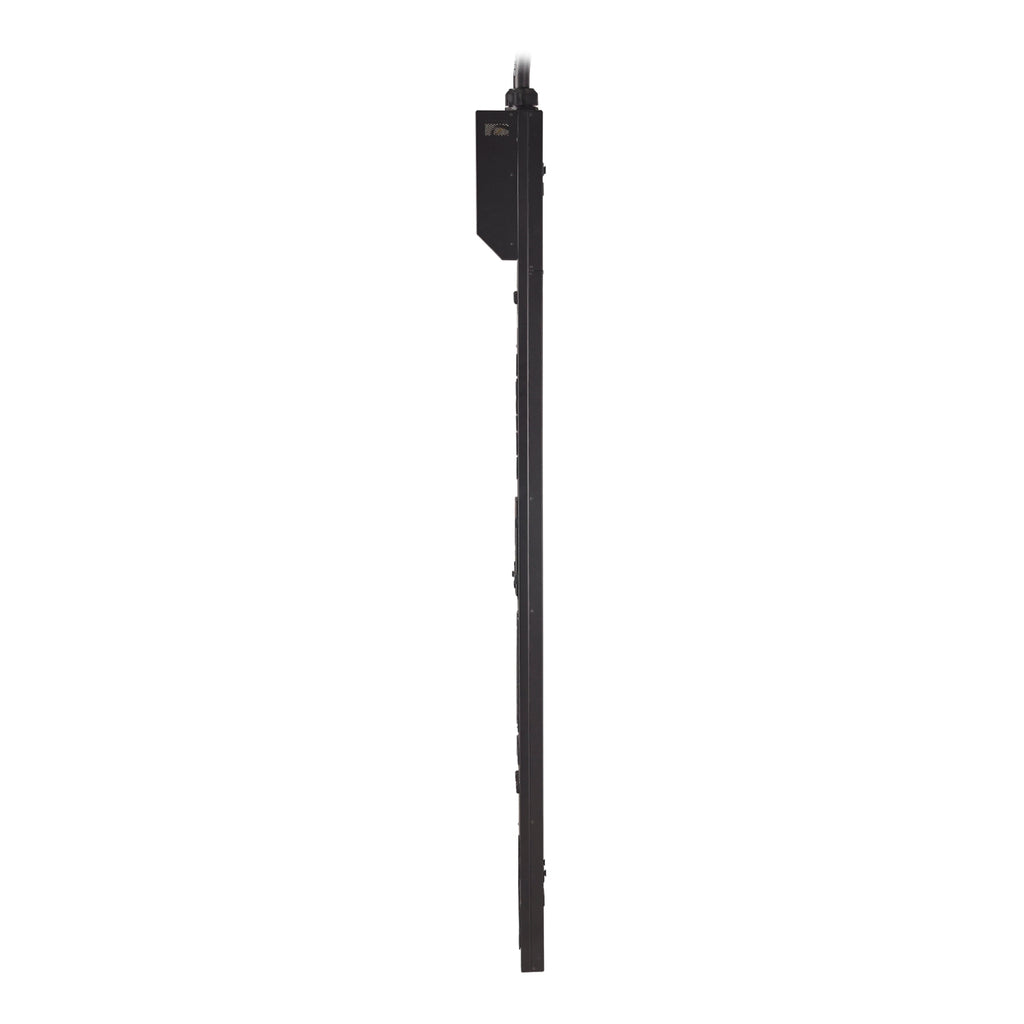

The APC AP8967 Switched Rack PDU offers advanced power distribution, customizable outlet-level control, and real-time monitoring for high-density IT environments. With 42 C13 and 6 C19 outlets, 60A input capacity, and a ZeroU form factor, it’s ideal for remotely managing and optimizing rack-level power. Features include sequencing, real energy metering, secure remote access, and alarm notifications to avoid overloads and enhance uptime. Designed for 3-phase 208V power applications with locking IEC receptacles and low-profile breakers.
| Category | Details |
|---|---|
| Model | AP8967 |
| Type | Switched Rack PDU |
| Form Factor | ZeroU |
| Mounting | Side-mounted, vertical |
| Input Voltage | 208V 3-phase |
| Input Plug Type | IEC 60309 60A 3P+PE |
| Cord Length | 6 ft (1.8 m) |
| Rated Input Current | 48A (Max 60A) |
| Output Voltage | 208V |
| Outlet Count | 42 × IEC C13, 6 × IEC C19 |
| Load Capacity | 17.3 kW (17300 VA) |
| Power Monitoring | Yes – real power metering |
| Remote Management | Web, SNMP, Telnet (via secure interface) |
| Environmental Monitoring | Temperature/humidity sensor port |
| Certifications | UL, cUL, VCCI Class A, EN 55022/55024, FCC A |
| Operating Temp | -5°C to 60°C (23°F to 140°F) |
| Dimensions (H x W x D) | 182.9 × 11.1 × 5.1 cm (72.01 × 4.37 × 2.01 in) |
| Weight | 15.88 kg (35.01 lb) |
| Warranty | 2 Years – Repair or Replace |
