Description

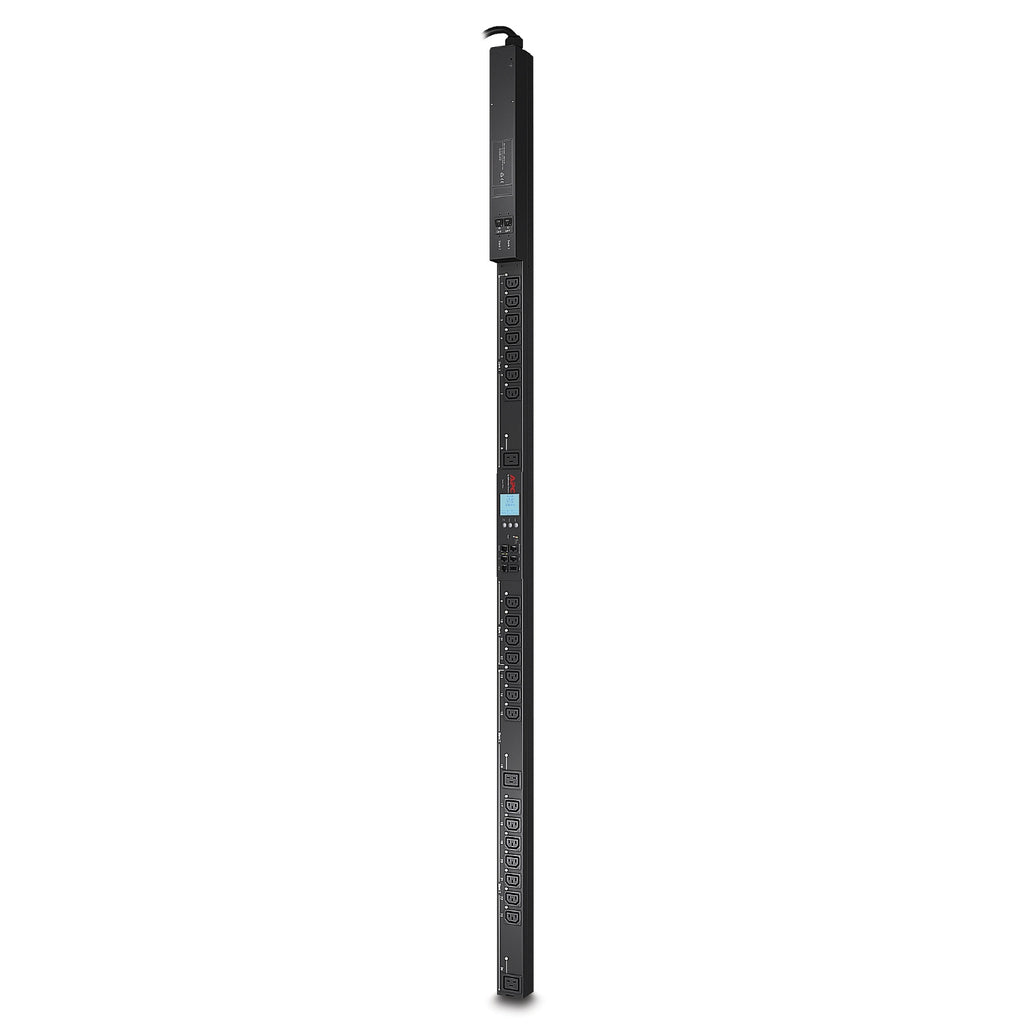

The APC AP8653 is a second-generation ZeroU Rack Power Distribution Unit (PDU) offering advanced outlet-level switching and metering. Ideal for high-density IT environments, this unit delivers 32A at 230V, supporting up to 7400VA through (21) IEC C13 and (3) IEC C19 outlets.
With real-time remote current monitoring and individual outlet switching, the AP8653 ensures intelligent power management, equipment rebooting, load balancing, and energy usage optimization. It features a 3-meter power cord with IEC 60309 plug, robust circuit protection, and seamless integration with APC centralized management platforms like EcoStruxure™ IT.

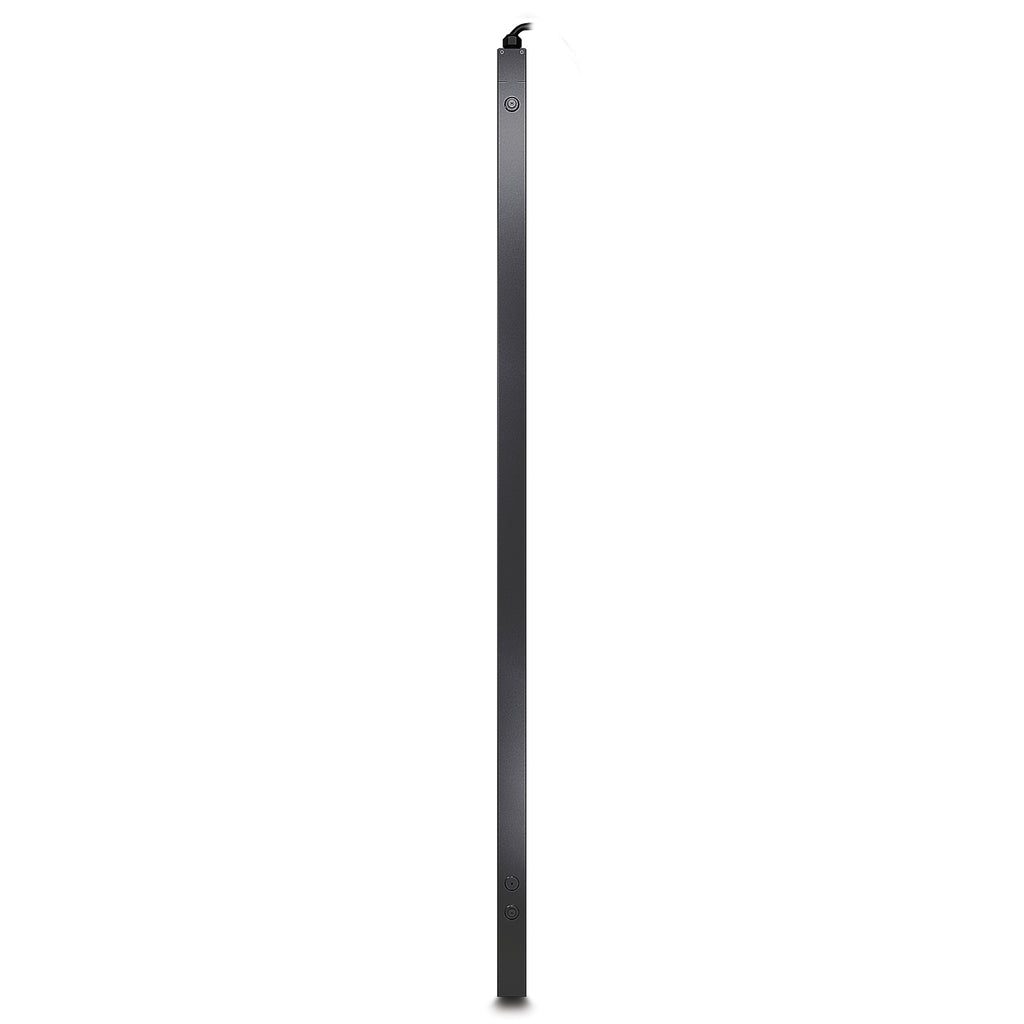

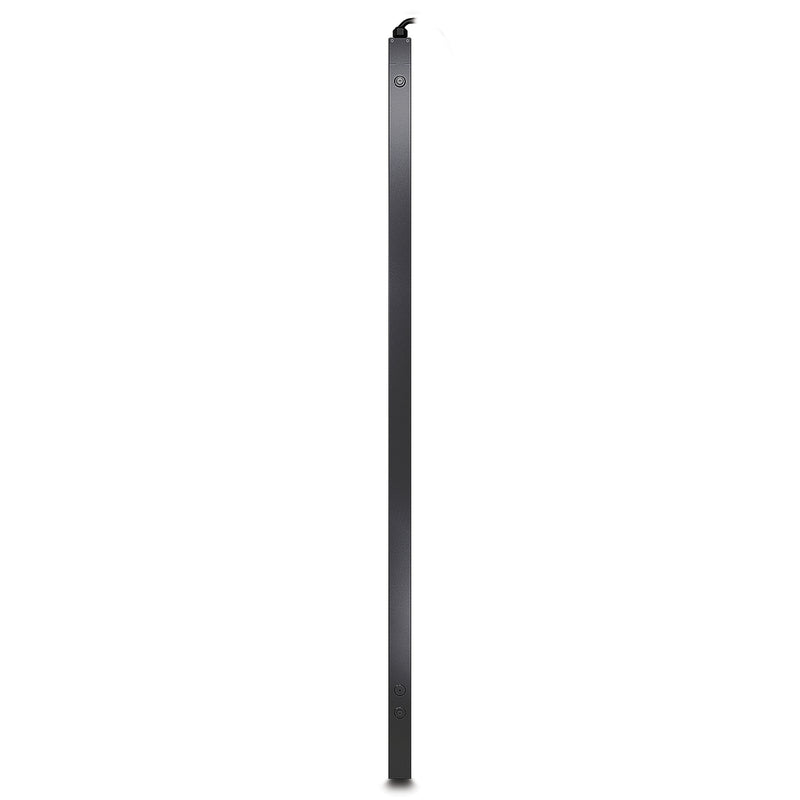

Engineered for vertical (ZeroU) mounting, it includes rack brackets, environmental monitoring port, and secure access via Web, SNMP, or Telnet.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | AP8653 |
| PDU Type | Metered by Outlet with Switching |
| Form Factor | ZeroU (Vertical Rack-Mount) |
| Mounting Location | Side (Vertical) |

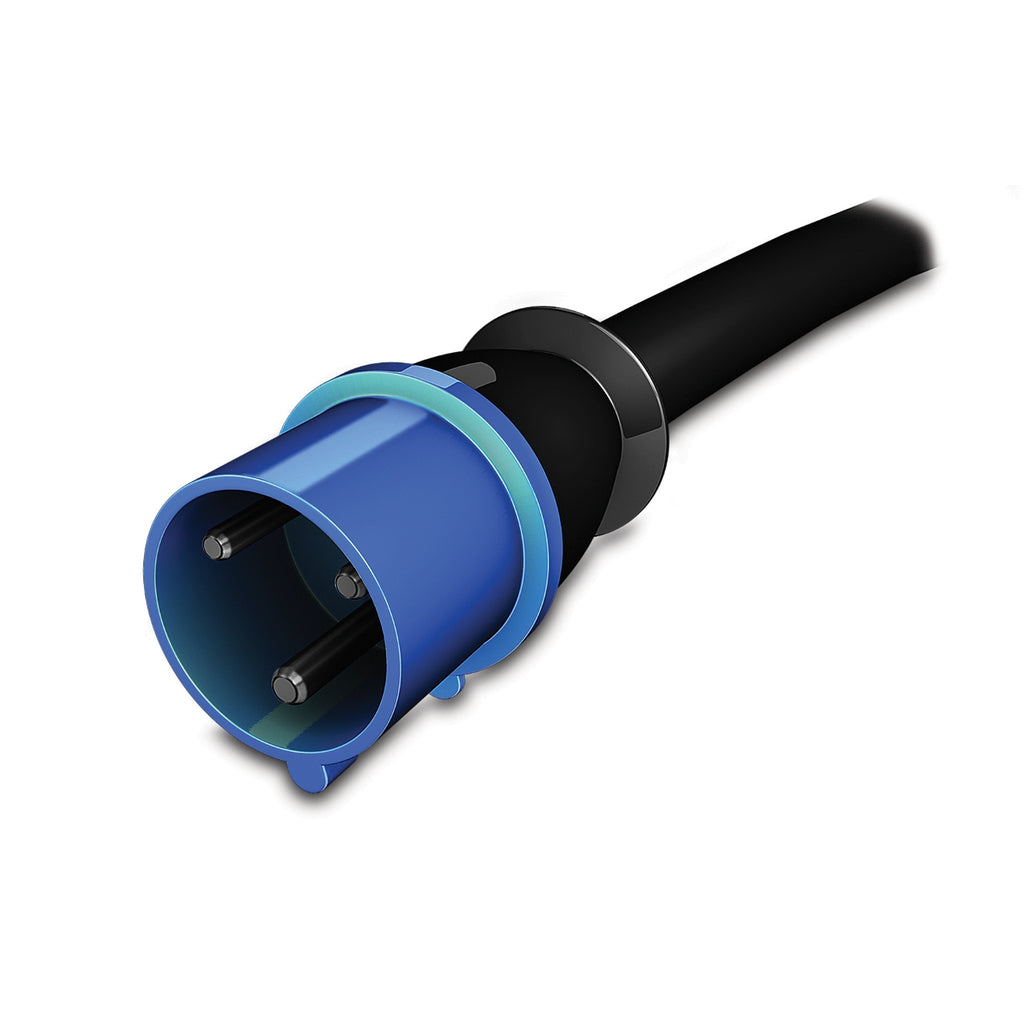

| Input Plug Type | IEC 60309 32A 2P + E |
| Cord Length | 3.0 meters |
| Input Voltage | 200V / 208V / 230V |
| Output Voltage | 230V |
| Max Load Capacity | 7400 VA |
| Max Input Current | 32A |
| Network Frequency | 50/60 Hz |
| Outlets | 21 × IEC C13, 3 × IEC C19 |
| Monitoring | Individual outlet current metering |
| Switching Capability | Remote on/off per outlet |
| Communications | Web, SNMP, Telnet |
| Environmental Monitoring | Yes (Sensor port) |
| Color | Black |
| Certifications | VDE, EN 55022 Class A, EN 61000-3-2/3 |
| Operating Temperature | -5°C to 60°C |
| Humidity Range | 5% to 95% RH |
| Operating Altitude | 0 to 10,000 ft |
| Dimensions (H x W x D) | 182.9 cm × 5.6 cm × 5.1 cm |
| Weight | 8.23 kg |
| Warranty | 2-Year Repair or Replace |
