Description
Advanced APC Rack PDU with remote switching, outlet-level metering, and load sequencing. Ideal for high-density IT environments needing intelligent power control.

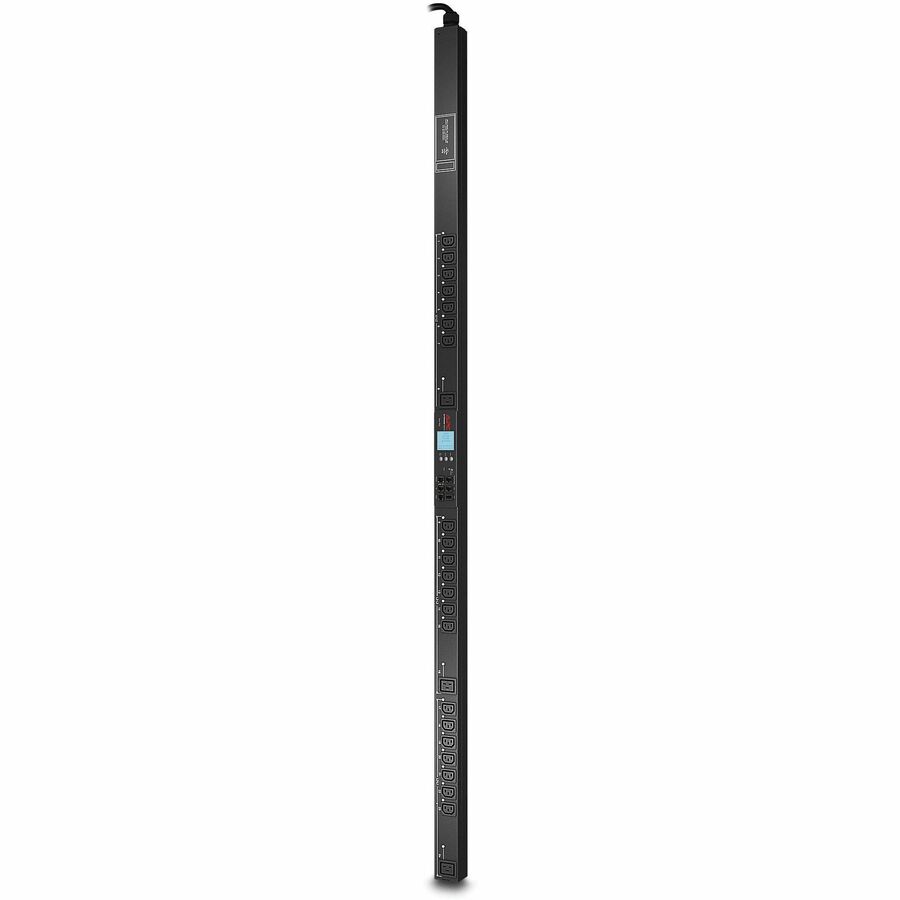

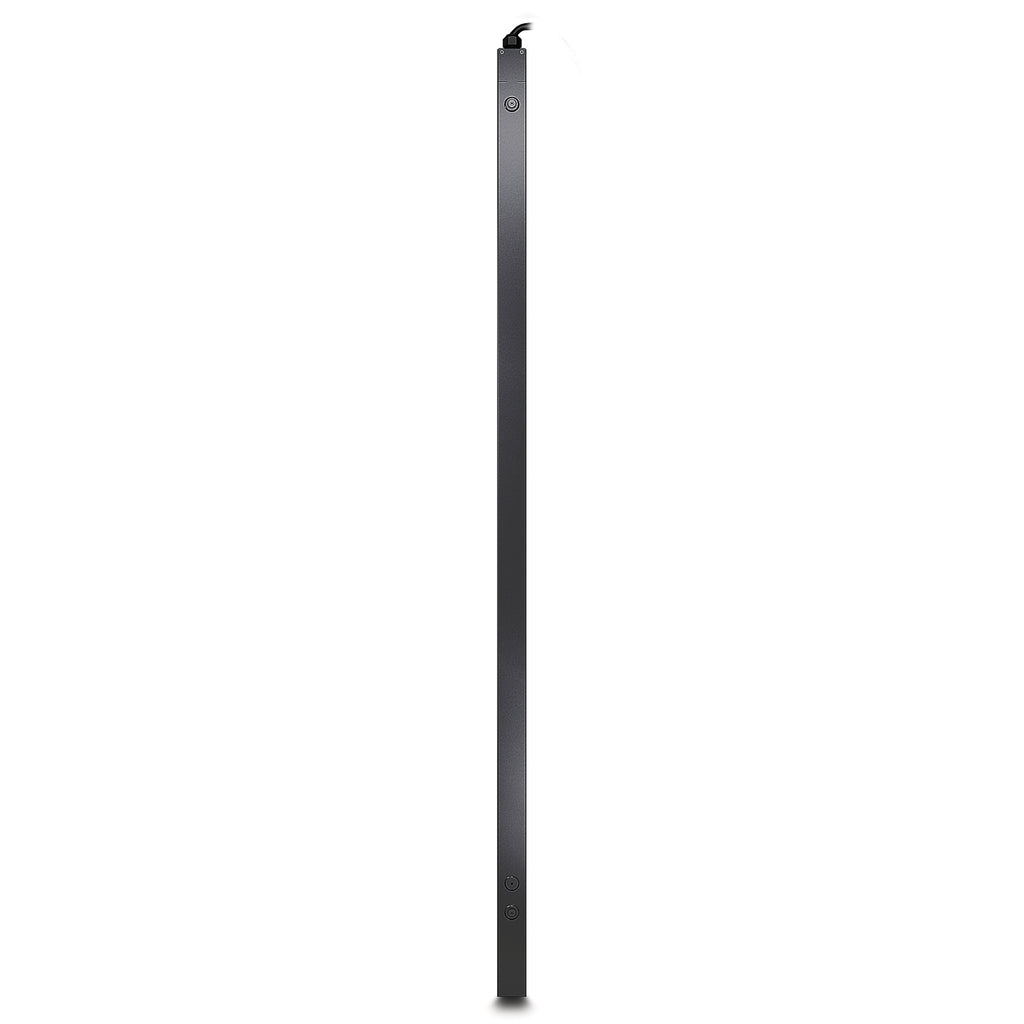

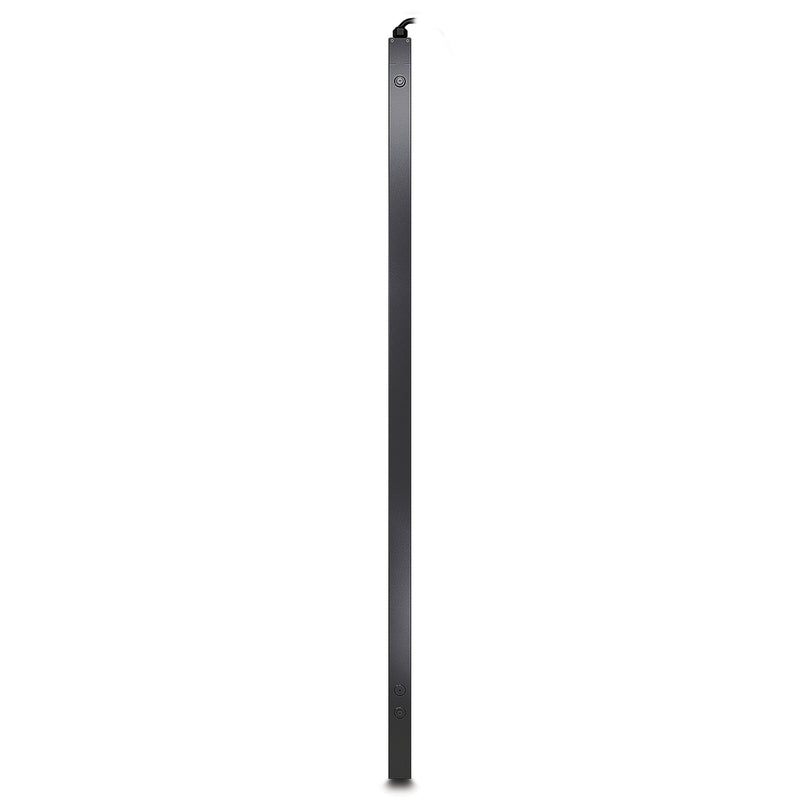

The APC AP8661 is a second-generation Rack PDU with Metered-by-Outlet and Switching functionality, designed to provide advanced, customizable power distribution and management. With 21 C13 and 3 C19 outlets, this ZeroU vertical unit allows individual outlet-level metering and remote switching to control power usage, reboot locked equipment, and prevent unauthorized use.
Built-in features include power sequencing delays to manage power recovery, real-time load metering, and user-defined alarms to prevent overloads. Integrated with a temperature/humidity sensor port and locking IEC receptacles, the unit is accessible via secure Web, SNMP, or Telnet interfaces. Seamlessly integrates with APC’s Centralized Management platforms including InfraStruxure Central, Capacity Manager, and Change Manager.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8661 |
| Product Type | Rack PDU, Switched, Metered by Outlet |
| Form Factor | ZeroU Vertical Mount |
| Mounting Mode | Rack-mounted (Vertical) |
| Mounting Location | Side |
| Rack Units | 0U |
| Input Voltage | 208V 3-Phase |
| Output Voltage | 208V |

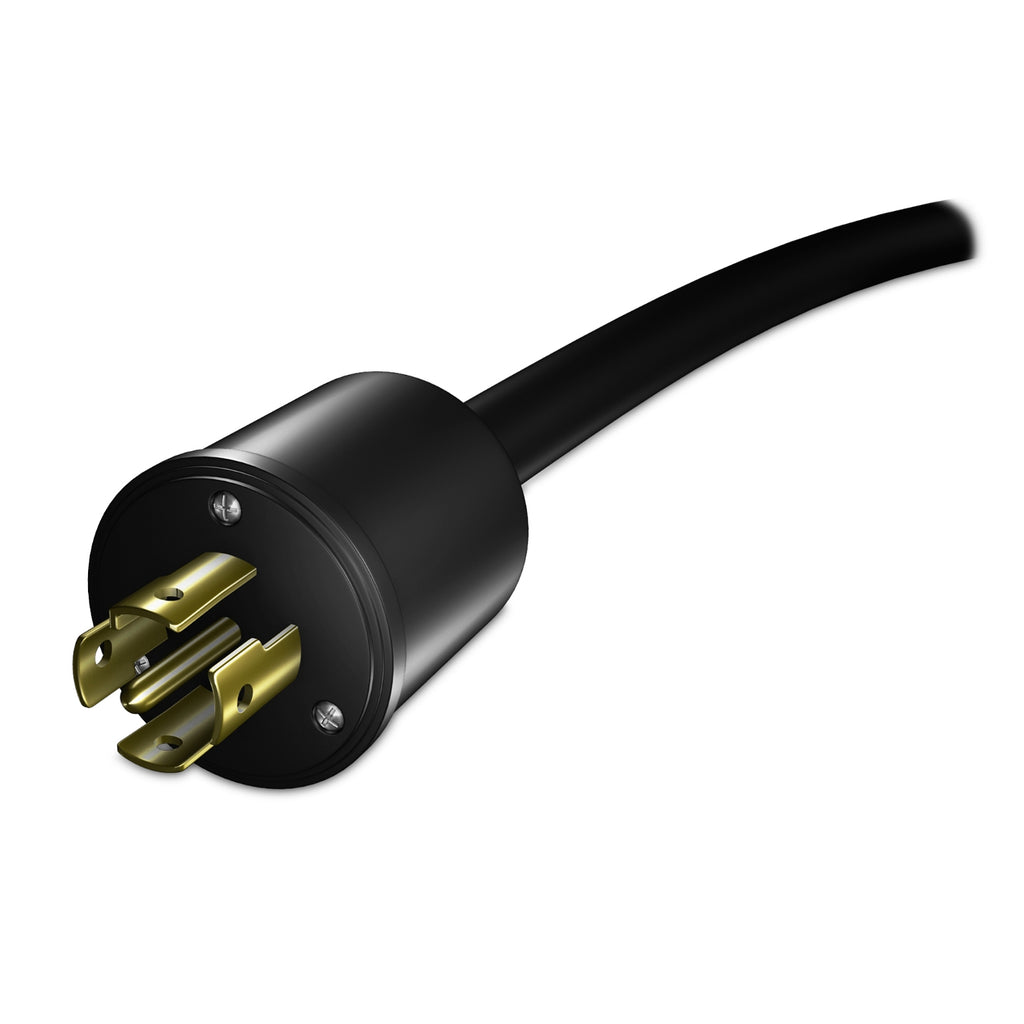

| Input Plug Type | NEMA L21-20P |
| Output Connections | 21 × IEC C13, 3 × IEC C19 |
| Load Capacity | 5700 VA |
| Line Rated Current | 16A |
| Max Input Current | 20A |
| Input Frequency | 50/60 Hz |
| Cord Length | 6 ft (1.8 m) |
| Power Monitoring | Per Outlet Level |
| Switching Capability | Yes (Individual Outlets) |
| Communication Ports | Web, SNMP, Telnet |
| Sensor Support | Yes (Temperature/Humidity port) |
| USB Compatible | No |
| Color | Black |
| Height | 72.01 in (182.9 cm) |
| Width | 2.20 in (5.6 cm) |
| Depth | 2.01 in (5.1 cm) |
| Weight | 15.74 lb (7.14 kg) |
| Certifications | UL Listed, cUL Listed, VCCI Class A |
| Standards Compliance | FCC Part 15 Class A, ICES-003 |
| Operating Temp | -5 to 60 °C (23 to 140 °F) |
| Storage Temp | -25 to 65 °C (-13 to 149 °F) |
| Humidity Range | 5–95% RH (Operating & Storage) |
| Altitude (Op/Storage) | Up to 10,000 ft / 50,000 ft |
| Included Accessories | Mounting brackets, CAN terminator, safety guide, installation guide, serial config cable |
| Warranty | 2-Year Repair or Replace |
| Country of Origin | India |
| GTIN | 731304276999 |
